350-501 Implementing and Operating Cisco Service Provider Network Core Technologies (350-501 SPCOR) Question and Answers

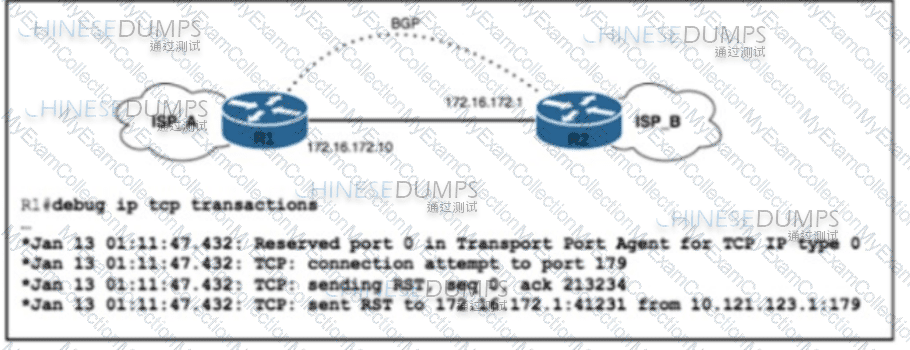

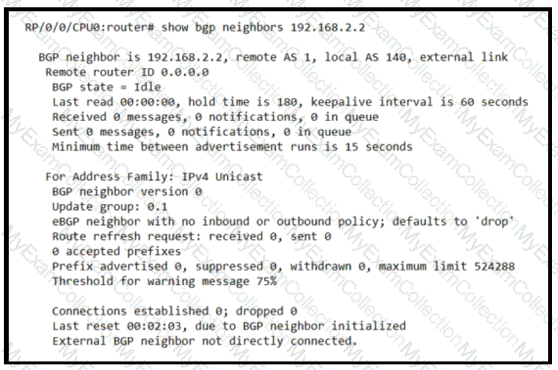

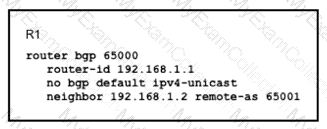

 The ttl-security hops  command sets the maximum number of hops that a BGP message can traverse. In this case, setting ttl-security hops 2 means that the router will accept BGP packets from a neighbor (2.2.2.2) only if the TTL is 253 or more. This is because the default TTL value is 255, and for each hop, the TTL is decremented by 1. Therefore, a packet from a directly connected neighbor would have a TTL of 254 when it reaches the PE router. If the packet has traversed one more router (making it two hops away), the TTL would be 253 upon arrival.

References: This information is based on the TTL security mechanism described in the Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) training materials,

 YAML’s readability and straightforward syntax make it an ideal choice for expressing infrastructure as code, which is a core principle in both Ansible and SaltStack for automating and managing IT infrastructure.

References: For more detailed information, please refer to the official documentation for Ansible and SaltStack, as well as the Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) course materials.

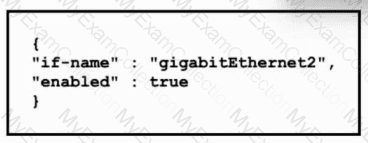

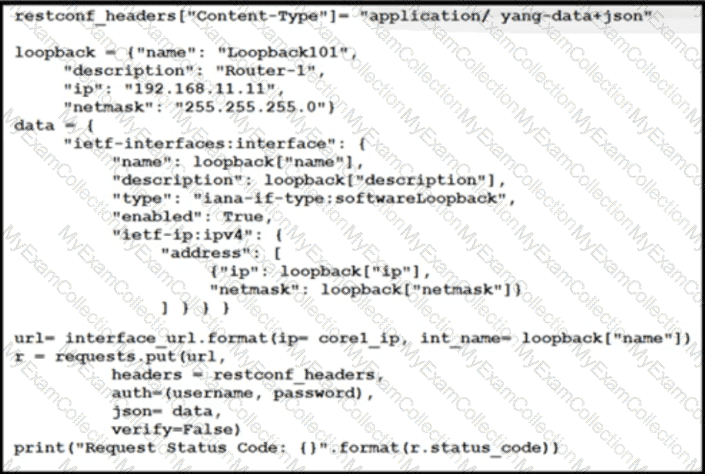

 The REST API command shown in the exhibit is a POST request to a specific URL, indicating that it is used to submit data to be processed to a specified resource. In this case, the resource is an XML file named “Descriptions.xml”. POST requests are used when submitting data to be processed by the resource identified by the URI. The nature of the process conducted on the submitted data depends on that particular URI. References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) - REST API section.

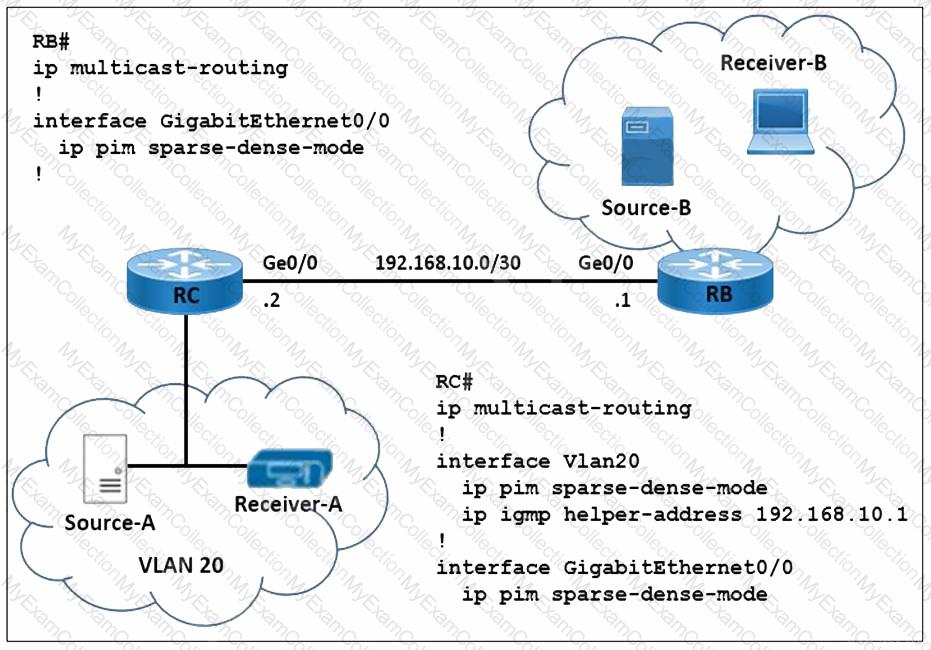

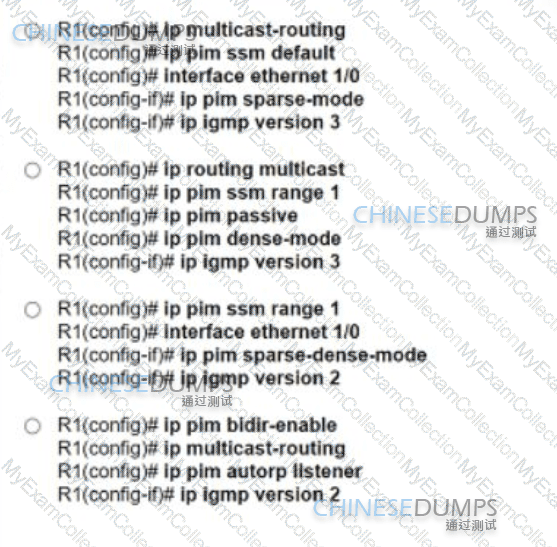

To reduce network usage and minimize leave latency for users connected to VLAN 76, the configurations should focus on efficient multicast traffic management. Option A likely involves enabling IPv6 MLD snooping, which restricts multicast traffic to only the ports that have members interested in receiving the traffic, thus reducing unnecessary network usage. Option C might include configuring fast-leave processing, which allows the switch to immediately stop forwarding multicast traffic to a port when the last member of a multicast group leaves, reducing leave latency.

References := Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR)

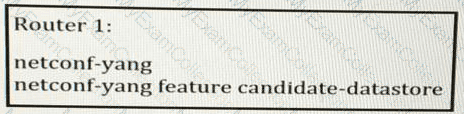

The configuration shown in the exhibit indicates that Router 1 is configured with NETCONF-YANG and has enabled the feature candidate-datastore. This means that Router 1 has a temporary data store where a copy of the running configuration can be manipulated and verified before committing the configuration. This allows administrators to test changes before applying them to the running configuration, reducing the risk of errors that could impact network operations.

References: = Implementing and Operating Cisco Service Provider Network Core Technologies course materials.

The configuration shown in the exhibit is used to disable IP directed-broadcasts on a specific interface of a network device. This is typically done to mitigate smurf attacks, which involve sending a large amount of ICMP echo (ping) traffic to IP broadcast addresses, all having a spoofed source address of the victim’s IP. By disabling IP directed-broadcasts, the network device will not forward packets that are sent to broadcast addresses, thus mitigating this type of DDoS attack. References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) - Module on Security in the Service Provider Network

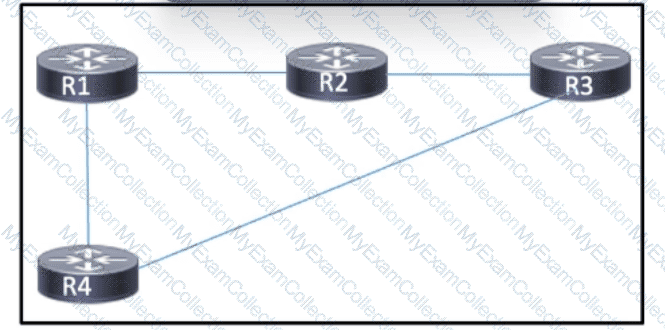

Router 4 must be in the same area as Router 1, so it should have the same area address which is “49.0111”. The system ID can be different to uniquely identify the router in that area, but since there is no option with a different system ID and the same area address, option B is correct as it has both the same area address and system ID as Router 1. References := Cisco

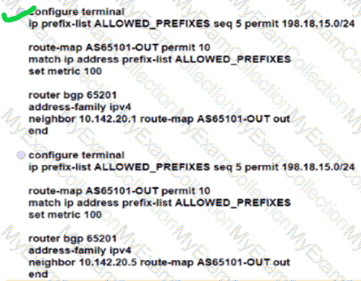

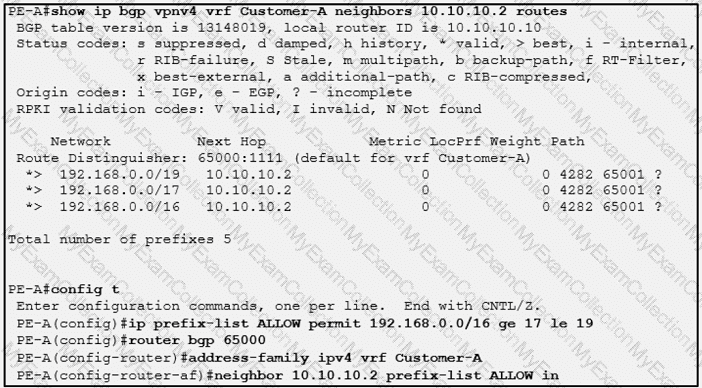

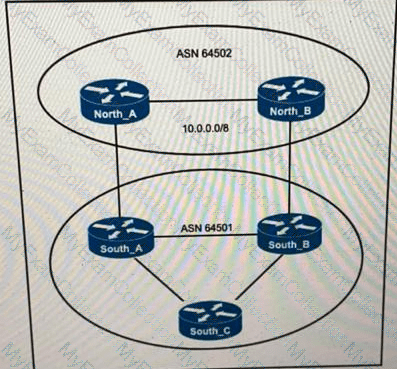

To ensure that a router advertises only networks with a prefix mask length less than or equal to 21 to its BGP neighbor, the correct configuration is Option A. This involves applying a prefix list that permits updates for networks with the specified prefix length. The prefix list acts as a filter for outgoing route advertisements in BGP, ensuring that only routes that match the criteria are advertised to the neighbor.

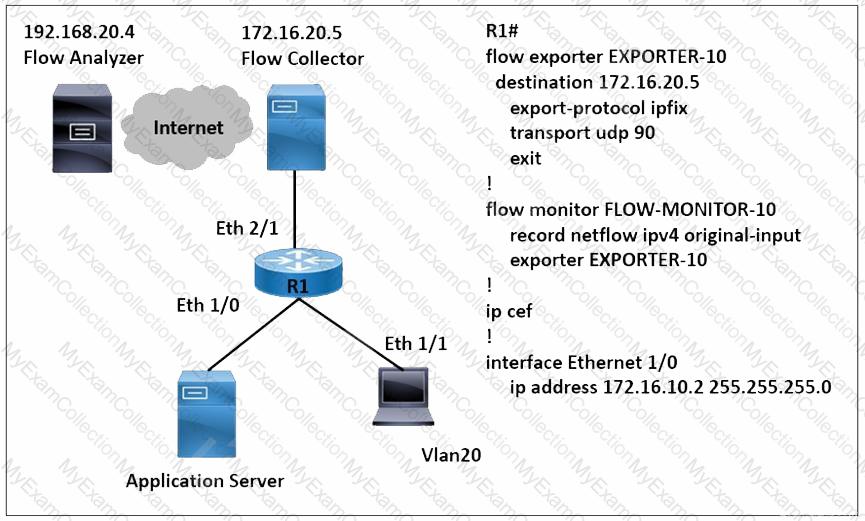

https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/fnetflow/configuration/xe-3s/fnf-xe-3s-book/fnf-ipfix-expor t.html#d27853e197a1635

To achieve this, router 2 should use a route map to filter the routes being redistributed from BGP into OSPF. Specifically, the route map should match the internal route from Lo 2 (which is the loopback interface on router 2) and allow only that route to be redistributed. The other options do not achieve this specific requirement. References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) source book.

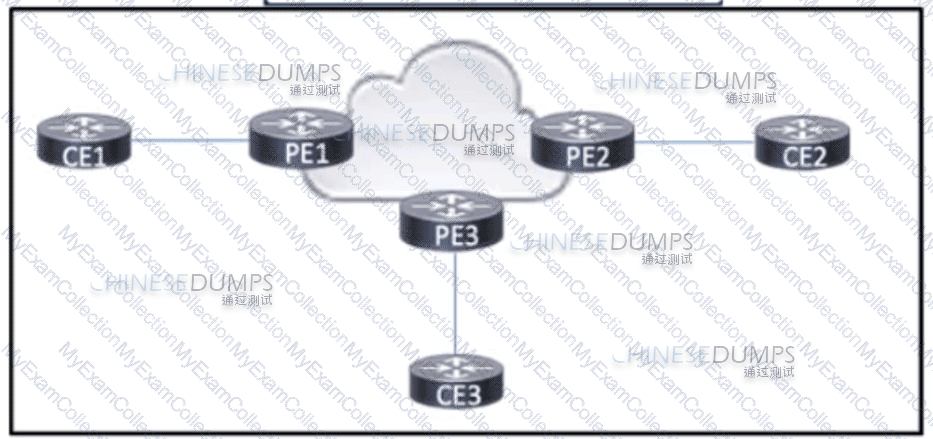

 In Cisco Service Provider Network Core Technologies, an EVPN instance can be likened to a VRF (Virtual Routing and Forwarding). A VRF allows multiple instances of a routing table to co-exist within the same router at the same time. Similarly, EVPN provides separation between routing instances which aligns with how VRF operates.

https://www.cisco.com/c/en/us/td/docs/routers/asr9000/software/asr9k-r6-5/ip-addresses/configuration/guide/b-ip-addresses-cg-asr9000-65x/m-implementing-lpts-asr9000-crs.html

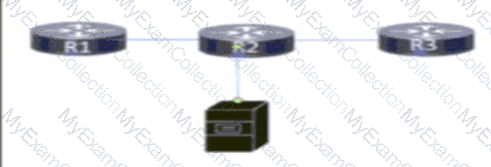

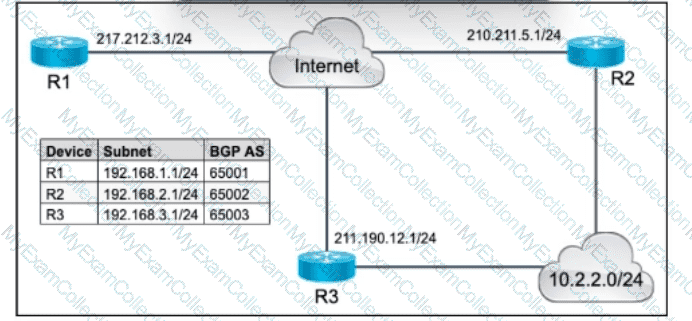

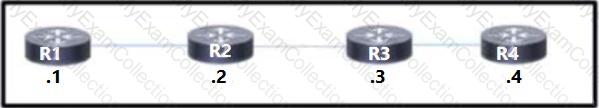

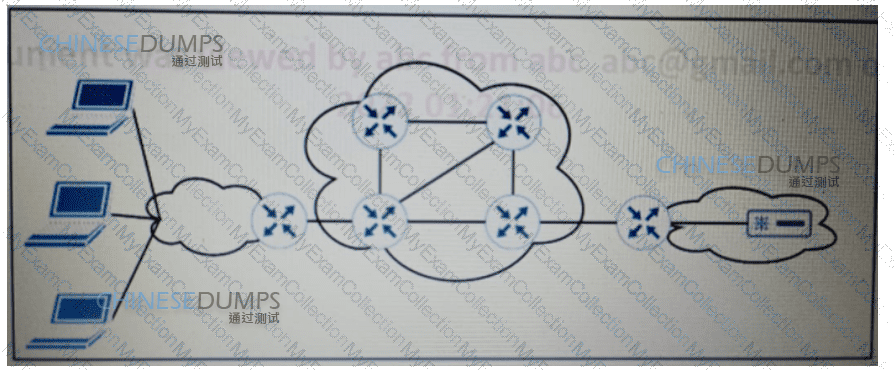

To ensure that critical, time-sensitive data from the server on R1 to the host on R3 is always prioritized, especially during congestion, the network engineer should implement a Quality of Service (QoS) strategy that uses strict priority queuing. This QoS mechanism ensures that traffic marked as high priority is transmitted first, while other traffic may be queued or dropped if necessary. Strict priority queuing is designed for scenarios exactly like this, where certain traffic must be guaranteed bandwidth to meet time-sensitive requirements. References := For more detailed information on QoS strategies and classification, refer to the Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) course materials, specifically the sections discussing QoS mechanisms and their implementation in service provider networks. Additionally, Cisco’s official documentation on QoS provides comprehensive guidelines on configuring and applying strict priority queuing to ensure bandwidth for critical traffic.

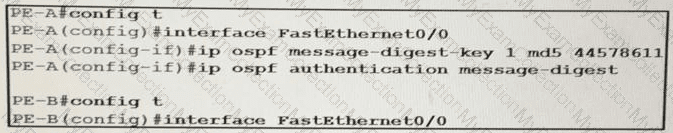

The correct command to authenticate the OSPF neighbor between PE-A and PE-B using MD5 is found in Option A. In this option, the command ip ospf message-digest-key 1 md5 44578611 is used to configure OSPF MD5 authentication on an interface with the key ID as 1 and key string as 44578611. The second command ip ospf authentication key-chain 44578611 is used to enable OSPF authentication on an interface and associate it with a specific key chain. References := Cisco - Implementing and Operating Cisco Service Provider Network Core Technologies

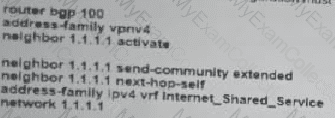

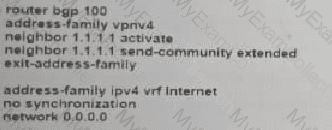

 Both options provide a default route pointing to CE-1, allowing CE-2 to access the internet. The specific choice would depend on additional context or requirements not provided in the question.

References:

• Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) study materials.

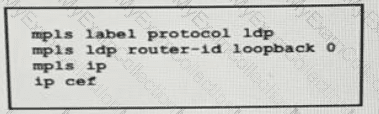

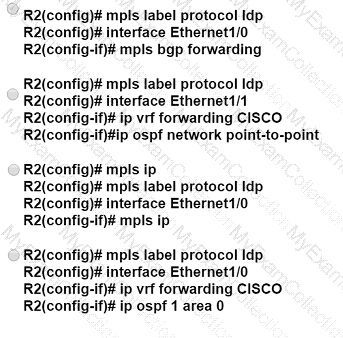

 MPLS LDP (Label Distribution Protocol) is used for label distribution in MPLS networks. When making changes to the LDP configuration, it’s essential to ensure that the changes do not disrupt existing LDP sessions. In this scenario, the network administrator implemented MPLS LDP changes on the PE-A LSR (Label Switching Router) device, and the goal is to prevent any disruption to LDP peers.

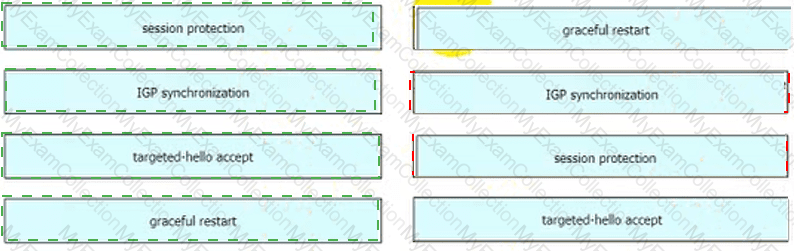

The MPLS LDP Non-Stop Routing (NSR) feature allows LDP sessions to survive control-plane switchover events without interruption. When NSR is enabled, the LDP session state information is synchronized between the active and standby control planes. If the active control plane fails, the standby control plane takes over seamlessly, and LDP sessions continue without interruption.

https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/msp/configuration/xe-3s/mp-ha-xe-3s-book/mp-nsr-ldp-supp.pdf

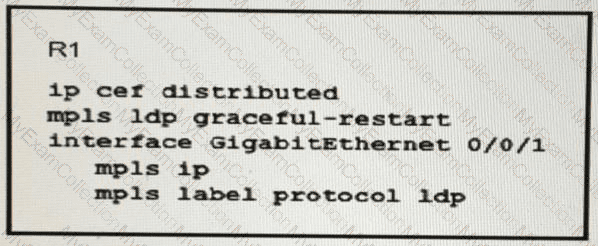

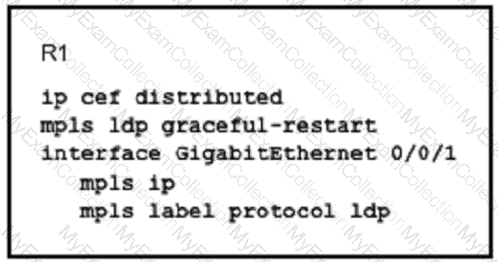

The mpls ldp graceful-restart command is applied in the global configuration mode in IOS XE Software. This command enables MPLS LDP Graceful Restart, which assists a neighboring router with MPLS LDP Stateful Switchover/Nonstop Forwarding (SSO/NSF) Support and Graceful Restart to recover gracefully from an interruption in service without losing its MPLS forwarding state1.

References: MPLS Configuration Guide, Cisco IOS XE 17.x1.

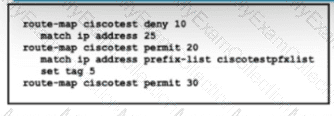

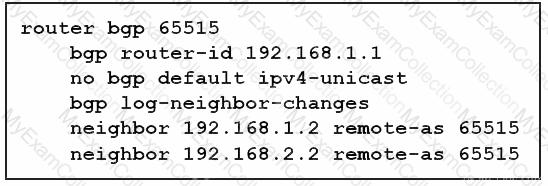

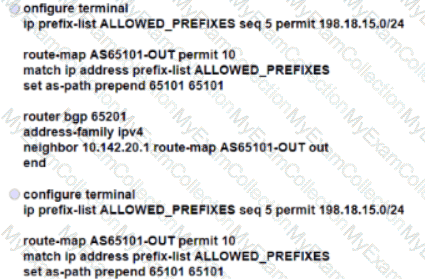

 To complete the implementation of the route map “ciscotest” for filtering routes to a BGP peer, the engineer must attach the route map to the BGP neighbor statement in the inbound direction. This will apply the specified filtering criteria to routes received from the BGP neighbor, thereby limiting access to restricted areas within the network as intended by the client. References := The Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) course materials discuss the configuration of route maps and their application to BGP neighbors for route filtering purposes

https://www.cisco.com/c/en/us/support/docs/quality-of-service-qos/qos-policing/19645-policevsshape.html

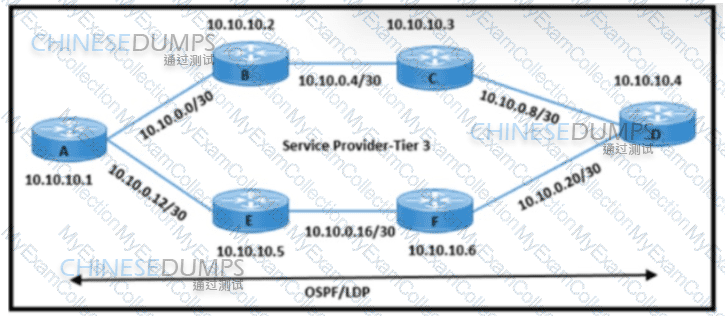

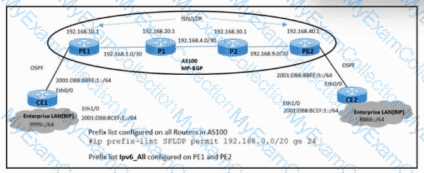

The correct configuration to reduce LDP LIB size and advertise label bindings for the /32 loopback IP space only is to use an IP prefix-list that specifies the /32 prefix length and then configure MPLS LDP to allocate labels for these prefixes. The ip prefix-list LOOPBACKS seq 5 permit 0.0.0.0/0 le 32 command creates a prefix-list named LOOPBACKS that allows any IP address with a prefix length less than or equal to 32. The mpls ldp label allocate global prefix-list LOOPBACKS command then instructs the router to allocate labels for all prefixes permitted by the LOOPBACKS prefix-list, which in this case, would be all /32 prefixes. References: The explanation is based on the concepts covered in the SPCOR course, specifically the sections on MPLS LDP configuration and optimization. For more detailed information, refer to the official Cisco SPCOR course materials and documentation available at Cisco’s official training page.

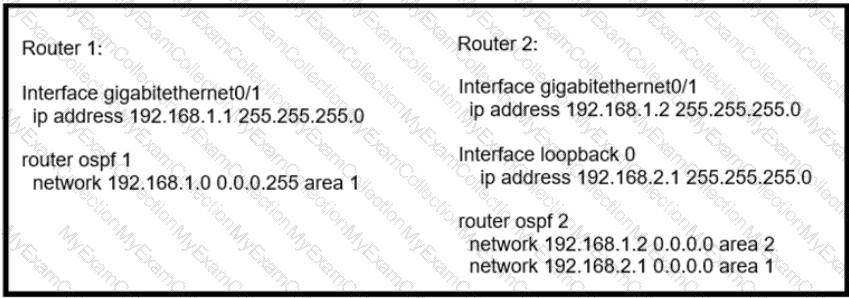

The issue with Router 1 missing the route for Router 2’s loopback 0 is likely due to the routers being configured in different OSPF areas. For OSPF to properly exchange routing information, routers within the same network should be configured in the same area. Therefore, the engineer should change the area numbers on Router 1 and Router 2 to be the same, ensuring they can exchange routes, including the route for Router 2’s loopback 0.

References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) documentation and study materials.

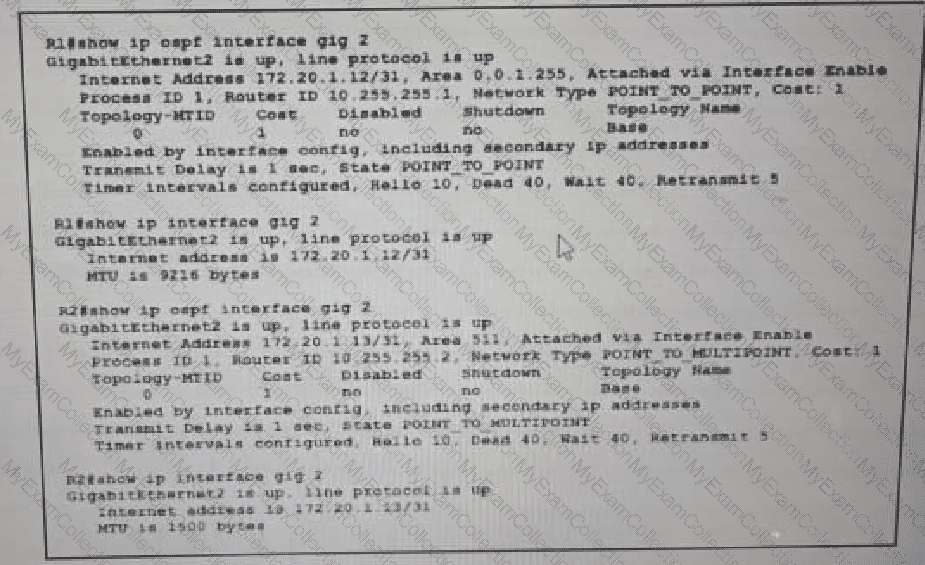

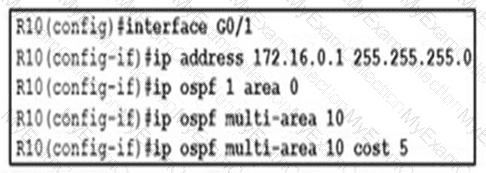

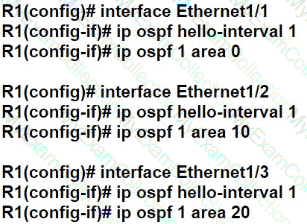

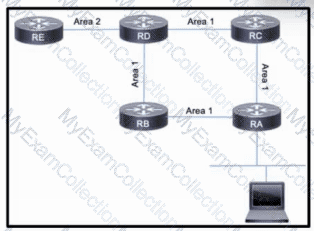

In the context of OSPF multiarea implementation, adjacency issues can often be resolved by specifying the type of network on the interface. In this case, option B “ip ospf network point-to-point” is appropriate as it helps in forming OSPF adjacency over point-to-point links by allowing OSPF to use a simpler neighbor discovery process, which can resolve adjacency issues. References := Implementing and Operating Cisco Service Provider Network Core Technologies

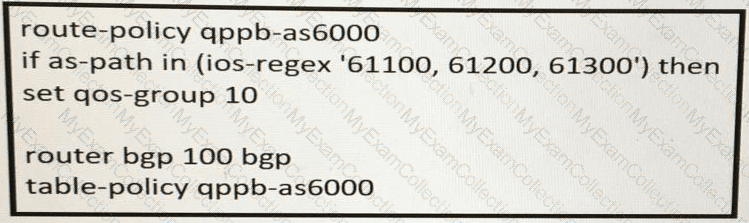

The QoS-group keyword on Cisco IOS XR is used for marking packets on the ingress of the device. This allows for internal handling and is not transmitted across the network. It can be used in fabric QoS policy as a match criteria to apply specific policies based on the QoS group marking.

References: = Implementing and Operating Cisco Service Provider Network Core Technologies course materials.

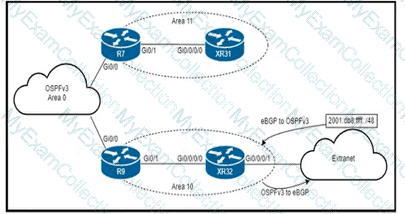

• Area 10 should receive inter-area routes and support mutual redistribution with the extranet but not receive the default route (::/0). This requirement does not align with any of the stub or NSSA configurations, as these would restrict the type of routes received.
• Area 11 should only receive the default route from the ABR and not support external route redistribution or advertise inter-area routes. Configuring Area 11 as an NSSA (Not So Stubby Area) with the no-summary option on R7 and as NSSA on XR31 would prevent inter-area routes from being advertised into Area 11. Additionally, the default-information-originate command on R7 would generate a default route into Area 11, fulfilling the requirement.

References: = The explanation is based on the OSPFv3 configurations and area types as described in the Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) course materials.

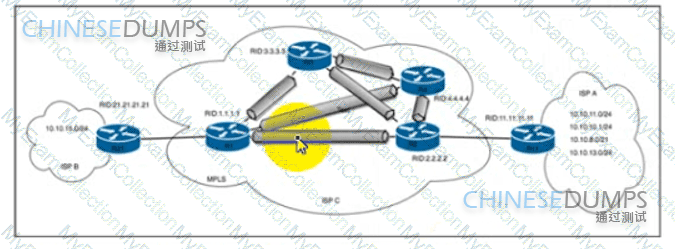

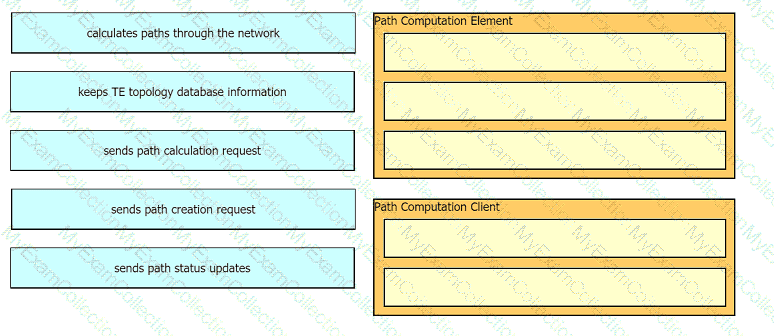

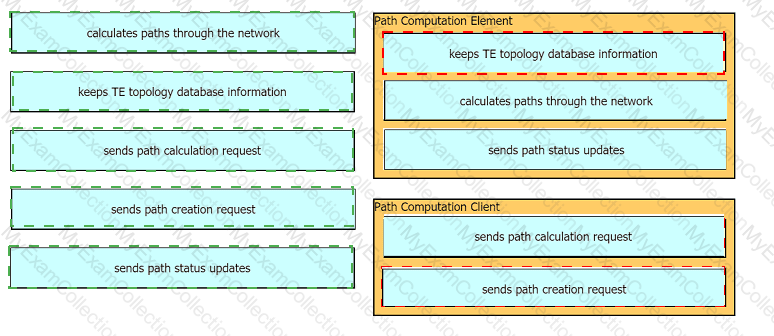

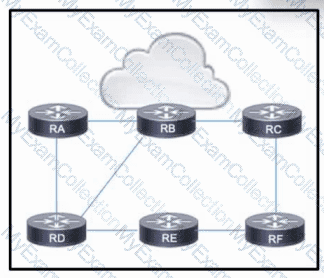

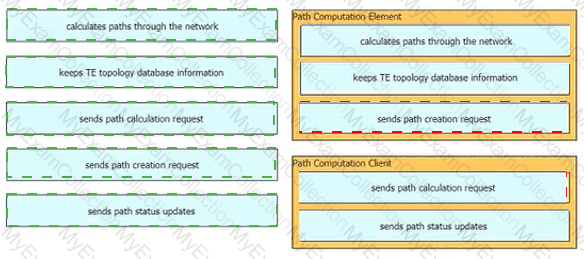

MPLS traffic-engineering tunnels can be configured with dynamic paths or explicitly defined paths across the core network. Tunnel links inherit IGP (Interior Gateway Protocol) metrics by default unless overridden by configurations that specify explicit paths or other criteria for path selection. Dynamic path tunnels use IGP metrics and other parameters like bandwidth availability for automatic path calculation. References: Implementing and Operating Cisco Service Provider Network Core Technologies source documents or study guide

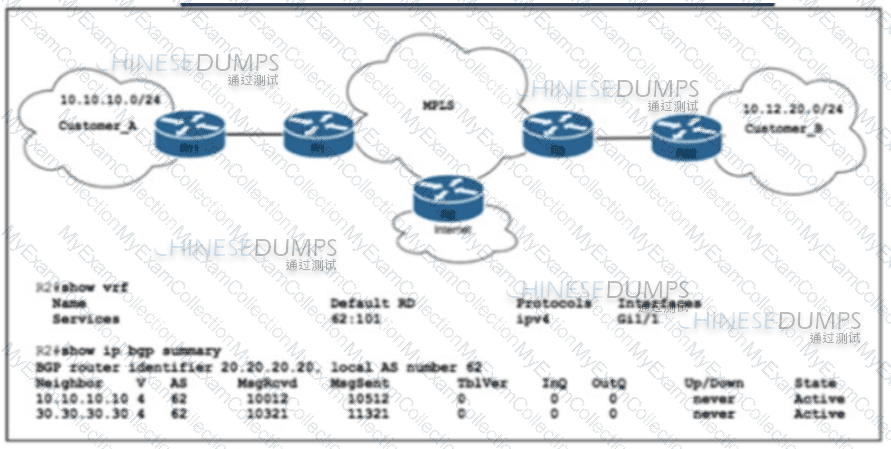

The absence of routes learned by PE4 from PE5 in other PE routers’ routing tables is likely due to missing route target configurations. Route targets are crucial for importing and exporting VPN routes between VRFs in MPLS Layer 3 VPNs.

• Option D is correct because advertising the route targets for PE5 to the other PEs will allow them to import routes from PE5 into their respective VRFs, facilitating communication across the Layer 3 VPN.

References :=

• Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) source book and study guide.

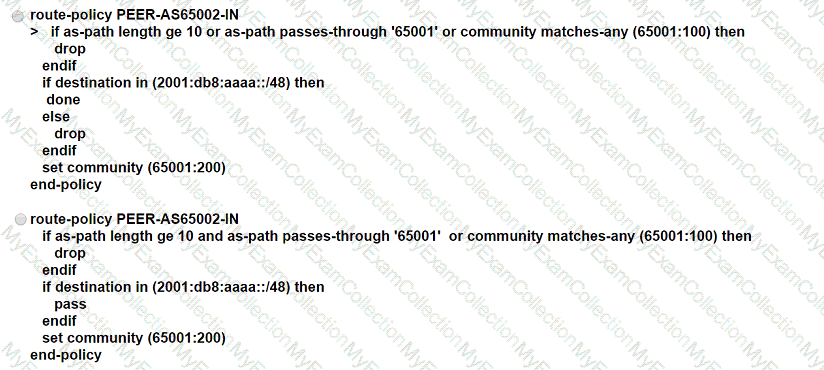

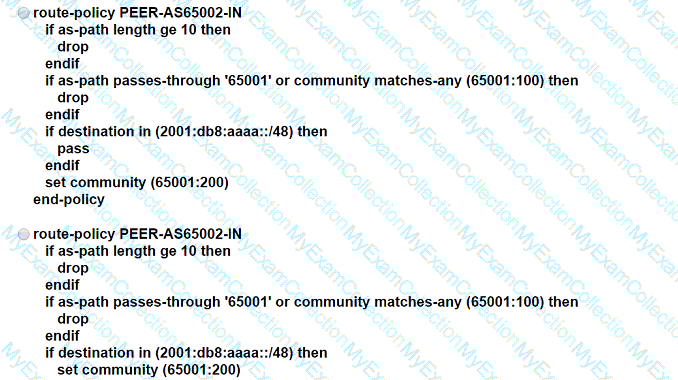

The configuration in the exhibit shows a route policy named “ciscotest”. According to this policy, if the destination is in acl10, then the traffic will pass without any changes. However, if the destination is not in acl10 (else condition), then the local preference will be set to 300 before it passes through. This means option C is correct as it states that if traffic matches acl10, it’s allowed without any change to its local-preference; otherwise (if not matching acl10), its local-preference is set to 300.

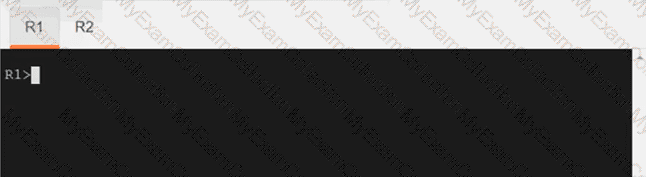

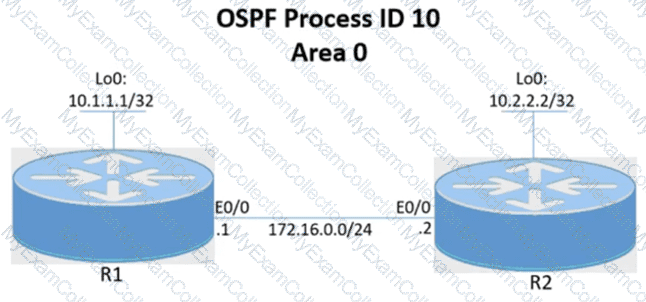

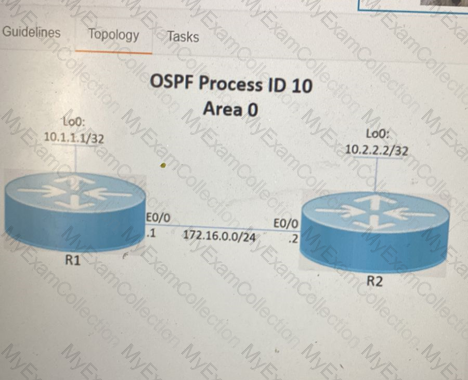

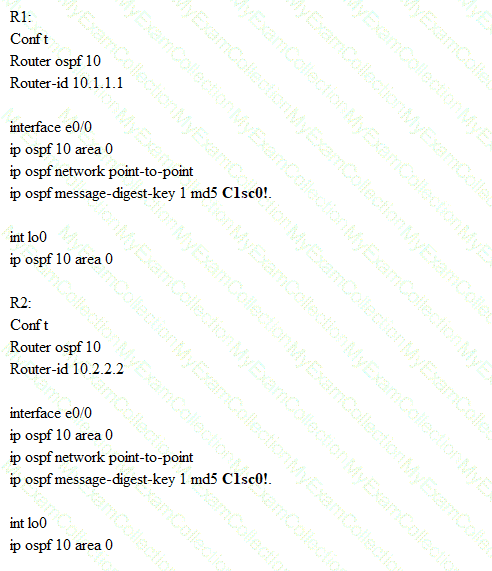

TASK1:Run “sh run” command on both routers, check if there is any “router ospf” configured. If it’s configured, check if Loopback0 ip it’s being used as OSPF ID. If it’s, jump to TASK2. Otherwise run:R1

router ospf 10

router-id 10.1.1.1

R2

router ospf 10

router-id 10.2.2.2

TASK2:

R1 & R2

int lo0

ip ospf 10 area 0

ip ospf network point-to-point

!

int e0/0

ip ospf network point-to-point

ip ospf 10 area 0

ip ospf authentication message-digest

ip ospf message-digest-key 1 md5 C1sc0!

!

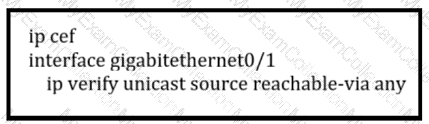

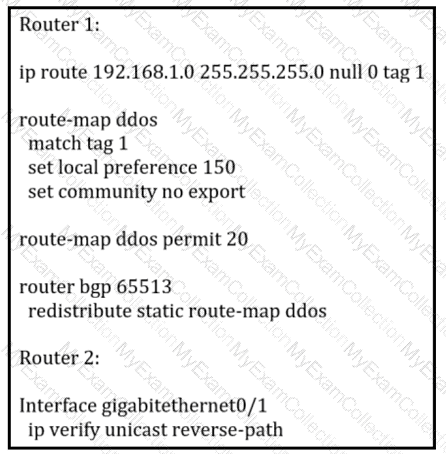

The configuration ip verify unicast source reachable-via any under interface gigabitethernet0/1 on Router 1 ensures that incoming packets have a source IP address that matches an entry in the FIB (Forwarding Information Base), indicating it’s reachable via a real interface. This helps mitigate attacks by dropping traffic with unreachable source addresses. References := Cisco

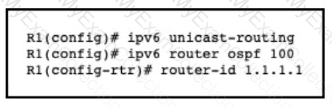

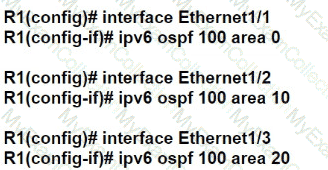

OSPFv3 is used for routing IPv6 prefixes and requires that each interface intended to participate in OSPFv3 has the protocol enabled. This involves specifying the OSPF process ID and the area ID that the interface belongs to. The process ID links the interface to a specific OSPFv3 process running on the router, and the area ID determines the area within the OSPF topology that the interface is part of. Without this configuration, the interfaces will not actively participate in OSPFv3 route advertisement or neighbor relationships12.

References :=

• Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) course materials3.
• Cisco OSPFv3 configuration guides and examples

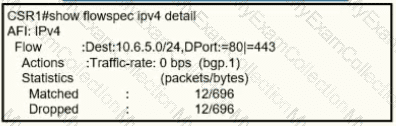

The correct configuration for enabling BGP FlowSpec client function and installation of policies on all local interfaces is flowspec address-family ipv4 install interface-all local. This command configures the router to accept FlowSpec policies from a BGP peer and apply them to all local interfaces. The flowspec keyword enables the BGP FlowSpec client function, address-family ipv4 specifies the address family, and install interface-all local ensures that the policies are installed on all local interfaces. References := Implementing and Operating Cisco Service Provider Network Core Technologies course.

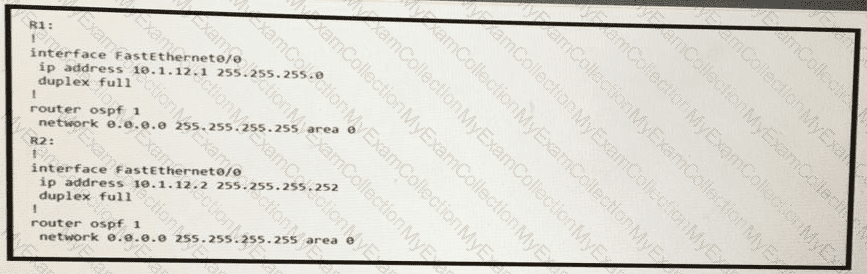

 For OSPF, the subnet mask must match between two devices on the same network segment to form an adjacency, as it defines the network’s address range. The hello timer setting is crucial for the OSPF Hello protocol, which is used for neighbor discovery and maintaining neighbor relationships. Finally, the area number must be the same because OSPF uses areas to define a hierarchy within the network, and routers within the same area share routing information.

References: OSPF is a link-state protocol that requires certain parameters to match for a successful adjacency. This includes the subnet mask, hello timer, and area number, which are fundamental to OSPF’s operation and ensure that routers can communicate effectively within the same area

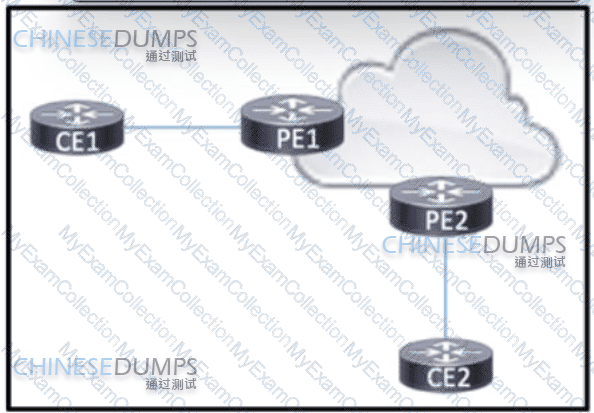

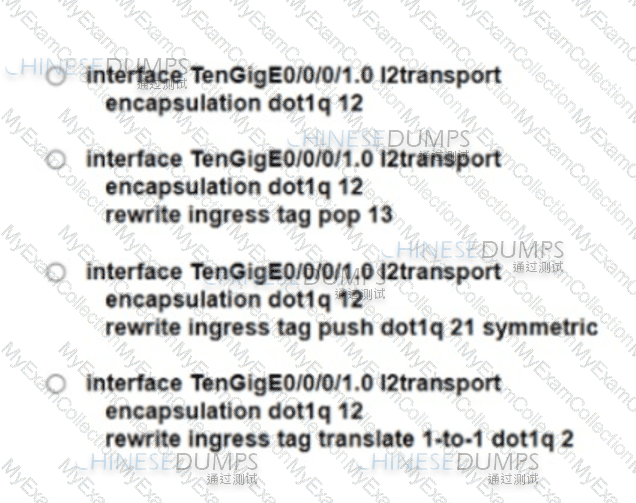

In the context of configuring L2VPN over MPLS, the xconnect statement is essential. It specifies the peer router and virtual circuit ID, creating the connection between two customer edge routers over the service provider’s MPLS network. Without the xconnect statement, there’s no association between the attachment circuits and pseudowire, leading to the failure of the L2VPN service.

References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) - Cisco SPCOR Training & Certification

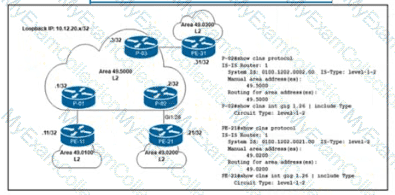

The neighbor relationship is down because R2 is operating as a Level 1 router and the two routers are in different areas. In the IS-IS (Intermediate System to Intermediate System) protocol, Level 1 routers exchange routing information with other Level 1 routers in the same area, while Level 2 routers exchange information between areas. Since R1 is configured as a level-2 router and R2 as a level-1 router, they cannot form a neighbor relationship if they are not in the same area. References: Implementing and Operating Cisco Service Provider Network Core Technologies source documents or study guide

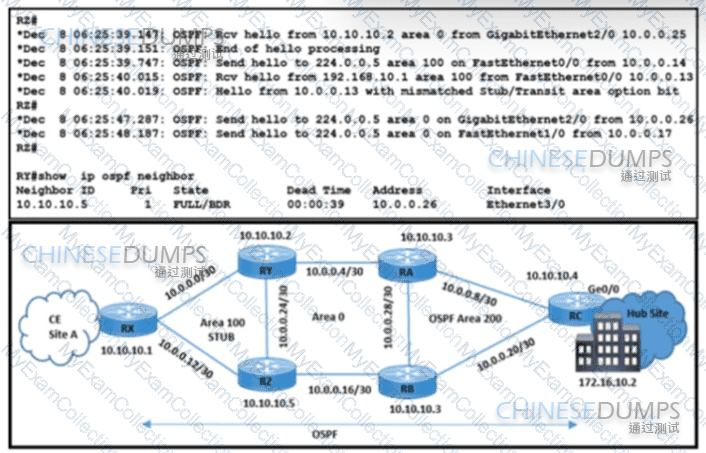

The issue is occurring in OSPF stub area 100 where the Ethernet link is down between routers RX and RY due to a cut fiber, leading to dropped traffic from CE site A to the hub site. Changing the OSPF area 100 type to stub on RZ can resolve these issues. In a stub area, OSPF routers use a default route to forward traffic to destinations outside the area, reducing the size of their routing tables. This would allow traffic from CE site A to be routed through RZ when the direct link between RX and RY is down.

References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) - Cisco SPCOR Training

https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/cether/configuration/xe-3s/asr903/16-12-1/b-ce-xe-16-12- asr900/m_ce_802_1ad_900.html

The issue of the OSPF domain receiving only the 172.17.1.0/24 route and not the default route 0.0.0.0/0 can be resolved by configuring OSPF to propagate default routes. Let’s take a look at the options:

• Option A: The configuration includes the following commands:
• router ospf 1
• default-information originate
• end

This configuration generates a default route into the OSPF domain, which is missing in this scenario.

• References: Implementing and Operating Cisco Service Provider Network Core Technologies source documents or study guide.

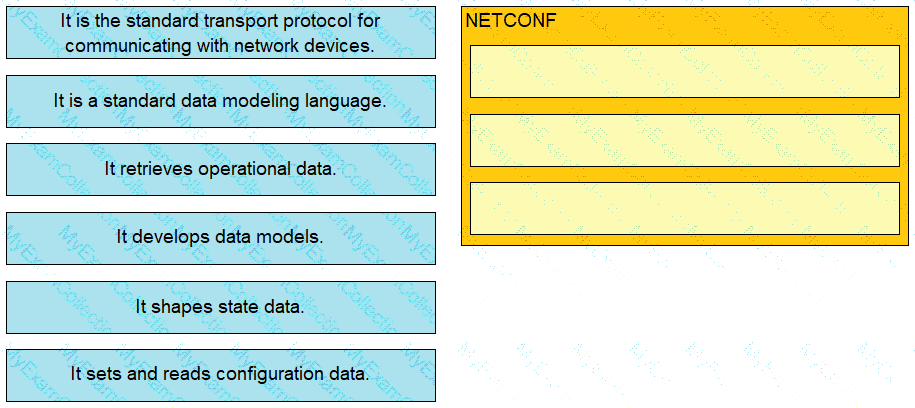

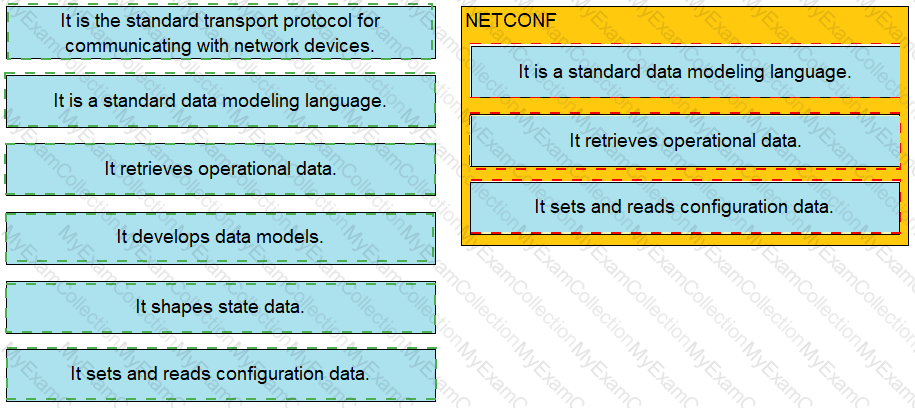

YANG (Yet Another Next Generation) is a data modeling language used to model configuration and state data of a network. It is used to define the data structure of configuration files and is widely used for network configuration and management. YANG uses containers to categorize related nodes, allowing for a hierarchical organization of the data. Types can be associated with each leaf, but they are not required. Spines are not used in YANG, and it is not a distributed model of nodes.

 The command “show mpls traffic-engineering tunnels” is used to quickly check the path of a TE (Traffic Engineering) tunnel in a Cisco MPLS core network. This command provides detailed information about each TE tunnel, including its current operational status, configuration details, and the specific path it is taking through the network. References: Implementing and Operating Cisco Service Provider Network Core Technologies source documents or study guide

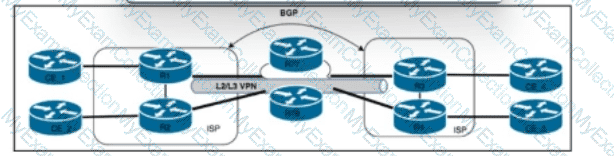

• : In this scenario, E-LINE pseudowires are suitable because they create a point-to-point Ethernet connection between the two sites. E-LINE pseudowires are commonly used for point-to-point Ethernet services.
• References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) v1.0

The Cisco MPLS TE forwarding adjacency feature allows a TE tunnel to be advertised into the IGP, effectively making the tunnel appear as a network link in the IGP topology. This integration helps in the optimal utilization of the TE tunnel by other routers for IP routing purposes.

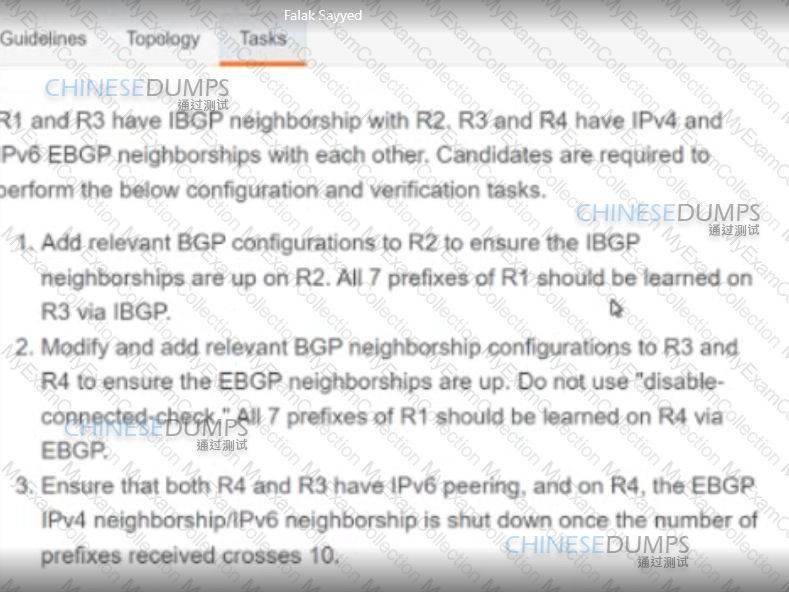

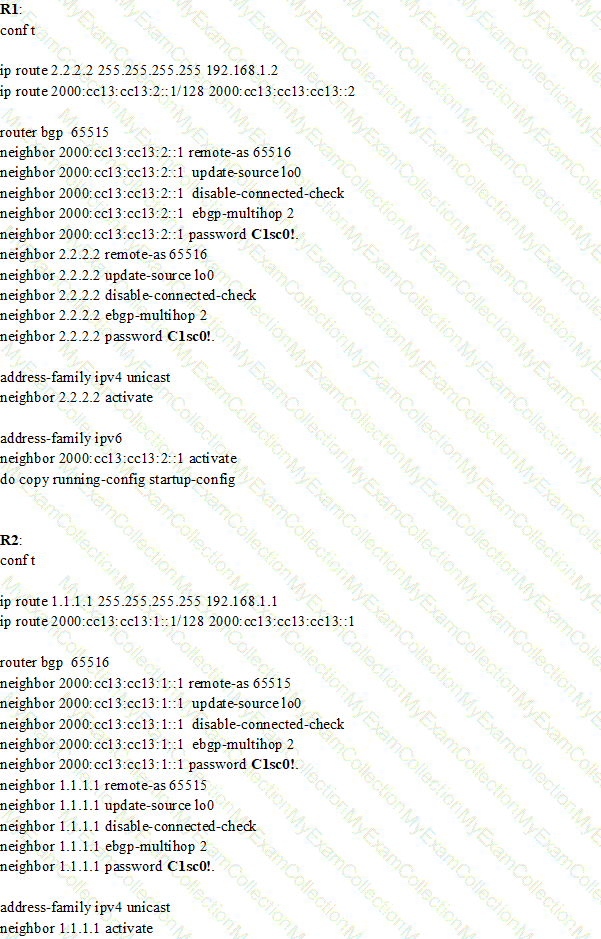

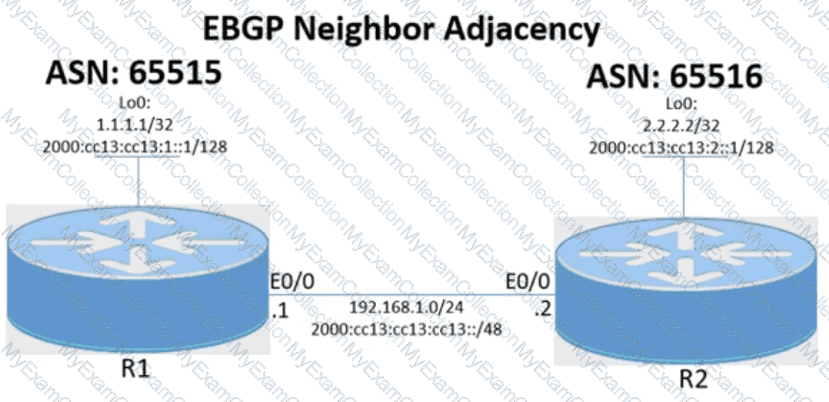

R1

Router bgp 65515

No bgp default ipv4-unicast

Neig 2.2.2.2 remote-as 65516

Nei 2.2.2.2 update-soc loopback0

Nei 2.2.2.2 ebgp-multihop 2

Neig 2.2.2.2 pass C1sc0!

Nei 2000:cc13:cc13:2::1 remote-as 65516

Nei 2000:cc13:cc13:2::1 update-so loopback0

Nei 2000:cc13:cc13:2::1 pass C1sc0!

Nei 2000:cc13:cc13:2::1 ebgp-multihop 2

Address-family ipv4

Neig 2.2.2.2 activate

Address-family ipv6

Nei 2000:cc13:cc13:2::1 activate

Ip route 2.2.2.2 255.255.255.255 192.168.1.2

Ipv6 route 2000:cc13:cc13:2::1/128 2000:cc13:cc13:cc13::2

R2

Router bgp 65516

No bgp default ipv4-unicast

Neig 1.1.1.1 remote-as 65515

Nei 1.1.1.1 update-soc loopback0

Nei 1.1.1.1 pass C1sc0!

Nei 1.1.1.1 ebgp-multihop 2

Nei 2000:cc13:cc13:1::1 remote-as 65515

Nei 2000:cc13:cc13:1::1 update-so loopback0

Nei 2000:cc13:cc13:1::1 pass C1sc0!

Nei 2000:cc13:cc13:1::1 ebgp-multihop 2

Address-family ipv4

Neig 1.1.1.1 activate

Address-family ipv6

Nei 2000:cc13:cc13:1::1 activate

Ip route 1.1.1.1 255.255.255.255 192.168.1.1

Ipv6 route 2000:cc13:cc13:1::1/128 2000:cc13:cc13:cc13::1

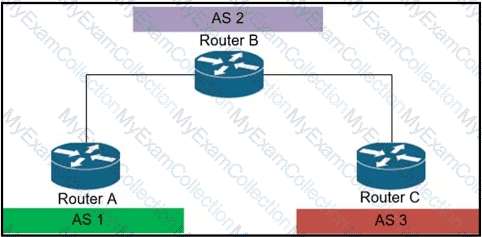

In the context of regular expressions, the caret (^) is used to indicate the start of a string. This is a fundamental concept in pattern matching using regular expressions, where ^ matches the position at the beginning of the string.

References: This information is consistent with regular expression syntax as described in various Cisco documentation and resources related to Cisco IOS software configurations.

 The “show cef interface” command is used to display per-interface statistics about Unicast Reverse Path Forwarding (uRPF) drops and suppressed drops. uRPF is a feature that helps to mitigate problems caused by IP address spoofing, and the “show cef interface” command provides detailed information on the interfaces where uRPF is applied, including drop statistics.

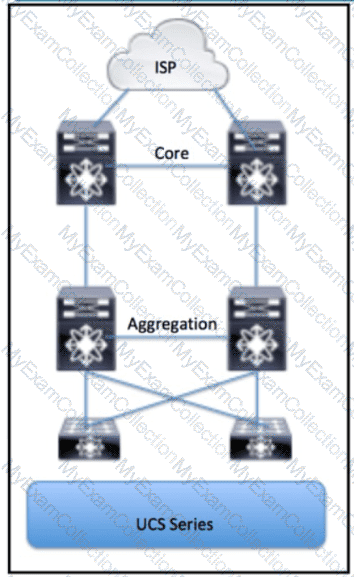

To ensure multiple paths toward the hosting-as-a-service solution and basic protection against traffic black-holing in case of link failure, the engineering team should:

• B. Configure the fast-reroute per-prefix command for the IS-IS protocol in the MPLS network. This action enables fast reroute, which is a mechanism to quickly switch over to a backup path in case the primary path fails, without waiting for the routing protocol to converge.
• D. Configure the mpls ldp sync command in the MPLS network with the BGP additional-paths receive and additional-paths send options. MPLS LDP (Label Distribution Protocol) synchronization ensures that a label-switched path (LSP) is not used for forwarding traffic until all routers along the path have signaled that they have label information for that LSP. The BGP additional-paths feature allows for the advertisement of multiple paths for the same prefix, providing path diversity and redundancy.

To implement Bidirectional Forwarding Detection (BFD) in an IS-IS environment, the first task is to configure BFD in an interface configuration mode. This involves setting up BFD parameters on the interfaces where IS-IS is running to enable quick failure detection.

References: Implementing BFD in an IS-IS Environment - Exam-Answer3.

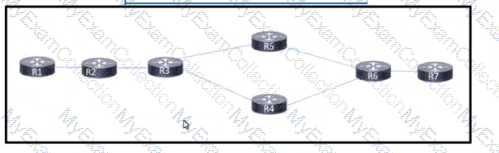

Diagram Description automatically generated

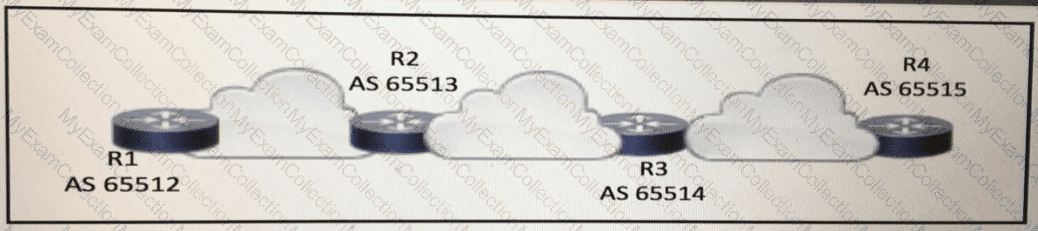

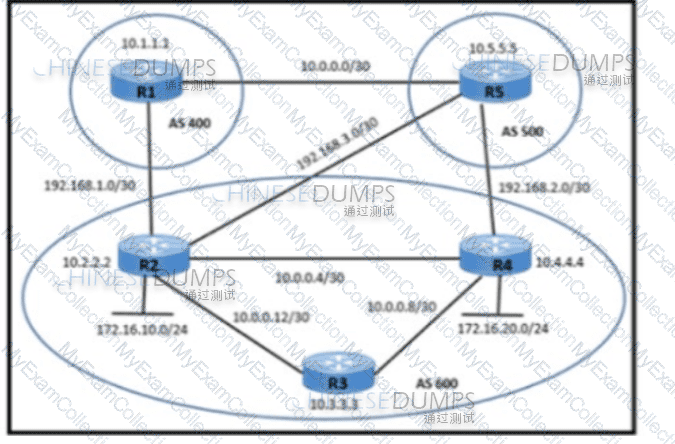

To direct traffic from R3 to R4 via R1, the weight attribute on R3 can be set higher for the route through R1 compared to other routes. Weight is a Cisco-specific BGP attribute that determines the preferred path when multiple routes to the same destination exist. It is local to the router on which it is configured and not advertised to other BGP peers.

References :=

• Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) course materials.

In an EVPN operation, the PE (Provider Edge) router determines and advertises Ethernet segment reachability by discovering remote ESIs (Ethernet Segment Identifiers) and determining their redundancy mode (all-active or single-active). This is crucial in multihoming scenarios where the PE needs to auto-discover remote PEs and the corresponding redundancy mode. In case of segment failures, PEs withdraw the routes used at this stage to trigger fast convergence by signaling a MAC mass withdrawal on remote PEs3.

References:

• Cisco, “EVPN Configuration Guide for Cisco 8000 Series Routers, IOS XR Release 7.11.x”
• Huawei, “Overview of EVPN - New IP Technologies”

 To achieve this, we need to apply an access control list (ACL) on PE-R9 that permits SSH traffic from the management network 192.168.0.0/16 while denying other traffic. The correct ACL configuration is as follows:

access-list 100 permit tcp 192.168.0.0 0.0.255.255 any eq 22

access-list 100 deny ip any any

• The first line permits TCP traffic from the management network to any destination with destination port 22 (SSH).
• The second line denies all other IP traffic.

References:

• Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) v1.0 course materials.
• Cisco Learning Network: SPCOR Training Videos
• Cisco Learning Network: Service Provider Training

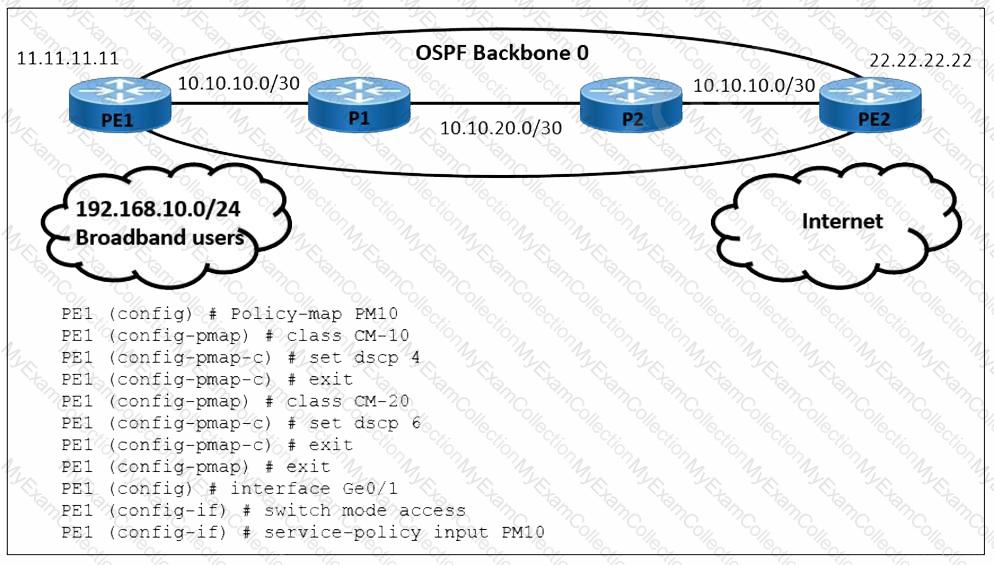

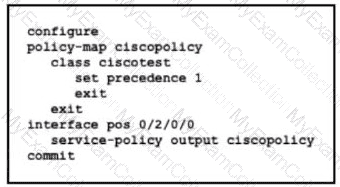

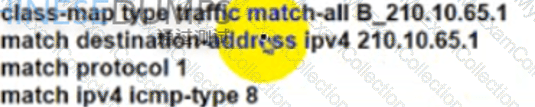

•  By setting IP precedence values (using Differentiated Services Code Point - DSCP) and configuring traffic policing, the network can enforce policies to drop or mark packets based on their priority. When traffic exceeds the specified threshold, the network can take appropriate actions.
• References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) v1.0

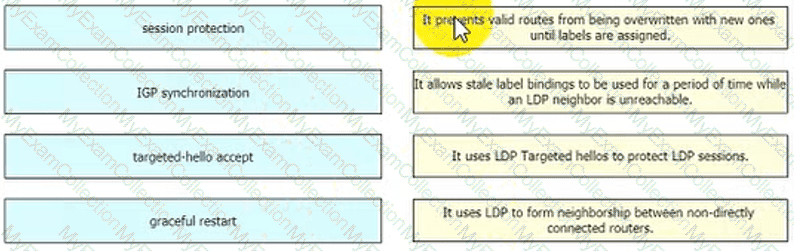

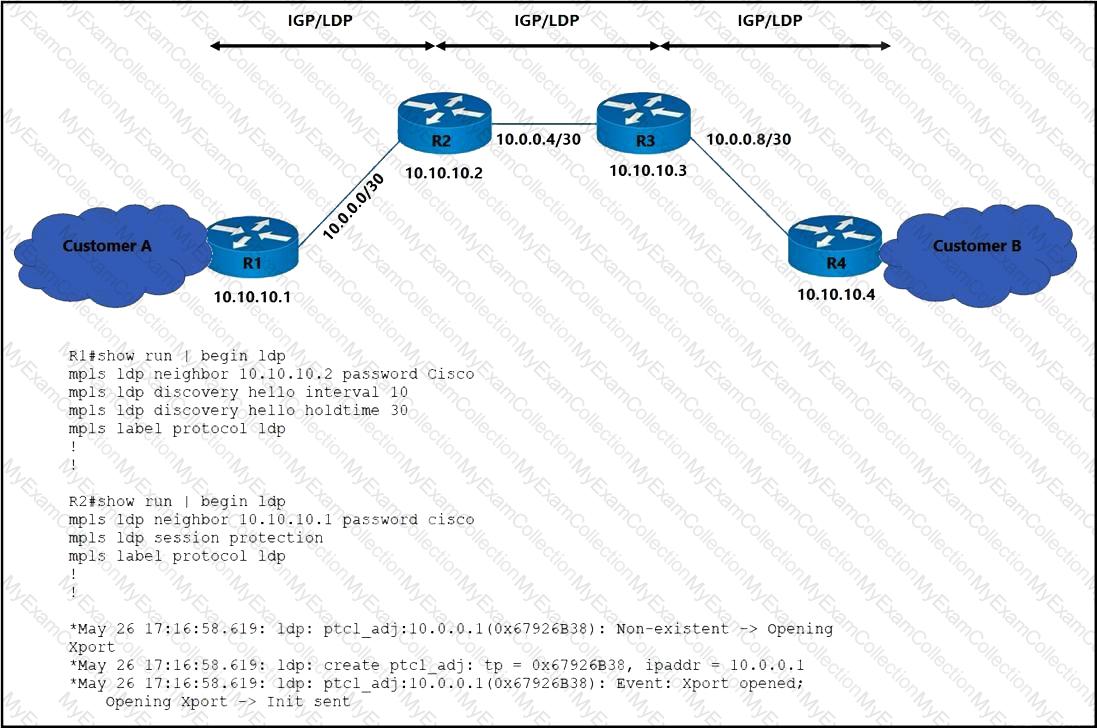

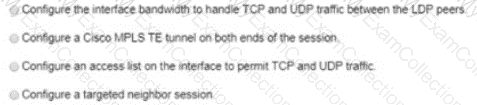

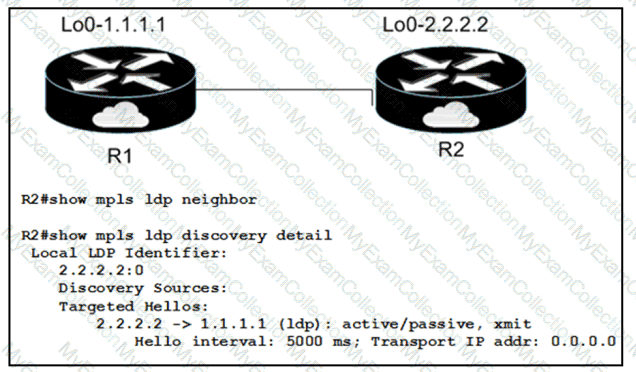

LDP session protection capability is a feature that maintains LDP bindings when a link fails, using LDP Targeted Hellos to protect LDP sessions. Without the specific exhibit, it’s not possible to determine which router has LDP session protection enabled but session hold up is not active.

References: Information about MPLS LDP Session Protection can be found in Cisco documentation, such as the Cisco IOS MPLS Configuration Guide.

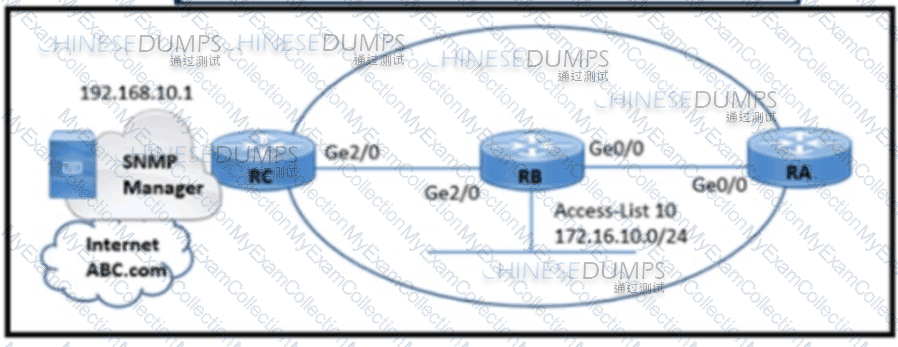

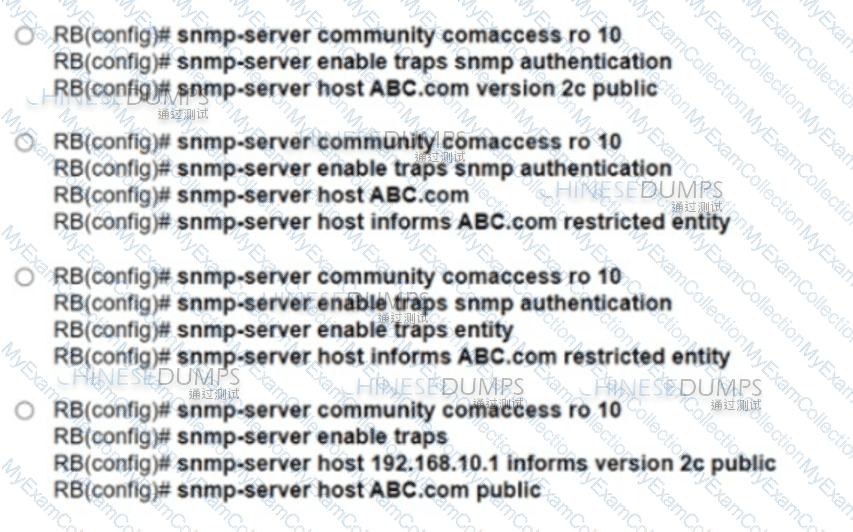

The correct configuration to ensure that SNMP servers acknowledge the notifications they receive is to use the snmp-server host command with the Informs keyword. This configuration sends Inform requests instead of Trap messages. Unlike Traps, Inform requests are acknowledged by the receiving SNMP server, ensuring that the notification has been received. If an Inform request is not acknowledged, the SNMP agent resends the notification.

References: The information is based on the Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) training, which teaches how to configure, verify, troubleshoot, and optimize next-generation, Service Provider IP network infrastructures.

In NetFlow export statistics, the BGP next hop information is not included by default. To include the BGP next hop in the export statistics, specific keywords related to BGP next hop must be configured with the version 9 NetFlow entry. This configuration allows for the measurement of network traffic on a per-BGP next hop basis, which is essential for detailed traffic analysis and accounting1. References: Configuring NetFlow BGP Next Hop Support for Accounting and Analysis - Cisco Systems1.

The OSPF neighbor relationship is not establishing due to a mismatch in MTU (Maximum Transmission Unit) settings on the interfaces of PE-A and PE-B routers. On PE-A, there is no MTU configuration under the interface FastEthernet0/0, which means it is using the default MTU setting. However, on PE-B, the MTU is explicitly set to 1400 bytes with “ip mtu 1400” command under interface FastEthernet0/0. OSPF requires that both ends of a point-to-point link have matching MTU sizes to form a neighbor relationship; otherwise, OSPF adjacency will not be established.

References:

• Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) - Cisco SPCOR Resources

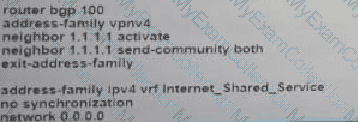

The correct configuration for deploying VRF on ASBR router R1 to have connectivity over an MPLS VPN inter-AS Option AB network is found in option C. This involves configuring the interface with the commands shown, including setting the interface ethernet, applying IP VRF forwarding, and enabling MPLS BGP forwarding. These steps ensure that the interface is properly configured for VRF and can support MPLS VPN inter-AS communications effectively. References := Implementing and Operating Cisco Service Provider Network Core Technologies

 In the context of Cisco IOS XR software, the configuration under Option D is appropriate for adding an interface to a bundle using LACP (Link Aggregation Control Protocol). The configuration specifies two Ten Gigabit Ethernet interfaces (TenGigE0/1/0/5 and TenGigE0/1/0/6) with descriptions indicating they are part of “bundle_1_link”. Both interfaces are assigned to “bundle id 1” with a load interval of 30 seconds, ensuring they are part of the same link aggregation group and share traffic load.

The command “traceroute mpls ipv4 10.20.0.1/32 ttl 4” is used to trace the route that packets take to get from the source to the destination in an MPLS network, specifically for IPv4 addresses with a maximum of 4 hops (Time To Live). This command will provide information on all labels and hop-by-hop IP addresses for the specified destinations, meeting the requirements stated in the question.

References := For more detailed information, you can refer to the Implementing and Operating Cisco Service Provider Network Core Technologies training, which covers the configuration, verification, troubleshooting, and optimization of Service Provider IP network infrastructures, including MPLS operations

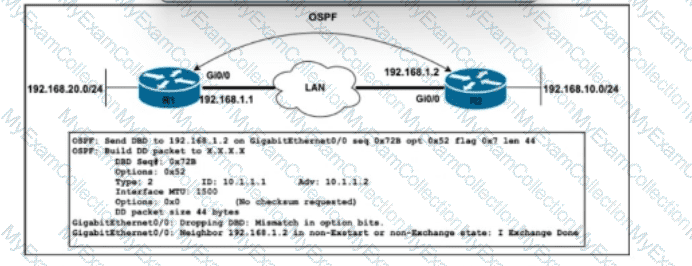

 In OSPF, for two routers to form an adjacency, they must have matching MTU sizes on their connecting interfaces. If the MTUs are mismatched, OSPF adjacency will be stuck in the EXSTART/EXCHANGE state because OSPF hello packets will not be exchanged between the routers. In this case, both routers R1 and R2 are stuck in EXCHANGE/EXSTART state due to mismatched MTU sizes as indicated in the exhibit. References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) - Cisco

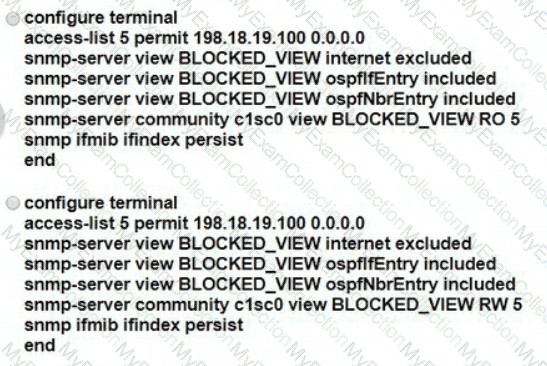

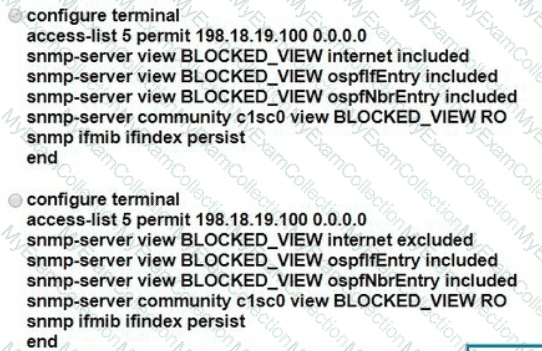

Option B is the correct answer because it meets all the given requirements. The configuration “snmp-server community comaccess ro 10” allows read-only access for all objects to members of Access-List 10 that use the comaccess community string. The “snmp-server host ABC.com informs version 2c public” command ensures SNMP authentication failure traps are sent to SNMPv2c and then to the host using SNMPv2c with the public community string.

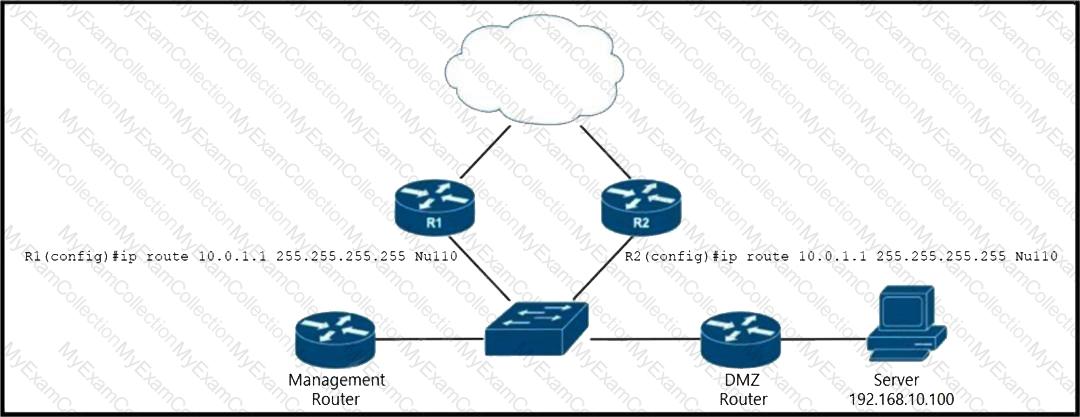

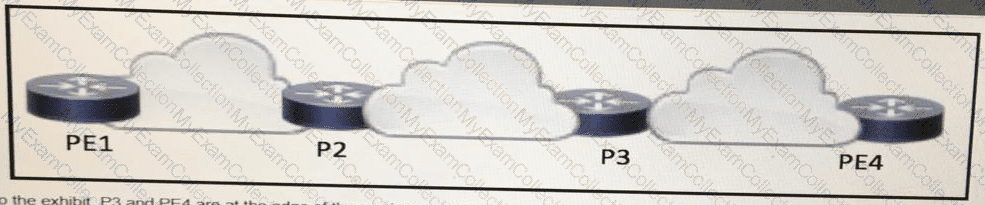

 To prevent packets from being forwarded beyond the service provider domain when the Label Switched Path (LSP) is down, the engineer must configure a private IP address as the destination address of the headend router of Cisco MPLS Traffic Engineering (TE). This ensures that if the LSP fails, the packets will not be routable over the public internet, thus containing them within the service provider’s network.

References := Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) documentation provides guidelines on MPLS TE configuration, including the use of private IP addresses for headend routers to maintain traffic within the service provider domain. This practice is aligned with the principles of traffic engineering and network containment for service providers.

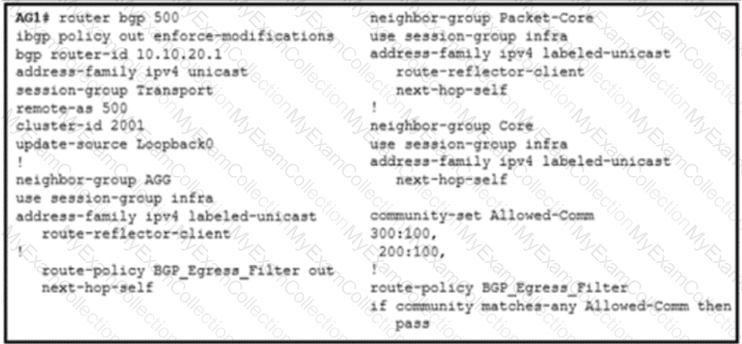

 In Cisco IOS XR, to send BGP IPv4 labels to build inter-domain Label Switched Paths (LSPs), the configuration command used is router bgp 65515 neighbor 172.16.70.23 address-family ipv4 labeled-unicast. This command specifies that the router should use the BGP labeled unicast address family for the specified neighbor, which enables the exchange of label information along with the IPv4 routing information, facilitating MPLS LSP creation for inter-domain traffic.

References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) training materials1.

 mVPN (Multicast Virtual Private Network) is designed to support the efficient transport of multicast streams across a Layer 3 VPN. It enables service providers to use their existing MPLS networks to transport multicast traffic, allowing for scalable and manageable multicast delivery without requiring a separate network infrastructure. References: Implementing and Operating Cisco Service Provider Network Core Technologies

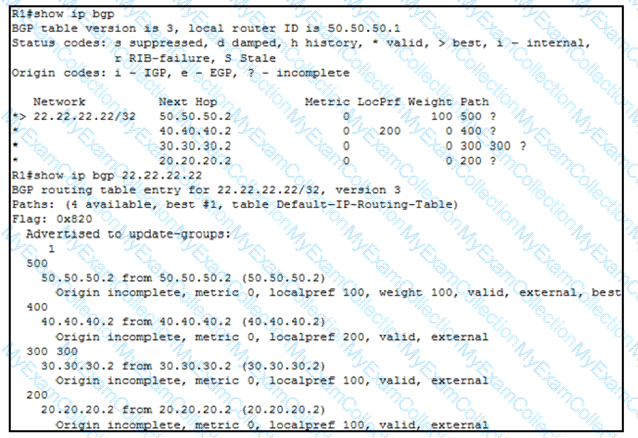

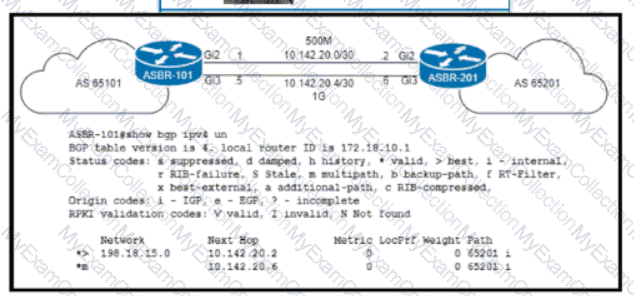

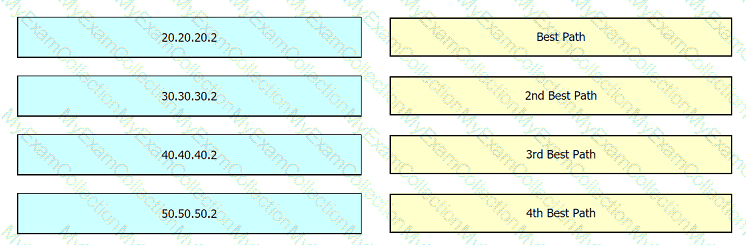

In Cisco’s path selection process, the weight attribute is the first criterion for selecting a path. It is a Cisco-specific parameter, local to the router, and it is not propagated in routing updates. The path with the highest weight is preferred. Therefore, configuring a high weight on the peer to ASN 4567 will make Router R1 prefer this path for all outbound traffic directed towards ASN 4567. References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) - Cisco SPCOR Training & Certification

 The multicast implementation shown in the exhibit indicates that R2 is elected as the RP (Rendezvous Point) for the domain. This is inferred from the configuration commands which show R2 set up as a Bootstrap Router (BSR) candidate. In PIM-SM (Protocol Independent Multicast Sparse Mode), the BSR is responsible for announcing the RP-set to all routers in the PIM domain, and since R2 is the only BSR candidate, it effectively becomes the RP by default unless there are other configurations not shown in the exhibit.

References: The explanation is based on the concepts outlined in the Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) course, which covers multicast routing and PIM-SM operations in detail. For more information, you can refer to the official Cisco SPCOR training and certification resources.

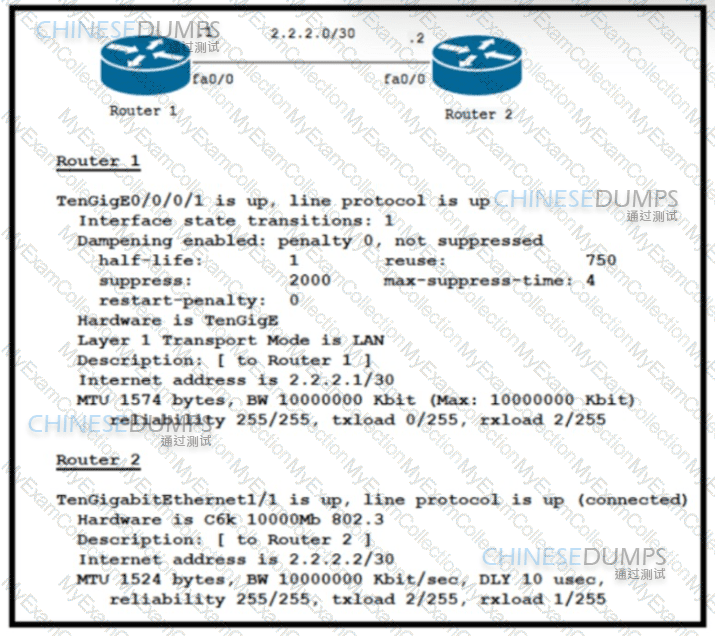

The disruption in IS-IS connectivity between R1 and R2, despite the interfaces being up, suggests an issue with packet handling or MTU configuration. Action A, disabling padding for hello packets under the serial interface on R2, is necessary because excessive padding can lead to issues in processing hello packets effectively. Action C, changing the MTU to 1500 bytes on R2, addresses potential MTU mismatch issues. MTU mismatches are common problems that can interrupt connectivity in networks using routing protocols like IS-IS; ensuring both routers operate at the same MTU can resolve this issue.

References := The explanation is derived from the principles outlined in Cisco’s Implementing and Operating Cisco Service Provider Network Core Technologies, which emphasizes the importance of proper packet handling and MTU configuration for maintaining IS-IS connectivity.

 RFC 5305 extends the IS-IS protocol for traffic engineering by specifying new information that an Intermediate System (router) can place in Link State Protocol Data Units (LSPs). Sub-TLV type 10 of the extended IS-IS reachability TLV type 22 is used to specify the maximum reservable link bandwidth. This is an important parameter for traffic engineering as it defines the amount of bandwidth that can be reserved by traffic engineering algorithms for use in constrained-path computations for MPLS traffic engineering Label Switched Paths (LSPs). References: RFC 53051.

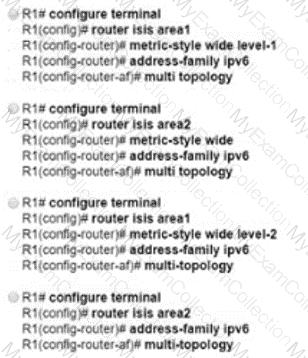

The failure to implement IS-IS multitopology can be attributed to the routing process not supporting extended metrics. Extended metrics are necessary for multitopology routing because they allow for the definition of multiple topologies within the same routing protocol, each with its own set of metrics and paths1.

References:

• Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) source documents or study guide

The difference between SNMP (Simple Network Management Protocol) and model-driven telemetry lies in their data delivery mechanisms. Telemetry allows for modeled network data to be pushed to network administrators on an as-needed basis, providing real-time insights into network performance and health. On the other hand, SNMP typically relies on polling mechanisms where network administrators request data at specific intervals. References: Implementing and Operating Cisco Service Provider Network Core Technologies source documents or study guide

 DWDM, or Dense Wavelength Division Multiplexing, uses different wavelengths of light to combine multiple optical signals. This method allows for the transmission of various data streams simultaneously over a single optical fiber. By using closely spaced wavelengths, DWDM can fit more channels onto a single fiber, significantly increasing the capacity and efficiency of fiber-optic networks.

References: The explanation is based on the information available from the web search results on DWDM, which aligns with the principles outlined in the Cisco Service Provider source book.

To collect the required traffic statistics, the network engineer must configure the router to capture specific data points. The configurations in Option A and Option D align with these requirements. Option A involves configuring the router to collect IPv4 protocol, source address, destination address, application name, interface output, IPv4 source-prefix, IPv4 destination-prefix, counter bytes, flow direction, and transport tcp-flags. Option D involves setting the cache-period timer active to 20 seconds, which aligns with the CPU limit of processing samples that are a maximum of 20 seconds long.

References := Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) v1.0

NetFlow version 9 can report additional information such as BGP Autonomous System (AS) information due to its template-based design, which allows for flexibility and support for a wider range of IP flow information, including IPv4 and IPv6 flow information, BGP routing information, and multicast flow data.

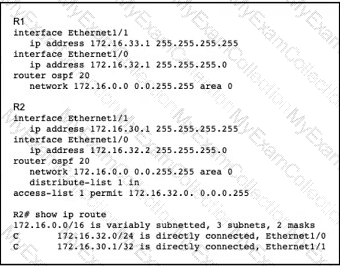

The issue is that router R2 is not installing the network 172.16.33.1/32 in the routing table due to an incorrect access list configuration. The correct answer is option C, which will allow the network to be installed in the routing table by permitting addresses from 172.16.33.0 to 172.16.33.255 with a wildcard mask of 0.0.0.255.

The current access list on R2, “access-list 1 permit 172,16,32,0 0,0,0,255”, only permits addresses from the range of 172,16,32,0 to 172,16,32,255 due to its wildcard mask of “0,.0,.0,.255”. This does not include the address “172,.16,.33,.1”.

References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) study guide or course materials available on Cisco’s official website or authorized training partners.

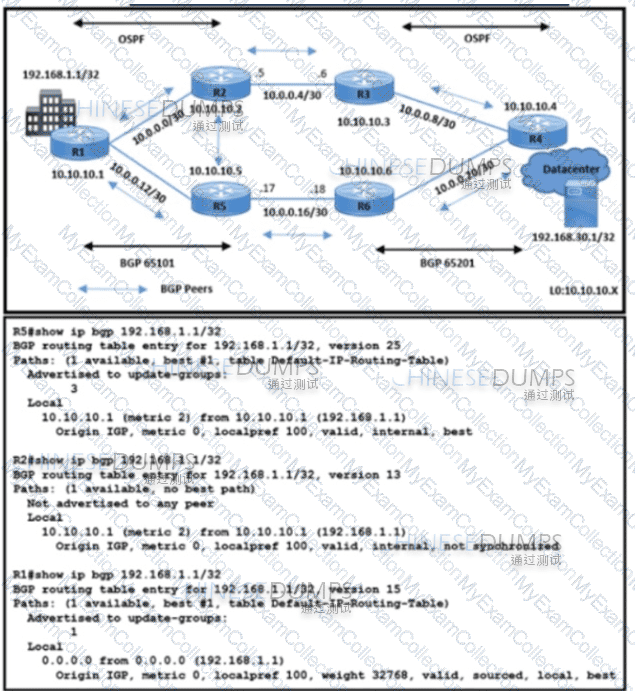

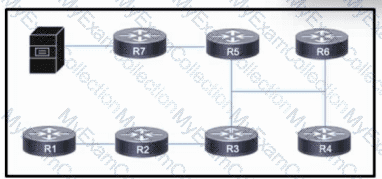

 To ensure that traffic for the prefix 192.168.1.1/32 travels via the alternate path R6-R5, a route-map with a higher local preference should be applied inbound on R3 for neighbor R6. This will make the path through R6-R5 more preferable, thus meeting the requirement. References := Implementing and Operating Cisco Service Provider Network Core Technologies

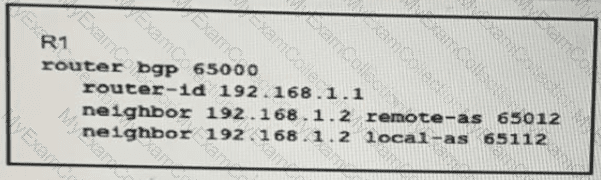

The correct configuration for PE1 to connect AS 200 of the service provider with AS 100 of enterprise ABC using BGP, considering the VRF RT 100:10 is already configured, would involve setting up BGP with the correct neighbor and route distinguisher settings. Option C is likely the correct choice as it specifies the BGP neighbor to be within the enterprise ABC’s AS 100 and includes the address family configuration necessary for VRF-aware BGP sessions. References := The Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) course materials provide detailed instructions on configuring BGP in a service provider environment, including the use of VRFs and route distinguishers. For more information, please refer to the official Cisco documentation and course materials related to SPCOR1.

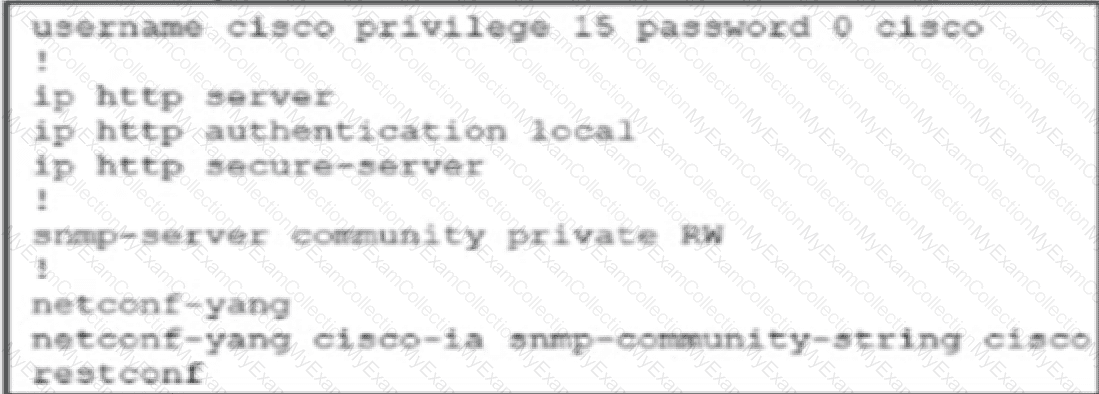

To secure REST APIs, a network administrator should ensure that user sessions are authenticated and that the appropriate privilege level is provided for each user. This means that each API request should come with authentication credentials, and the server should validate these credentials for every request. This approach helps to maintain the stateless nature of REST APIs and ensures that only authorized users can access or modify resources. References: Best practices for securing REST APIs include using HTTPS, token-based authentication, and proper validation of input parameters to prevent common security vulnerabilities.

The configuration command xconnect 192.168.0.1 12 encapsulation mpls pw-class cisco is used to set up a pseudowire connection to a remote peer at IP address 192.168.0.1 using MPLS encapsulation. The pw-class cisco refers to a pseudowire class named ‘cisco’ that defines the parameters for the MPLS pseudowire. This configuration is part of setting up Layer 2 VPNs, which are often used in service provider networks to extend services such as Ethernet, ATM, or Frame Relay over an MPLS network.

References: For more detailed information, please refer to the Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) course materials, specifically the sections covering MPLS and Layer 2 VPNs.

 In OSPF, the election of the designated router (DR) and backup designated router (BDR) is based on the OSPF network type. The network types include:

• Broadcast: This is the default network type for Ethernet interfaces. In a broadcast network, OSPF elects a DR and BDR. All other routers become DROTHERs. To prevent the election of a DR/BDR, you can configure the interface as non-broadcast (NBMA) using the ip ospf network non-broadcast command.
• Point-to-Point: This network type is used for point-to-point links (e.g., serial links). There is no DR/BDR election in point-to-point networks.
• Point-to-Multipoint: This network type is used for point-to-multipoint links (e.g., Frame Relay). There is no DR/BDR election in point-to-multipoint networks.
• Point-to-Multipoint Non-Broadcast: Similar to point-to-multipoint, but explicitly configured as non-broadcast. There is no DR/BDR election in point-to-multipoint non-broadcast networks.
• Loopback: Loopback interfaces are always treated as point-to-point.
• Virtual-Link: Used for OSPF virtual links.
• Sham-Link: Used for OSPF sham links.
• Demand Circuit: Used for demand circuits (e.g., ISDN).
• Non-Broadcast: Explicitly configured as non-broadcast. There is no DR/BDR election in non-broadcast networks.

References:

• Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) v1.0

The script shown in the exhibit is a REST API call that adds a user with the last name ‘CiscoTest’ to the AAA database on the server located at the IP address 192.168.201.10. This is achieved through a POST request, which is typically used to create or update resources on a server. The script specifies the user details in JSON format, which is a common data format used for API calls.

References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR)

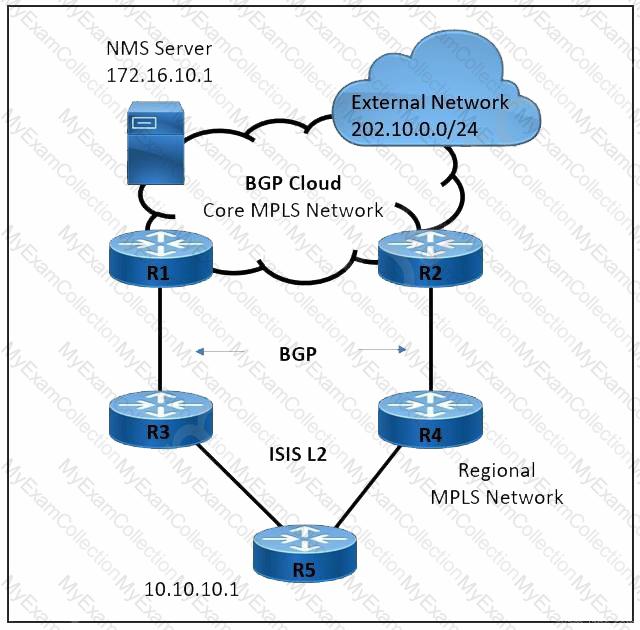

 To monitor memory consumption and buffer statistics securely on P and PE devices in an MPLS core, especially considering the high CPU usage, the engineering team should implement SNMP version 3 for its security features. Therefore, option A is correct as it specifies SNMP version 3 with authentication. Option B is also correct as it enables traps for memory buffer peak, which is essential for monitoring memory thresholds and ensuring quick response to potential issues.

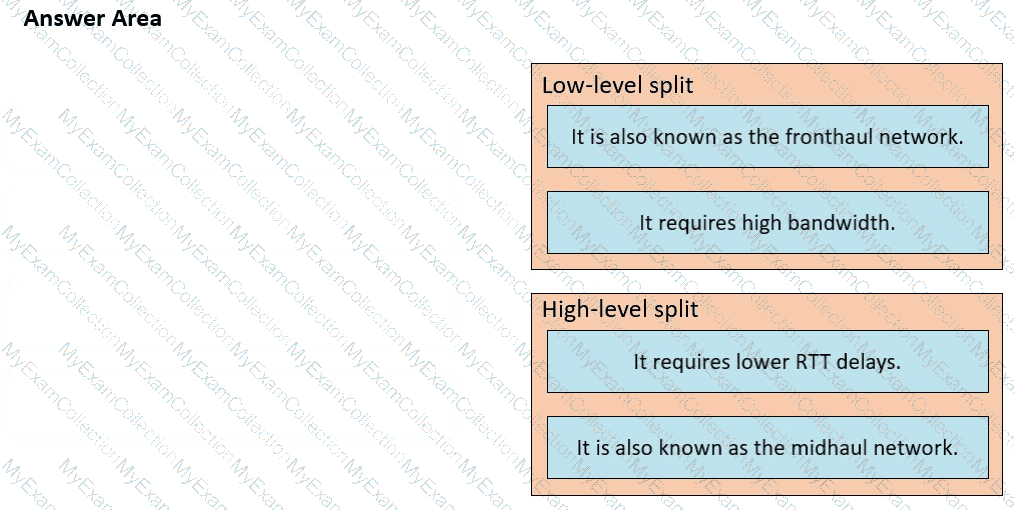

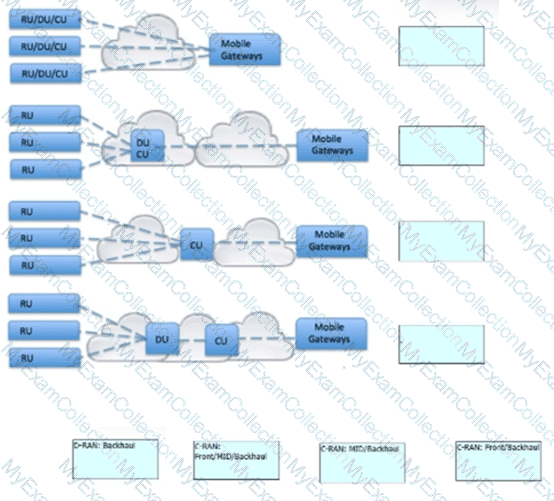

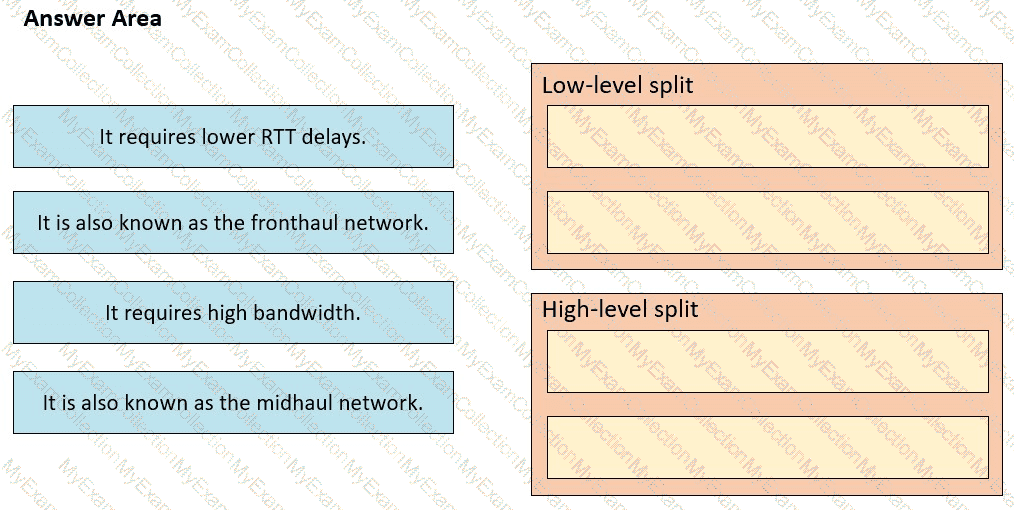

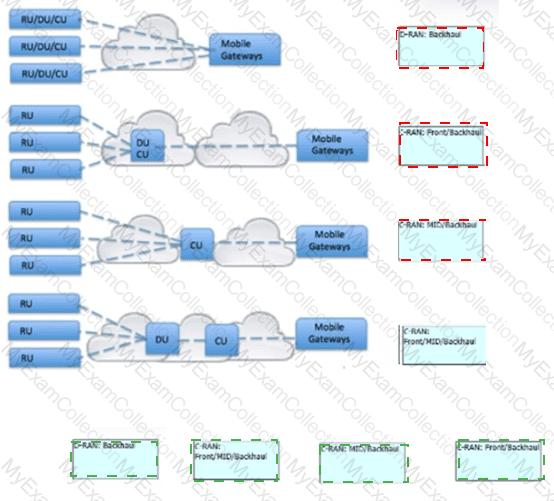

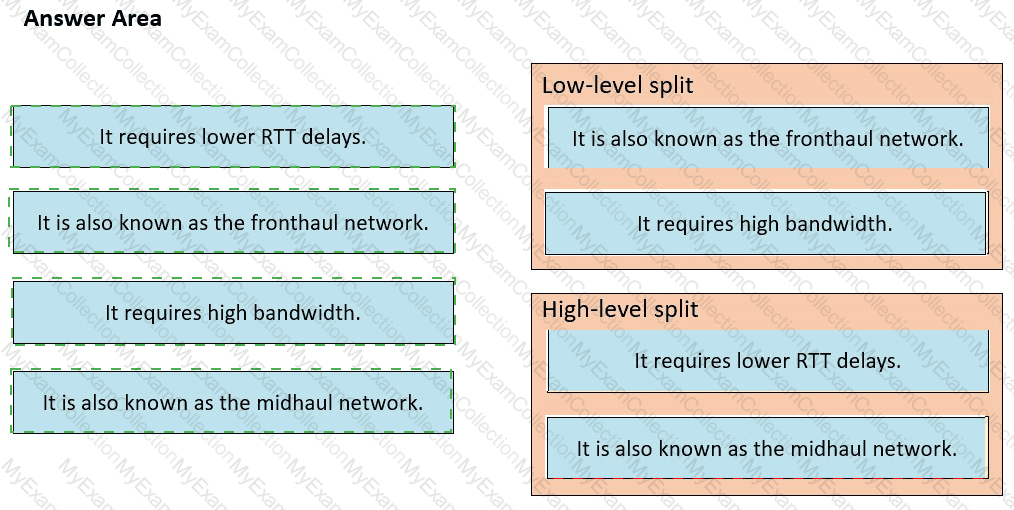

https://www.cisco.com/c/en/us/solutions/service-provider/mobile-internet/5g-transport/converged-5g-xhaul-transport.html#

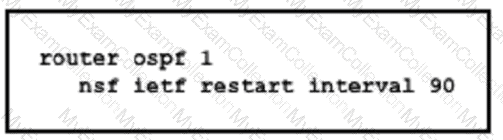

 The configuration in the exhibit shows the implementation of Nonstop Forwarding (NSF) with OSPF. NSF is used to minimize the downtime of neighbor relationships during a Route Processor (RP) switchover. The nsf command enables NSF, and ietf specifies the use of the IETF standard for graceful restart in OSPF. The restart interval 90 sets the time, in seconds, within which the restarting router should complete its restart, helping to maintain uninterrupted forwarding despite the switchover.

References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR v1.0); Cisco SPCOR Training & Certification.

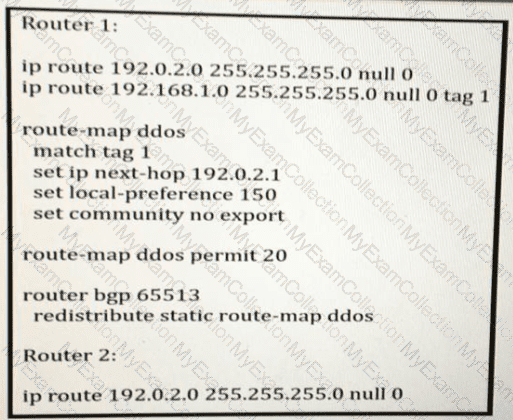

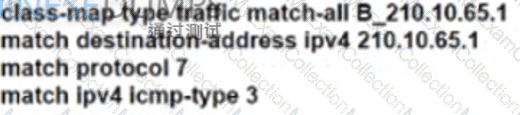

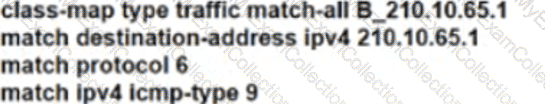

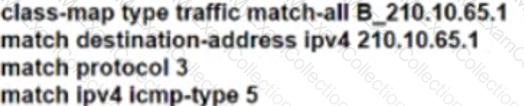

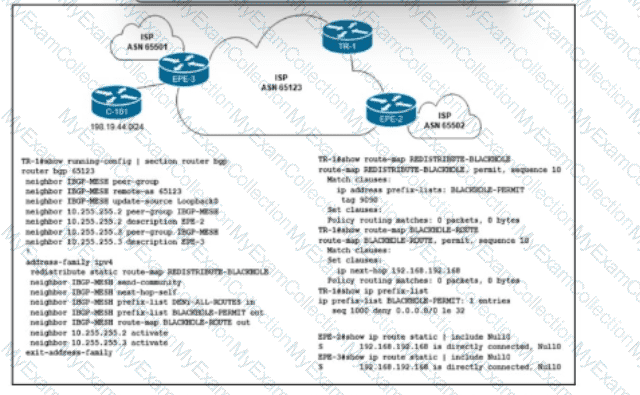

To mitigate DDoS attacks in a BGP environment, an engineer can apply BGP FlowSpec, which allows for the creation of traffic filtering policies that can be distributed across the network. This configuration enables the network to respond quickly to DDoS attacks by filtering or redirecting malicious traffic based on predefined criteria, such as source IP, destination IP, and port numbers456.

References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR)

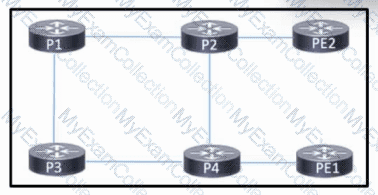

TI-LFA, or Topology Independent Loop-Free Alternate, is a fast-reroute mechanism that provides protection against link or node failures in a network. It guarantees a loop-free alternate path for all areas configured in OSPF, ensuring traffic can be quickly rerouted in case of a failure. This characteristic is crucial for maintaining network stability and avoiding traffic loops, which can lead to packet loss and network congestion.

References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) official documentation

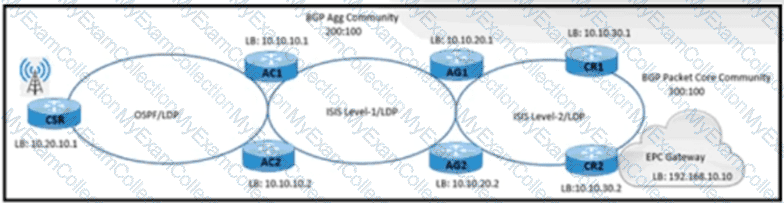

• In Cisco Unified MPLS, BGP (Border Gateway Protocol) is used to transport labels along with network layer reachability information. RFC 3107 defines BGP/MPLS IP Virtual Private Networks (VPNs) and allows BGP to carry MPLS labels, enhancing scalability and flexibility in MPLS networks.

References

1: Cisco. “Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR).” Link

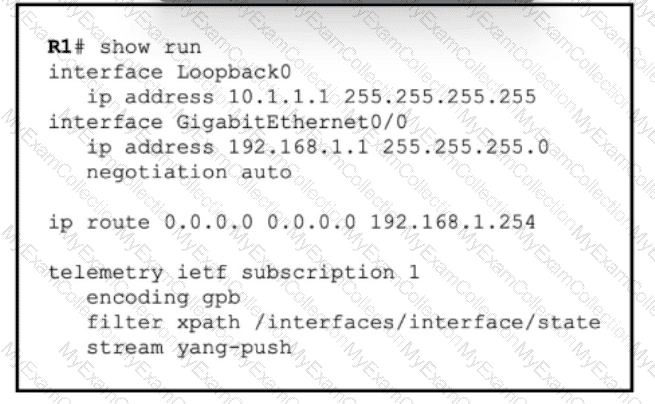

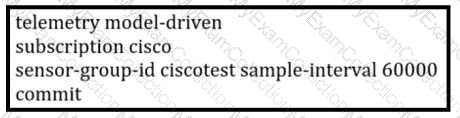

Model-driven telemetry (MDT) in a service provider environment uses a push model to send data to network monitoring tools. This method is beneficial because it allows for the streaming of data from network devices to monitoring tools in real-time, using reliable transport mechanisms. This approach is more efficient than traditional polling methods like SNMP, as it can provide faster and more granular data updates, which is crucial for maintaining network performance and reliability123.

References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR)

R1

router ospf 10

redistribute static

int et0/0

ip ospf hello-interval 5

ip ospf dead-interval 10

ip ospf cost 15

ip ospf 10 area 0

copy run start

R2

router ospf 10

redistribute static

int et0/0

ip ospf hello-interval 5

ip ospf dead-interval 10

ip ospf cost 15

ip ospf 10 area 0

copy run start

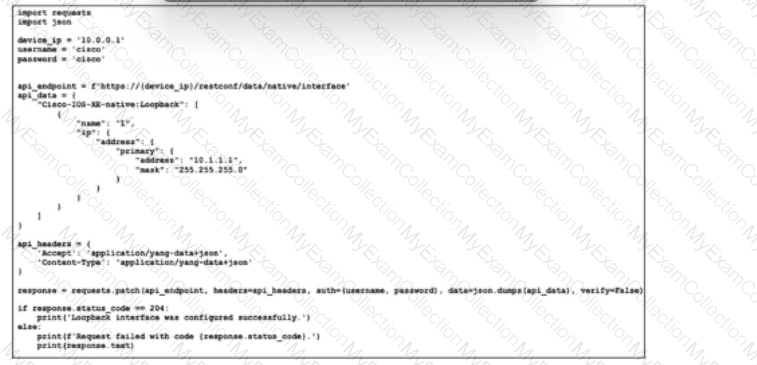

The REST API command shown in the exhibit is a POST request to a specific URL, indicating that it is used to submit data to be processed to a specified resource. In this case, the resource is an XML file named “Descriptions.xml”. POST requests are used when submitting data to be processed by the resource identified by the URI. The nature of the process conducted on the submitted data depends on that particular URI. References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) - REST API section.

• Configure an IP domain name: An IP domain name is essential for generating RSA keys needed for SSH. The RSA keys are part of the crypto key configuration, which is necessary to enable SSH on the router. This step ensures that users are authenticated via the SSH protocol when accessing the network remotely.
• Configure crypto keys: The crypto keys are crucial for secure communication. The engineer should generate RSA keys using the configured IP domain name. These keys will be used for encryption and authentication during SSH sessions.

The other options (B, D, and E) are not directly related to completing the SSH configuration for secure remote access. Therefore, the correct answers are A and C.

References:

• Implementing and Operating Cisco Service Provider Network Core Technologies

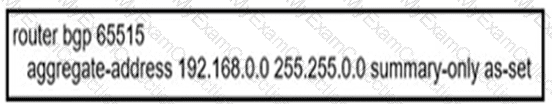

The configuration snippet in the exhibit shows that BGP summarization is configured with the “aggregate-address” command followed by an IP address and a subnet mask, and then the “summary-only” and “as-set” options. The IP address is 192.168.0.0, and the subnet mask is 255.255.0.0, which corresponds to a /16 prefix length (indicating that the first 16 bits of the IP address are the network portion). However, there seems to be a typo in option B as it’s not a valid IP address format; hence option A is correct with an assumption of typo error.

References: Implementing and Operating Cisco Service Provider Network Core Technologies source documents or study guide

 The Network Services Orchestrator (NSO) is designed to allow service providers to automate network operations efficiently. It provides a single, well-defined API that enables integration across various network environments. NSO’s capabilities include zero-touch telemetry, machine learning intuition, open APIs, and automated actions, which facilitate a simpler and more efficient network operation experience. This makes it an ideal choice for service providers looking to plan, optimize, and achieve closed-loop operations within their networks.

References := The information is based on the Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) training and certification resources, which offer a deep dive into service provider technologies, including core architecture, services, networking, automation, quality of services, security, and network assurance123.

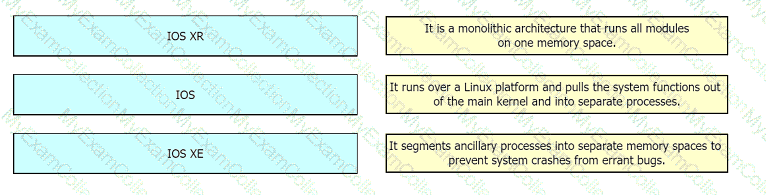

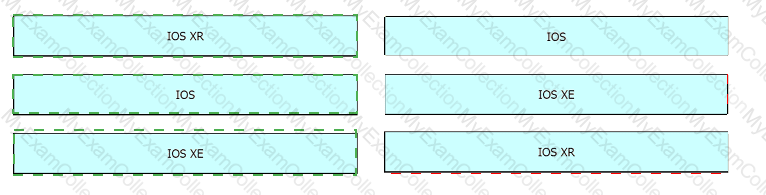

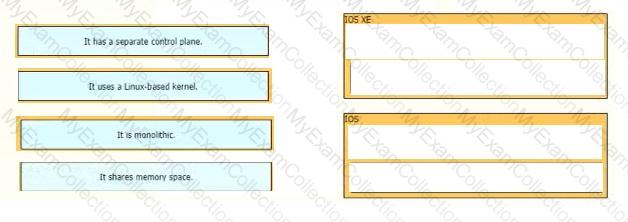

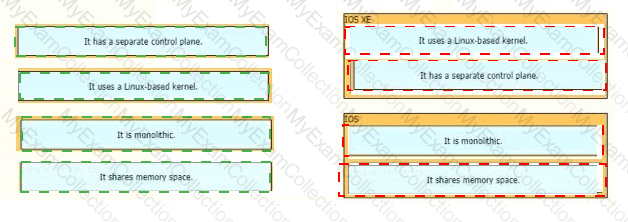

Cisco IOS XE Software is an open and flexible operating system optimized for a variety of network infrastructures. One of its key enhancements over Cisco IOS Software is the support for symmetric multiprocessing (SMP). This allows the operating system to efficiently utilize multiple CPU cores, improving performance and scalability for network services.

References: The enhancement details are derived from the Cisco IOS XE Software overview, which highlights its capabilities and benefits over the traditional Cisco IOS Software.

 Egress PE NAT via a single centralized router allows L3VPN customers to access the internet. The NAT operation maintains a table that includes a field to identify the inside VRF of a translation. This is crucial for distinguishing between different customer VPNs that may use overlapping IP address spaces. By having this field, the NAT process can correctly associate each internal IP with its respective VRF and outside global IP address1. References: Centralized egress to internet, Egress PE NAT single centralized router.

 The control plane protocol used between Cisco SD-WAN routers and vSmart controllers is the Overlay Management Protocol (OMP). OMP is a proprietary protocol of Cisco SD-WAN that facilitates the exchange of routing, policy, and management information across the network. It operates within the secure environment provided by the Datagram Transport Layer Security (DTLS) or Transport Layer Security (TLS) control connection, ensuring that the communication between the routers and controllers is encrypted and authenticated1.

References := Cisco 300-415: Cisco SD-WAN vSmart-WAN Edge Router Control Plane Protocol

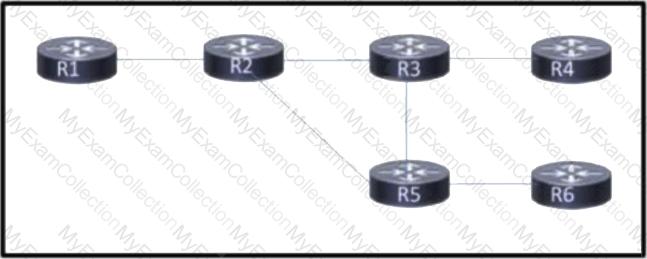

Solution

R3

router bgp 65413

add ipv4

nei 2.2.2.2 allowas-in

nei 4.4.4.4 allowas-in

add ipv6

nei 2001:db8:4:4:4::4 allowas-in

end

copy run start

=======================

R2

router bgp 65413

nei 1.1.1.1 as-override

nei 3.3.3.3 as-override

end

copy run start

=======================

R3

router bgp 65413

nei 10.3.4.2 remot 65412

nei 2001:db8:3:4::2 remot 65412

nei 2001:db8:4:4:4:4::4 remot 65412

nei 2001:db8:4:4:4:4::4 ebgp-multihop 10

add ip4

nei 10.3.4.2 act

ex

add ipv6

nei 2001:db8:4:4:4:4::4 activate

nei 2001:db8:4:4:4:4::4 ebgp-multihop 10

nei 2001:db8:3:4::2 act

end

copy run start

===================

R4

router bgp 65412

nei 10.3.4.1 remot 65413

nei 2001:db8:3:3:3:3::3 remot 65413

nei 2001:db8:3:3:3:3::3 ebgp-multihop 10

nei 2001:db8:3:4::1 remot 65413

add ipv4

nei 10.3.4.1 remot act

nei 10.3.4.1 prefix-limit 10

add ipv6

nei 2001:db8:3:3:3:3::3 activate

nei 2001:db8:3:3:3:3::3 ebgp-multihop 10

nei 2001:db8:3:3:3:3::3 prefix-limit 10

nei 2001:db8:3:4::1 activate

nei 2001:db8:3:4::1 prefix-limit 10

end

copy run start
