OGA-031 ArchiMate 3 Part 1 Examination Question and Answers

Comprehensive and Detailed in Depth Explanation:In theTechnology Layer metamodel, aCommunication Networkis anactive structurethat provides theinfrastructure for communicationbetween devices and systems.

APathrepresents a logical or physical connection that facilitates communication betweennodesorother elements. TheCommunication Networkaggregates thePath, as a network consists of multiple paths connecting different components.

This is clearly stated in theArchiMate 3.2 Specification, where theaggregation relationshipbetween aCommunication Networkand aPathis defined.

References:

Archi User Guide​

ArchiMate 3.2 Specification

Comprehensive and Detailed In-Depth Explanation:

ThisArchiMate modelrepresents theArchiSurance Contact Centerand how it interacts with different communication channels.

The elements labeled "Phone," "E-Mail," and "Web Chat" are connected to the Contact Center using a black diamond (Composition relationship).

This indicates that thesecommunication channels serve as business interfaces for interacting with customers.

A Business Interfacein ArchiMate represents a way in which services are provided toexternal parties, like customers, through defined means such as phone, email, or web chat.

Analysis of Answer Choices:

✅A. The Contact Center has a business interaction with its customers using phone, e-mail, and web chat.→❌Incorrect

ABusiness Interactionin ArchiMate is used to modelcollaborationsbetween two or more roles or actors,not interfaces.

This diagramfocuses on interfacesrather than interactions.

ArchiMate 3.2 Specification, Section 6.3.2, states thatbusiness interactions require multiple active participants, which is not shown here.

✅B. The Contact Center uses phone, e-mail, and web chat for internal communication.→❌Incorrect

Thediagram does not indicate internal collaboration or communicationbut rathercustomer-facing interfaces.

If this were internal communication, it would use Business Collaboration elements instead.

✅C. The Contact Center has three business interfaces to serve customers: phone, e-mail, and web chat.→✅Correct Answer

ThePhone, E-Mail, and Web Chat elements represent Business Interfaces, which are the means through which services are delivered to customers.

ArchiMate 3.2 Specification, Section 6.3.3, definesBusiness Interfaces as points of interaction between a Business Role and its environment, exactly fitting this diagram.

✅D. The staff within the Contact Center collaborate using phone, e-mail, and web chat.→❌Incorrect

Business Collaborationis not depicted in the diagram, andinternal collaboration would be modeled differentlyin ArchiMate.

The focus here is oncustomer-facing services, not internal interactions.

Final Answer:✅C. The Contact Center has three business interfaces to serve customers: phone, e-mail, and web chat.

References:

ArchiMate 3.2 Specification: Sections 6.3.3 (Business Interface), 6.3.2 (Business Interaction).

Archi User Guide: Modeling business interfaces and customer interactions.

Based on the ArchiMate 3 documents or objectives, a data object is a passive structure element that represents a piece of data that can be manipulated by behavior elements such as application functions or services. A passive structure element is a structural element that cannot perform behavior. Active structure elements can perform behavior on passive structure elements.

References: ArchiMate® 3.2 Specification, Chapter 4 Generic Metamodel, Section 4.1 Behavior and Structure Elements, Subsection 4.1.1 Active Structure Elements 1; ArchiMate® 3.2 Specification, Chapter 10 Application Layer, Section 10.2 Passive Structure Elements 1.

Based on the ArchiMate 3 documents or objectives, an application component represents a modular, deployable, and replaceable part of a software system that encapsulates its behavior and data. An application service represents an explicitly defined exposed application behavior. A data object represents data structured for automated processing. A realization relationship indicates that an entity plays a critical role in the creation, achievement, sustenance, or operation of a more abstract entity. An access relationship models the ability of behavior and active structure elements to observe or act upon passive structure elements. The diagram uses a realization relationship from the MEDINFO application component to the Medical Information service to indicate that the application component realizes the service. The diagram also uses an access relationship from the MEDINFO application component to the MEDBASE data object to indicate that the application component accesses the data object.

References: ArchiMate® 3.2 Specification, Chapter 10 Application Layer, Section 10.1 Active Structure Elements 1; ArchiMate® 3.2 Specification, Chapter 10 Application Layer, Section 10.3 Behavior Elements 1; ArchiMate® 3.2 Specification, Chapter 5 Relationships, Section 5.1 Structural Relationships 1; ArchiMate® 3.2 Specification, Chapter 5 Relationships, Section 5.3 Access Relationships 1; ArchiMate Example: Application Components - Visual Paradigm 2.

Comprehensive and Detailed In-Depth Explanation:

This diagram represents agoal decomposition modelinArchiMate, specifically illustratinghow multiple lower-level goals contribute to a higher-level goal.

The top three goals ("Increase Premium," "Reduce Consultant Usage," and "Increase Internal Labor Expense") are connected to "Reduce Expense Ratio" using an aggregation relationship.

Aggregation in ArchiMate indicates that multiple elements together contribute to forming a larger whole.

This means"Reduce Expense Ratio from 15% to 10%" is composed of these three contributing goals.

Analysis of Answer Choices:

✅A. The goal "Reduce Expense Ratio from 15% to 10%" combines three other goals.→✅Correct Answer

The aggregation relationship used in the diagram indicates that the three top-level goals together support or combine to form the "Reduce Expense Ratio" goal.

ArchiMate 3.2 Specification, Section 6.4.1, states thatAggregation represents a "whole-part" relationship, meaning the main goal (Reduce Expense Ratio) is achieved by achieving the contributing goals.

✅B. The goal "Reduce Expense Ratio from 15% to 10%" will be achieved if at least one of the other three goals is achieved.→❌Incorrect

This would require an Influence or Contribution relationshiprather than Aggregation.

Aggregation meansall three goals contribute to the overall goal, not just one of them.

✅C. The goal "Reduce Expense Ratio from 15% to 10%" must be achieved before any of the other three goals is achieved.→❌Incorrect

This would imply a triggering or dependency relationship, which is not present in the diagram.

The diagram does not indicate a sequence of achievements.

✅D. The goal "Reduce Expense Ratio from 15% to 10%" is similar to the three other goals.→❌Incorrect

Therelationship shown is not equivalence or similarity, butaggregation, meaning the three smaller goals form part of the main goal.

Final Answer:✅A. The goal "Reduce Expense Ratio from 15% to 10%" combines three other goals.

References:

ArchiMate 3.2 Specification: Sections 6.4.1 (Aggregation) and 6.2.2 (Goal Decomposition).

Archi User Guide: Understanding goal decomposition and strategic planning.

Comprehensive and Detailed In-Depth Explanation:

The diagram represents ametamodel fragmentbased onArchiMate 3.2, specifically focusing onBehavior Elements.

Behavior Elementis ageneral categorythat consists ofexternal and internal behavior elements.

External Behavior Elementrepresents behavior that is externally observable by other components (such as aserviceor aninterface).

Internal Behavior Elementrepresents behavior that is performed within an entity (such as afunction, process, or interaction).

The elementXisa specialized form of an Internal Behavior Element.

According toArchiMate 3.2 Specification, Section 5.2,internal behavior elements include processes, functions, interactions, and events.

Function (A)❌→Incorrect

AFunctionis an internal behavior element, but it isnot the correct specialization in this hierarchy.

Functions are usuallystructured ways of performinginternal operations rather than discrete occurrences.

Service (B)❌→Incorrect

AServiceis anexternal behavior element, meaning it isnot classified under internal behavior elements.

SinceX is placed under Internal Behavior Elements, this cannot be the correct answer.

Interface (C)❌→Incorrect

AnInterfaceis not a behavior element; instead, it is part of the structure that exposes services.

The hierarchy in the question doesnot deal with structural elements, making Interface an incorrect choice.

Event (D)✅→Correct Answer

Events represent discrete occurrences that can trigger other behaviorswithin the architecture.

Events belong to Internal Behavior Elementsbecause they drive processes and functions.

According toArchiMate 3.2 Specification, Section 5.2.1,an Event is classified as an Internal Behavior Elementalongside functions and processes.

Final Answer:✅D. Event

References:

ArchiMate 3.2 Specification: Sections 5.2 (Behavior Elements) and 5.2.1 (Event as an Internal Behavior Element).

Archi User Guide: Understanding Behavior Elements and their hierarchy.

Based on the ArchiMate 3 documents or objectives, a capability represents an ability that an active structure element, such as an organization, person, or system, possesses. An outcome represents an end result that has been achieved. A realization relationship indicates that an entity plays a critical role in the creation, achievement, sustenance, or operation of a more abstract entity. The diagram uses a realization relationship from the Digital customer management capability to the Excellent online customer interaction outcome to indicate that the capability realizes the outcome.

References: ArchiMate® 3.2 Specification, Chapter 7 Strategy Elements, Section 7.2 Structure Elements 1; ArchiMate® 3.2 Specification, Chapter 5 Relationships, Section 5.1 Structural Relationships 1; Capability Map: Artifact of Vision Phase - Visual Paradigm Guides 2.

Comprehensive and Detailed in Depth Explanation:AWork Packageis anImplementation and Migrationelement in ArchiMate that represents aseries of actions designed to achieve a specific goal within a defined period. It is used tomodel sub-projects, tasks, projects, and programsas it captures the work needed to realize a specific aspect of an architecture.

TheArchiMate 3.2 Specificationexplicitly defines aWork Packageas an element that structures and organizes the necessary activities within aproject, program, or portfolio.

References:

Archi User Guide​

ArchiMate 3.2 Specification

The diagram shows a work package, which is a grouping of behavior and/or structure elements that can be assigned to one or more performers. A work package can be used to model a project or a program, and it can contain deliverables, which are outcomes of the work package. The four elements (A, B, C, and D) are all deliverables that are part of the work package.

References: ArchiMate® 3.2 Specification, Chapter 10: Motivation Elements, Section 10.4 Work Package1; Chapter 11: Strategy Elements, Section 11.5 Deliverable2.

Comprehensive and Detailed in Depth Explanation:TheMaterialelement in thePhysical Layerof ArchiMate representstangible physical matter or energythat is used or produced within an enterprise. Examples include raw materials, energy sources, or physical substances used in manufacturing.

TheArchiMate 3.2 Specificationexplicitly states thatMaterialis apassive structureelement that representsphysical matter or energy.

References:

Archi User Guide​

ArchiMate 3.2 Specification

Comprehensive and Detailed in Depth Explanation:AnInterfacein ArchiMate representsan access point through which elements interact with services. It can be aBusiness Interface, Application Interface, or Technology Interface.

Interfaces serve as aboundarybetween internal and external systems, allowing controlled interactions. TheArchiMate 3.2 Specificationexplicitly states thatinterfaces expose services to the environment.

References:

Archi User Guide​

ArchiMate 3.2 Specification

According to the ArchiMate 3.2 Specification1, the ArchiMate core language defines a structure of generic elements and their relationships, which can be specialized in different layers. Three layers are defined within the ArchiMate core language as follows:

The Business Layer depicts business services offered to customers, which are realized in the organization by business processes performed by business actors and roles.

The Application Layer depicts application services that support the business, and the applications that realize them.

The Technology Layer comprises both information and operational technology. You can model, for example, processing, storage, and communication technology in support of the application world and Business Layers, and model operational or physical technology with facilities, physical equipment, materials, and distribution networks.

Comprehensive and Detailed In-Depth Explanation:

ThisArchiMate Business Layer diagramrepresentsa sequence of business processes triggered by a business event.

"Claim Filed" is a Business Event, which means it represents anexternal occurrence that initiates a process.

"Accept Claim" is a Business Process, meaning it is a structured activity that follows the event.

"Assign Claim" is another Business Process, which follows after the "Accept Claim" process.

A Customer Service Representative role is assigned to the "Accept Claim" process, but the focus of the diagram is the event-driven flow of processes.

Analysis of Answer Choices:

✅A. The Claim Filed event assigns the Customer Service Representative to participate in the Accept Claim and Assign Claim processing.→❌Incorrect

TheCustomer Service Representative role is involved only in the "Accept Claim" process, but the diagram does not indicate their role in "Assign Claim."

ArchiMate 3.2 Specification, Section 6.3.2, states thatBusiness Events trigger processes but do not assign roles.

✅B. The event Claim Filed triggers the Accept Claim process which is serviced by the Customer Service Representative role before the Assign Claim process.→❌Incorrect

WhileClaim Filed triggers Accept Claim, thefocus of the diagram is on process flow, not role assignments.

The key relationship is between the business processes, not the role.

✅C. The information that flows from Claim Filed to Accept Claim and then to Assign Claim is reviewed by the Customer Service Representative role.→❌Incorrect

TheCustomer Service Representative role is assigned to "Accept Claim," but there is no indication they review information across all steps.

The diagramshows process flow, not an explicit review process.

✅D. Business event Claim Filed triggers a business process Accept Claim which in turn triggers an Assign Claim process.→✅Correct Answer

"Claim Filed" (Business Event) triggers "Accept Claim" (Business Process), which then triggers "Assign Claim" (Business Process).

ArchiMate 3.2 Specification, Section 6.3.1, states thatBusiness Events initiate Business Processes, and processes can trigger subsequent processes.

This matches the flow depicted in the diagram.

Final Answer:✅D. Business event Claim Filed triggers a business process Accept Claim which in turn triggers an Assign Claim process.

References:

ArchiMate 3.2 Specification: Sections 6.3.1 (Business Processes) and 6.3.2 (Business Events).

Archi User Guide: Modeling event-driven process flows in business architecture.

Comprehensive and Detailed in Depth Explanation:In theApplication Layer metamodel, anApplication Serviceprovides functionality that operates onData Objects. TheAccessrelationship is used to model thereading, writing, creation, or deletionof aData Objectby anApplication Service.

This is becauseApplication Servicesdefine what applications offer, andData Objectsrepresent the structured data they process. TheArchiMate 3.2 Specificationexplicitly states thatApplication ServicesuseAccessrelationships to interact withData Objects.

References:

Archi User Guide​

ArchiMate 3.2 Specification

Based on the ArchiMate 3 documents or objectives, a communication network represents a set of structures that connects devices or system software for transmission, routing, and reception of data. A path models the relation between two or more technology internal active structure elements, through which these can exchange information. The diagram uses a flow relationship to indicate that data flows from server B to communication network E, then through path F to communication network I. The notation for a flow relationship is a dashed line with an open arrowhead at the end that points to the direction of the flow.

References: ArchiMate® 3.2 Specification, Chapter 11 Technology Layer, Section 11.2 Active Structure Elements 1; ArchiMate® 3.2 Specification, Chapter 5 Relationships, Section 5.4 Dynamic Relationships 1; ArchiMate communication network 2.

Comprehensive and Detailed in Depth Explanation:In ArchiMate,Capabilitiesdefine theabilities of an organizationto achieve a specific objective, whileRequirementsrepresentconditions or needsthat must be met.

TheAssigned Torelationship is used to linkcapabilities to requirements, indicating that acapability fulfills a requirement. TheRealizationrelationship is also valid because capabilitiesrealize higher-level requirementsby providing the necessary means to achieve them.

TheArchiMate 3.2 Specificationstates that aCapability can be assigned to a Requirement and can also realize a Requirement.

References:

Archi User Guide​

ArchiMate 3.2 Specification

Comprehensive and Detailed In-Depth Explanation:

TheTrigger relationshipin ArchiMatemodels causalitybetween behaviors. It represents acause-effect relationshipwhere one behaviorinitiates or enablesanother behavior to occur.

Understanding the Diagram:

TheClaim Assessmentactivityleads toortriggerstheClaim Settlementactivity.

The relationship is labeled"decision,"implying that the completion ofClaim Assessmentdetermines whether aClaim Settlementprocess should be initiated.

InArchiMate 3.2, aTrigger relationshipis represented with adashed arrow (⟶)as seen in the diagram.

Analysis of Answer Choices:

✅A. Flow→❌Incorrect

Flow relationshipsrepresent thetransfer of information, data, or resourcesrather than acausal effect.

ArchiMate 3.2 Specification, Section 6.4.4, states that aFlowrelationship is aboutcommunication or material flow, which is not the case here.

✅B. Influence→❌Incorrect

Influence relationshipsindicate that one element affects anotherin a non-deterministic way(e.g., policies, motivations, or strategies).

ArchiMate 3.2 Specification, Section 6.4.5, states thatInfluencedoes not necessarily imply direct causation.

Since "decision" suggests aclear causal dependency,Triggeris the better choice.

✅C. Trigger→✅Correct Answer

Trigger relationshipsexplicitly show that one behaviorinitiatesorcausesanother behavior.

ArchiMate 3.2 Specification, Section 6.4.3, states that aTrigger relationship models a causal dependency between two behaviors.

A Claim Assessment leading to a Claim Settlement fits this pattern perfectly.

✅D. Access→❌Incorrect

Access relationshipsdescribe how abehavioral element reads, writes, or manipulates an object(e.g., data access).

ArchiMate 3.2 Specification, Section 6.4.7, states thatAccess is used for information retrieval or modification, which is not relevant here.

Final Answer:✅C. Trigger

References:

ArchiMate 3.2 Specification: Sections 6.4.3 (Trigger), 6.4.4 (Flow), 6.4.5 (Influence), and 6.4.7 (Access).

Archi User Guide: Behavioral relationships and dependency modeling.

Comprehensive and Detailed In-Depth Explanation:

ThisArchiMate Implementation & Migration Layer diagramrepresentsan architecture evolution model, specifically showingtwo plateaus (X and Y) with a Gap (Z) in between them.

Plateausin ArchiMate representstates of an enterprise architectureat different points in time.

Gapsrepresentthe difference or missing elements between two architectural states, indicating what needs to change.

Thecircle with lines (Z) represents a Gap, which identifies what is missing or needs to be addressed when transitioning from Plateau X to Plateau Y.

Analysis of Answer Choices:

✅A. Two plateaus (X and Y) with a transition architecture (Z).→❌Incorrect

A transition architecture is different from a gap.

ATransition Architecture provides an intermediate step between two plateaus, whereasthis diagram is identifying a Gapbetween them.

ArchiMate 3.2 Specification, Section 7.4.3, definesGaps as structural differences, not transition states.

✅B. A gap (Z) associated with two plateaus (X and Y).→✅Correct Answer

The circle with lines (Z) is the correct representation of a Gap in ArchiMate.

Plateau X represents the "Before" state, andPlateau Y represents the "Target" state.

Z (Gap) represents what is missing or what must be addressed to move from X to Y.

ArchiMate 3.2 Specification, Section 7.4.3, states thatGaps are used in architecture migration to analyze missing capabilities or elements.

✅C. A deliverable (Z) exchanged between two projects (X and Y).→❌Incorrect

A deliverable is typically represented as a document or artifactin ArchiMate, not as a Gap.

Z represents a missing element between states, not an exchanged deliverable.

✅D. Two nodes (X and Y) connected by a communication path (Z).→❌Incorrect

Nodes and Communication Paths belong to the Technology Layer, but this diagram represents theImplementation & Migration Layer.

X and Y are plateaus, not technology nodes.

Final Answer:✅B. A gap (Z) associated with two plateaus (X and Y).

References:

ArchiMate 3.2 Specification: Sections 7.4.1 (Plateau) and 7.4.3 (Gap).

Archi User Guide: Modeling architecture migration using Gaps and Plateaus.

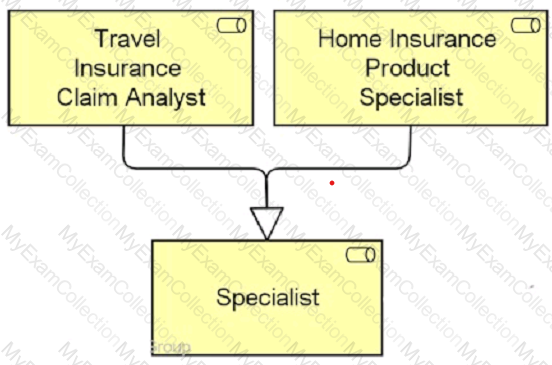

Based on the ArchiMate 3 documents or objectives, the diagram uses a specialization relationship to indicate that the two business roles Travel Insurance Claim Analyst and Home Insurance Product Specialist are more specific versions of the business role Specialist. A specialization relationship is a type of structural relationship that indicates that an object is a specialization of another object. The notation for a specialization relationship is a solid line with an empty triangle at the end that points to the more general element.

References: ArchiMate® 3.2 Specification, Chapter 4 Generic Metamodel, Section 4.1 Behavior and Structure Elements, Subsection 4.1.2 Structural Relationships 1; ArchiMate Specialization Relationship - ArchiMate Quick Guide - GitBook 2.
