Role of the Hosts File:

The hosts file is a local file on a computer that maps hostnames to IP addresses. It can be used to override DNS resolution by providing a static mapping of a hostname to an IP address.

Common Issues with the Hosts File:

If an incorrect IP address is mapped to a hostname in the hosts file, it can cause the computer to resolve the hostname to the wrong IP address. This can lead to navigation issues for specific websites while other users, relying on DNS, do not face the same problem.

Why Other Options are Less Likely:

Self-signed certificate: Relates to SSL/TLS and would cause a security warning, not a navigation failure.

Nameserver record: Affects all users, not just one.

IP helper: Used to forward DHCP requests and is unrelated to DNS resolution issues.

Troubleshooting Steps:

Check the hosts file on the affected user's computer (C:\Windows\System32\drivers\etc\hosts on Windows or /etc/hosts on Unix/Linux).

Look for entries that map the problematic hostname to an incorrect IP address and correct or remove them.

References:

CompTIA Network+ study materials and system administration documentation.

In a data center that uses hot aisle/cold aisle ventilation, equipment is typically installed so that cool air enters from the cold aisle (front) and hot air is exhausted to the hot aisle (rear). This configuration maximizes cooling efficiency.

A split-tunnel VPN allows certain traffic (e.g., cloud-based services) to bypass the VPN and go directly to the Internet. This reduces the amount of traffic that needs to traverse the company's VPN and Internet connection, conserving bandwidth and reducing costs. It also means that not all traffic is subject to the same level of inspection or filtering, which can improve performance for cloud-based services.References: CompTIA Network+ study materials.

Border Gateway Protocol (BGP): BGP is the most commonly used routing protocol for interconnecting WANs, especially across the internet. It is used for exchanging routing information between autonomous systems (AS), making it the backbone protocol for large-scale WANs.

IGP (A): Interior Gateway Protocols like OSPF and EIGRP are typically used within a single AS, not between them.

EIGRP (B): While it is efficient, EIGRP is primarily used for intra-domain routing and not ideal for WAN interconnection.

OSPF (D): While OSPF can be used for WANs, it is not as common as BGP for inter-AS communication.

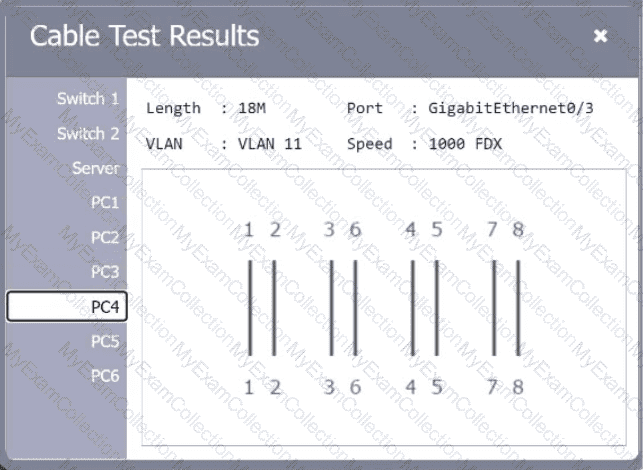

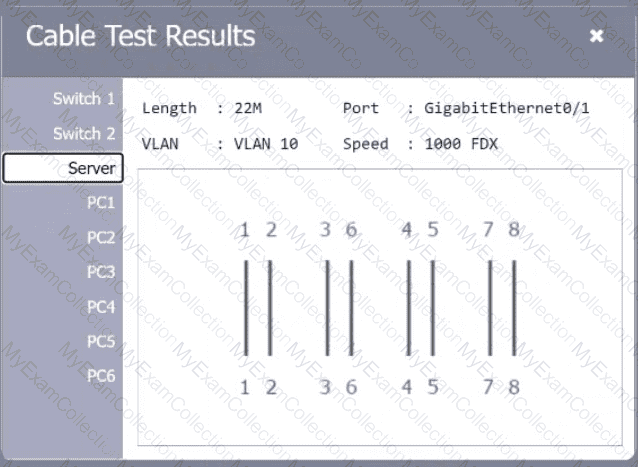

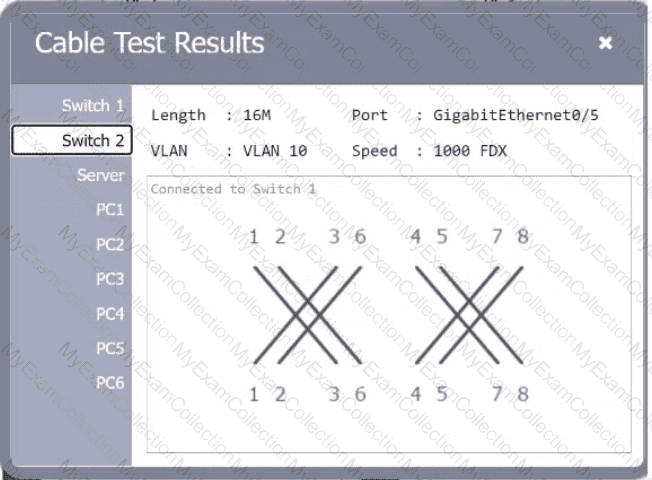

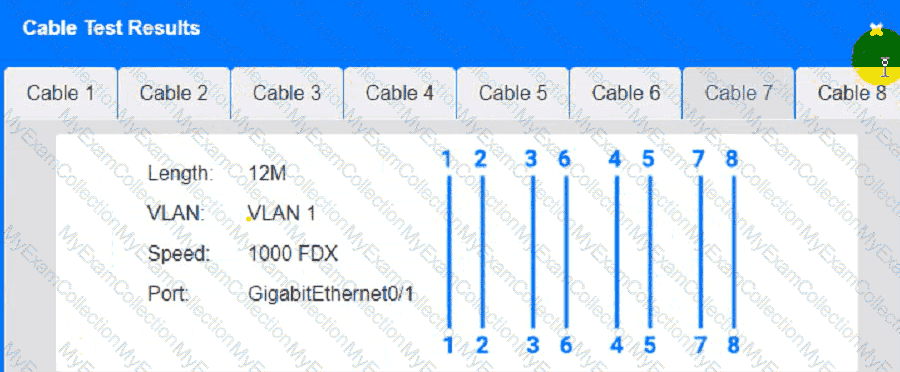

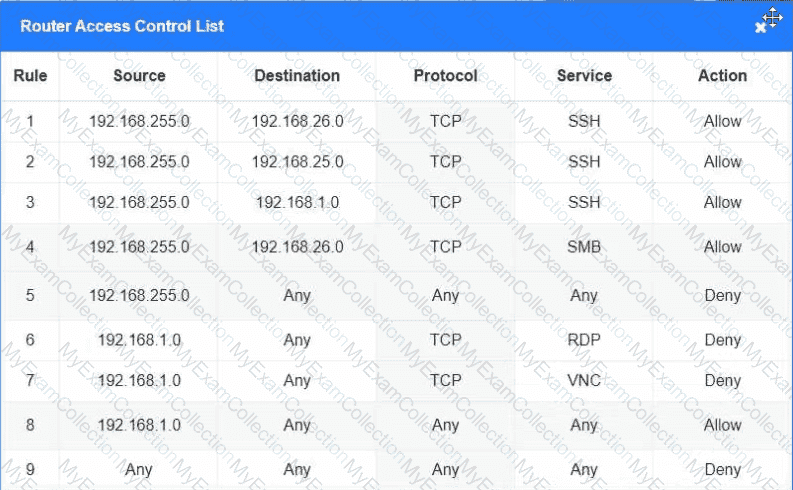

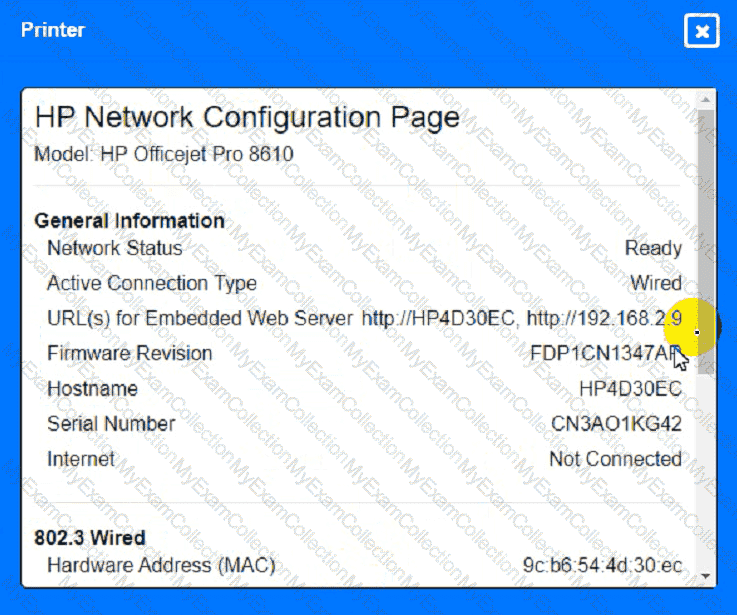

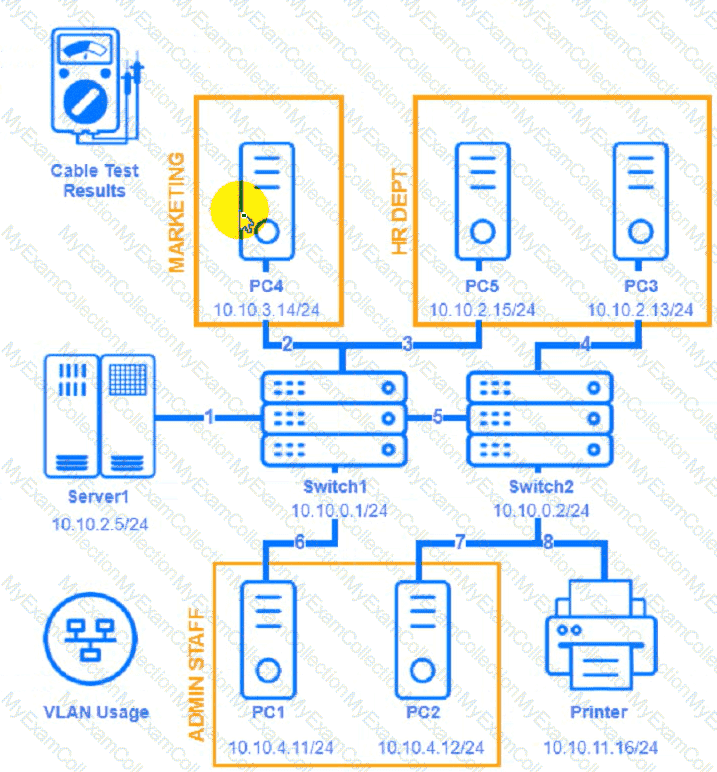

A cable tester is a tool that can help identify issues with the physical cabling, such as breaks or improper terminations, which may prevent the access point from reaching the internet.

=================

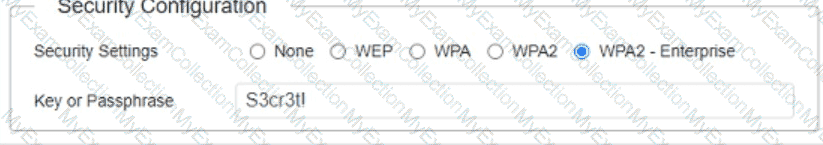

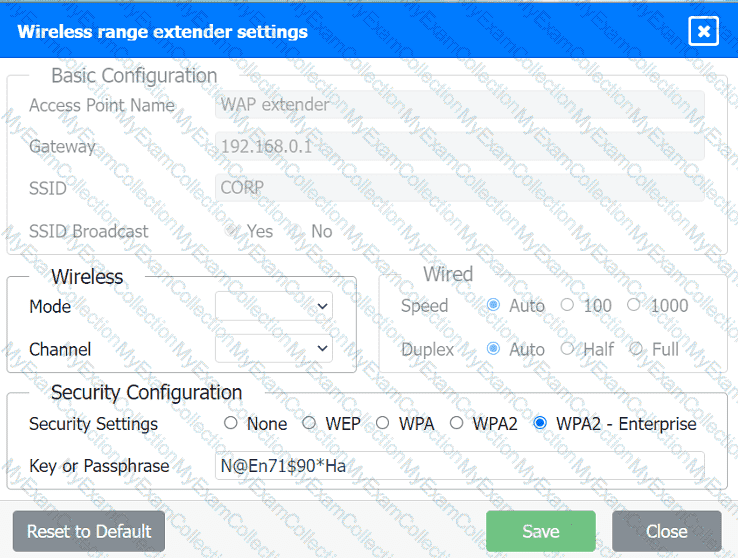

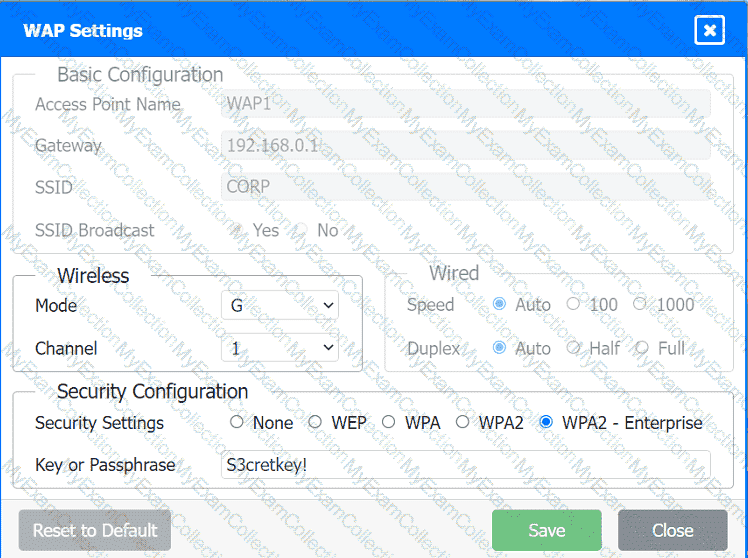

Enterprise authentication (such as WPA2-Enterprise) utilizes unique credentials for each user, typically integrating with an authentication server like RADIUS. This allows for tracking and logging user activity, ensuring that all connections can be traced back to individual users. PSKs (Pre-Shared Keys) are shared among users and do not provide individual accountability. Captive portals can identify users but are less secure than enterprise authentication, and Wired Equivalent Privacy (WEP) is outdated and not recommended for security purposes.

Definition of Fiber Connector Types:

LC (Lucent Connector): A small form-factor fiber optic connector with a push-pull latching mechanism, commonly used for high-density applications.

SC (Subscriber Connector or Standard Connector): A larger form-factor connector with a push-pull latching mechanism, often used in datacom and telecom applications.

ST (Straight Tip): A bayonet-style connector, typically used in multimode fiber optic networks.

MPO (Multi-fiber Push On): A connector designed to support multiple fibers (typically 12 or 24 fibers), used in high-density cabling environments.

Common Usage:

LC Connectors: Due to their small size, LC connectors are widely used in network interface cards (NICs) and high-density environments such as data centers. They allow for more connections in a smaller space compared to SC and ST connectors.

SC and ST Connectors: These are larger and more commonly used in patch panels and older fiber installations but are less suitable for high-density applications.

MPO Connectors: Primarily used for trunk cables in data centers and high-density applications but not typically on individual network interface cards.

Selection Criteria:

The small form-factor and high-density capabilities of LC connectors make them the preferred choice for network interface cards, where space and connection density are critical considerations.

References:

CompTIA Network+ study materials on fiber optics and connector types.

An SVI (Switched Virtual Interface) is a logical interface on a Layer 3-capable switch used to route traffic between VLANs. This is particularly useful in environments where voice and data traffic need to be separated, as each type of traffic can be assigned to different VLANs and routed accordingly.

SVI (Switched Virtual Interface): A virtual interface created on a switch for inter-VLAN routing.

VLAN Routing: Enables the routing of traffic between VLANs on a Layer 3 switch, allowing for logical separation of different types of traffic, such as voice and data.

Use Case: Commonly used in scenarios where efficient and segmented traffic management is required, such as in VoIP implementations.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Discusses VLANs, SVIs, and their applications in network segmentation and routing.

Cisco Networking Academy: Provides training on VLAN configuration and inter-VLAN routing using SVIs.

Network+ Certification All-in-One Exam Guide: Covers network segmentation techniques, including the use of SVIs for VLAN routing.

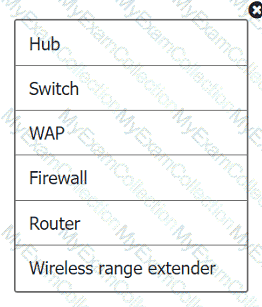

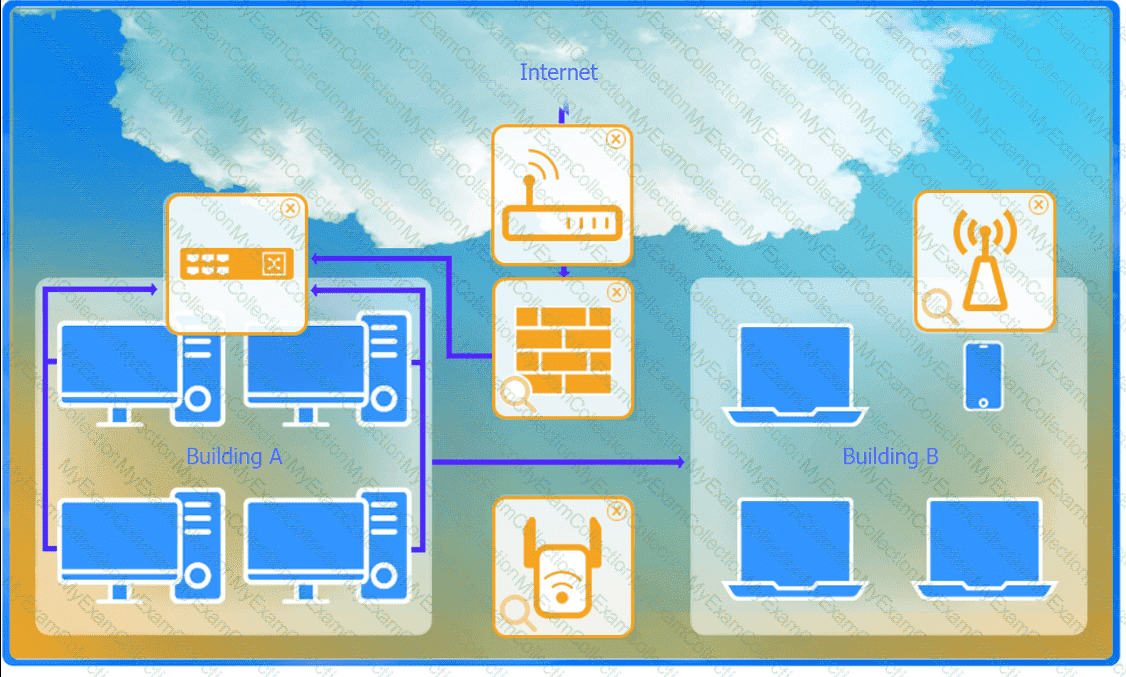

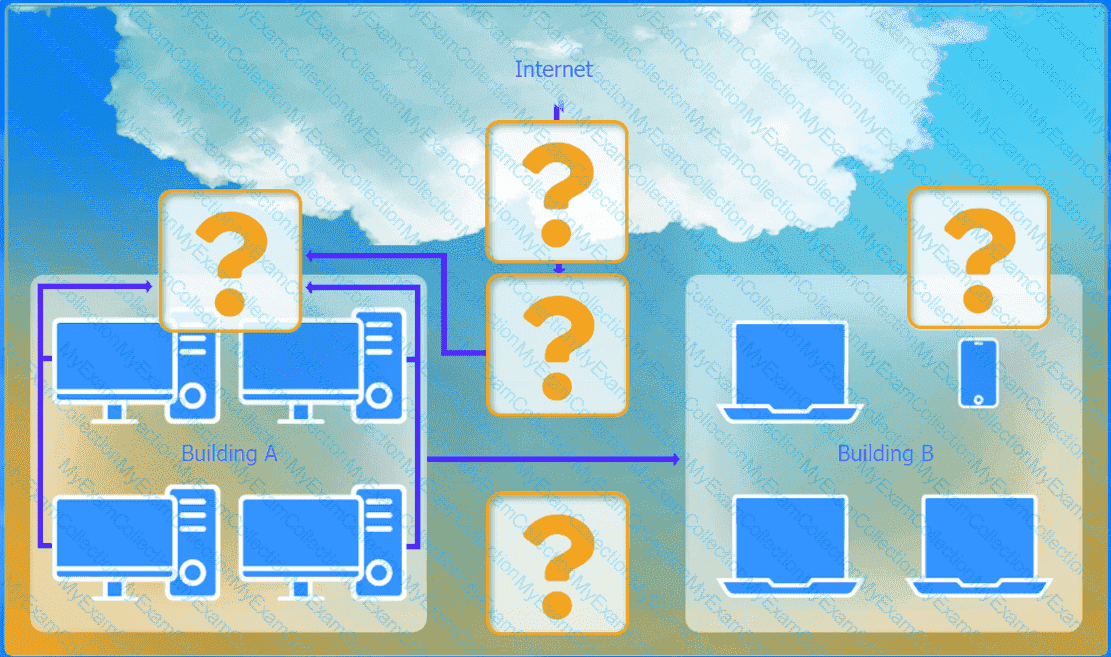

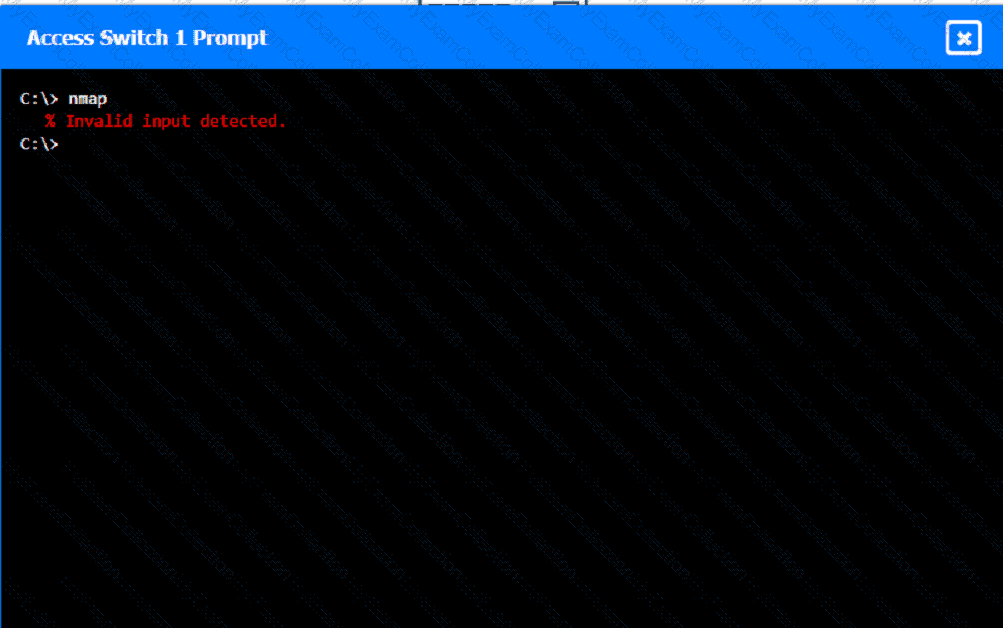

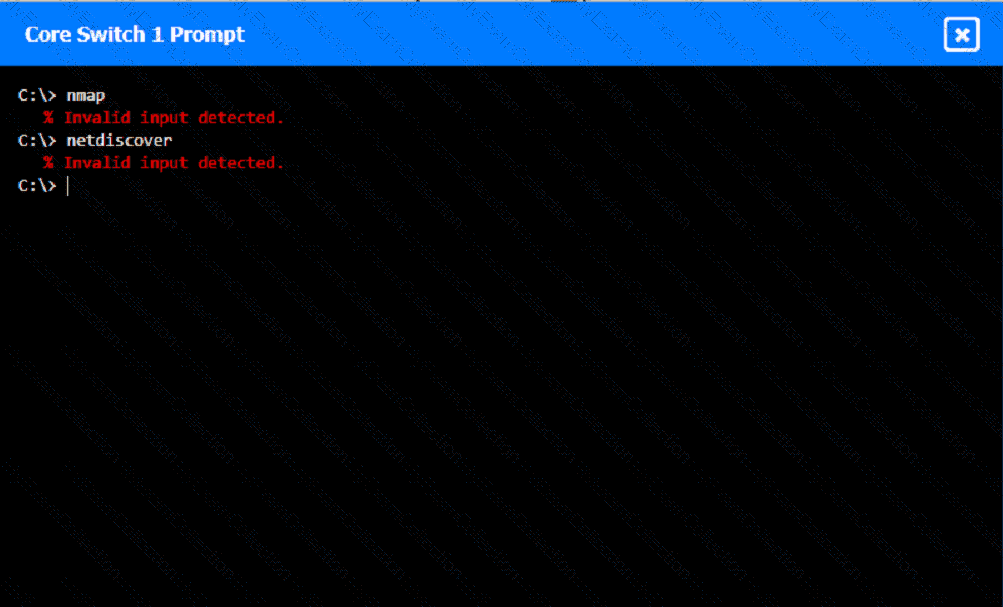

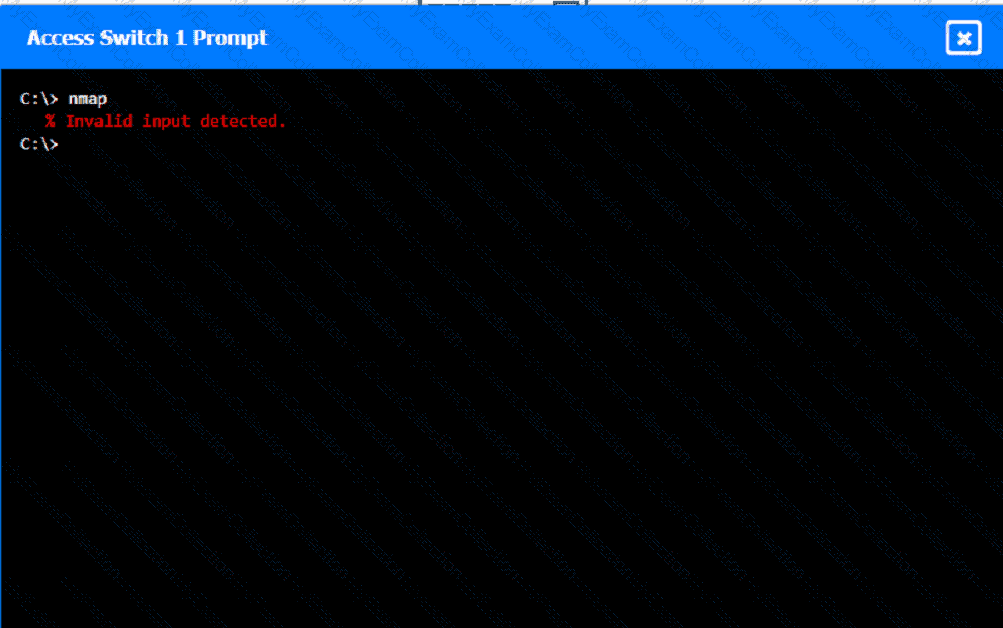

Nmap (Network Mapper) is a powerful network scanning tool used to discover hosts and services on a computer network. It can be used to identify which ports are open on a remote server, which can help diagnose access issues to services like a remote file server.

Port Scanning: Nmap can perform comprehensive port scans to determine which ports are open and what services are running on those ports.

Network Discovery: It provides detailed information about the host’s operating system, service versions, and network configuration.

Security Audits: Besides troubleshooting, Nmap is also used for security auditing and identifying potential vulnerabilities.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Covers network scanning tools and their uses.

Nmap Documentation: Official documentation provides extensive details on how to use Nmap for port scanning and network diagnostics.

Network+ Certification All-in-One Exam Guide: Discusses various network utilities, including Nmap, and their applications in network troubleshooting.

A split-tunnel VPN allows some traffic to be routed through the VPN while other traffic goes directly to the internet. This setup offers several advantages, with a primary one being cost-effectiveness due to cloud-based traffic not consuming company bandwidth.

Bandwidth Utilization: Split-tunnel VPNs reduce the amount of traffic passing through the company's network, freeing up bandwidth for other uses.

Performance: By allowing internet-bound traffic to bypass the VPN, it can reduce latency and improve the performance for users accessing cloud services directly.

Cost Savings: Reduced load on the company's VPN infrastructure can lead to lower costs in terms of both hardware and bandwidth.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Covers VPN types, including split-tunnel configurations and their advantages.

Cisco Networking Academy: Discusses VPN technologies and the benefits of split-tunneling.

Network+ Certification All-in-One Exam Guide: Provides detailed information on VPN setups, including the cost-effectiveness of split-tunnel VPNs.

By allowing cloud-based traffic to flow outside the company’s network, a split-tunnel VPN optimizes resource usage and enhances the overall network performance without incurring extra costs for bandwidth.

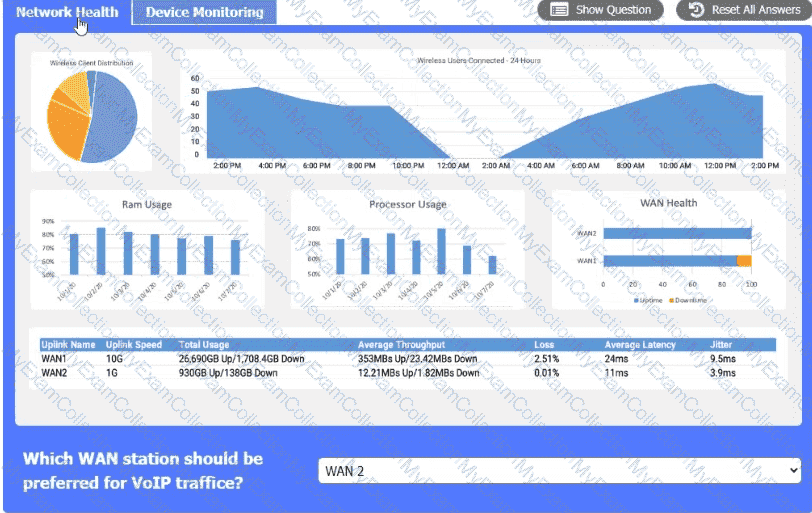

Quality of Service (QoS): This is a feature used in networking to prioritize certain types of traffic. By configuring QoS, network administrators can allocate higher bandwidth to time-sensitive applications like VoIP, video conferencing, or critical business applications during peak usage times. This helps to reduce latency and packet loss, which are often caused by congestion.

Load Balancing (A): While load balancing is useful in distributing traffic across multiple servers or paths, it does not address congestion on a single switch.

Port Mirroring (B): This is used for monitoring network traffic for troubleshooting and diagnostics but does not alleviate congestion.

Spanning Tree Protocol (D): STP prevents switching loops in redundant network topologies, but it is not designed to handle traffic prioritization or congestion issues.

Understanding Multicast:

Multicast IP Address Range: The multicast address range is from 224.0.0.0 to 239.255.255.255, designated for multicast traffic.

Multicast Applications:

Use Case: Multicast is used for one-to-many or many-to-many communication, suitable for applications like audio and video broadcasting where the same data is sent to multiple recipients simultaneously.

Appropriate Network Selection:

224.0.0.0/24 Network: This range is reserved for multicast addresses, making it the appropriate choice for setting up a multicast network.

Comparison with Other Options:

172.16.0.0/24: Part of the private IP address space, used for private networks, not designated for multicast.

192.168.0.0/24: Another private IP address range, also not for multicast.

240.0.0.0/24: Reserved for future use, not suitable for multicast.

References:

CompTIA Network+ study materials on IP address ranges and multicast.

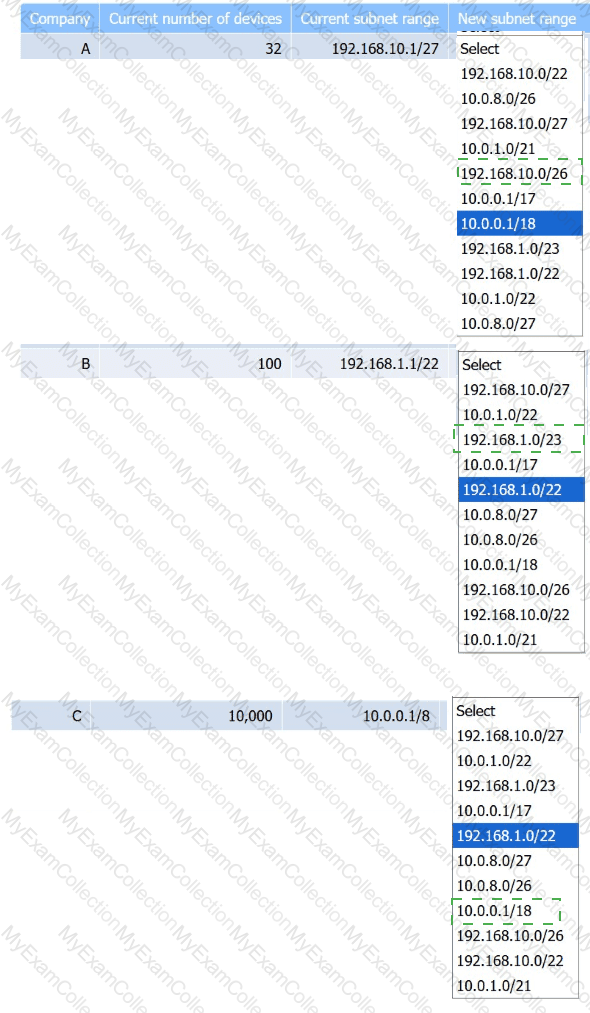

Network segmentation involves dividing a network into smaller segments or subnets. This is particularly important when integrating OT (Operational Technology) devices to ensure that these devices are isolated from other parts of the network. Segmentation helps protect the OT devices from potential threats and minimizes the impact of any security incidents. It also helps manage traffic and improves overall network performance.References: CompTIA Network+ study materials.

Understanding the Vulnerability:

Vulnerabilities in the router CPU can be exploited to cause performance degradation, unauthorized access, or other security issues.

Firmware Update:

Firmware Role: The firmware is low-level software that controls the hardware of a device. Updating the firmware can address vulnerabilities by providing patches and enhancements from the manufacturer.

Procedure: Download the latest firmware from the vendor’s website, follow the manufacturer's instructions to apply the update, and verify that the update resolves the vulnerability.

Comparison with Other Options:

Replace the System Board: This is a costly and often unnecessary step if the issue can be resolved with a firmware update.

Patch the OS: Patching the OS is relevant for devices with a full operating system but not directly applicable to addressing a CPU vulnerability on a router.

Isolate the System: Temporarily isolating the system can mitigate immediate risk but does not resolve the underlying vulnerability.

Best Practice:

Regularly check for and apply firmware updates to ensure that network devices are protected against known vulnerabilities.

References:

CompTIA Network+ study materials on network security and device management.

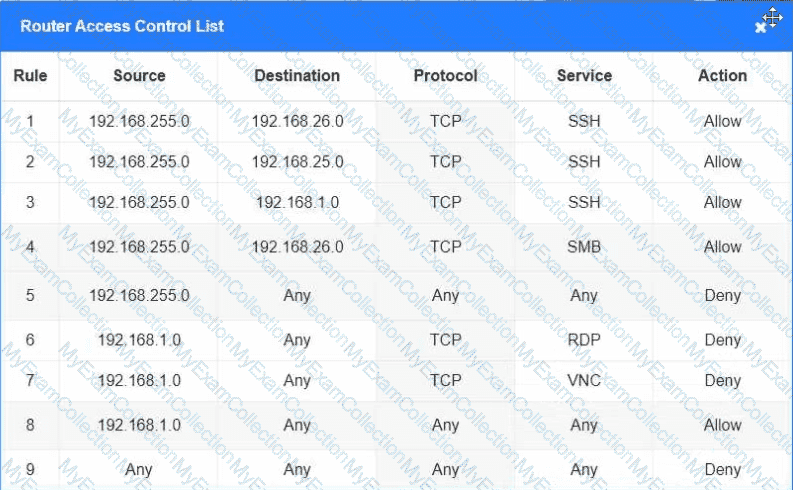

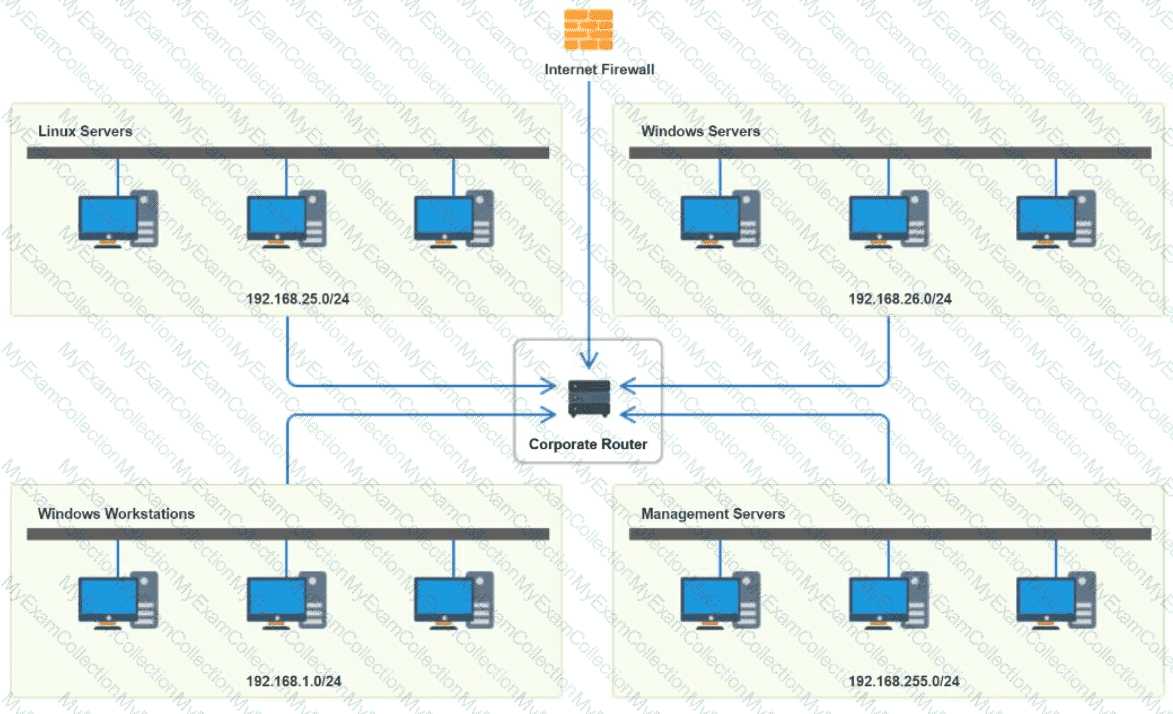

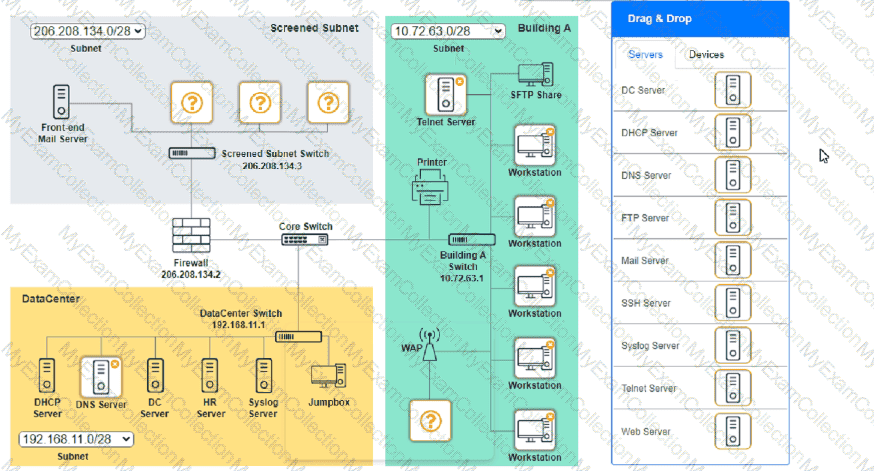

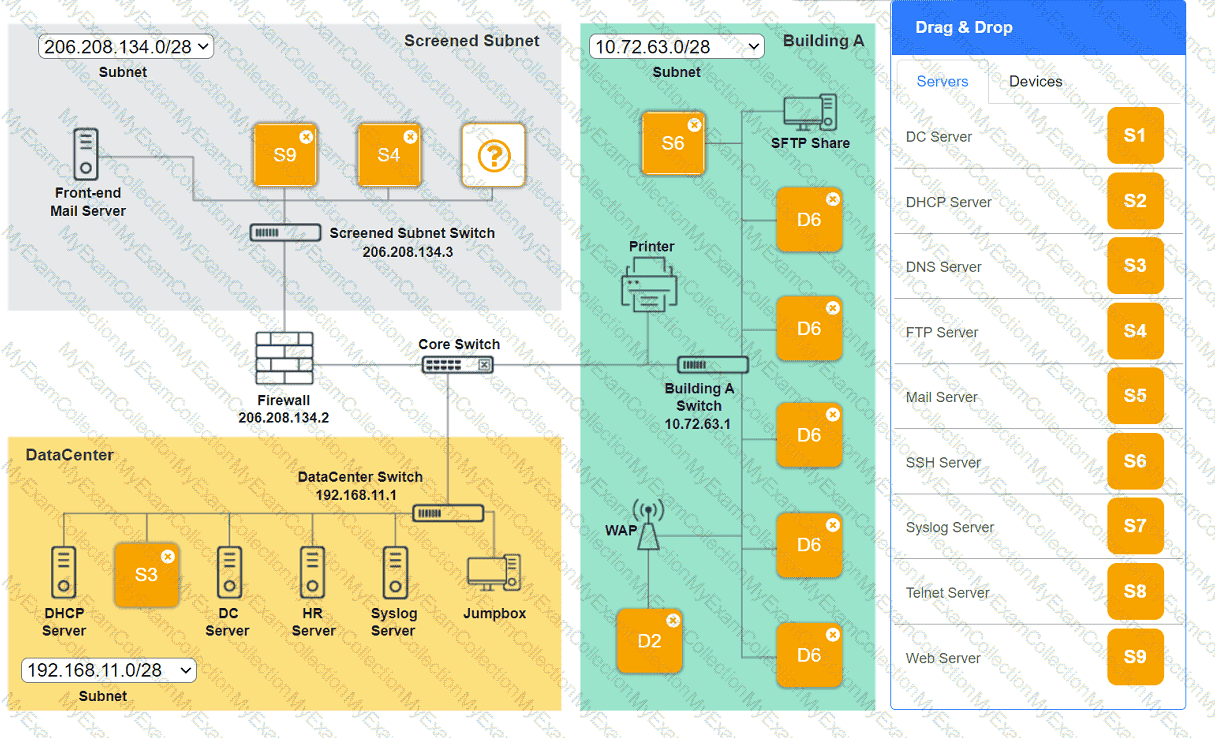

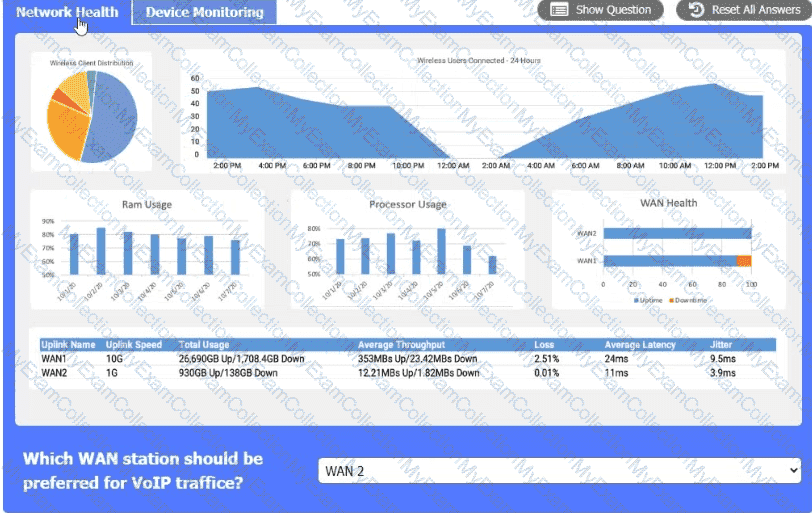

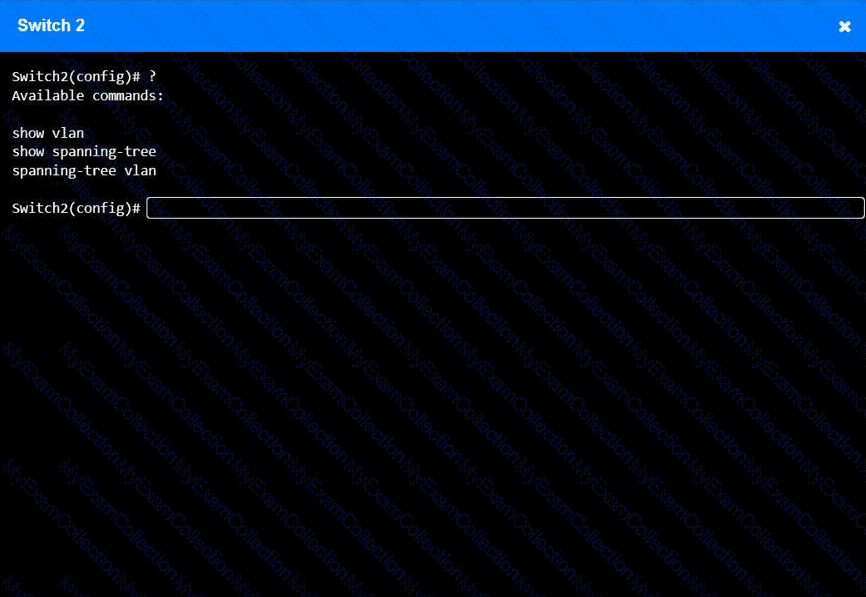

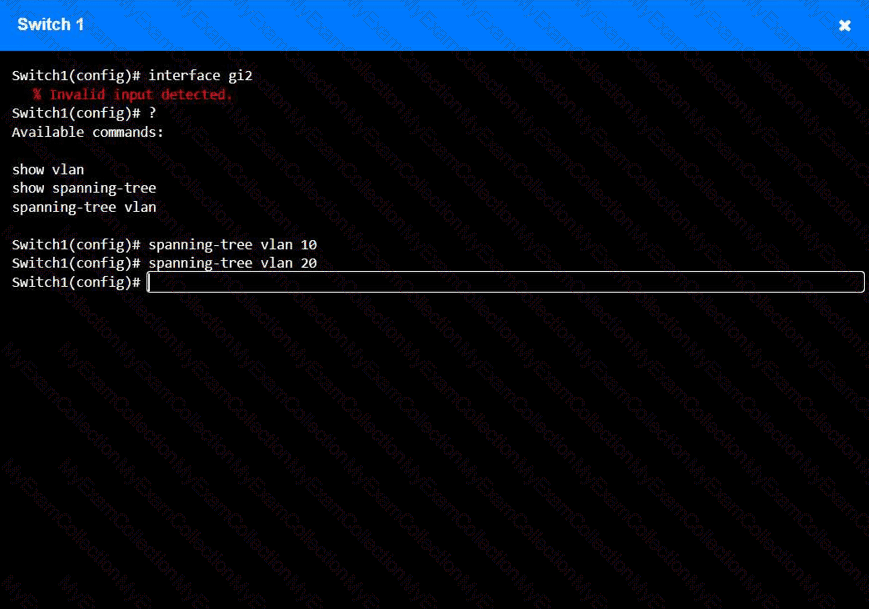

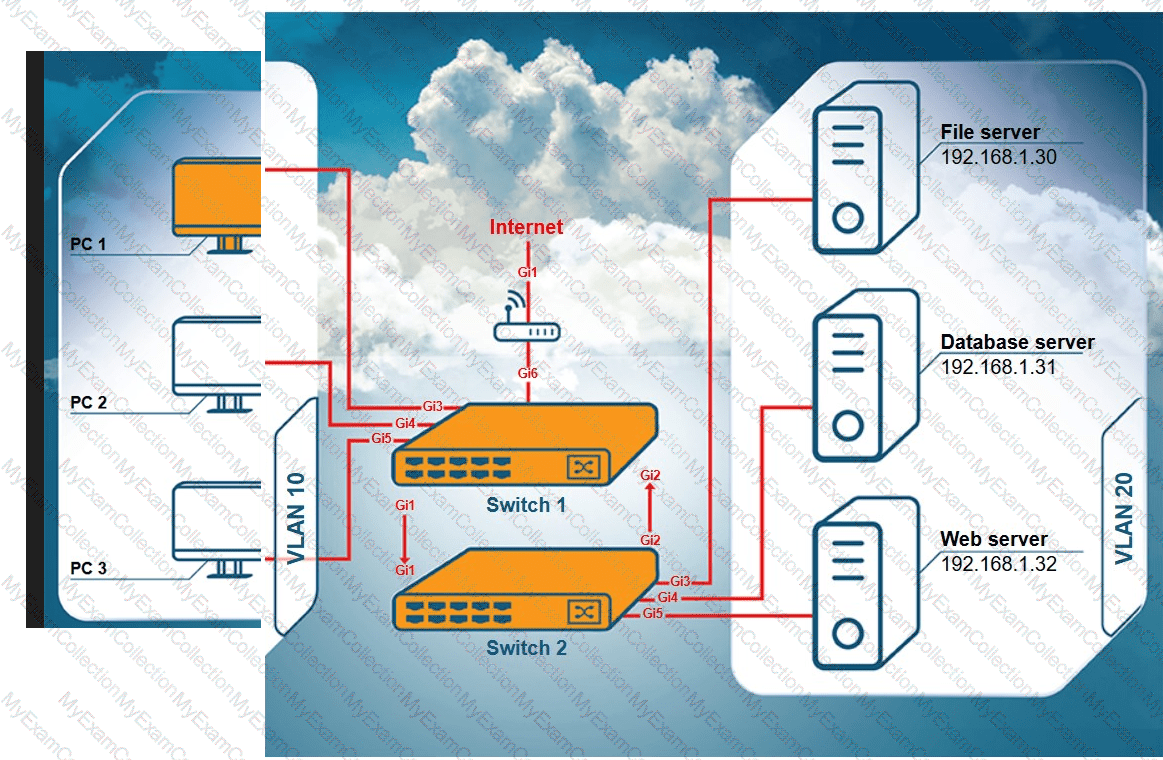

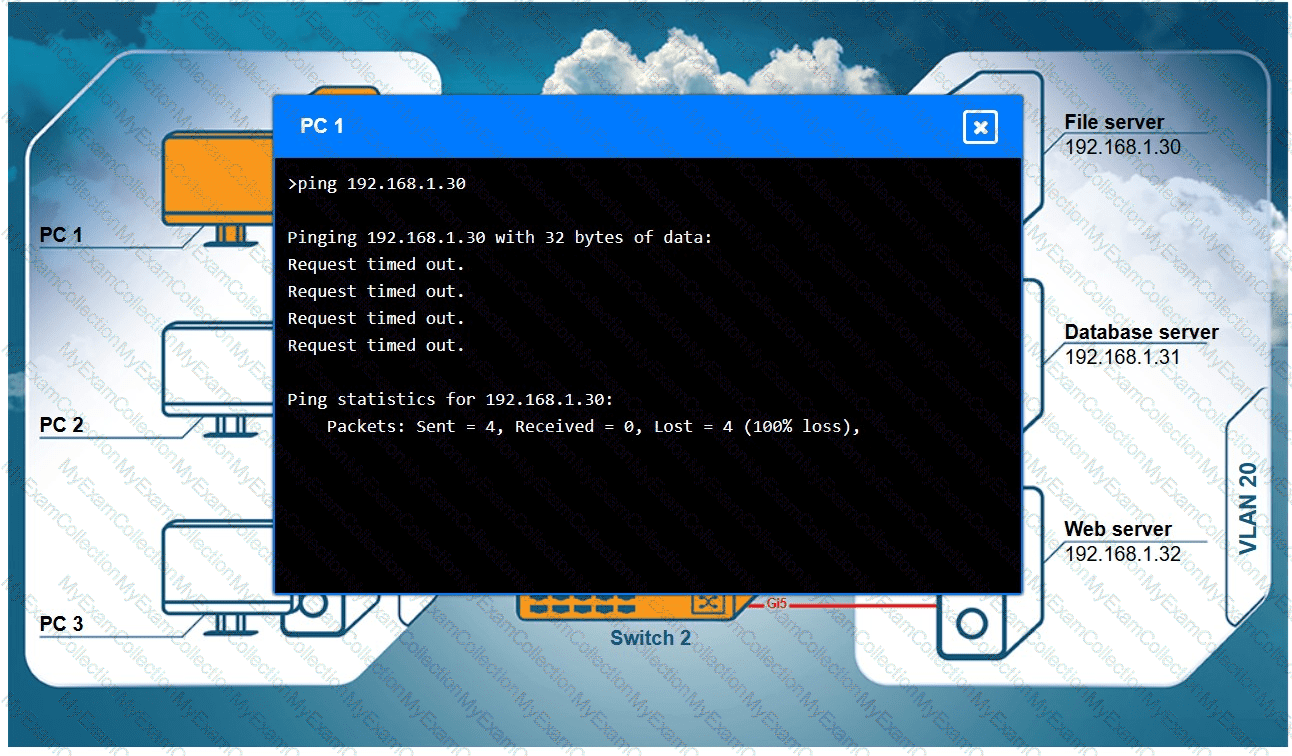

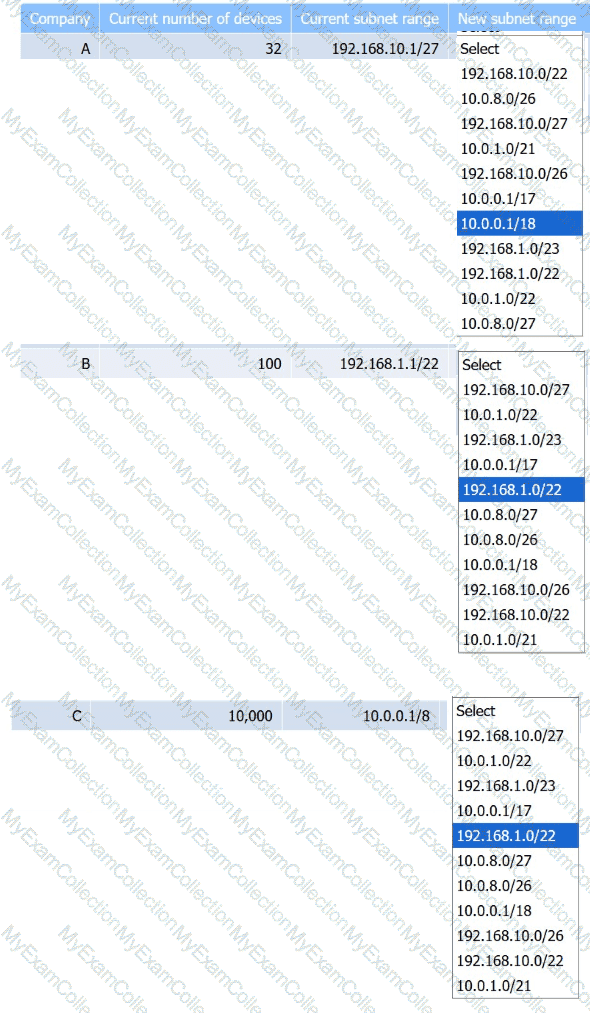

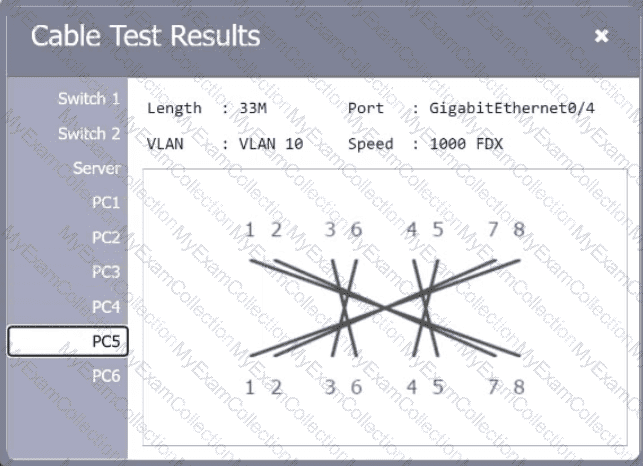

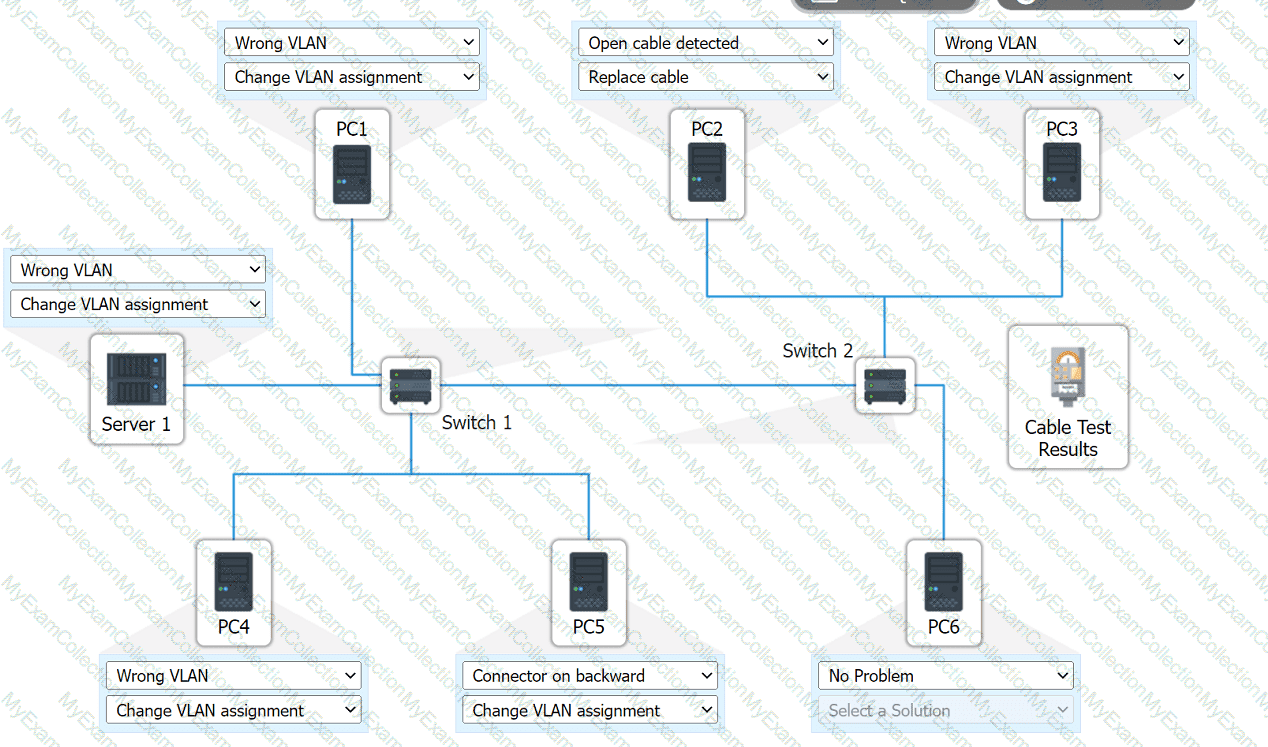

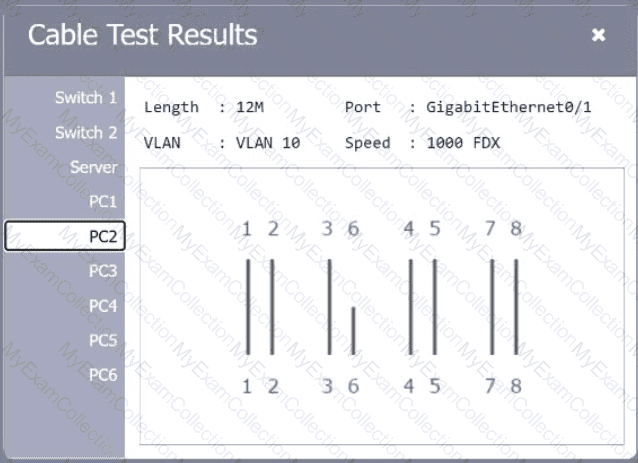

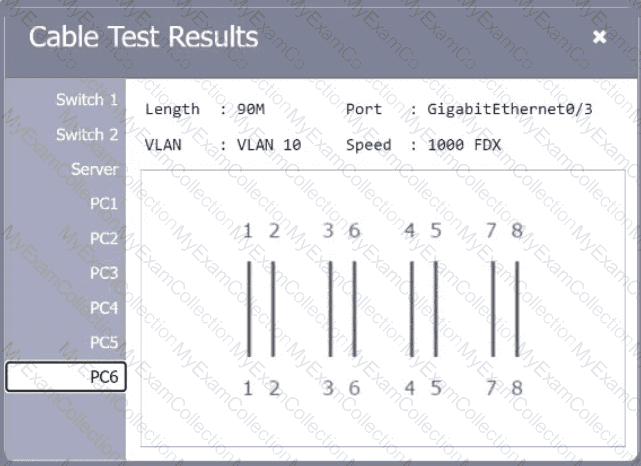

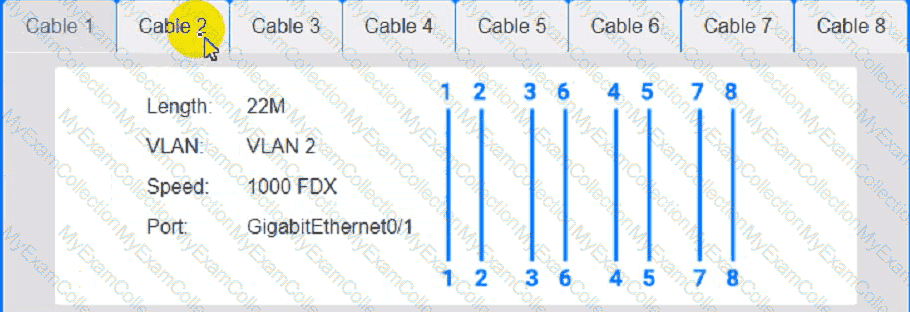

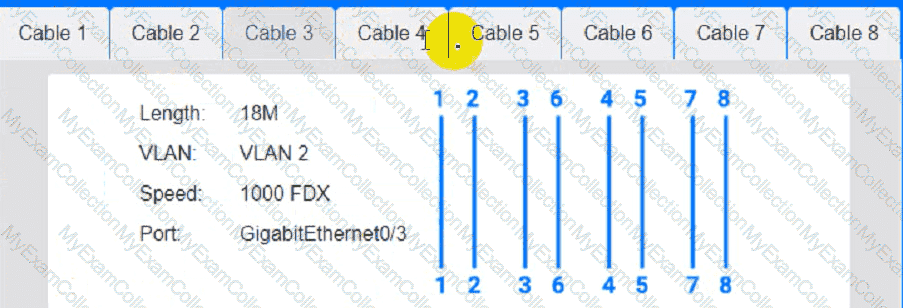

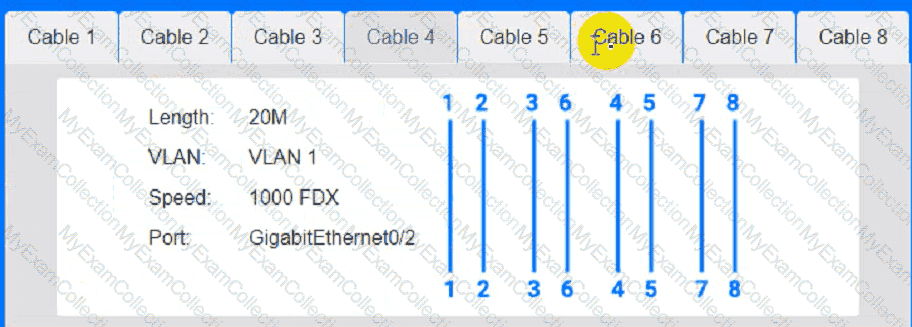

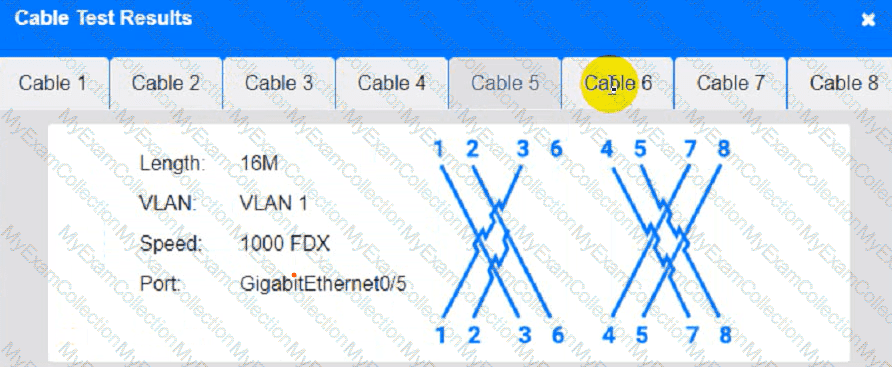

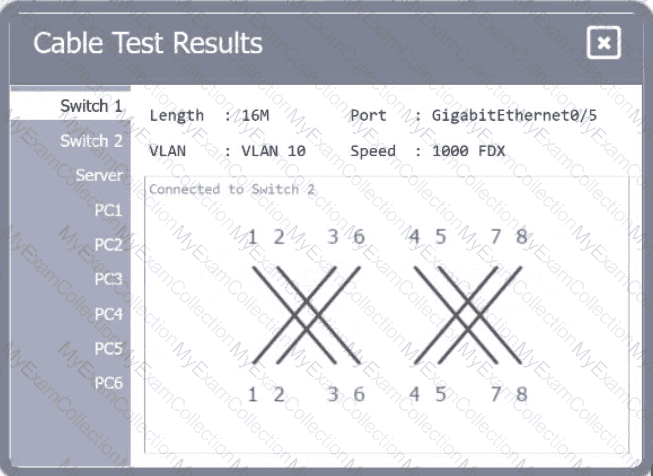

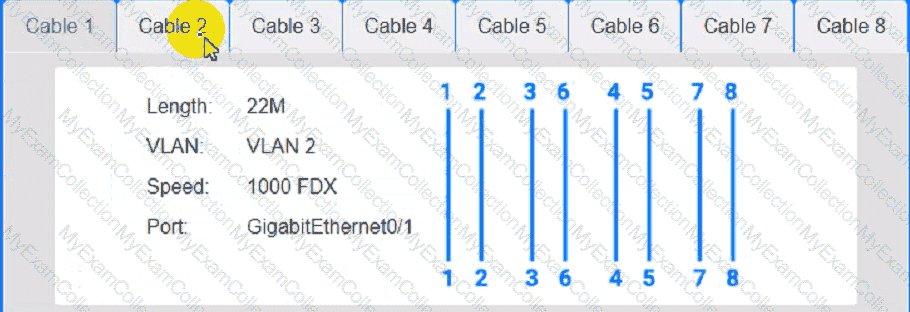

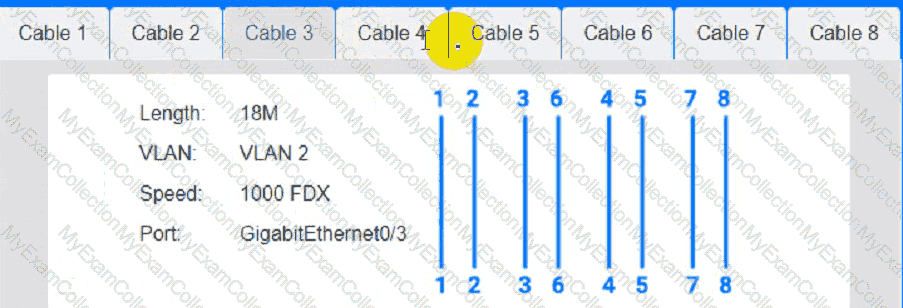

An incorrect pinout on the patch cable could prevent network connectivity due to mismatched wiring. Even if the cables are the correct length and type, a pinout issue can cause continuity problems and prevent data transmission. Proper crimping with the correct pinout is essential for network cables to function. (Reference: CompTIA Network+ Study Guide, Chapter on Network Media and Topologies)

Introduction to Disaster Recovery Concepts:

Disaster recovery involves strategies and measures to ensure business continuity and data recovery in the event of a disaster.

Mean Time Between Failures (MTBF):

MTBF is a reliability metric used to predict the time between failures of a system during operation. It is calculated by dividing the total operational time by the number of failures.

Formula: MTBF=Total Operational TimeNumber of Failures\text{MTBF} = \frac{\text{Total Operational Time}}{\text{Number of Failures}}MTBF=Number of FailuresTotal Operational Time​

This metric helps in understanding the reliability and expected lifespan of systems and components.

Example Calculation:

If a server operates for 1000 hours and experiences 2 failures, the MTBF is: MTBF=1000 hours2=500 hours\text{MTBF} = \frac{1000 \text{ hours}}{2} = 500 \text{ hours}MTBF=21000 hours​=500 hours

Explanation of the Options:

A. MTTR (Mean Time to Repair): The average time required to repair a system after a failure.

B. MTBF (Mean Time Between Failures): The correct answer, representing the average time between failures.

C. RPO (Recovery Point Objective): The maximum acceptable amount of data loss measured in time.

D. RTO (Recovery Time Objective): The target time set for the recovery of IT and business activities after a disaster.

Conclusion:

MTBF is a crucial metric in disaster recovery and system reliability, helping organizations plan maintenance and predict system performance.

References:

CompTIA Network+ guide explaining MTBF, MTTR, RPO, and RTO concepts and their calculations (see page Ref 10†How to Use Cisco Packet Tracer).

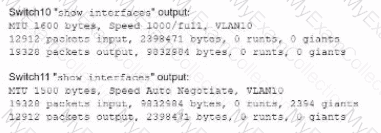

Jumbo frames are Ethernet frames with a payload greater than the standard maximum transmission unit (MTU) of 1500 bytes. Configuring jumbo frames can reduce overhead and increase efficiency in storage networks by allowing more data to be sent in each frame, thus reducing the number of frames needed to transmit the same amount of data.

Reduced Overhead: By sending larger frames, the relative overhead for headers and acknowledgments is reduced.

Increased Efficiency: Larger frames mean fewer packets to process, leading to better utilization of network bandwidth and improved performance in high-throughput environments like storage networks.

Configuration: Requires support from all devices in the network path, including switches and network interface cards (NICs).

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Explains jumbo frames and their benefits in reducing network overhead.

Cisco Networking Academy: Provides training on network optimization techniques, including the use of jumbo frames.

Network+ Certification All-in-One Exam Guide: Covers advanced Ethernet features, including jumbo frames and their configuration for improved network performance.

RADIUS (Remote Authentication Dial-In User Service) is a networking protocol that provides centralized Authentication, Authorization, and Accounting (AAA) management for users who connect and use a network service. RADIUS is often used to manage access to wireless networks, enabling users to authenticate with their company credentials, ensuring secure access to the network.References: CompTIA Network+ study materials. ​

•Cable termination issues (e.g., improper crimping, loose connectors) can cause connectivity failures.

•Power budget (A) applies to PoE devices, not general cabling issues.

•Device requirements (B) relate to software/hardware compatibility, not wiring faults.

•Port status (C) would help if the issue was switch-related, but since moving devices didn’t help, it’s likely a cabling issue.

📖Reference: CompTIA Network+ N10-009 Official Documentation – Cabling & Physical Layer Troubleshooting.

Port 587 is used for secure email submission. This port is designated for message submission by mail clients to mail servers using the SMTP protocol, typically with STARTTLS for encryption.

Port 25: Traditionally used for SMTP relay, but not secure and often blocked by ISPs for outgoing mail due to spam concerns.

Port 110: Used for POP3 (Post Office Protocol version 3), not typically secured.

Port 143: Used for IMAP (Internet Message Access Protocol), which can be secured with STARTTLS or SSL/TLS.

Port 587: Specifically used for authenticated email submission (SMTP) with encryption, ensuring secure transmission of email from clients to servers.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Discusses email protocols and ports, including secure email transmission.

Cisco Networking Academy: Provides training on securing email communications and the use of appropriate ports.

Network+ Certification All-in-One Exam Guide: Explains email protocols, ports, and security considerations for email transmission.

•AAAA records map domain names to IPv6 addresses, enabling proper resolution.

•PTR records (A) are for reverse DNS lookups.

•TXT records (B) store text-based information, not IP addresses.

•NS records (D) define authoritative name servers but don’t directly affect IPv6 resolution.

📖Reference: CompTIA Network+ N10-009 Official Documentation – DNS Configuration & IPv6.

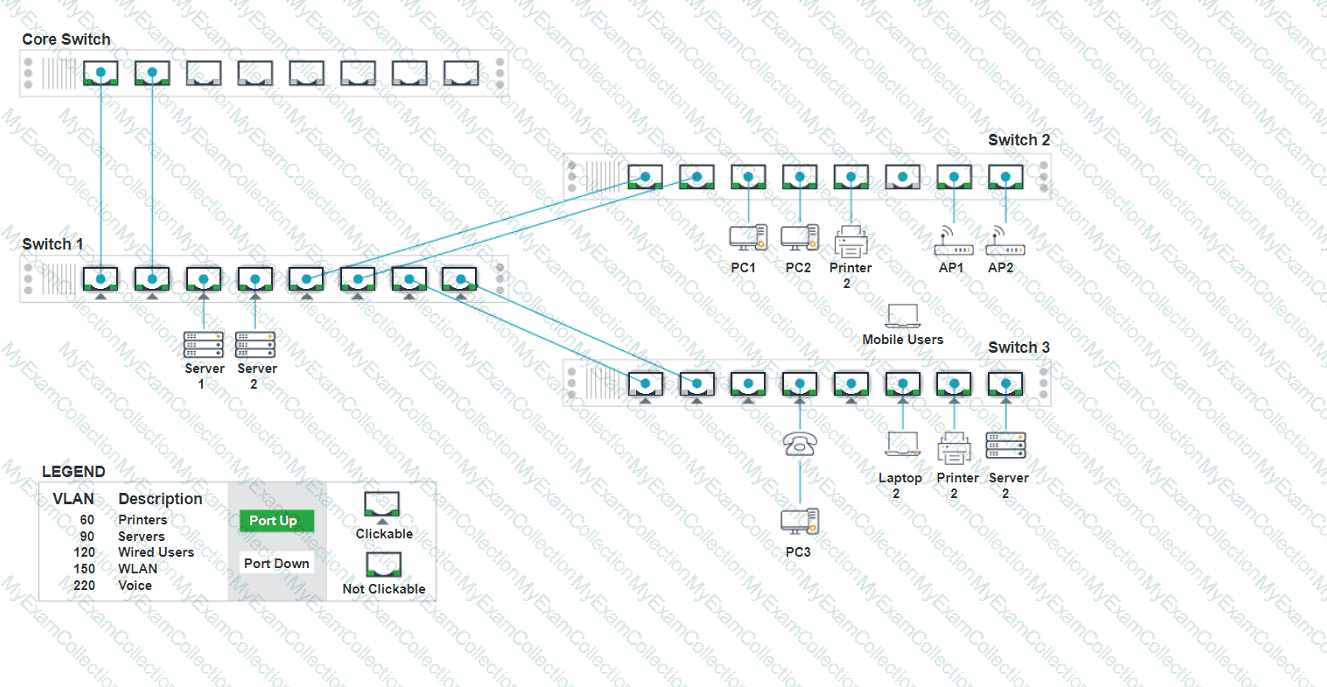

To provide a complete solution for configuring the access layer switches, let's proceed with the following steps:

Identify the correct VLANs for each device and port.

Enable necessary ports and disable unused ports.

Configure fault-tolerant connections between the switches.

Port 1 Configuration (Uplink to Core Switch)

Status: Enabled

LACP: Enabled

Speed: 1000

Duplex: Full

VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN150, VLAN220

Port 2 Configuration (Uplink to Core Switch)

Status: Enabled

LACP: Enabled

Speed: 1000

Duplex: Full

VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN150, VLAN220

Port 3 Configuration (Server Connection)

Status: Enabled

LACP: Disabled

Speed: 1000

Duplex: Full

VLAN Configuration: Untagged for VLAN90 (Servers)

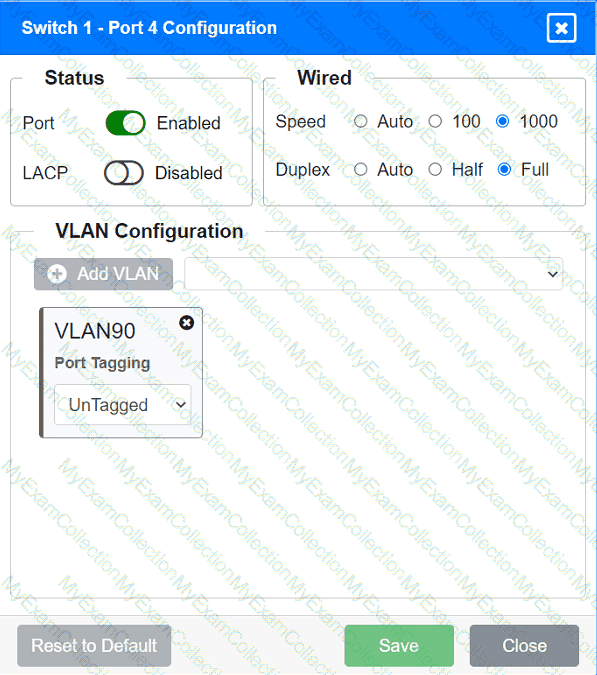

Port 4 Configuration (Server Connection)

Status: Enabled

LACP: Disabled

Speed: 1000

Duplex: Full

VLAN Configuration: Untagged for VLAN90 (Servers)

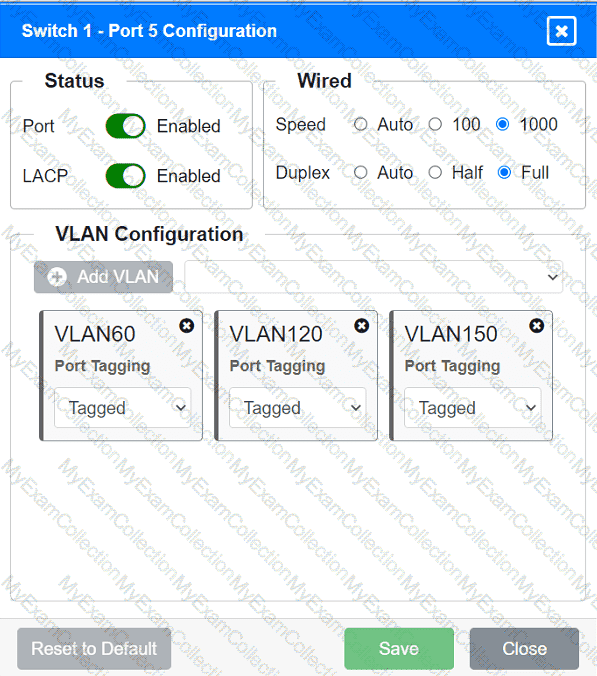

Port 5 Configuration (Wired Users and WLAN)

Status: Enabled

LACP: Enabled

Speed: 1000

Duplex: Full

VLAN Configuration: Tagged for VLAN60, VLAN120, VLAN150

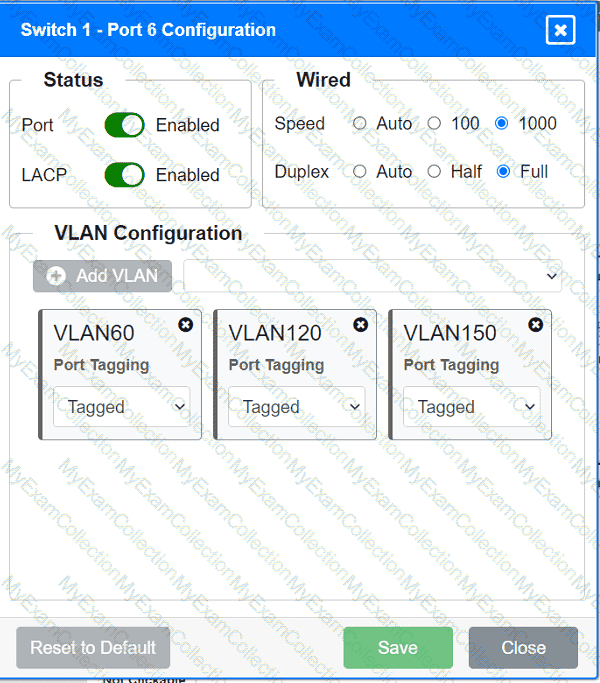

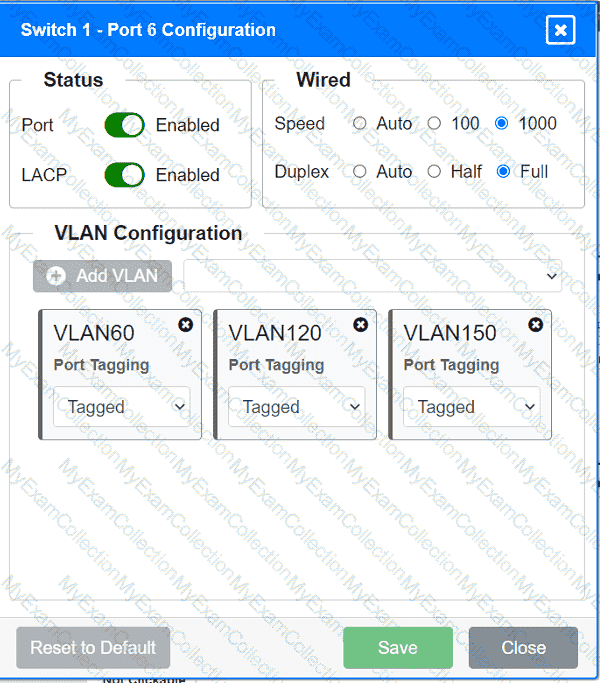

Port 6 Configuration (Wired Users and WLAN)

Status: Enabled

LACP: Enabled

Speed: 1000

Duplex: Full

VLAN Configuration: Tagged for VLAN60, VLAN120, VLAN150

Port 7 Configuration (Voice and Wired Users)

Status: Enabled

LACP: Enabled

Speed: 1000

Duplex: Full

VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN220

Port 8 Configuration (Voice, Printers, and Wired Users)

Status: Enabled

LACP: Enabled

Speed: 1000

Duplex: Full

VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN220

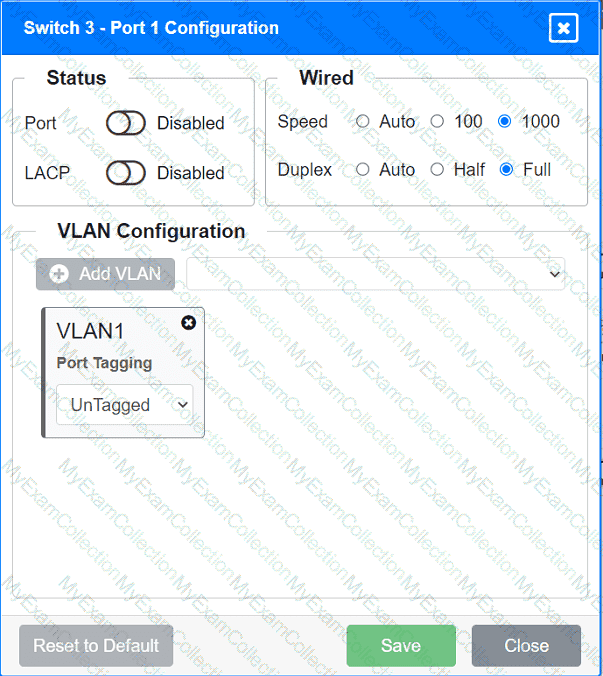

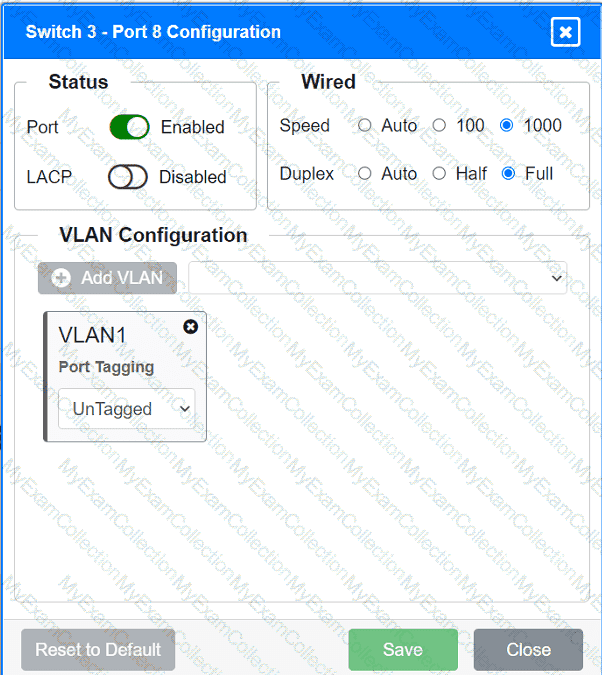

Port 1 Configuration (Unused)

Status: Disabled

LACP: Disabled

Port 2 Configuration (Unused)

Status: Disabled

LACP: Disabled

Port 3 Configuration (Connection to Device)

Status: Enabled

LACP: Disabled

Speed: 1000

Duplex: Full

VLAN Configuration: Untagged for VLAN1 (Default)

Port 4 Configuration (Connection to Device)

Status: Enabled

LACP: Disabled

Speed: 1000

Duplex: Full

VLAN Configuration: Untagged for VLAN1 (Default)

Port 5 Configuration (Connection to Device)

Status: Enabled

LACP: Disabled

Speed: 1000

Duplex: Full

VLAN Configuration: Untagged for VLAN1 (Default)

Port 6 Configuration (Connection to Device)

Status: Enabled

LACP: Disabled

Speed: 1000

Duplex: Full

VLAN Configuration: Untagged for VLAN1 (Default)

Port 7 Configuration (Connection to Device)

Status: Enabled

LACP: Disabled

Speed: 1000

Duplex: Full

VLAN Configuration: Untagged for VLAN1 (Default)

Ports 1 and 2 on Switch 1 are configured as trunk ports with VLAN tagging enabled for all necessary VLANs.

Ports 3 and 4 on Switch 1 are configured for server connections with VLAN 90 untagged.

Ports 5, 6, 7, and 8 on Switch 1 are configured for devices needing access to multiple VLANs.

Unused ports on Switch 3 are disabled.

Ports 3, 4, 5, 6, and 7 on Switch 3 are enabled for default VLAN1.

Core Switch Ports should be configured as needed for uplinks to Switch 1.

Ensure LACP is enabled for redundancy on trunk ports between switches.

By following these configurations, each device will access only its correctly associated network, unused switch ports will be disabled, and fault-tolerant connections will be established between the switches.

Understanding MTBF:

Mean Time Between Failures (MTBF): A reliability metric that estimates the average time between successive failures of a device or system.

Calculation and Importance:

Calculation: MTBF is calculated as the total operational time divided by the number of failures during that period.

Usage: Used by manufacturers and engineers to predict the lifespan and reliability of a device, helping in maintenance planning and lifecycle management.

Comparison with Other Metrics:

RTO (Recovery Time Objective): The maximum acceptable time to restore a system after a failure.

RPO (Recovery Point Objective): The maximum acceptable amount of data loss measured in time.

MTTR (Mean Time to Repair): The average time required to repair a device or system and return it to operational status.

Application:

MTBF is crucial for planning maintenance schedules, spare parts inventory, and improving the overall reliability of systems.

References:

CompTIA Network+ study materials on reliability and maintenance metrics.

A mesh network is the best solution for providing reliable wireless service to public safety vehicles. In a mesh network, each node (vehicle) can connect to multiple other nodes, providing multiple paths for data to travel. This enhances reliability and redundancy, ensuring continuous connectivity even if one or more nodes fail. Mesh networks are highly resilient and are well-suited for dynamic and mobile environments such as public safety operations.References: CompTIA Network+ study materials.

Definition of MAC Flooding:

MAC flooding is an attack where a malicious actor sends numerous fake MAC addresses to a switch, overwhelming its CAM table. The CAM table stores MAC addresses and their associated ports for efficient traffic forwarding.

Impact of MAC Flooding:

CAM Table Overflow: When the CAM table is full, the switch cannot learn new MAC addresses and is forced to broadcast traffic to all ports, leading to a degraded network performance and potential data interception.

Switch Behavior: The switch operates in a fail-open mode, treating the network as a hub, which can be exploited for eavesdropping on traffic.

Comparison with Other Attacks:

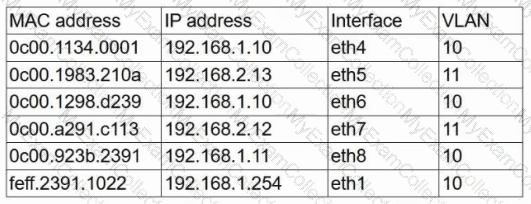

ARP Spoofing: Involves sending false ARP (Address Resolution Protocol) messages to associate the attacker's MAC address with the IP address of another device.

Evil Twin: Involves creating a rogue wireless access point that mimics a legitimate one to intercept data.

DNS Poisoning: Involves corrupting the DNS cache with false information to redirect traffic to malicious sites.

Preventive Measures:

Port Security: Configure port security on switches to limit the number of MAC addresses per port, preventing CAM table overflow.

Network Segmentation: Use VLANs to segment network traffic and limit the impact of such attacks.

References:

CompTIA Network+ study materials on network security threats and mitigation techniques.

Understanding the 169.254.x.x Address:

An IPv4 address in the range of 169.254.x.x is an Automatic Private IP Addressing (APIPA) address, assigned when a DHCP server is unavailable.

DHCP Server Offline:

APIPA Assignment: When a device cannot obtain an IP address from a DHCP server, it assigns itself an APIPA address to enable local network communication. This allows communication with other devices on the same local subnet but not with external networks.

Resolution: Ensure the DHCP server is operational. Check for connectivity issues between the virtual machine and the DHCP server, and verify the DHCP server settings.

Comparison with Other Options:

The subnet mask is incorrect: The subnet mask 255.255.0.0 is appropriate for the 169.254.x.x range and does not prevent external access by itself.

The IP address is an RFC1918 private address: RFC1918 addresses are private IP ranges (10.x.x.x, 172.16.x.x-172.31.x.x, 192.168.x.x) but 169.254.x.x is not one of them.

The DNS server is unreachable: While this could affect name resolution, it would not prevent the assignment of a non-APIPA address or local network communication.

Troubleshooting Steps:

Verify the DHCP server’s status and connectivity.

Restart the DHCP service if necessary.

Renew the IP lease on the virtual machine using commands such as ipconfig /renew (Windows) or dhclient (Linux).

References:

CompTIA Network+ study materials on IP addressing and DHCP troubleshooting.

Understanding VoIP and VLANs:

VoIP (Voice over IP) phones often use VLANs (Virtual Local Area Networks) to separate voice traffic from data traffic for improved performance and security.

Tagging Traffic to Voice VLAN:

Voice VLAN Configuration: The port on the switch needs to be configured to tag traffic for the specific voice VLAN. This ensures that voice packets are prioritized and handled correctly.

VLAN Tagging: VLAN tagging allows the switch to identify and separate voice traffic from other types of traffic on the network, reducing latency and jitter for VoIP communications.

Comparison with Other Options:

Trunk all VLANs on the port: Trunking all VLANs is typically used for links between switches, not for individual device ports.

Configure the native VLAN: The native VLAN is for untagged traffic and does not address the need for separating and prioritizing voice traffic.

Disable VLANs: Disabling VLANs would mix voice and data traffic, leading to potential performance issues and lack of traffic separation.

Implementation:

Configure the switch port connected to the VoIP phone to tag the traffic for the designated voice VLAN, ensuring proper network segmentation and quality of service.

References:

CompTIA Network+ study materials on VLAN configuration and VoIP implementation.

A subinterface is a logical interface created on a single physical router interface that allows routing between VLANs (known as Router-on-a-Stick (ROAS)). This method is commonly used when only one physical router is available, allowing inter-VLAN communication without additional hardware.

•Why not the other options?

•VXLAN (B) – This is used for extending Layer 2 networks over a Layer 3 infrastructure, primarily in data centers. It does not directly enable inter-VLAN communication.

•Layer 3 switch (C) – A Layer 3 switch can route between VLANs, but the scenario states that purchasing additional hardware is not an option.

•VIR (D) – This is not a standard networking term in the context of VLAN communication.

SSH (Secure Shell) is a protocol used to securely connect to a remote server/system over a network. It operates on port 22 and provides encrypted communication, unlike Telnet which operates on port 23 and is not secure. TLS is used for securing HTTP connections (HTTPS) and operates on ports like 443, while RDP (Remote Desktop Protocol) is used for remote desktop connections and operates on port 3389.

Confidentiality with Data at Rest: Confidentiality is a core principle of data security, ensuring that data stored (at rest) is only accessible to authorized individuals. This protection is achieved through mechanisms such as encryption, access controls, and permissions.

Privileged Access: The statement "Data can be accessed after privileged access is granted" aligns with the confidentiality principle, as it restricts data access to users who have been granted specific permissions or roles. Only those with the appropriate credentials or permissions can access the data.

Incorrect Options:

A. "Data can be accessed by anyone on the administrative network." This violates the principle of confidentiality by allowing unrestricted access.

B. "Data can be accessed remotely with proper training." This focuses on remote access rather than restricting access based on privileges.

D. "Data can be accessed after verifying the hash." This option relates more to data integrity rather than confidentiality.

CompTIA Network+ materials on data security principles, particularly sections on confidentiality and access control mechanisms​​.

•Cold sites are the most cost-effective disaster recovery (DR) option since they require the least infrastructure investment. They provide space and power but no pre-configured systems.

•Hot sites (A) are fully operational and very expensive.

•Warm sites (D) offer some pre-configured hardware but still require setup, making them more costly than cold sites.

•Clusters (C) are active failover systems, not DR sites.

📖Reference: CompTIA Network+ N10-009 Official Documentation – Disaster Recovery & Business Continuity Planning.

A warm site is a compromise between a hot site and a cold site, providing a balance between cost and recovery time. It is partially equipped with the necessary hardware, software, and infrastructure, allowing for a quicker recovery compared to a cold site but at a lower cost than a hot site.

Recovery Time: Warm sites can be operational within hours to a day, making them suitable for non-critical applications that can tolerate short downtimes.

Cost-Effectiveness: Warm sites are more economical than hot sites as they do not require all systems to be fully operational at all times.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Discusses disaster recovery strategies and the different types of recovery sites.

Cisco Networking Academy: Provides training on disaster recovery planning and site selection.

Network+ Certification All-in-One Exam Guide: Explains the characteristics of hot, warm, and cold sites and their use cases in disaster recovery planning.

Warm sites offer a practical solution for maintaining business continuity for non-critical applications, balancing the need for availability with cost considerations.

When a network administrator installs a new Network Interface Card (NIC) and users are unable to reach the server, one of the common issues is the use of an incorrect cable type. Network cables must match the specifications required by the NIC and the network infrastructure (e.g., Cat5e, Cat6 for Ethernet).

NIC Compatibility: The new NIC might require a specific type of cable to function properly. Using a cable not rated for the NIC's required speeds or capabilities can result in connectivity issues.

Cable Standards: Different NICs and network devices might need different cabling standards (straight-through vs. crossover cables, or specific fiber optic types).

Connection Types: Ensuring that the cable connectors are appropriate for the NIC ports (e.g., RJ45 for Ethernet, LC connectors for fiber optics).

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Discusses network cabling standards and NIC specifications.

Cisco Networking Academy: Provides insights into cabling and NIC configurations for optimal network performance.

Network+ Certification All-in-One Exam Guide: Offers comprehensive details on troubleshooting network connectivity issues, including cabling problems.

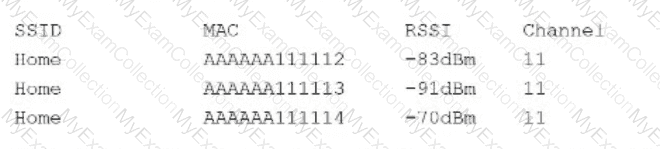

Understanding 2.4GHz Interference:

The 2.4GHz frequency range is commonly used by many devices, including Wi-Fi, Bluetooth, and various industrial equipment. This can lead to interference and degraded performance.

Mitigation Strategies:

5GHz Frequency:

The 5GHz frequency band offers more channels and less interference compared to the 2.4GHz band. Devices operating on 5GHz are less likely to encounter interference from other devices, including industrial equipment.

Non-overlapping Channels:

In the 2.4GHz band, using non-overlapping channels (such as channels 1, 6, and 11) can help reduce interference. Non-overlapping channels do not interfere with each other, providing clearer communication paths for Wi-Fi signals.

Why Other Options are Less Effective:

Mesh Network: While useful for extending network coverage, a mesh network does not inherently address interference issues.

Omnidirectional Antenna: This type of antenna broadcasts signals in all directions but does not mitigate interference.

Captive Portal: A web page that users must view and interact with before accessing a network, unrelated to frequency interference.

Ad Hoc Network: A decentralized wireless network that does not address interference issues directly.

Implementation:

Switch Wi-Fi devices to the 5GHz band if supported by the network infrastructure and client devices.

Configure Wi-Fi access points to use non-overlapping channels within the 2.4GHz band to minimize interference.

References:

CompTIA Network+ study materials on wireless networking and interference mitigation.

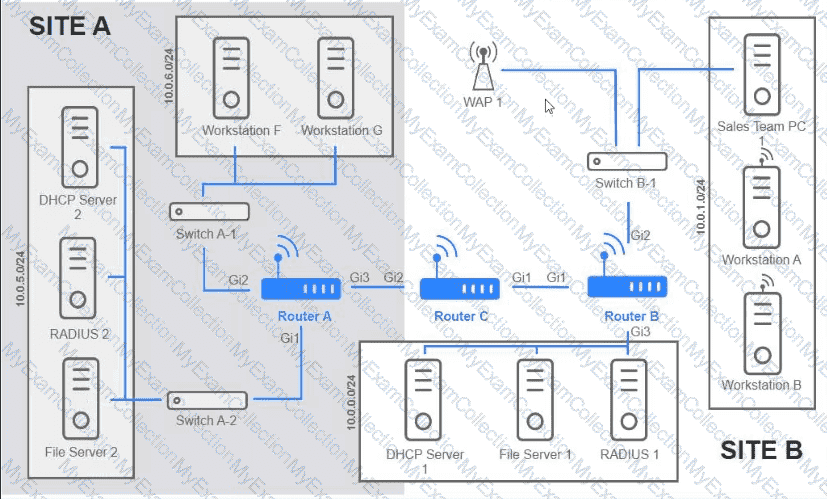

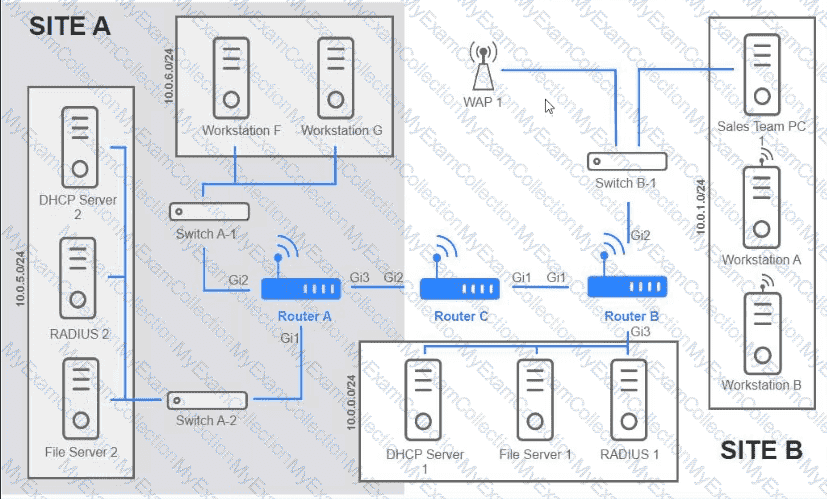

To validate routing between networks hosting Workstation A and File Server 2, follow these steps:

Review Routing Tables:

Check the routing tables of Router A, Router B, and Router C to identify any missing routes.

Identify Missing Routes:

Ensure that each router has routes to the networks on which Workstation A and File Server 2 are located.

Add Static Routes:

If a route is missing, add a static route to the relevant destination network via the correct interface.

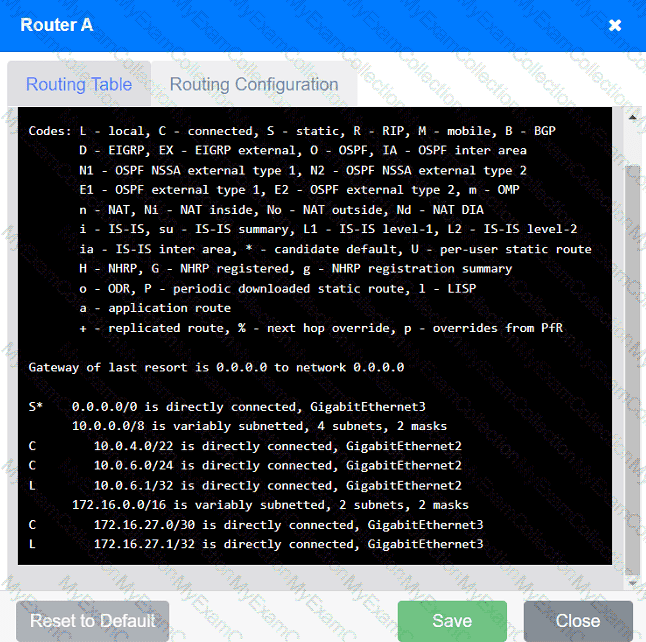

Routing Table:

Gateway of last resort is 0.0.0.0 to network 0.0.0.0

S* 0.0.0.0/0 is directly connected, GigabitEthernet3

10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks

C 10.0.4.0/22 is directly connected, GigabitEthernet2

C 10.0.6.0/24 is directly connected, GigabitEthernet2

L 10.0.6.1/32 is directly connected, GigabitEthernet2

172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks

C 172.16.27.0/30 is directly connected, GigabitEthernet3

L 172.16.27.1/32 is directly connected, GigabitEthernet3

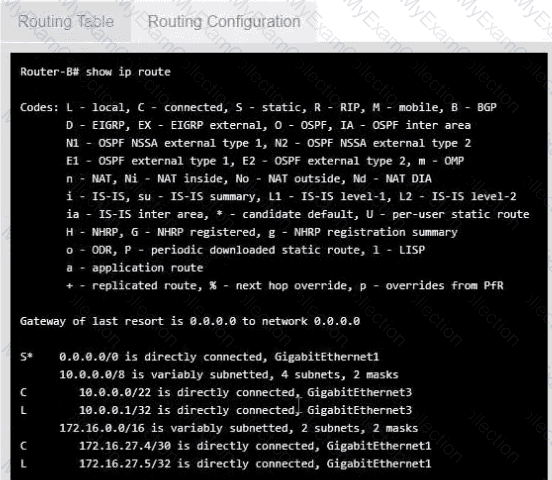

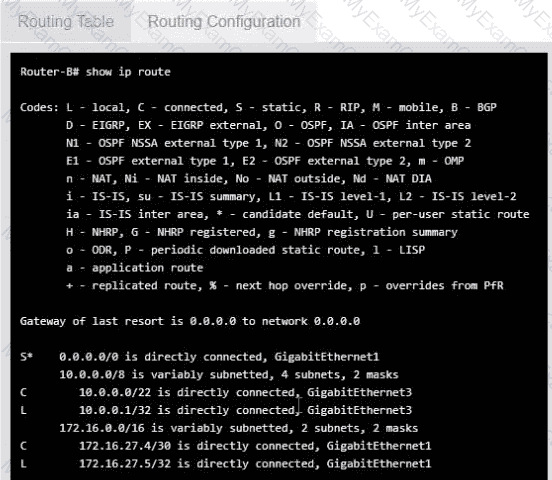

Routing Table:

Gateway of last resort is 0.0.0.0 to network 0.0.0.0

S* 0.0.0.0/0 is directly connected, GigabitEthernet1

10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks

C 10.0.0.0/22 is directly connected, GigabitEthernet1

L 10.0.0.1/32 is directly connected, GigabitEthernet1

172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks

C 172.16.27.4/30 is directly connected, GigabitEthernet1

L 172.16.27.5/32 is directly connected, GigabitEthernet1

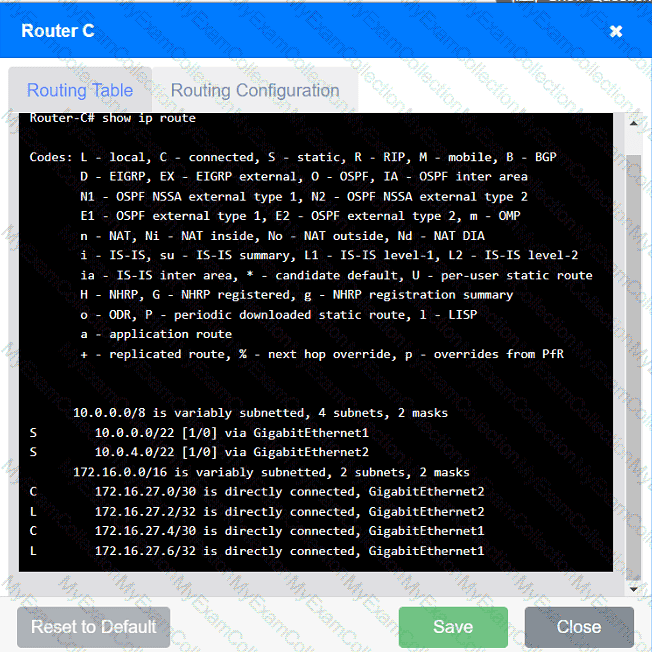

Routing Table:

10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks

S 10.0.0.0/22 [1/0] via GigabitEthernet1

S 10.0.4.0/22 [1/0] via GigabitEthernet2

172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks

C 172.16.27.0/30 is directly connected, GigabitEthernet2

L 172.16.27.2/32 is directly connected, GigabitEthernet2

C 172.16.27.4/30 is directly connected, GigabitEthernet1

L 172.16.27.6/32 is directly connected, GigabitEthernet1

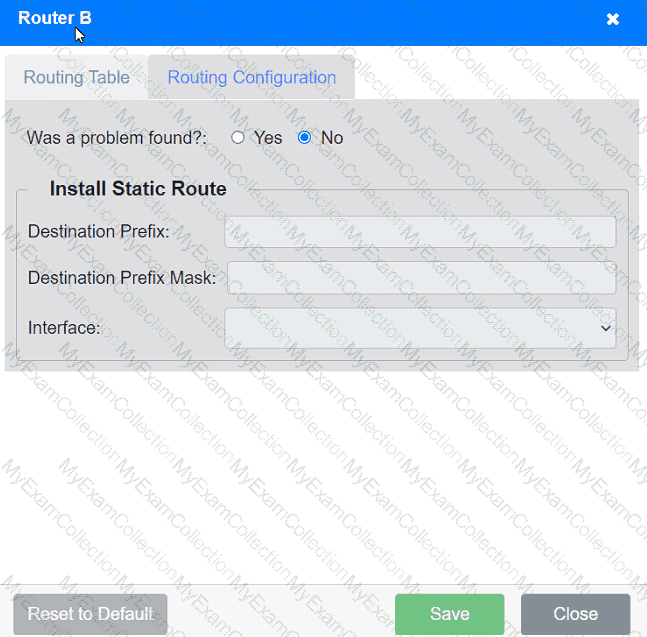

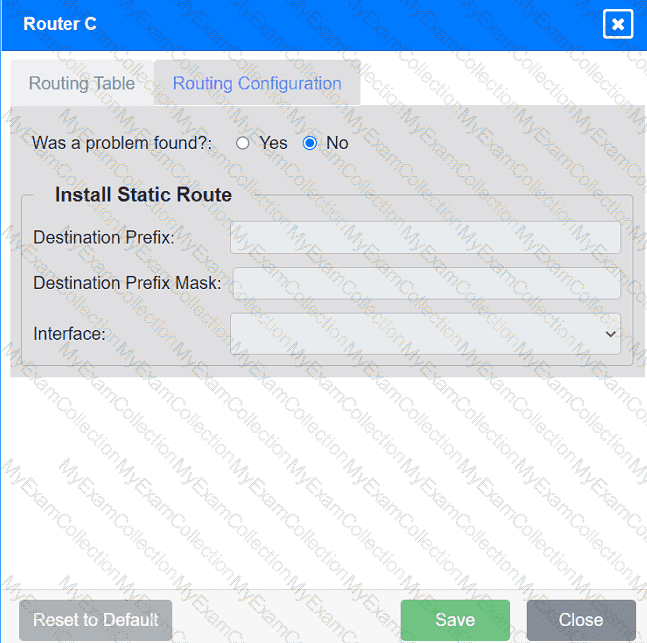

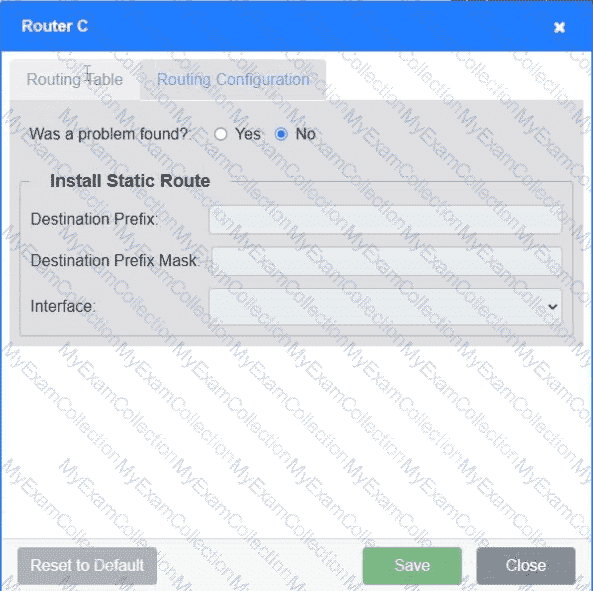

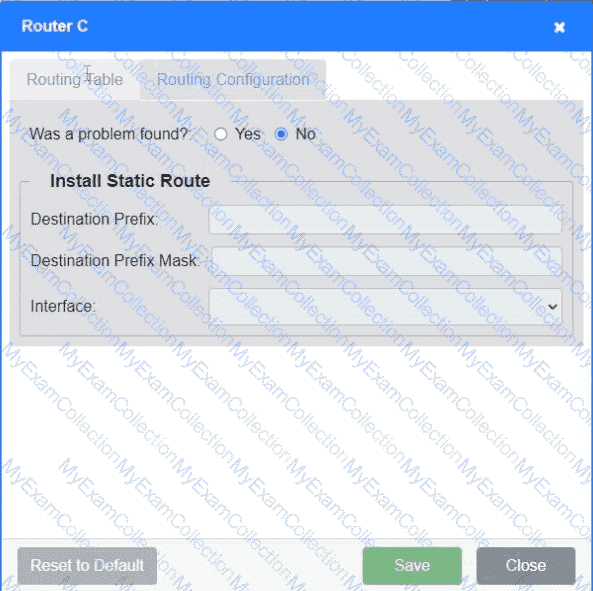

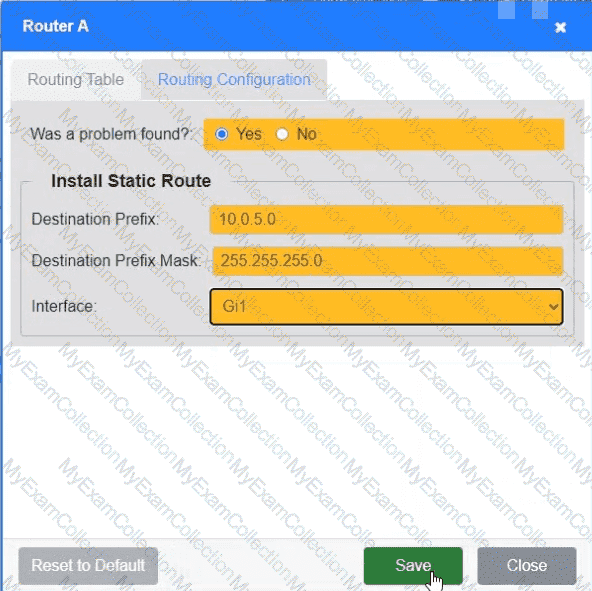

Install Static Route to 10.0.0.0/22 via 172.16.27.1 (assuming Router C's IP is 172.16.27.1):

Destination Prefix: 10.0.0.0

Destination Prefix Mask: 255.255.252.0

Interface: GigabitEthernet3

Install Static Route to 10.0.4.0/22 via 172.16.27.5 (assuming Router C's IP is 172.16.27.5):

Destination Prefix: 10.0.4.0

Destination Prefix Mask: 255.255.252.0

Interface: GigabitEthernet1

Install Static Route to 10.0.6.0/24 via 172.16.27.2 (assuming Router A's IP is 172.16.27.2):

Destination Prefix: 10.0.6.0

Destination Prefix Mask: 255.255.255.0

Interface: GigabitEthernet2

Install Static Route to 10.0.0.0/22 via 172.16.27.1 (assuming Router B's IP is 172.16.27.1):

Destination Prefix: 10.0.0.0

Destination Prefix Mask: 255.255.252.0

Interface: GigabitEthernet1

Summary of Static Routes:

Router A:

ip route 10.0.0.0 255.255.252.0 GigabitEthernet3

Router B:

ip route 10.0.4.0 255.255.252.0 GigabitEthernet1

Router C:

ip route 10.0.6.0 255.255.255.0 GigabitEthernet2

ip route 10.0.0.0 255.255.252.0 GigabitEthernet1

These configurations ensure that each router knows the correct paths to reach Workstation A and File Server 2, resolving the connectivity issue.

When a network interface's indicator lights are not blinking on either the computer or the switch, it suggests a physical layer issue. Here is the detailed reasoning:

Ethernet Properly Connected: The Ethernet cable is correctly connected, eliminating issues related to a loose or faulty cable.

No Indicator Lights: The absence of blinking indicator lights on both the computer and the switch typically points to the port being administratively shut down.

Switch Port Shut Down: In networking, a switch port can be administratively shut down, disabling it from passing any traffic. This state is configured by network administrators and can be verified and changed using the command-line interface (CLI) of the switch.

Command to Check and Enable Port:

bash

Copy code

Switch> enable

Switch# configure terminal

Switch(config)# interface [interface id]

Switch(config-if)# no shutdown

The command no shutdown re-enables the interface if it was previously disabled. This will restore the link and the indicator lights should start blinking, showing activity.

Basic Configuration Commands PDF, sections on interface configuration (e.g., shutdown, no shutdown)​​.

•The issue described is a network bottleneck due to increased traffic after a merger.

•A collapsed core architecture consolidates the core and distribution layers into a single layer to improve efficiency and reduce latency.

•Until the 40GB switch is acquired, Link Aggregation (LAG) (IEEE 802.3ad / LACP) can be used to combine multiple physical links into a single logical link, increasing bandwidth and reducing bottlenecks.

•FHRP (First Hop Redundancy Protocol) (A) is used for gateway redundancy, not link aggregation.

•Route selection metric changes (B) help with routing decisions but don’t address physical link congestion.

•Load balancers (C) distribute traffic for applications, not network links.

📖Reference: CompTIA Network+ N10-009 Official Documentation – Network Architecture and Performance Optimization.

Understanding Tracert:

tracert (Traceroute in Windows) is a command-line tool used to trace the path that packets take from the source to the destination. It records the route (the specific gateways at each hop) and measures transit delays of packets across an IP network.

Output Analysis:

The output shows a series of IP addresses with corresponding round-trip times (RTTs) in milliseconds.

The asterisks (*) indicate that no response was received from those hops, which is typical for routers or firewalls that block ICMP packets used by tracert.

Comparison with Other Tools:

netstat: Displays network connections, routing tables, interface statistics, and more, but does not trace packet routes.

tcpdump: Captures network packets for analysis, used for detailed network traffic inspection.

nmap: A network scanning tool used to discover hosts and services on a network, not for tracing packet routes.

Usage:

tracert helps identify the path to a destination and locate points of failure or congestion in the network.

References:

CompTIA Network+ study materials on network troubleshooting and diagnostic tools.

802.1Q tagging, also known as VLAN tagging, is used to identify VLANs on a trunk link between switches. This allows the switches to transfer data for multiple VLANs (or networks) over a single physical connection. This method ensures that traffic from different VLANs is properly separated and managed across the network.References: CompTIA Network+ study materials.

Importance of Proper Termination:

Cat 8 cabling requires precise termination practices to ensure signal integrity and reduce interference. One common requirement is to wrap the end connections in copper tape to maintain shielding and reduce electromagnetic interference (EMI).

Interference Troubleshooting:

Interference in high-frequency cables like Cat 8 can be caused by improper shielding or grounding. Checking the end connections for proper wrapping in copper tape is a crucial step.

Why Other Options are Less Likely:

Passthrough modular crimping plugs: Not specifically related to interference issues and are typically used for ease of cable assembly.

Connecting RX/TX wires to different pins: Would likely result in no connection or incorrect data transmission rather than interference.

Running a speed test on a device that can only achieve 100Mbps speeds: This would not diagnose interference and would not provide relevant information for Cat 8 cabling rated for higher speeds.

Corrective Actions:

Verify that all end connections are properly wrapped with copper tape before termination.

Ensure that the shielding is continuous and properly grounded throughout the installation.

Retest the cabling for interference after making corrections.

References:

CompTIA Network+ study materials and structured cabling installation guides.

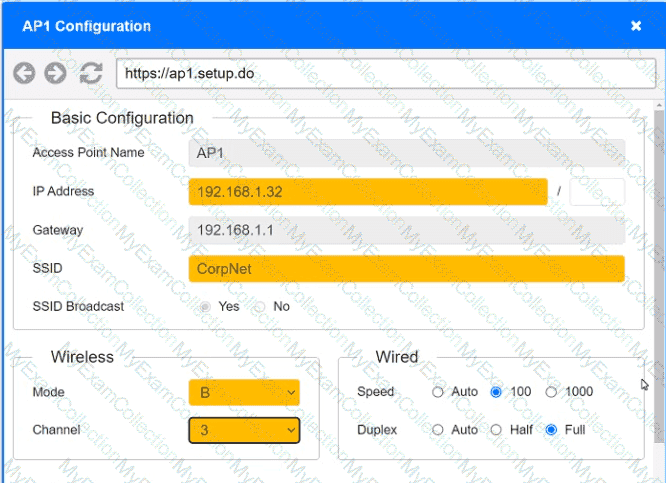

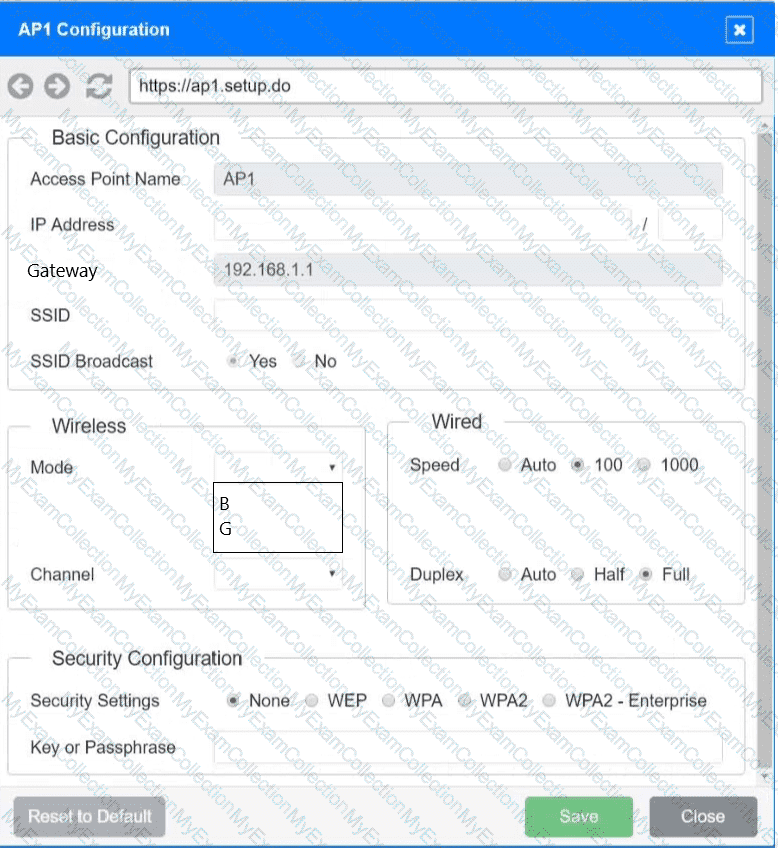

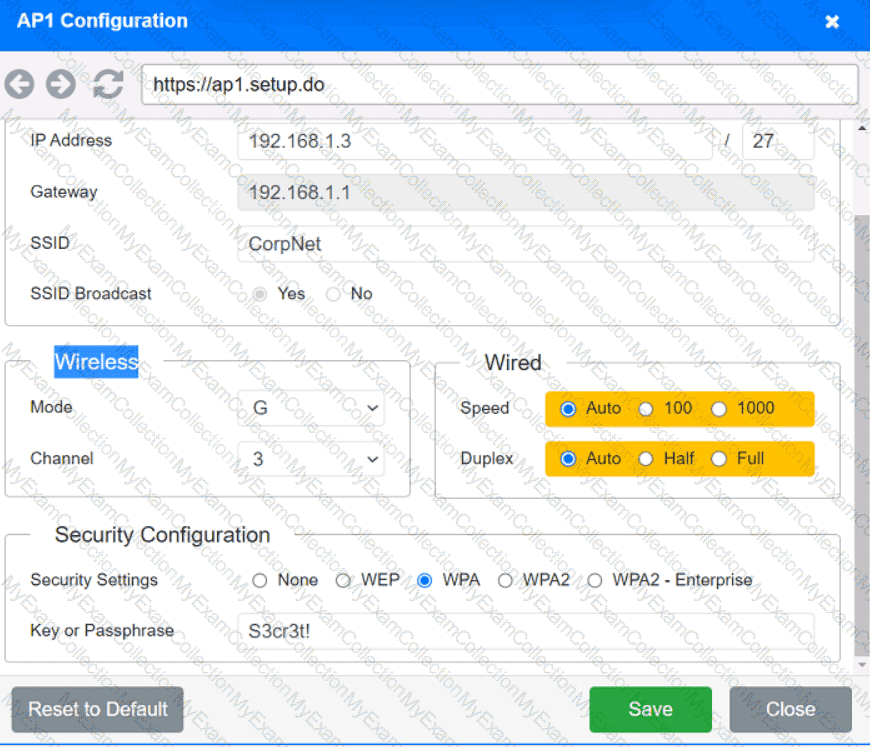

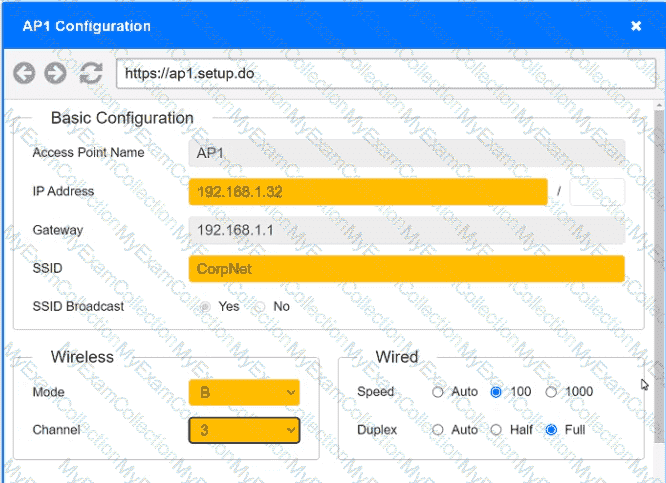

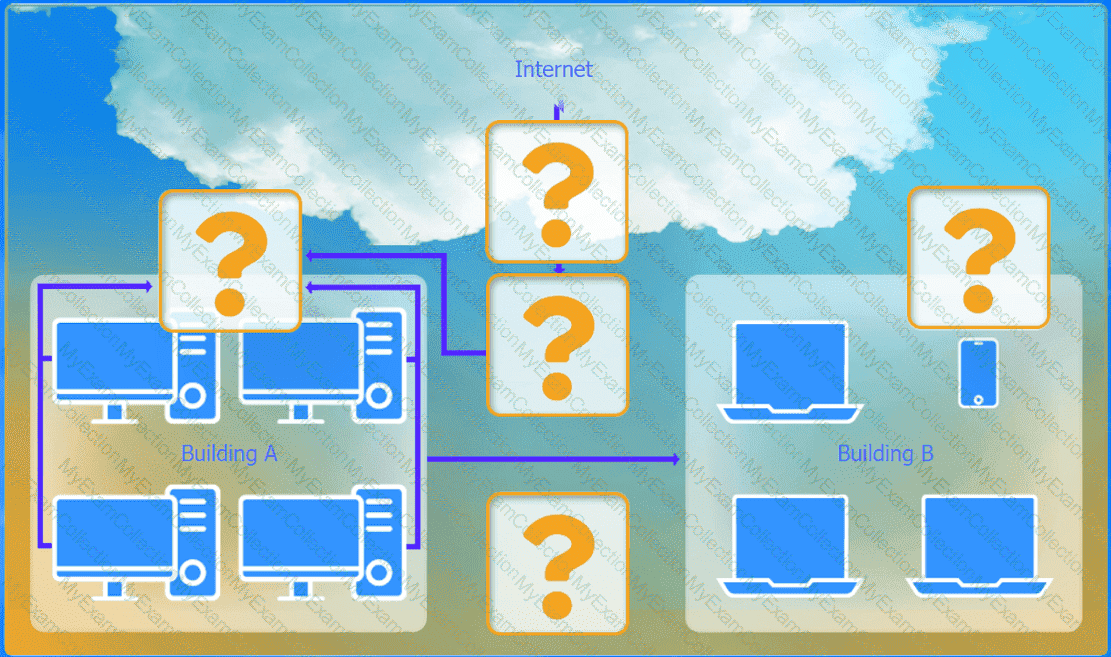

On the first exhibit, the layout should be as follows

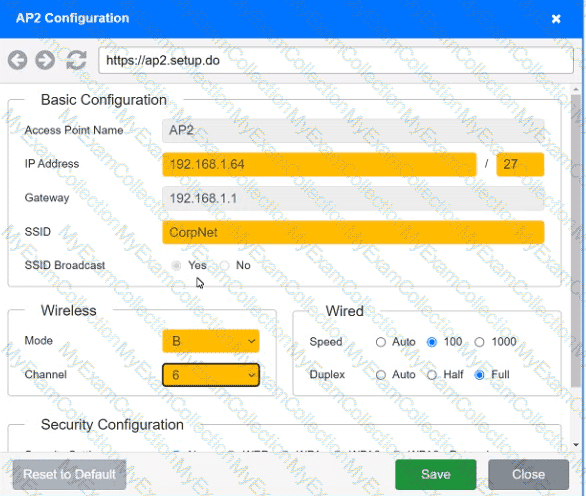

Exhibit 2 as follows

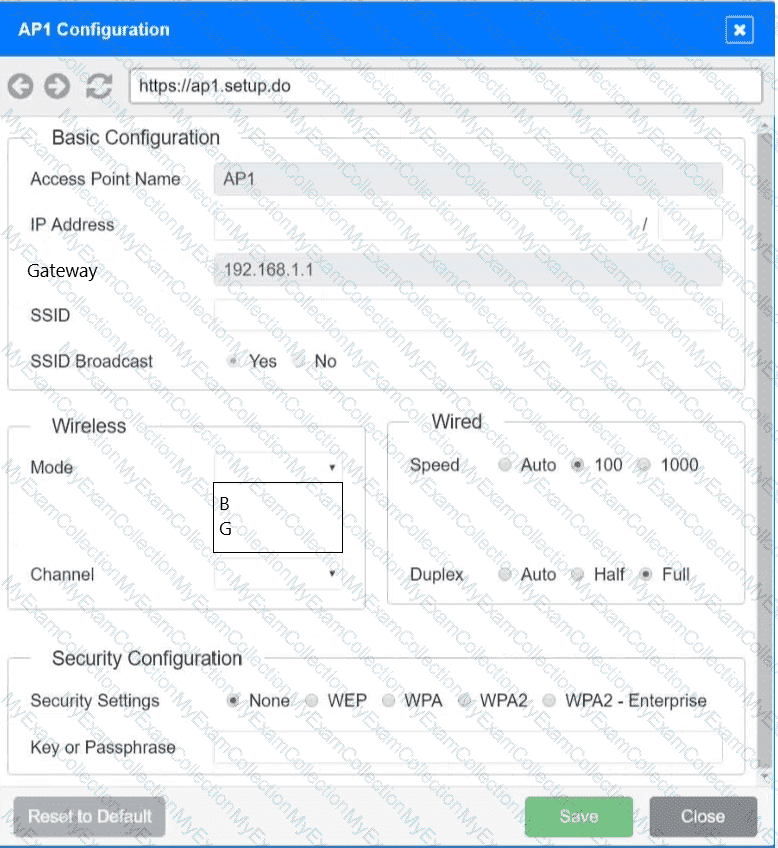

Access Point Name AP2

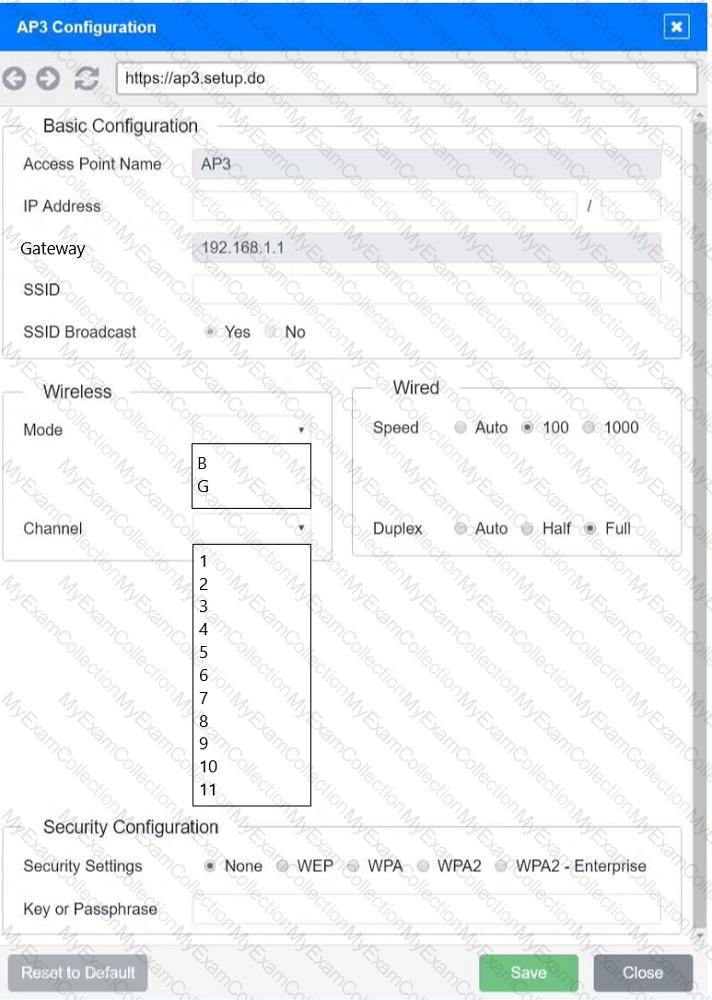

Exhibit 3 as follows

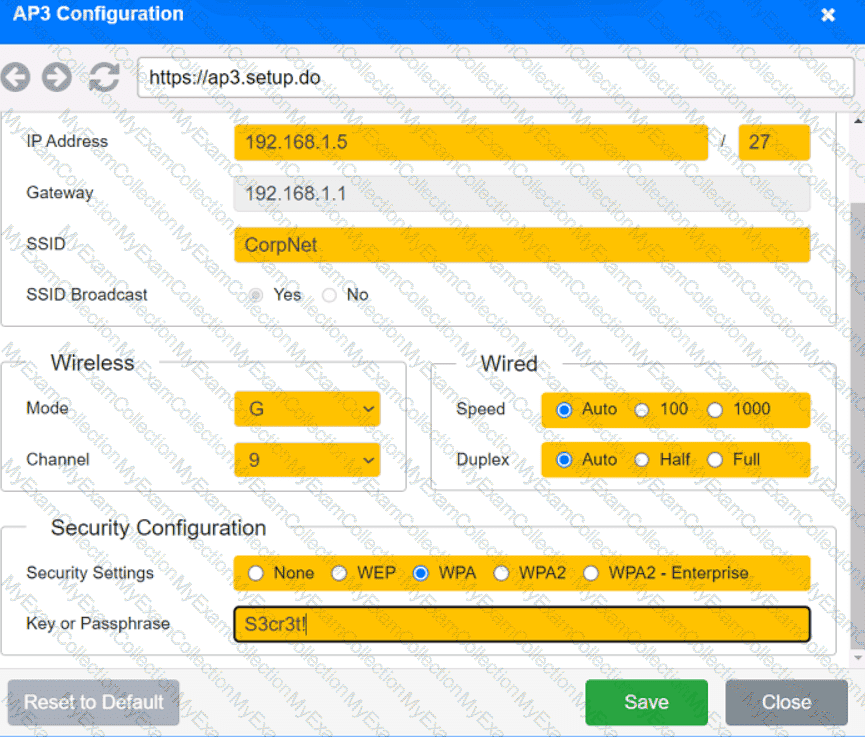

Access Point Name AP3

After implementing a solution and putting preventive measures in place, the next step is to verify that the system is functioning correctly. This ensures that the issue has been fully resolved.

=================

Comprehensive and Detailed In-Depth Explanation:

Quality of Service (QoS) ensures video conferencing receives priority bandwidth to prevent latency, jitter, and packet loss.

QoS settings prioritize real-time traffic, ensuring smooth performance.

? Reference: CompTIA Network+ (N10-009) Official Study Guide – Section: Network Performance Optimization

GSM (Global System for Mobile communications) is the international standard that uses SIM cards to authenticate and connect phones to the cellular network. GSM allows users to place and receive calls while traveling globally, provided they have a SIM card. CDMA, on the other hand, does not use SIM cards in the same way and is primarily used in the United States. (Reference: CompTIA Network+ Study Guide, Chapter on Network Fundamentals)

DHCP snooping is a security feature on network switches that helps to prevent unauthorized (rogue) DHCP servers from assigning IP addresses to clients. By implementing DHCP snooping, the network administrator can restrict DHCP responses to authorized servers only, preventing unauthorized DHCP configurations, such as incorrect DNS IPs, from being assigned to clients. This helps prevent man-in-the-middle attacks where malicious actors misconfigure DNS to redirect users to fraudulent sites. (Reference: CompTIA Network+ Study Guide, Chapter on Network Security)

BGP (Border Gateway Protocol) is used for routing data between different ISPs, making it essential for the functioning of the internet. Its primary use is for exchanging routing information between autonomous systems, especially different ISPs. Preventing loops within a LAN is handled by protocols like Spanning Tree Protocol (STP), while improving reconvergence times and sharing routes with a Layer 3 switch are functions of other protocols or internal mechanisms.

NAT (Network Address Translation) helps hide internal IP addresses from external networks, adding a layer of security by preventing direct access to internal systems from the outside.

Availability refers to ensuring that data is accessible when needed. If a customer's data is accidentally deleted, it impacts availability, as the data can no longer be accessed.

=================

Power over Ethernet (PoE) delivers power to devices such as VoIP phones over the same cables used for data. If the total power requirement of connected devices exceeds the PoE power budget of the switch or injector, some devices may not receive adequate power and could intermittently reboot. This issue would not affect the workstation, which is likely receiving power separately. References: CompTIA Network+ Exam Objectives and official study guides.

A captive portal is a web page that users must view and interact with before being granted access to a network. It is commonly used in guest networks to enforce terms of use agreements. When a user connects to the network, they are redirected to this portal where they must accept the terms of use before proceeding. This method ensures that users are aware of and agree to the network's policies, making it the best choice for this scenario. References: CompTIA Network+ Exam Objectives and official study guides.
