MuleSoft-Platform-Architect-I Salesforce Certified MuleSoft Platform Architect 1 Exam (WI25) Question and Answers

Explanation

Correct Answer: From the Mule runtime irrespective of the deployment model

*****************************************

>> Monitoring and Alerting metrics are always originated from Mule Runtimes irrespective of the deployment model.

>> It may seems that some metrics (Runtime Manager) are originated from Mule Runtime and some are (API Invocations/ API Analytics) from API Manager. However, this is realistically NOT TRUE. The reason is, API manager is just a management tool for API instances but all policies upon applying on APIs eventually gets executed on Mule Runtimes only (Either Embedded or API Proxy).

>> Similarly all API Implementations also run on Mule Runtimes.

So, most of the day required for monitoring and alerts are originated fron Mule Runtimes only irrespective of whether the deployment model is MuleSoft-hosted or Customer-hosted or Hybrid.

Explanation

Correct Answer: When a new required field is added to the method called by the API client

*****************************************

>> Generally, the logic on API clients need to be updated when the API contract breaks.

>> When a new method or a child method is added to an API , the API client does not break as it can still continue to use its existing method. So these two options are out.

>> We are left for two more where "datatype of the response if changed" and "a new required field is added".

>> Changing the datatype of the response does break the API contract. However, the question is insisting on the "invocation" logic and not about the response handling logic. The API client can still invoke the API successfully and receive the response but the response will have a different datatype for some field.

>> Adding a new required field will break the API's invocation contract. When adding a new required field, the API contract breaks the RAML or API spec agreement that the API client/API consumer and API provider has between them. So this requires the API client invocation logic to also be updated.

Role of Process API in API-led Connectivity:

In MuleSoft’s API-led connectivity approach, a Process API is used to coordinate, aggregate, and orchestrate data from various System APIs. It is primarily responsible for implementing business logic that spans multiple backend systems or entities, transforming and combining data as needed to support business processes.

Process APIs are not directly exposed to end-user clients; rather, they work between System APIs and Experience APIs, providing business logic and orchestration capabilities.

Evaluating the Options:

Option A: Process APIs are not typically responsible for large data dumps or data synchronization. That function would be handled by a System API or a specialized batch process.

Option B: Managing direct, secure communication between back-end systems and end-user clients is typically the role of Experience APIs rather than Process APIs.

Option C (Correct Answer): Process APIs are designed to coordinate and orchestrate calls to multiple other APIs in the network, which supports the automation of business processes.

Option D: Securing and managing communication with end-user clients is typically the role of Experience APIs, not Process APIs.

Conclusion:

Option C is the correct answer, as the main role of a Process API is to coordinate and orchestrate interactions between other APIs, enabling business processes to function seamlessly across multiple systems.

Refer to MuleSoft's API-led connectivity documentation for further explanation of the roles and responsibilities of Process APIs in an application network.

Explanation

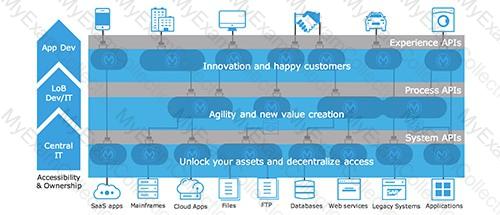

Correct Answer:

1. App Developers owns and focuses on Experience Layer APIs

2. LOB IT owns and focuses on Process Layer APIs

3. Central IT owns and focuses on System Layer APIs

References:

https://blogs.mulesoft.com/biz/api/experience-api-ownership/

https://blogs.mulesoft.com/biz/api/process-api-ownership/

https://blogs.mulesoft.com/biz/api/system-api-ownership/

Explanation

Correct Answer: The API policy is defined in API Manager for a specific API instance, and then ONLY applied to the specific API instance.

*****************************************

>> Once our API specifications are ready and published to Exchange, we need to visit API Manager and register an API instance for each API.

>> API Manager is the place where management of API aspects takes place like addressing NFRs by enforcing policies on them.

>> We can create multiple instances for a same API and manage them differently for different purposes.

>> One instance can have a set of API policies applied and another instance of same API can have different set of policies applied for some other purpose.

>> These APIs and their instances are defined PER environment basis. So, one need to manage them seperately in each environment.

>> We can ensure that same configuration of API instances (SLAs, Policies etc..) gets promoted when promoting to higher environments using platform feature. But this is optional only. Still one can change them per environment basis if they have to.

>> Runtime Manager is the place to manage API Implementations and their Mule Runtimes but NOT APIs itself. Though API policies gets executed in Mule Runtimes, We CANNOT enforce API policies in Runtime Manager. We would need to do that via API Manager only for a cherry picked instance in an environment.

So, based on these facts, right statement in the given choices is - "The API policy is defined in API Manager for a specific API instance, and then ONLY applied to the specific API instance".

Explanation

Correct Answer: Implement required changes to the Process API implementation so that, whenever possible, the Process API’s RAML definition remains unchanged.

*****************************************

Key requirement in the question is:

>> Approach that minimizes the impact of this change on API clients

Based on above:

>> Updating the RAML definition would possibly impact the API clients if the changes require any thing mandatory from client side. So, one should try to avoid doing that until really necessary.

>> Implementing the changes as a completely different API and then redirectly the clients with 3xx status code is really upsetting design and heavily impacts the API clients.

>> Organisations and IT cannot simply postpone the changes required until all API consumers acknowledge they are ready to migrate to a new Process API or API version. This is unrealistic and not possible.

The best way to handle the changes always is to implement required changes to the API implementations so that, whenever possible, the API’s RAML definition remains unchanged.

Explanation

Correct Answer: By refining the response definitions by adding the x-ratelimit-* response headers with description, type, and example

*****************************************

References:

https://docs.mulesoft.com/api-manager/2.x/rate-limiting-and-throttling#response-headers

https://docs.mulesoft.com/api-manage r/2.x/rate-limiting-and-throttling-sla-based-policies#response-headers

In API-led design, an Experience API is enhanced to improve how data is delivered to end-user applications. One primary reason to enhance an Experience API is when new data standards, such as a Canonical Data Model, are adopted. Here’s why:

Canonical Data Model (CDM):

Adopting a CDM standardizes data representations across the organization, making APIs more consistent and easier to consume across various services and applications.

Updating the Experience API ensures that it delivers data in this standardized format, improving interoperability and reusability.

Explanation of Correct Answer (D):

A CDM impacts the structure and types of data the API provides, and this update would be directly relevant to an Experience API, as it is the primary point of interaction for applications.

Explanation of Incorrect Options:

Option A involves adapting to consumer-specific standards, which is against API-led design principles.

Option B involves changes in System APIs, which don’t directly mandate changes to the Experience API unless data formatting adjustments are required.

Option C (IP Allowlist) relates to security rather than API design and would not motivate a functional enhancement of the API.

ReferencesFor more details on the use of Canonical Data Models in API-led architecture, refer to MuleSoft’s guidelines on data standardization and Experience API best practices​.

Scenario Overview:

The API resides in Anypoint Virtual Private Cloud (VPC) on CloudHub 1.0, where it requires connectivity to both an AWS-hosted database server and an on-premises web server.

Both servers are isolated from the public internet: the database server is within the customer’s AWS VPC, and the web server is within the customer's on-premises corporate data center.

Connectivity Requirements:

To connect to the AWS database server from the API in Anypoint VPC, VPC peering is ideal. This would allow a private network connection between the MuleSoft Anypoint VPC and the customer’s AWS VPC, enabling secure, direct access to the database.

To connect to the on-premises web server, a VPN tunnel is suitable. This would establish a secure, encrypted connection from the Anypoint VPC to the customer’s corporate data center, allowing secure data flow between the API and the on-premises web server.

Analysis of Options:

Option A (Correct Answer): Setting up VPC peering with AWS VPC enables private network connectivity with the database server, while a VPN tunnel to the on-premises data center allows secure access to the web server. This combination meets the requirements for secure, controlled access to both resources.

Option B: VPC peering alone would not suffice because it does not support a connection from the Anypoint VPC directly to an on-premises network. A VPN is necessary for on-premises access.

Option C: Setting up a transit gateway would provide connectivity within AWS but would not enable direct connectivity from CloudHub to the on-premises network.

Option D: VPC peering with the on-premises network is not possible because VPC peering is typically used to connect two VPCs, not a VPC with an on-premises network.

Conclusion:

Option A is the correct choice, as it provides a complete solution by using VPC peering for AWS VPC connectivity and a VPN tunnel for secure on-premises connectivity. This setup aligns with Anypoint Platform best practices for connecting Anypoint VPCs to both AWS-hosted and on-premises systems, ensuring secure, controlled access to both the database and web server.

For more detailed reference, MuleSoft documentation on Anypoint VPC peering and VPN connectivity provides additional context on best practices for setting up these connections within a hybrid network infrastructure.

Understanding the Requirements:

The business needs to transfer daily data changes from the Salesforce Account and Case objects to AWS DynamoDB in a single JSON format.

Only a subset of attributes (5 from Account and 8 from Case) is required, so it is not necessary to include all 219 attributes of the Account object.

Design Approach:

A System API (SAPI) should be created for each Salesforce object (Account and Case), exposing only the required fields (5 attributes for Account and 8 for Case).

A Process API (PAPI) can be used to aggregate and transform the data from these SAPIs, combining the 13 selected attributes from Account and Case into a single JSON structure for DynamoDB.

Evaluating the Options:

Option A: Mimicking all attributes in the SAPI is inefficient and unnecessary, as only 13 attributes are required.

Option B: Replicating all attributes in DynamoDB is excessive and would result in higher storage and processing costs, which is unnecessary given the requirement for only a subset of attributes.

Option C: Implementing an Enterprise Data Model could be useful in broader data management but is not required here, as the focus is on a lightweight integration.

Option D (Correct Answer): Creating separate entities in SAPI for Account and Case with only the required attributes and using the PAPI to aggregate them into a single JSON is the most efficient and meets the requirements effectively.

Conclusion:

Option D is the best choice as it provides a lightweight, efficient design that meets the requirements by transferring only the necessary attributes and minimizing resource use.

Refer to MuleSoft's best practices for API-led connectivity and data modeling to structure SAPIs and PAPIs efficiently.

Explanation

Correct Answer: When the response time of API invocations exceeds a threshold

*****************************************

>> Alerts can be setup for all the given options using the default Anypoint Platform functionality

>> However, the question insists on an alert whose conditions depend on the end-to-end request processing of the API implementation.

>> Alert w.r.t "Response Times" is the only one which requires end-to-end request processing of API implementation in order to determine if the threshold is exceeded or not.

Explanation

Correct Answer: Apply a basic authentication - LDAP policy; the internal Active Directory will be configured as the LDAP source for authenticating users.

*****************************************

>> IP Whitelisting does NOT fit for this purpose. Moreover, the users workstations may not necessarily have static IPs in the network.

>> OAuth 2.0 enforcement requires a client provider which isn't in the organizations system components.

>> It is not an effective approach to let every user create separate client credentials and configure those for their usage.

The effective way it to apply a basic authentication - LDAP policy and the internal Active Directory will be configured as the LDAP source for authenticating users.

Explanation

Correct Answer: GET, OPTIONS, HEAD

http://restcookbook.com/HTTP%20Methods/idempotency/

Explanation

Correct Answer: The test runs immediately after the Mule application has been compiled and packaged

*****************************************

>> Integration tests are the last layer of tests we need to add to be fully covered.

>> These tests actually run against Mule running with your full configuration in place and are tested from external source as they work in PROD.

>> These tests exercise the application as a whole with actual transports enabled. So, external systems are affected when these tests run.

So, these tests do NOT run immediately after the Mule application has been compiled and packaged.

FYI... Unit Tests are the one that run immediately after the Mule application has been compiled and packaged.

Explanation

Correct Answer: They are typically written using MUnit to run in an embedded Mule runtime that does not require external connectivity.

*****************************************

Below TWO are characteristics of Integration Tests but NOT unit tests:

>> They test the validity of input and output of source and target systems.

>> They must be triggered by an external client tool or event source.

It is NOT TRUE that Unit Tests must be run in a unit testing environment with dedicated Mule runtimes for the environment.

MuleSoft offers MUnit for writing Unit Tests and they run in an embedded Mule Runtime without needing any separate/ dedicated Runtimes to execute them. They also do NOT need any external connectivity as MUnit supports mocking via stubs.

https://dzone.com/articles/munit-framework

Understanding the Requirements:

Business Groups: The solution must support two business groups, which typically require separate VPCs for logical separation.

High Availability (HA): Requires deploying resources across multiple availability zones.

Dedicated Load Balancer (DLB): Traffic should be routed via DLBs, which operate within VPCs on CloudHub.

Separate Environments: There needs to be separation between production and non-production environments.

Evaluating the Options:

Option A: Using a single production and non-production VPC and differentiating business groups via availability zones is not ideal as it does not provide full separation for each business group, and using maximum CIDR allocation is wasteful.

Option B (Correct Answer): Creating separate production and non-production VPCs per business group with minimized CIDR blocks, multiple availability zones, and multiple workers per application for HA meets all requirements effectively.

Option C: While this option separates VPCs per business group, it does not fully address the requirement for HA across availability zones by specifying multi-zone deployment only during API deployment, which may not guarantee redundancy.

Option D: Configuring subnets to differentiate business groups within a single production and non-production VPC does not fully separate the business groups, which is a requirement.

Conclusion:

Option B is the best choice as it meets the requirements for high availability, business group separation, and cost efficiency by using minimized CIDR allocations and deploying multiple workers across availability zones.

For further reference, refer to MuleSoft's documentation on VPC configuration and high availability deployment strategies.

Explanation

Correct Answer: In parallel, invoke the system API deployed to the primary environment and the system API deployed to the DR environment, and ONLY use the first response.

*****************************************

>> The API requirement in the given scenario is to respond in least possible time.

>> The option that is suggesting to first try the API in primary environment and then fallback to API in DR environment would result in successful response but NOT in least possible time. So, this is NOT a right choice of implementation for given requirement.

>> Another option that is suggesting to ONLY invoke API in primary environment and to add timeout and retries may also result in successful response upon retries but NOT in least possible time. So, this is also NOT a right choice of implementation for given requirement.

>> One more option that is suggesting to invoke API in primary environment and API in DR environment in parallel using Scatter-Gather would result in wrong API response as it would return merged results and moreover, Scatter-Gather does things in parallel which is true but still completes its scope only on finishing all routes inside it. So again, NOT a right choice of implementation for given requirement

The Correct choice is to invoke the API in primary environment and the API in DR environment parallelly, and using ONLY the first response received from one of them.

When defining data models for System APIs without an established Enterprise Data Model, MuleSoft recommends mirroring the back-end systems' data types to achieve quick and effective integration without adding complexity. This approach has several benefits:

Alignment with Backend Systems:

Mirroring data types ensures consistency with backend data sources, which simplifies integration, reduces mapping requirements, and minimizes potential data transformation issues.

Flexibility for Future Enhancements:

By retaining close alignment with backend data structures, System APIs can evolve to support an Enterprise Data Model in the future without immediate restructuring.

Explanation of Incorrect Options:

Option A (exposing misspellings) is not recommended as System APIs should still ensure a professional and coherent interface.

Option C (custom naming) complicates the API structure without adding immediate value in the absence of a clear data model.

Option D (exposing all fields) is unnecessary and can reduce performance and add complexity.

ReferencesRefer to MuleSoft best practices for data modeling in System APIs for additional information on mirroring backend systems​.

When managing high traffic to an API, especially with POST requests, it is crucial to ensure the API’s policies both protect the back-end systems and provide a smooth client experience. Here’s the approach to reducing errors:

Rate Limiting Policy: This policy enforces a limit on the number of requests within a defined time period. However, rate limiting alone may cause clients to hit limits during demand surges, leading to errors.

Adding an SLA-based Spike Control Policy:

Spike Control is designed to handle sudden increases in traffic by smoothing out bursts of requests, which is particularly useful during high-demand periods.

By configuring SLA-based Spike Control, you can define thresholds for specific client tiers. For instance, premium clients might have higher limits or more flexibility in traffic bursts than standard clients.

Why Option D is Correct:

Keeping the Rate Limiting policy continues to provide baseline protection for the back-end.

Adding the SLA-based Spike Control policy allows for differentiated control, where requests are queued or delayed during bursts rather than outright rejected. This approach significantly reduces error responses to clients while still controlling overall traffic.

Explanation of Incorrect Options:

Option A (adding Client ID Enforcement) would not reduce errors related to traffic surges.

Option B (HTTP Caching) is not applicable as caching is generally ineffective for non-idempotent requests like POST.

Option C (only Spike Control without Rate Limiting) may leave the back-end system vulnerable to sustained high traffic levels, reducing protection.

ReferencesFor more information on configuring Rate Limiting and SLA-based Spike Control policies, refer to MuleSoft documentation on API Policies and Rate Limiting​​.

Explanation

Correct Answer: Implement different system APIs named createCustomer, amendCustomer, retrieveCustomer and suspendCustomer as they are modular and has seperation of concerns

*****************************************

>> It is quite normal to have a single API and different Verb + Resource combinations. However, this fits well for an Experience API or a Process API but not a best architecture style for System APIs. So, option with just one customerManagement API is not the best choice here.

>> The option with APIs in createCustomerInCRMZ format is next close choice w.r.t modularization and less maintenance but the naming of APIs is directly coupled with the legacy system. A better foreseen approach would be to name your APIs by abstracting the backend system names as it allows seamless replacement/migration of any backend system anytime. So, this is not the correct choice too.

>> createCustomer, amendCustomer, retrieveCustomer and suspendCustomer is the right approach and is the best fit compared to other options as they are both modular and same time got the names decoupled from backend system and it has covered all requirements a System API needs.

Explanation

Correct Answer: An SLA for the upstream API CANNOT be provided.

*****************************************

>> First thing first, the default HTTP response timeout for HTTP connector is 10000 ms (10 seconds). NOT 500 ms.

>> Mule runtime does NOT apply any such "load-dependent" timeouts. There is no such behavior currently in Mule.

>> As there is default 10000 ms time out for HTTP connector, we CANNOT always guarantee that the invocation of the downstream API will run to completion without timing out due to its unreliable SLA times. If the response time crosses 10 seconds then the request may time out.

The main impact due to this is that a proper SLA for the upstream API CANNOT be provided.

Explanation

Correct Answer: Guarding against Denial of Service attacks

*****************************************

>> Backend system overloading can be handled by enforcing "Spike Control Policy"

>> Logging HTTP requests and responses can be done by enforcing "Message Logging Policy"

>> Credentials can be tamper-proofed using "Security" and "Compliance" Policies

However, unfortunately, there is no proper way currently on Anypoint Platform to guard against DOS attacks.

Understanding Nonfunctional Requirements (NFRs):

The NFRs in this context are related to security measures implemented for the Web API, such as rate limiting, LDAP-based authentication, JSON threat protection, and IP allowlist policies.

Evaluating the Options:

Option A (Correct Answer): The IP allowlist policy restricts access to known subnets, ensuring that API invocations come from a defined range of IPs.

Option B (Correct Answer): Basic Authentication with LDAP enforces a username/password validation, satisfying an NFR for identity verification.

Option C: Masking sensitive data is not part of the listed NFRs, as none of the mentioned policies address data masking.

Option D: XML threat protection is not mentioned, so this option is incorrect.

Option E: While rate-limiting implies performance control, it does not directly enforce a specific performance expectation.

Conclusion:

Options A and B are correct as they directly address the implemented security measures related to IP range restrictions and username/password authentication.

Refer to MuleSoft's documentation on API security policies for details on LDAP, rate limiting, and allowlist policies.

Explanation

Correct Answer: Apply a JSON threat protection policy to all APIs to detect potential threat vectors

*****************************************

>> Usually, if the APIs are designed and developed for specific consumers (known consumers/customers) then we would IP Whitelist the same to ensure that traffic only comes from them.

>> However, as this scenario states that the APIs are publicly available and being used by so many mobile and web applications, it is NOT possible to identify and blacklist all possible bad actors.

>> So, JSON threat protection policy is the best chance to prevent any bad JSON payloads from such bad actors.

CloudHub Object Store v2 is a managed key-value store provided by MuleSoft to support various use cases where temporary data storage is required. Here’s why Option D is correct:

Key Length Support: Object Store v2 allows storage of keys with a length of up to 300 characters, making it suitable for applications needing flexible and descriptive keys.

Limitations on Size:

Object Store v2 is not intended for large payload storage and has a recommended size limit below 10 MB for each value. Payloads exceeding 15 MB may cause performance issues and are better suited to a file storage system or database.

Option B is incorrect because storing payloads above 15 MB exceeds Object Store’s optimal usage specifications.

Key-Value Limits: Object Store v2 is designed for moderate, transient storage needs, and does not support unlimited storage. Thus, Option A is incorrect.

Backward Compatibility: Object Store v2 does not support Mule 4 applications running Object Store v1. Option C is incorrect as Object Store v1 and v2 are distinct.

ReferencesFor more on CloudHub Object Store v2, refer to MuleSoft documentation on Object Store limitations and configuration​.

Understanding the Need for Cross-API Monitoring:

The Center for Enablement (C4E) needs to investigate potential technical issues across multiple APIs in the application network that may be causing customers to abandon their carts.

This requires a solution that allows viewing metrics across several APIs in real-time to identify any performance issues or bottlenecks.

Evaluating Anypoint Platform Features:

Built-in Dashboards: Anypoint Platform provides built-in dashboards in Anypoint Monitoring, allowing teams to view metrics from multiple APIs in a single interface. This feature is designed to monitor API performance, latency, errors, and throughput, and is ideal for tracking performance across all layers of the application network.

Custom Dashboards: While custom dashboards allow for more tailored views, the built-in dashboards already aggregate metrics for multiple APIs, making it unnecessary to build a custom solution for this scenario.

Functional Monitoring: This feature is used to set up tests to monitor specific API functionality and uptime but is not suited for tracking metrics across multiple APIs in real-time.

API Manager: API Manager primarily focuses on managing API policies, contracts, and access control rather than providing detailed, real-time metrics across the entire application network.

Conclusion:

Option B (Built-in dashboards) is the best choice because it provides a comprehensive view of metrics from all APIs involved, enabling the C4E team to quickly identify any issues that may be contributing to abandoned shopping carts.

Refer to MuleSoft’s documentation on Anypoint Monitoring and built-in dashboards for more details on configuring and using these dashboards effectively.

Understanding Anypoint Monitoring and Its Capabilities:

Anypoint Monitoring provides comprehensive visibility into Mule applications, offering metrics and analytics such as request counts, response times, CPU utilization, memory usage, and other key performance indicators (KPIs). This tool is designed to help teams monitor API usage, troubleshoot issues, and optimize application performance.

Evaluating the Options:

Option A (Correct Answer): Anypoint Monitoring is the ideal tool for this requirement. It provides real-time insights into metrics such as the number of requests, response times, CPU utilization, and active API usage.

Option B (API Manager): API Manager focuses on API lifecycle management, including applying policies, managing contracts, and setting access controls. It does not provide performance monitoring or KPI tracking.

Option C (Runtime Alerts): Runtime Alerts can notify users of specific conditions, like high CPU usage, but they do not provide a full suite of metrics or insights over a given time period.

Option D (Functional Monitoring): Functional Monitoring focuses on functional testing of APIs rather than performance and usage metrics. It does not provide continuous KPI tracking.

Conclusion:

Option A is the correct answer. Anypoint Monitoring is the most suitable tool to track the specified metrics, providing detailed insights into API requests, response times, CPU usage, and active API counts.

For further details, refer to MuleSoft’s Anypoint Monitoring documentation on configuring dashboards and tracking performance metrics.

Explanation

Correct Answer: Use a combination of CloudHub-deployed and manually provisioned on-premises Mule runtimes managed by the MuleSoft-hosted Platform control plane.

*****************************************

Key details to be taken from the given scenario:

>> Organization uses BOTH cloud-based and on-premises systems

>> On-premises systems can only be accessed from within the organization's intranet

Let us evaluate the given choices based on above key details:

>> CloudHub-deployed Mule runtimes can ONLY be controlled using MuleSoft-hosted control plane. We CANNOT use Private Cloud Edition's control plane to control CloudHub Mule Runtimes. So, option suggesting this is INVALID

>> Using CloudHub-deployed Mule runtimes in the shared worker cloud managed by the MuleSoft-hosted Anypoint Platform is completely IRRELEVANT to given scenario and silly choice. So, option suggesting this is INVALID

>> Using an on-premises installation of Mule runtimes that are completely isolated with NO external network access, managed by the Anypoint Platform Private Cloud Edition control plane would work for On-premises integrations. However, with NO external access, integrations cannot be done to SaaS-based apps. Moreover CloudHub-hosted apps are best-fit for integrating with SaaS-based applications. So, option suggesting this is BEST WAY.

The best way to configure and use Anypoint Platform to support these mixed/hybrid integrations is to use a combination of CloudHub-deployed and manually provisioned on-premises Mule runtimes managed by the MuleSoft-hosted Platform control plane.

Explanation

Correct Answer: The SSL certificates used by the API implementation to expose HTTPS endpoints

*****************************************

>> The assignment of each HTTP request to a particular CloudHub worker is taken care by Anypoint Platform itself. We need not manage it explicitly in the API implementation and in fact we CANNOT manage it in the API implementation.

>> The logging configuration that enables log entries to be visible in Runtime Manager is ALWAYS managed in the API implementation and NOT just for SLB. So this is not something we do EXCLUSIVELY when using SLB.

>> We DO NOT manage the number of DNS entries allocated to the API implementation inside the code. Anypoint Platform takes care of this.

It is the SSL certificates used by the API implementation to expose HTTPS endpoints that is to be managed EXCLUSIVELY by the API implementation. Anypoint Platform does NOT do this when using SLBs.

Explanation

Correct Answer: Manually provisioned customer-hosted runtime plane and customer-hosted control plane

*****************************************

There are two key factors that are to be taken into consideration from the scenario given in the question.

>> Company requires both data and metadata to be resided within the corporate firewall

>> Company would like to go with customer-hosted infrastructure.

Any deployment model that is to deal with the cloud directly or indirectly (Mulesoft-hosted or Customer's own cloud like Azure, AWS) will have to share atleast the metadata.

Application data can be controlled inside firewall by having Mule Runtimes on customer hosted runtime plane. But if we go with Mulsoft-hosted/ Cloud-based control plane, the control plane required atleast some minimum level of metadata to be sent outside the corporate firewall.

As the customer requirement is pretty clear about the data and metadata both to be within the corporate firewall, even though customer wants to move to production as quickly as possible, unfortunately due to the nature of their security requirements, they have no other option but to go with manually provisioned customer-hosted runtime plane and customer-hosted control plane.

Explanation

Correct Answer: Traffic between Mule applications deployed to an Anypoint VPC and on-premises systems can stay within a private network

*****************************************

>> The private IP address range of an Anypoint VPC is NOT automatically chosen by CloudHub. It is chosen by us at the time of creating VPC using thr CIDR blocks.

CIDR Block: The size of the Anypoint VPC in Classless Inter-Domain Routing (CIDR) notation.

For example, if you set it to 10.111.0.0/24, the Anypoint VPC is granted 256 IP addresses from 10.111.0.0 to 10.111.0.255.

Ideally, the CIDR Blocks you choose for the Anypoint VPC come from a private IP space, and should not overlap with any other Anypoint VPC’s CIDR Blocks, or any CIDR Blocks in use in your corporate network.

that each CloudHub environment requires a separate Anypoint VPC. Once an Anypoint VPC is created, we can choose a same VPC by multiple environments. However, it is generally a best and recommended practice to always have seperate Anypoint VPCs for Non-Prod and Prod environments.

>> We use Anypoint VPN to link the underlying AWS VPC to an on-premises (non AWS) private network. NOT VPC Peering.

In a CloudHub deployment with a single worker/replica located in a specific Availability Zone (AZ), if an AZ experiences an outage, here’s what happens:

Worker Availability: Since the application is deployed in a single AZ, CloudHub does not automatically redeploy the application in a different zone or region during an outage. Thus, if the current AZ is unavailable, the application will be offline.

Auto-Restart upon AZ Recovery: Once the affected AZ is back online, CloudHub will auto-restart the worker in the same AZ without manual intervention. This ensures that as soon as the AZ is functional, the application resumes automatically.

Explanation of Correct Answer (B):

Option B accurately describes the situation, as the API will remain unavailable until the original AZ is restored.

CloudHub does not currently support automatic failover across regions or other availability zones within the same region for single-worker deployments on the shared cloud.

Explanation of Incorrect Options:

Option A (auto-redeployment in the U.S. East region) is incorrect, as CloudHub does not migrate across regions automatically.

Option C (redeployment in another AZ within the U.S. West) is not a feature for single-worker deployments.

Option D (manual redeployment triggered by an admin) is unnecessary as CloudHub handles restarts automatically when the AZ is back online.

ReferencesRefer to MuleSoft CloudHub’s availability and disaster recovery documentation for more information on how CloudHub manages availability in shared environments​.

Anypoint Platform allows organizations to integrate one external identity provider (IdP) for identity and access management (IAM), supporting SSO and centralized user authentication.

Identity Provider Limit:

Anypoint Platform supports configuring a single IdP for the organization, which can be used to authenticate all users across business groups and environments within that Anypoint organization.

Explanation of Correct Answer (C):

Configuring one IdP ensures centralized and secure identity management, aligned with MuleSoft’s architecture.

Explanation of Incorrect Options:

Option A is incorrect because SAML 2.0 bearer tokens from external IdPs can indeed be used for invoking Anypoint Platform APIs.

Option B is incorrect as client providers can be assigned to specific business groups and environments.

Option D is incorrect since only identity management strictly requires an IdP; client management does not.

ReferencesFor further details on identity management options, consult MuleSoft documentation on Anypoint Platform’s IAM capabilities​.

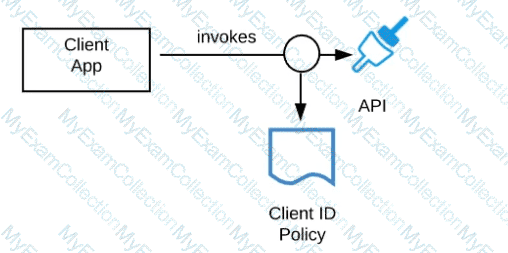

Explanation

Correct Answer: The client ID and secret obtained from Anypoint Exchange for the API instance in the STAGING environment

*****************************************

>> We CANNOT use the client ID and secret of Anypoint Platform account or any individual environments for accessing the APIs

>> As the type of policy that is enforced on the API in question is "Client ID Enforcment Policy", OAuth token based access won't work.

Right way to access the API is to use the client ID and secret obtained from Anypoint Exchange for the API instance in a particular environment we want to work on.

References:

Managing API instance Contracts on API Manager

https://docs.mulesoft.com/api-manager/1.x/request-access-to-api-task

https://docs.mulesoft.com/exchange/to-request-access

https://docs.mulesoft.com/api-manager/2.x/policy-mule3-clie nt-id-based-policies

Explanation

Correct Answer: At the process and system tiers

*****************************************

>> Experience Layer APIs are modeled and designed exclusively for the end user's experience. So, the data models of experience layer vary based on the nature and type of such API consumer. For example, Mobile consumers will need light-weight data models to transfer with ease on the wire, where as web-based consumers will need detailed data models to render most of the info on web pages, so on. So, enterprise data models fit for the purpose of canonical models but not of good use for experience APIs.

>> That is why, EDMs should be used extensively in process and system tiers but NOT in experience tier.

Explanation

Correct Answer: Create reusable assets, Make them discoverable so that LOB teams can self-serve and browse the APIs, Get active feedback and usage metrics.

*****************************************

Diagram, arrow Description automatically generated

Explanation

Correct Answer: Search Anypoint exchange for a suitable existing fallback API, and then implement invocations to this fallback API in addition to the order API

*****************************************

>> It is not ideal and good approach, until unless there is a pre-approved agreement with the API clients that they will receive a HTTP 3xx temporary redirect status code and they have to implement fallback logic their side to call another API.

>> Creating separate entry of same Order API in API manager would just create an another instance of it on top of same API implementation. So, it does NO GOOD by using clone od same API as a fallback API. Fallback API should be ideally a different API implementation that is not same as primary one.

>> There is NO option currently provided by Anypoint HTTP Connector that allows us to invoke a fallback API when we receive certain HTTP status codes in response.

The only statement TRUE in the given options is to Search Anypoint exchange for a suitable existing fallback API, and then implement invocations to this fallback API in addition to the order API.

In the API-led connectivity approach, each layer (System, Process, and Experience) has a distinct purpose:

System APIs: These APIs connect directly to backend systems to expose and unlock data in a standardized way.

Process APIs: These are responsible for orchestrating and processing data across different systems, combining information where needed.

Experience APIs: These are designed for specific user interfaces or applications, often transforming data formats to fit the needs of each consumer application.

Why Option A is Correct:

Process APIs are designed to combine data from multiple systems, which aligns with the function of aggregating policy information from both the life and general insurance systems. This aggregation logic would ideally reside in the Process layer, separating data retrieval from data orchestration.

Moving this functionality to the Process layer enables reusability and modularity, as other Experience APIs or services could also leverage the combined policy data if needed.

Explanation of Incorrect Options:

Option B (Presenting the SOAP-based response) would be managed by the Experience layer, as this layer adapts data formats for specific interfaces.

Option C (Authenticating and maintaining backend connections) would typically be handled within the System layer, where backend integration and security handling occurs.

Option D (Querying data) is the function of System APIs, which access the backend systems directly and expose the raw data without additional processing.

ReferencesFor further details on API-led architecture and the roles of each layer, refer to MuleSoft’s documentation on API-led connectivity and API layers​​.

Explanation

Correct Answer: A higher number of discoverable API-related assets in the application network.

*****************************************

>> We do NOT get faster response times in fine-grained approach when compared to coarse-grained approach.

>> In fact, we get faster response times from a network having coarse-grained APIs compared to a network having fine-grained APIs model. The reasons are below.

Fine-grained approach:

1. will have more APIs compared to coarse-grained

2. So, more orchestration needs to be done to achieve a functionality in business process.

3. Which means, lots of API calls to be made. So, more connections will needs to be established. So, obviously more hops, more network i/o, more number of integration points compared to coarse-grained approach where fewer APIs with bulk functionality embedded in them.

4. That is why, because of all these extra hops and added latencies, fine-grained approach will have bit more response times compared to coarse-grained.

5. Not only added latencies and connections, there will be more resources used up in fine-grained approach due to more number of APIs.

That's why, fine-grained APIs are good in a way to expose more number of resuable assets in your network and make them discoverable. However, needs more maintenance, taking care of integration points, connections, resources with a little compromise w.r.t network hops and response times.

In scenarios where multiple API implementations are deployed across different environments (CloudHub and customer-hosted runtimes), Anypoint Functional Monitoring is the most effective tool to monitor API availability and trigger alerts when an API implementation becomes unresponsive. Here’s how it works:

Using Anypoint Functional Monitoring:

Functional Monitoring allows you to create monitors that periodically invoke specific endpoints on the API implementations, simulating a client request. This helps ensure that the API is responsive, even if no actual client requests are being made.

If an API implementation does not respond as expected, Functional Monitoring can generate alerts, notifying administrators of potential issues.

Why Option A is Correct:

By setting up Functional Monitoring to automatically invoke the API endpoints at regular intervals, you ensure continuous monitoring and alerting capabilities, which are especially useful for APIs that may experience periods of low or no traffic. This approach provides a proactive solution, allowing you to identify and address issues before actual users are impacted.

Explanation of Incorrect Options:

Option B suggests modifying client applications to trigger alerts, which is not a best practice as it shifts monitoring responsibility to clients, reducing control and consistency.

Option C involves handling exceptions within client applications, which does not address situations where no clients are making requests.

Option D proposes a Worker Not Responding alert in Runtime Manager, which is limited to worker-specific alerts and may not reliably monitor the API's actual responsiveness to requests.

ReferencesFor further information, refer to MuleSoft documentation on Anypoint Functional Monitoring setup and usage for API availability monitoring​.
