MB-820 Microsoft Dynamics 365 Business Central Developer Question and Answers

In Business Central, when creating an entitlement object to enable transactability for AppSource apps and mapping it to a plan in Partner Center, the Type property of the entitlement object should be set to PerUserServicePlan (A). The PerUserServicePlan type is used to define an entitlement that is based on a service plan, which is typically how transactability features are managed for apps distributed through AppSource. This type of entitlement allows for the mapping of specific features or capabilities of the app to a service plan in Partner Center, enabling granular control over what users are entitled to use based on their subscription. The other values, such as Implicit (B), Unlicensed (C), and Role (D), are used in different contexts and do not apply to the scenario of mapping an entitlement object to a plan for AppSource apps.

To roll back changes to a test method after run time, you should:

Set the TransactionModel attribute to AutoRollback.

To run an approve action on a test page named TestPageA, you should:

Configure TestPageA.Approve.Invoke().

In Business Central's testing framework, the TransactionModel attribute can be set to AutoRollback. This ensures that any changes made during the test are rolled back after the test is complete, leaving the database in its original state.

For running an action on a test page, you would use the 'Invoke' method on the action you wish to perform. In this case, to run an approve action on TestPageA, you would use TestPageA.Approve.Invoke() within your test codeunit. This simulates the user action of approving something on the page.

These actions ensure that the testing environment is properly set up to test specific functionalities without persisting test data and to invoke actions as part of the test scenarios.

When updating the base application table using a table extension in Microsoft Dynamics 365 Business Central, certain properties of table fields can be modified to meet new requirements, such as regulatory changes. The DecimalPlaces property (B) is one such property that can be adjusted in a table extension. This property determines the number of decimal places that are displayed and stored for decimal fields in the table. Adjusting the DecimalPlaces property can be particularly useful when dealing with financial data and tax calculations that require precision to meet new tax tiers set by a regulator. It's important to note that not all properties can be modified in a table extension; for example, the CalcFormula property (A) cannot be changed as it affects how the field's value is calculated, which could have significant implications on the base application's logic.

Codeunit "Discount Mgmt." compiles successfully. = NO

VariantLine in line 17 must be changed to Line and the DiscountAmount removed for the codeunit to compile. = NO

The DiscountIsValid method must be defined in the interface for the code to compile. = YES

The codeunit "Discount Mgmt." will not compile successfully as is because the DiscountIsValid method is not defined in the "IDiscount Calculation" interface, yet it is being declared in the codeunit which implements this interface. AL requires that all procedures in the codeunit that implements an interface must be defined in the interface itself.

The VariantLine in line 17 does not need to be changed to Line, nor does the DiscountAmount need to be removed for the codeunit to compile. These are valid declarations in AL and they are correctly implemented in the codeunit. The Variant data type in AL is used to handle various data types and DiscountAmount is a valid return type for a procedure.

For the code to compile successfully, the DiscountIsValid method must be included in the interface because AL enforces that any codeunit implementing an interface must implement all the methods defined in that interface.

When creating a page with the PageType property set to RoleCenter in Microsoft Dynamics 365 Business Central, it's essential to organize the functionalities and actions in a manner that enhances user experience and efficiency. The best practice is to define actions in the area (reporting) before actions in the area (creation) (A). This organization allows users to access reporting and analytical features quickly, which are commonly used in Role Centers for overview and insight purposes, before moving on to creation or transactional tasks. This logical flow aligns with typical user workflows, where analysis and review precede the creation of new records or transactions. The other options, such as defining the navigation menu in the area(processing) (B), defining the navigation bar in the area (embedding) (C), or adding a source table on the Role Center page (D), do not directly address the need to add functionalities to the Role Center page in a user-friendly manner.

ou plan to call a web service using HttpClient from a Business Central AL extension. The web service must authenticate using a certificate that includes a password, and the password must be hidden during debugging.

Options Explanation:

The question asks for the correct implementation where the certificate and password are provided and where the password is hidden when debugging.

SecretText is a special data type in Business Central that hides sensitive data (like passwords) during debugging.

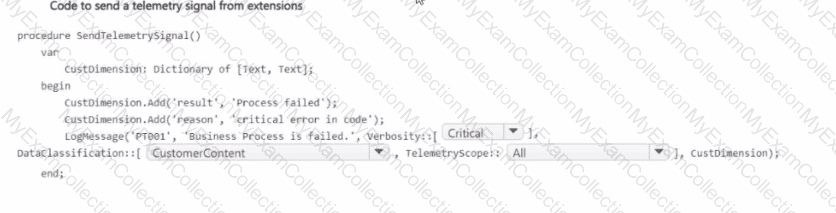

ï‚· Verbosity::Critical: This ensures that the telemetry logs the failure as a critical event.

ï‚· DataClassification::CustomerContent: This helps classify the error as related to customer data.

ï‚· TelemetryScope::All: This ensures that the error is visible across all relevant telemetry scopes, making it easier to monitor the issue in real-time.

In Microsoft Dynamics 365 Business Central, when configuring snapshot debugging, it is crucial that the parameters in the configuration file are correctly set. From the options provided, the issue with the debugger not starting correctly is most likely due to an incorrect "userId" parameter.

Option A is the cause of the problem. The "userId" parameter must be the GUID of the user, not the username. The snapshot debugger needs the exact GUID to attach to the right session for debugging.

Option B is incorrect because "breakOnNext" set to "WebClient" is a valid setting. This tells the debugger to break on the next client action in the web client, which is a typical scenario.

Option C is not the cause of the problem. The "userId" parameter is meant to specify which user session to debug, and this works in conjunction with the "breakOnNext" parameter.

Option D is incorrect as the "executionContext" parameter does not need to be set to "Debug" for snapshot debugging to work. "DebugAndProfile" is a valid value for the "executionContext" parameter, as it allows for debugging and collecting performance information.

Therefore, the reason why the debugger does not start correctly is due to Option A: The "userId" parameter must have the GUID of the user specified, not the username.

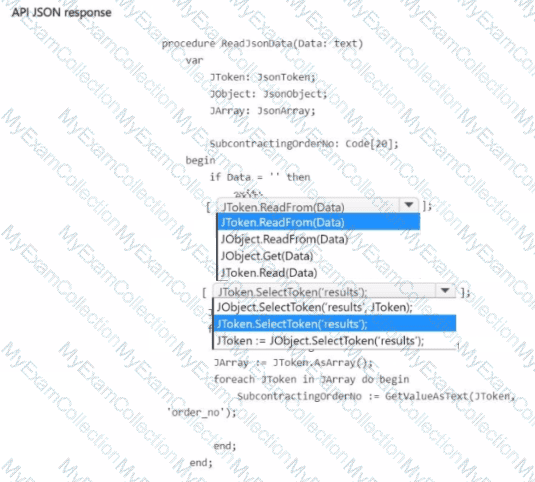

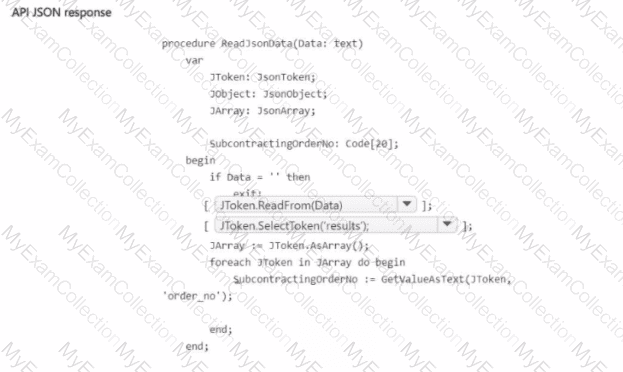

Code Segment Analysis:

The AL code is trying to read JSON data from a response and process it to extract subcontracting order numbers. It uses JsonToken, JsonObject, and JsonArray to work with the JSON data.

JToken.ReadFrom(Data): This line reads the incoming JSON data and converts it into a token. It processes the full JSON body so you can start working with it.

JToken.SelectToken("results"): This line selects the part of the JSON containing the results array. The key "results" is where the JSON response data is expected to be found.

JsonArray: Once the results are extracted, they are stored as an array, and each element in the array (which is expected to contain subcontracting order numbers) is processed.

SubcontractingOrderNo: The extracted order_no from the JSON is stored in this variable.

Breakdown of Steps:

JToken.ReadFrom(Data): This step reads the entire JSON response.

JToken.SelectToken("results"): This step selects the results array from the JSON response.

JArray.AsArray(): This step converts the selected results token into a JSON array that can be iterated over.

GetValueAsText(JToken, 'order_no'): This step retrieves the order_no from each element in the array.

Correct Code Completion:

JToken.ReadFrom(Data): This is the correct method to read the incoming JSON response, as it will convert the string into a JsonToken that can be further processed.

JToken.SelectToken("results"): This is the correct method to extract the results array from the token. This method looks for the key "results" in the JSON and retrieves the relevant array.

Final Code Segment:

al

Copy code

procedure ReadJsonData(Data: text)

var

JToken: JsonToken;

JObject: JsonObject;

JArray: JsonArray;

SubcontractingOrderNo: Code[20];

begin

if Data = '' then

exit;

JToken := JToken.ReadFrom(Data); // Step 1: Read the JSON response data.

JToken := JToken.SelectToken('results'); // Step 2: Select the "results" array.

JArray := JToken.AsArray(); // Convert the token into a JSON array.

foreach JToken in JArray do begin

SubcontractingOrderNo := GetValueAsText(JToken, 'order_no'); // Retrieve the order number.

end;

end;

JToken.ReadFrom(Data): This reads the raw JSON data string and converts it into a JSON token that can be processed.

JToken.SelectToken("results"): This extracts the results array from the JSON data.

JArray.AsArray(): Converts the token into an array so we can iterate over it.

GetValueAsText(JToken, 'order_no'): Extracts the order_no value from each item in the array.

In the context provided by the case study, when calling an API action from a mobile application, the correct format for a POST request to an action in Business Central typically involves specifying the entity (/issues), the ID of the entity (88122e0e-5796-ec11-bb87-000d3a392eb5), and the action to be called (/Copy). The action name should match the exact name as defined in the AL code, which is case-sensitive.

Option A is incorrect because it uses a non-standard format for the action call.

Option B uses the PATCH method, which is generally used for update operations, not for calling actions.

Option C is correct as it uses the POST method, which is appropriate for calling actions, and correctly specifies the entity, ID, and action name.

Option D is incorrect because the action name /copy is in lowercase, while AL is case-sensitive, and it should match the case exactly as defined in the code.

Option E incorrectly adds 'MicrosoftNAV' before the action name, which is not standard for calling actions in Business Central APIs.

Hence, the correct action to use when calling the Issue API action from the mobile application is given in Option C.

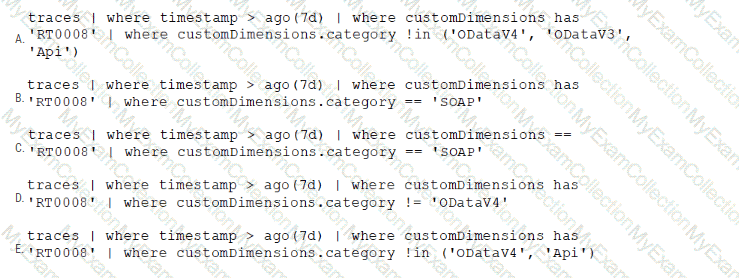

The task is to identify unwanted incoming web service calls during the last seven days. To do this, we need to look at KQL (Kusto Query Language) queries that would filter out web service calls based on the timestamp (to ensure the calls are within the last seven days) and by certain characteristics that would indicate they are unwanted, such as the wrong type of protocol (SOAP in this case, as Contoso Ltd. plans to dismiss using it).

Looking at the options:

Option A: This query selects all traces where the timestamp is within the last 7 days and where the custom dimension has a value of 'RT0008', and where the category is either 'ODataV4', 'ODataV3', or 'Api'. This query would show all API calls except SOAP, so it does not directly answer the question about unwanted calls.

Option B: This query filters for traces with a timestamp within the last 7 days, where 'RT0008' is present, and specifically looks for the category 'SOAP'. This query is correct because it directly targets SOAP calls, which are the unwanted calls according to Contoso Ltd.'s plans.

Option C: Similar to option B, this query filters for traces within the last 7 days and looks for 'RT0008' but uses the equality operator for the category 'SOAP'. This would also correctly return the unwanted SOAP calls.

Option D: This query also filters for traces within the last 7 days, but it excludes the 'ODataV4' category, which doesn't necessarily target the unwanted SOAP calls.

Option E: This query selects traces where the timestamp is within the last 7 days and the custom dimension has 'RT0008'. However, it filters out categories 'ODataV4' and 'Api', which does not directly help in identifying the unwanted SOAP calls.

Therefore, the queries that should be used to determine if there are unwanted incoming web service calls (SOAP calls) in the tenant during the last seven days are Options B and C. These queries are specific to identifying SOAP protocol usage, which is what Contoso Ltd. considers unwanted.

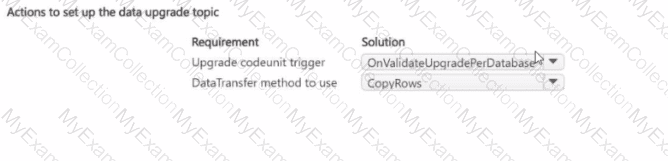

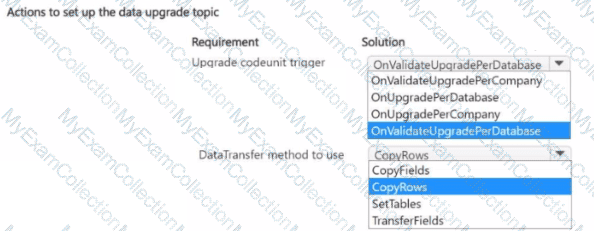

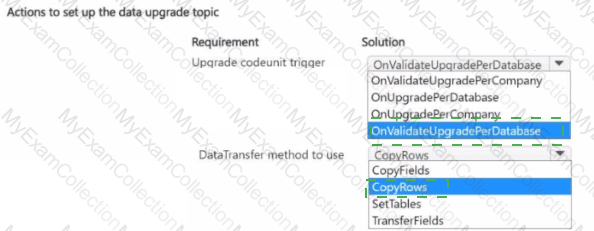

ï‚· Upgrade codeunit trigger: OnValidateUpgradePerDatabase

Since the question specifies that you are handling data upgrades, and you need to use validation before upgrading at the database level, the correct choice is OnValidateUpgradePerDatabase. This method ensures that the upgrade process is validated before applying to the entire database, making it more efficient when data affects multiple companies or structures.

ï‚· DataTransfer method to use: CopyRows

CopyRows is the appropriate method when you are handling large data transfers between tables, especially in an upgrade scenario where you are migrating or transferring data from one table to another. It copies entire rows of data and is optimal for bulk data operations during upgrades.

In the context of Microsoft Dynamics 365 Business Central, an extension may not appear in the tenant for several reasons, particularly after an upgrade to a new major version.

Option A suggests that the extension was published as a DEV extension, which typically would not cause it to disappear after an upgrade because DEV extensions are intended for development and testing within sandbox environments.

Option B indicates that the extension was not compatible with the new version within 60 days of the first notification. This is a likely reason because Microsoft enforces compatibility rules, and extensions that are not made compatible within the specified timeframe might be removed or disabled.

Option C refers to the extension being published as a PTE (Per-Tenant Extension) and mentions the Platform parameter not being updated. This could cause issues, but not specifically the disappearance of the extension after an upgrade.

Option D expands on Option C by adding that both the Platform and Runtime parameters were not updated in the application file. This is a critical aspect because if these parameters are not correctly set to indicate compatibility with the new version of Business Central, the extension could be disabled or removed.

Option E is similar to Option B but mentions a 90-day period. This option does not align with standard Business Central practices for version compatibility requirements.

Therefore, the two possible reasons for the disappearance of the extension in the tenant after an upgrade are that the extension was not compatible with the new version within the required timeframe (Option B) and that the extension was published as a PTE without the Platform and Runtime parameters being updated (Option D).

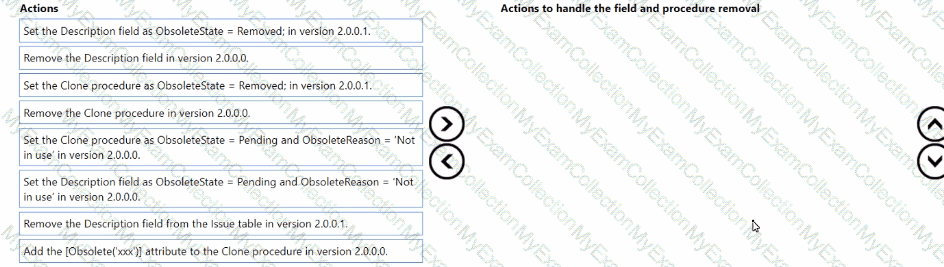

In Business Central, when you need to handle the removal of fields and procedures to ensure that other extensions are not affected by these changes, you typically follow a two-step deprecation process. This allows other developers and users to adapt to the changes before they are fully enforced. Here are the steps to handle the removal:

Mark as Obsolete: In the first version where the decision to remove the field or procedure is made, you set the ObsoleteState to Pending and provide an ObsoleteReason. This doesn't remove the feature but indicates to users and developers that it will be removed in the future. This step is crucial for backward compatibility.

Removal: In a subsequent version, after users have had time to adapt to the deprecation warning, you can then remove the field or procedure or set the ObsoleteState to Removed.

Based on these guidelines, here are the three actions you should perform in sequence:

Set the Description field as ObsoleteState = Pending and ObsoleteReason = 'Not in use' in version 2.0.0.0.

Set the Clone procedure as ObsoleteState = Pending and ObsoleteReason = 'Not in use' in version 2.0.0.0.

Remove the Description field from the Issue table in version 2.0.0.1.

These steps will ensure that anyone using the Description field or Clone procedure will receive a warning about the pending deprecation before it is actually removed, thereby minimizing the impact on other extensions and providing a clear path for migration.

When handling the removal of fields and procedures in Microsoft Dynamics 365 Business Central, the process should be carried out in a way that allows other extensions or dependent features to adapt to the changes without causing immediate failures.

Set Obsolete State and Reason for Description Field (Version 2.0.0.0): The first step involves marking the Description field as obsolete by setting the ObsoleteState to 'Pending'. This is a non-breaking change, signaling to other developers and users that the field is planned for removal in a future version. An ObsoleteReason should also be provided to explain why the field is being deprecated.

Set Obsolete State and Reason for Clone Procedure (Version 2.0.0.0): Similarly, the Clone procedure should be marked as obsolete with the ObsoleteState set to 'Pending'. This indicates that the procedure is no longer in use and will be removed in the future. Providing an ObsoleteReason is best practice as it explains the rationale behind the decision.

Remove the Description Field (Version 2.0.0.1): In the subsequent version, after the developers and users have been given time to adapt to the deprecation notice, the Description field can be safely removed from the Issue table. This is considered a breaking change, hence it is done after the field has been marked as obsolete in a previous version.

The reason for not removing the Description field and Clone procedure immediately in version 2.0.0.0 is to avoid causing runtime errors for any extensions or integrations that may depend on these components. By following this sequence, you provide a clear deprecation path that helps maintain the stability of the overall system while evolving the schema.

Here is the most logical sequence of actions for implementing the Issue Management module in Business Central and exposing the PostIssue method:

Correct Order:

Create a codeunit named "Issue Management Impl." and set the value of Access property to Internal.

This is the first step because Issue Management Impl. is the implementation layer where the actual business logic resides, and setting it to Internal ensures that it is only accessible from within the module, following best practices in encapsulation.

Create a local procedure named PostIssueImpl in the "Issue Management Impl." codeunit.

This step adds the actual PostIssueImpl method, which contains the core logic of posting an issue.

Create a codeunit named "Issue Management" and set the value of Access property to Public.

After defining the implementation logic, you need to create a public-facing Issue Management codeunit to expose the service externally.

Create a PostIssue procedure in the "Issue Management" codeunit, and in it call the PostIssueImpl method.

Lastly, expose the PostIssue method in the Issue Management codeunit, which will internally call the PostIssueImpl method, completing the chain.

Table Structure in Business Central: When creating entities such as "non-conformity" entities in Business Central, you use document tables to represent entities that have a header and line structure. In this case, the non-conformity entity has:

A header with common information (Non-conformity Number, Date, Vendor No., etc.).

One or more lines representing the detailed information for each non-conforming item.

Document Table Usage:

Document Table: A document table is the correct table type for scenarios where you have a header (with general information like vendor details) and lines (with detailed, item-specific information).

Document tables are typically used for entities such as Sales Orders, Purchase Orders, or any other transactional data where you have both header and line information.

Supplemental Table (Option C):

Supplemental tables are usually used to add supplementary information to existing data in Business Central. In this case, we need to store detailed line information, which is a core part of the entity rather than supplementary data, so a supplemental table would not be appropriate here.

Document History Table (Option A):

Document history tables are used to track changes and historical data for entities but are not suitable for the main introduction of the entity and its lines. This option is also not appropriate.

Reference Documentation:

Introduction to Business Central Tables

Document Tables in Business Central

API Publishing for Extensions:

In Business Central, when creating custom APIs like RoomsAPI, it is important to ensure that they are automatically published during the installation or upgrade of the extension.

To achieve this, you can include a codeunit of type Install in the extension that explicitly publishes the custom API (RoomsAPI) as a web service. This ensures that it is available for use immediately after the extension is deployed without requiring manual intervention.

Codeunit Type:

A codeunit of type Install runs when the extension is installed or upgraded. This type of codeunit can be used to perform setup tasks such as publishing web services or APIs like RoomsAPI.

Why Not Other Options?

Option A (default API configuration): This would not automatically publish the RoomsAPI. Default APIs do not cover custom APIs.

Option B (enable APIs for the environment): Enabling APIs in Business Central allows the standard APIs to be used, but custom APIs still need to be manually published.

Option C (publish via Web Services page): This would work but requires manual intervention to publish RoomsAPI, which does not fulfill the requirement of automatic publishing during installation.

Reference Documentation:

Publishing APIs in Extensions

Codeunit Types in Business Central

Read Scale-Out:

Read scale-out is a feature in Business Central that allows you to improve performance by distributing read-only queries (such as the ones from the ticketAPI) across multiple read replicas in the cloud database. This reduces the load on the primary database and helps improve the response time for read-intensive operations, like analyzing POS data through the ticketAPI.

Data Access Intent - ReadOnly:

When enabling read scale-out, you can configure the DataAccessIntent property of APIs to be ReadOnly. This directs the system to use read replicas to handle read-only queries, which enhances performance by offloading such queries from the primary database.

Why Not Other Options?

Option A (ODataReadonlyGetEnabled): This parameter is unrelated to read scale-out and primarily affects OData services behavior, not API performance tuning.

Option B (AccessByPermission): Setting the permission to Read does not directly affect the performance. It only controls access based on user permissions.

Option D (DataAccessIntent ReadOnly): While setting this property to ReadOnly helps in read-only operations, enabling read scale-out (option C) ensures the underlying infrastructure is optimized to handle such read operations, which is the fundamental action required.

Reference Documentation:

Read Scale-Out in Business Central

Data Access Intent in AL

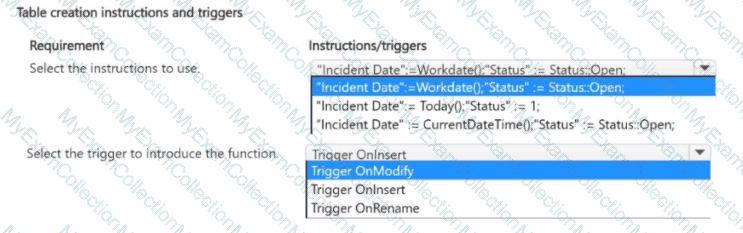

Instructions to use for Incident Date and Status fields:

The correct instruction is "Incident Date" := Workdate(); "Status" := Status::Open;. This ensures that when a new record is created, the Incident Date is set to the current work date, and the Status field is initialized to 'Open'. This is essential for ensuring that the incident data is always timestamped and correctly marked upon creation.

Trigger to introduce the function:

The correct trigger is Trigger OnModify. This trigger ensures that when a record is modified, such as when an update to the status is made (e.g., from Open to Closed), the necessary logic will be executed to handle the update of fields like Incident Date and Status.

Step-by-Step References:

Workdate Function in AL

Triggers in AL

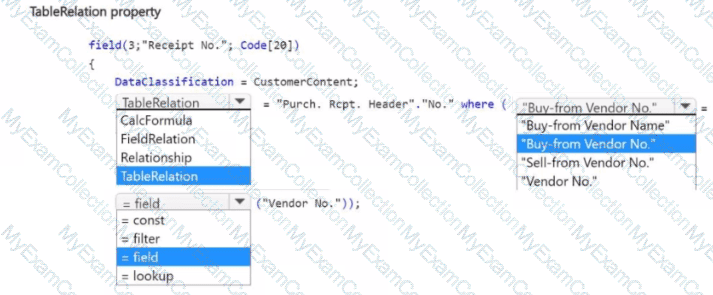

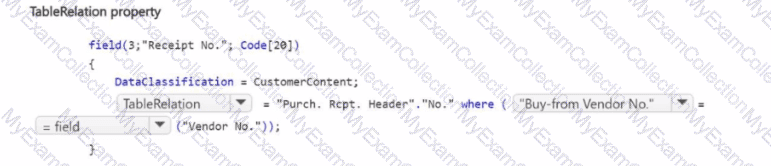

field(3; "Receipt No."; Code[20])

{

DataClassification = CustomerContent;

TableRelation = "Purch. Rcpt. Header"."No." where ("Buy-from Vendor No." = field("Vendor No."));

}

Field Declaration:

The field(3; "Receipt No."; Code[20]) part defines the field in the table with ID 3 and type Code with a length of 20. This field will hold the receipt number.

DataClassification:

CustomerContent is selected for the DataClassification property, which categorizes the data for privacy and compliance management. This aligns with Business Central's recommendations for handling sensitive data in customer-related tables.

TableRelation Property:

The TableRelation property links the "Receipt No." field to another table, which in this case is the "Purch. Rcpt. Header" table. This ensures that only valid receipt numbers from the Purchase Receipt Header table can be selected or entered in this field.

Relation Filter:

The filter condition is applied using the where clause. It ensures that the Receipt No. is only from the Purchase Receipt Header records where the "Buy-from Vendor No." matches the "Vendor No." of the current record.

The condition field("Vendor No.") is selected from the drop-down as shown in the image. This links the vendor information in the non-conformity table to the receipt in the Purchase Receipt Header table.

By linking the "Vendor No." fields, you ensure that only receipt numbers from the correct vendor are available, which improves data consistency and reduces errors during data entry.

References to AL Language:

The TableRelation property is frequently used to create references between tables in Business Central. In this case, the correct relationship between the "Purch. Rcpt. Header" and the Non-conformity table is established using the TableRelation and filter.

Reference Documentation:

AL TableRelation Property

AL Field Syntax

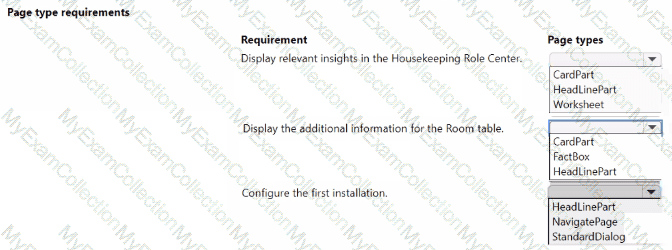

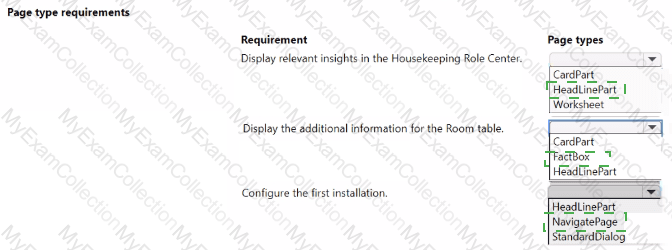

For the requirements provided, the appropriate page types should be selected as follows:

Display relevant insights in the Housekeeping Role Center: HeadlinePart

Display the additional information for the Room table: FactBox

Configure the first installation: StandardDialog

Comprehensive Detailed ExplanationIn the context of Microsoft Dynamics 365 Business Central, page types are crucial for determining how information is presented to the user.

HeadlinePart: This page type is designed to display key data and insights in a concise and visually appealing manner, often used in Role Centers to highlight important information. It is suitable for the Housekeeping Role Center to display relevant insights.

FactBox: This page type is used to display supplementary information related to a selected record in the main part of the page. It's often used to show additional details about a record in a list, card, or document page. In this scenario, it is suitable for showing additional information about a specific Room when viewing the Room table.

StandardDialog: This is a page type that provides a modal dialog for user interaction, commonly used for setup wizards, confirmations, and input forms that require user action before proceeding. This is appropriate for configuring the first installation, where a step-by-step guided interaction is necessary.

https://api.businesscentral.dynamics.com/v2.6/myTenant/myEnvironment/api/alpine/integration/rooms

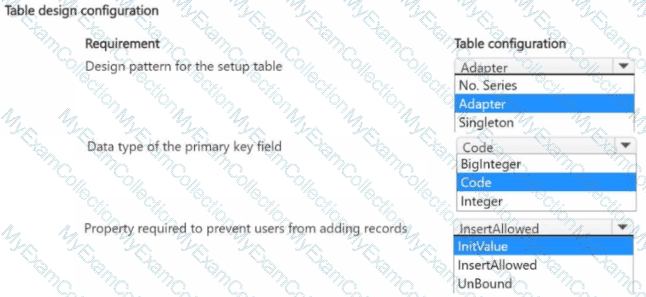

ï‚· Design pattern for the setup table:

The correct selection here is Adapter. The Adapter design pattern is commonly used when you need to handle integration points or create a setup table that acts as an intermediary for data manipulation, which fits the requirement for the configuration of the non-conformity functionality.

ï‚· Data type of the primary key field:

The correct data type is Code. In Business Central, when creating a table with a primary key field, the Code data type is typically used for fields such as document numbers, codes, and identifiers. For a setup table, a Code field is appropriate for keys like "No." series or setup identifiers.

ï‚· Property required to prevent users from adding records:

The correct property is InitValue. This property is used to set initial values for fields and can be configured in such a way that users are prevented from adding records directly, typically enforcing control over record creation and editing in configuration scenarios.

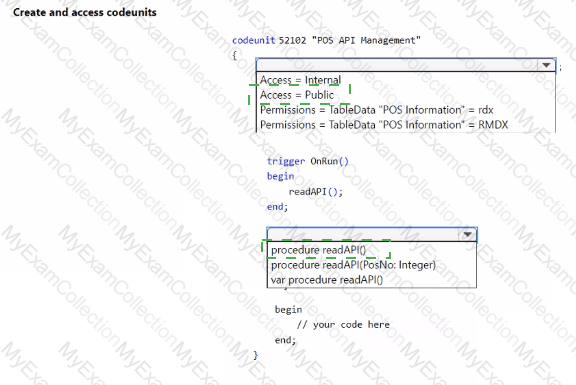

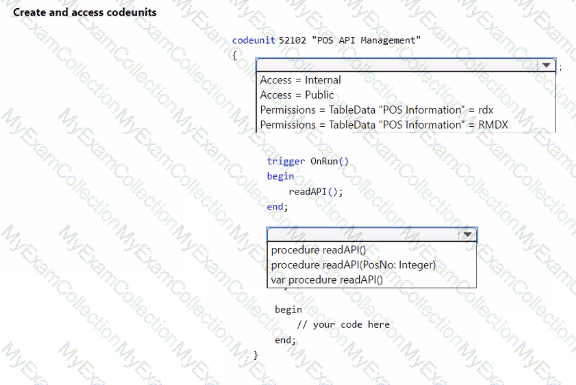

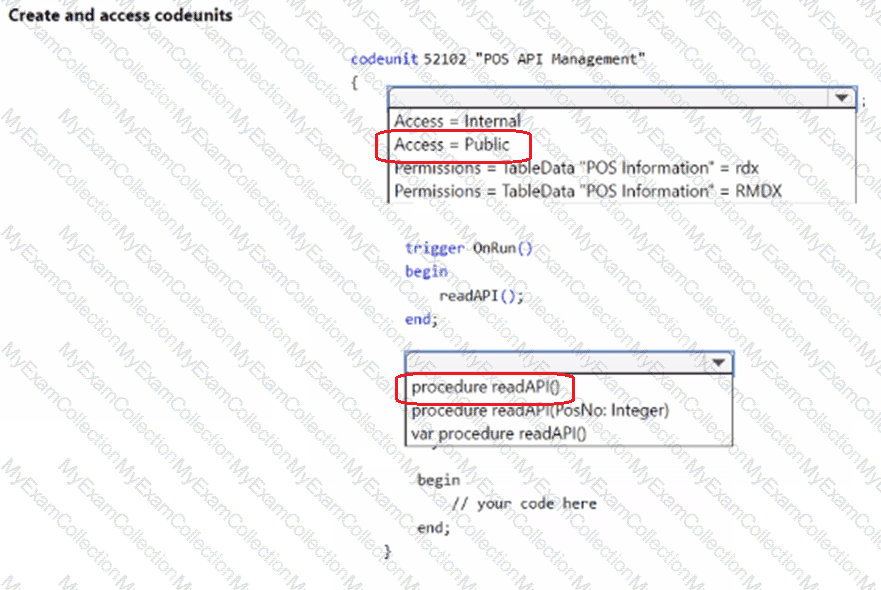

codeunit 52102 "POS API Management"

{

Access = Public;

Permissions = TableData "POS Information" = rwdx;

trigger OnRun()

begin

readAPI();

end;

procedure readAPI()

begin

// Your code here to read from the POS API

end;

}
