JN0-637 Security, Professional (JNCIP-SEC) Question and Answers

==========

Each tenant system maintains its own configuration database, isolating configurations from others, enhancing security and operational efficiency. Junos OS supports multiple concurrent commit operations across tenant systems. Further details are covered in the Juniper Tenant System Guide.

When configuring tenant systems on an SRX device, the following principles apply:

Tenant Systems Have Their Own Configuration Database (Answer C): Each tenant system has its own isolated configuration database, ensuring that changes made in one tenant system do not affect others. This allows for multi-tenant environments where different tenants can have independent configurations.

Commit Multiple Tenant Systems Simultaneously (Answer D): The system allows for multiple tenant systems to be committed at the same time, simplifying management when working with multiple tenants. This is particularly useful in large environments where multiple logical systems or tenants need updates simultaneously.

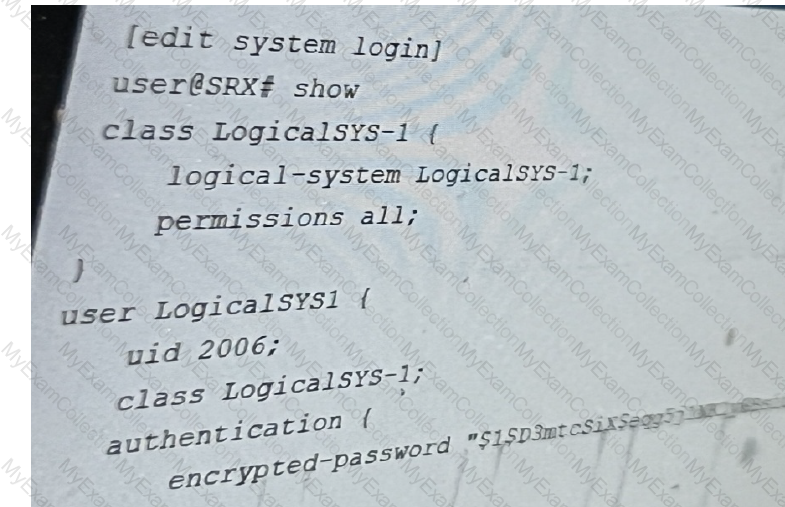

When using security profiles to limit system resources in Juniper logical systems:

No Resource Specification (Answer B): If a resource limit is not specified for a logical system, no specific amount of system resources is reserved for it. Instead, the logical system competes for resources along with others in the system, up to the maximum available. This allows flexible resource allocation, where logical systems can scale based on actual demand rather than predefined limits.

Multiple Logical Systems per Security Profile (Answer D): A single security profile can be applied to multiple logical systems. This allows administrators to define resource limits once in a profile and apply it across several logical systems, simplifying management and ensuring consistency across different environments.

These principles ensure efficient and flexible use of system resources within a multi-tenant or multi-logical-system environment.

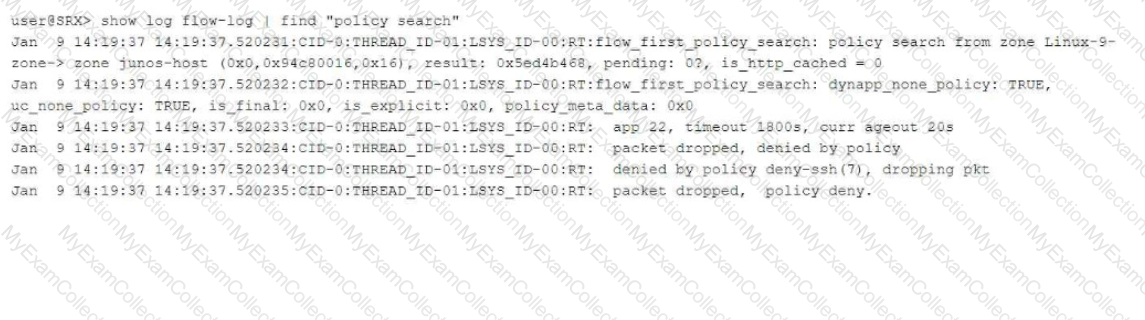

When handling traffic that is destined for itself, the SRX examines the host-inbound-traffic configuration for the ingress interface and the associated security zone. It evaluates whether the traffic should be allowed based on this configuration. Traffic not addressed to the ingress interface is handled based on security policies within the junos-host zone, which applies to traffic directed to the SRX itself. For more details, refer to Juniper Host Inbound Traffic Documentation.

When handling traffic that is destined for the SRX device itself (also known as host-bound traffic), the SRX follows a specific process to evaluate the traffic and apply the appropriate security policies. The junos-host zone is a special security zone used for managing traffic destined for the device itself, such as management traffic (SSH, SNMP, etc.).

Explanation of Answer B (Packet to a Different Interface):

If the packet is destined for an interface other than the ingress interface, the SRX performs a security policy evaluation specifically for the junos-host zone. This ensures that management or host-bound traffic is evaluated according to the security policies defined for that zone.

Explanation of Answer C (Packet to the Ingress Interface):

If the packet is addressed to the ingress interface, the device first checks the host-inbound-traffic configuration for the ingress interface and zone. This configuration determines whether certain types of traffic (such as SSH, HTTP, etc.) are allowed to reach the device on that specific interface.

Step-by-Step Handling of Host-Bound Traffic:

Host-Inbound Traffic: Define which services are allowed to the SRX device itself:

bash

set security zones security-zone host-inbound-traffic system-services ssh

Security Policy for junos-host: Ensure policies are defined for managing traffic destined for the SRX device:

bash

set security policies from-zone to-zone junos-host policy allow-ssh match source-address any

set security policies from-zone to-zone junos-host policy allow-ssh match destination-address any

Juniper Security Reference:

Junos-Host Zone: This special zone handles traffic destined for the SRX device, including management traffic. Security policies must be configured to allow this traffic. Reference: Juniper Networks Host-Inbound Traffic Documentation.

==========

ï‚· A. Enroll the SRX Series device with Juniper ATP Cloud. This is essential for the SRX to receive threat intelligence from ATP Cloud, enabling it to identify infected hosts and take action.

ï‚· B. Use a third-party connector. In this specific scenario, a third-party connector is required to integrate the SRX with the third-party switch. While Juniper has native integration for its EX switches, a connector is necessary to communicate with and manage the third-party switch.

ï‚· C. Deploy Security Director with Policy Enforcer. Security Director orchestrates the automated response, and Policy Enforcer translates the policies into device-specific commands for the SRX and the third-party switch (via the connector).

==========

==========

The request security policies check command allows you to simulate a session through the SRX device, checking the security policy action that would apply without needing to send real traffic. This helps in validating configurations before actual deployment. For more details, see Juniper Security Policies Testing.

The command request security policies check is used to test how a Junos security device handles a theoretical session without generating actual traffic. This command is useful for validating how security policies would be applied to a session based on various parameters like source and destination addresses, application type, and more.

Explanation of Answer A (request security policies check):

This command allows you to simulate a session and verify which security policies would be applied to the session. It's a proactive method to test security policy configurations without the need to generate real traffic.

Example usage:

bash

request security policies check from-zone trust to-zone untrust source 10.1.1.1 destination 192.168.1.1 protocol tcp application junos-https

Juniper Security Reference:

Security Policies Check: This command provides a way to simulate and verify security policy behavior without actual traffic. Reference: Juniper Security Policy Documentation.

==========

When Ethernet interfaces are configured as Layer 2 and added to the same VLAN without being assigned to a security zone, they will not forward traffic by default. Additionally, because they are operating in a pure Layer 2 switching mode, they lack the capability to enforce stateful security policies. For further details, refer to Juniper Ethernet Switching Layer 2 Documentation.

Explanation of Answer A (Unable to Apply Stateful Security Features):

When two interfaces are configured as Layer 2 interfaces and belong to the same VLAN but are not assigned to any security zone, traffic switched between them is handled purely at Layer 2. Stateful security features, such as firewall policies, are applied at Layer 3, so traffic between these interfaces will not undergo any stateful inspection or firewalling by default.

Explanation of Answer C (Interfaces Will Not Forward Traffic):

In Junos, Layer 2 interfaces must be added to a security zone to allow traffic forwarding. Since the interfaces in this scenario are not part of a security zone, they will not forward traffic by default until assigned to a zone. This is a security measure to prevent unintended forwarding of traffic.

Juniper Security Reference:

Layer 2 Interface Configuration: Layer 2 interfaces must be properly assigned to security zones to enable traffic forwarding and apply security policies. Reference: Juniper Networks Layer 2 Interface Documentation.

==========

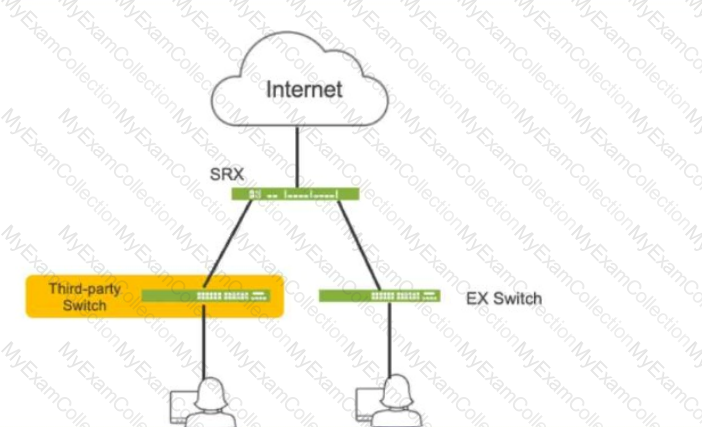

Policy Enforcer interacts with other network elements like EX switches to enforce blocking of infected hosts based on threat intelligence from ATP Cloud and other sources. For more information, refer to Juniper Policy Enforcer Documentation.

In a Juniper automated threat mitigation setup involving Security Director, Policy Enforcer, Juniper ATP Cloud, SRX Series, and EX Series switches, the Policy Enforcer is the component responsible for blocking infected hosts. The role of each component is as follows:

Policy Enforcer (Correct: Option A):Policy Enforcer receives threat intelligence from Juniper ATP Cloud and instructs SRX devices and EX Series switches to block or quarantine infected hosts. Policy Enforcer pushes policies to these devices to enforce the mitigation actions.

Security Director (Incorrect):Security Director provides centralized management and visibility but does not directly enforce policies.

Juniper ATP Cloud (Incorrect):Juniper ATP Cloud is responsible for analyzing threats and providing intelligence but does not take direct mitigation actions.

EX Series Switch (Incorrect):EX Series switches can enforce the policy pushed by Policy Enforcer but are not responsible for deciding which hosts to block.

Juniper References:

Juniper ATP Cloud and Policy Enforcer Documentation: Details the roles of each component in the automated threat mitigation architecture.

==========

Explanation of Answer A (Session Reclassification):

APBR (Advanced Policy-Based Routing) requires the session to be classified based on the specified rule, which can change midstream as additional packets are processed. If the session was already established before the APBR rule took effect, the traffic may not be correctly reclassified to match the new APBR rule, leading to IDP (Intrusion Detection and Prevention) processing instead of being bypassed. This can occur especially when the session was already established before the rule change.

Explanation of Answer C (Application Services Bypass):

For APBR to work and bypass the IDP service, the application services bypass must be explicitly configured. Without this configuration, the APBR rule may redirect the traffic, but the IDP service will still inspect and potentially drop the traffic. This is especially important for traffic destined for specific sites like social media platforms where bypassing IDP is desired.

Example configuration for bypassing IDP services:

bash

set security forwarding-options advanced-policy-based-routing profile application-services-bypass

Step-by-Step Resolution:

Reclassify the Session Midstream:

If the traffic was already being processed before the APBR rule was applied, ensure that the session is reclassified by terminating the current session or ensuring the APBR rule is applied from the start.

Command to clear the session:

bash

clear security flow session destination-prefix

Configure Application Services Bypass:

Ensure that the APBR rule includes the application services bypass configuration to properly bypass IDP or any other security services for traffic that should not be inspected.

Example configuration:

bash

set security forwarding-options advanced-policy-based-routing profile application-services-bypass

Juniper Security Reference:

Session Reclassification in APBR: APBR requires reclassification of sessions in real-time to ensure midstream packets are processed by the correct rule. This is crucial when policies change dynamically or new rules are added.

Application Services Bypass in APBR: This feature ensures that security services such as IDP are bypassed for traffic that matches specific APBR rules. This is essential for applications where performance is a priority and security inspection is not necessary.

==========

DNS doctoring modifies DNS responses for hosts behind NAT devices, allowing them to receive the correct public IP address for internal resources when queried from the public network. This prevents issues where private IPs are returned and are not reachable externally. For details, visit Juniper DNS Doctoring Documentation.

In this scenario, Host A is trying to resolve the domain name web.acme.com, but the DNS resolution returns the private IP address of the web server instead of its public IP. This is a common issue in networks where private addresses are used internally, but public addresses are required for external clients.

Explanation of Answer C (DNS Doctoring):

DNS doctoring is a feature that modifies DNS replies as they pass through the SRX device. In this case, DNS doctoring can be used to replace the private IP address returned in the DNS response with the correct public IP address for Host A. This allows external clients to reach internal resources without being aware of their private IP addresses.

Configuration Example:

bash

set security nat dns-doctoring from-zone untrust to-zone trust

Juniper Security Reference:

DNS Doctoring Overview: DNS doctoring is used to modify DNS responses so that external clients can access internal resources using public IP addresses. Reference: Juniper DNS Doctoring Documentation.

==========

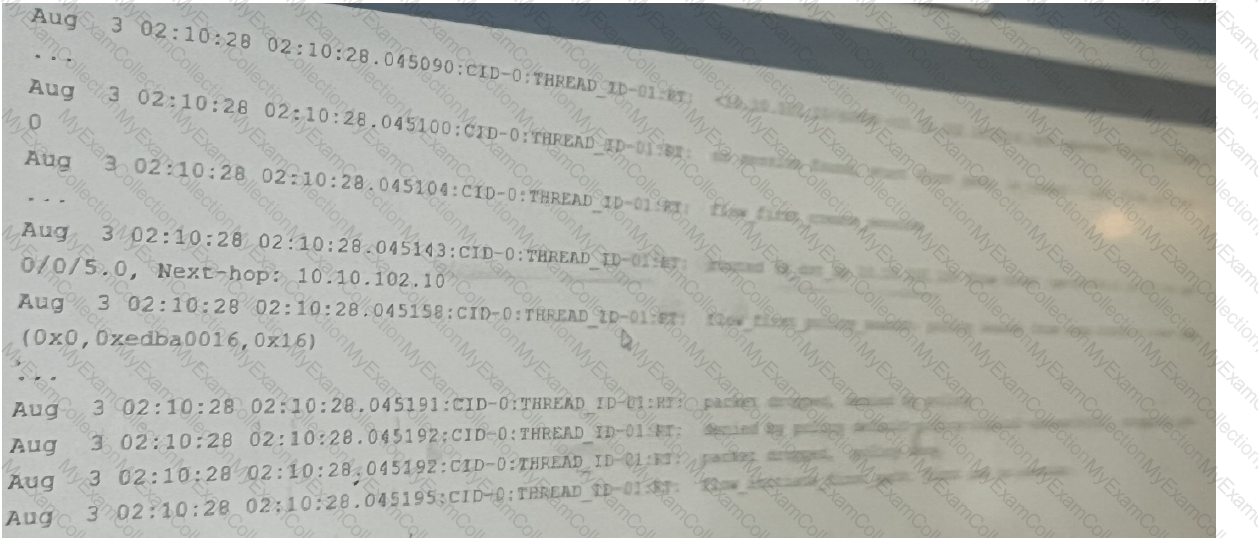

A. The interface is not assigned to a security zone.

Explanation: SRX Series devices rely heavily on security zones for traffic management. If an interface isn't assigned to a zone, the device won't know how to handle traffic arriving on that interface, including ping requests (ICMP echo requests).

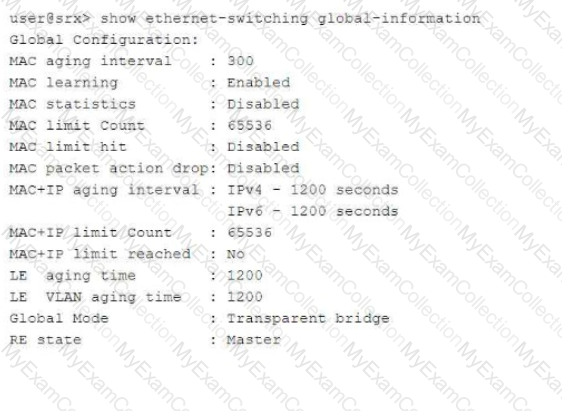

The exhibit provides information about an SRX Series device operating in transparent mode (Layer 2) and Layer 3 routing at the same time. Let’s break down the correct answers:

Explanation of Answer B (Secure Inter-VLAN Traffic with a Security Policy):

The SRX device can secure inter-VLAN traffic because it supports security policies for Layer 3 traffic between different VLANs. In this case, traffic moving between different VLANs (i.e., Layer 3 traffic) can be processed and controlled using security policies.

Explanation of Answer C (Pass Layer 2 and Layer 3 Traffic Simultaneously):

The SRX device can handle both Layer 2 and Layer 3 traffic simultaneously. In mixed mode, the device is capable of switching traffic at Layer 2 (intra-VLAN) while also routing traffic at Layer 3 (inter-VLAN). This is evident from the global configuration showing transparent bridge mode and Layer 3 interfaces.

Juniper Security Reference:

Mixed Mode Overview: Juniper SRX devices in mixed mode can operate as both a Layer 2 switch and a Layer 3 router, allowing it to pass traffic at both layers simultaneously. Reference: Juniper Mixed Mode Documentation.

==========

==========

==========

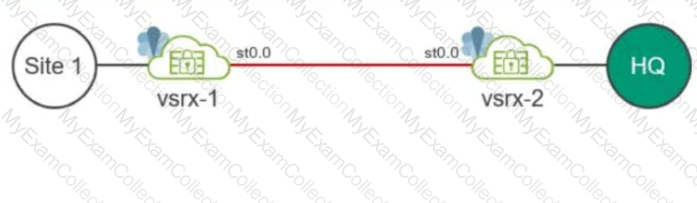

Understanding the Scenario:

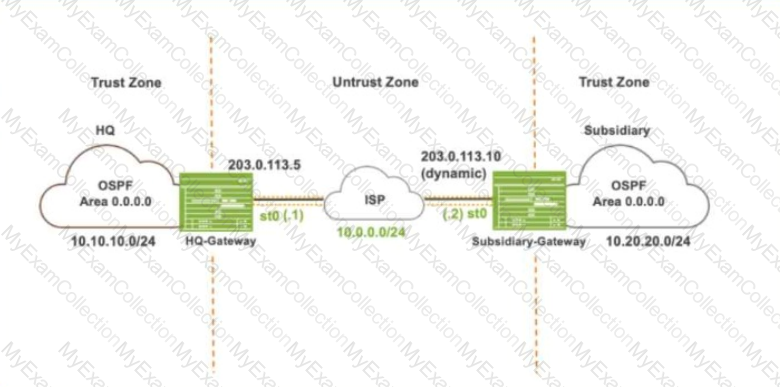

Objective: Deploy IPsec VPNs connecting multiple enterprise sites using OSPF for dynamic routing.

Challenge: Some sites use third-party devices not running Junos OS.

Considerations:

Compatibility between Juniper and third-party devices.

Support for dynamic routing protocols (OSPF) over IPsec VPNs.

Handling overlapping IP address spaces.

Option Analysis:

Option A: OSPF over IPsec can be used for intersite dynamic routing.

Explanation:

OSPF Characteristics:

OSPF uses multicast addresses (224.0.0.5 and 224.0.0.6) for neighbor discovery and routing updates.

IPsec Limitations:

Standard IPsec tunnel mode does not support multicast traffic natively.

Multicast traffic cannot traverse IPsec tunnels unless encapsulated.

Juniper Solution:

Juniper devices can use routed VPNs (route-based VPNs) with st0 interfaces, allowing OSPF over IPsec.

However, this requires support from both ends of the VPN tunnel.

Third-Party Devices:

May not support OSPF over IPsec without additional configurations.

Conclusion:

Option A is not universally true in this scenario due to third-party device limitations.

In mixed mode, SRX devices can simultaneously handle Layer 2 switching and Layer 3 routing, but a reboot is required when configuring Layer 2 and Layer 3 interfaces to ensure the configuration takes effect. Layer 2 packets are switched within the defined bridge domain. Further guidance on SRX mixed mode can be found at Juniper Mixed Mode Documentation.

When an SRX Series device is configured in mixed mode, both Layer 2 switching and Layer 3 routing functionalities can be used on the same device. This enables the SRX to act as both a router and a switch for different interfaces. However, there are certain considerations:

Explanation of Answer C (Reboot Requirement):

After configuring the SRX to operate with at least one Layer 2 interface and one Layer 3 interface, the device needs to be rebooted. This is required to properly initialize the mixed mode configuration, as the SRX needs to switch between Layer 2 and Layer 3 processing modes.

Explanation of Answer D (Layer 2 Traffic Handling):

In mixed mode, traffic from Layer 2 interfaces is switched within the same bridge domain. A bridge domain defines a Layer 2 broadcast domain, and packets from Layer 2 interfaces are forwarded based on MAC addresses within that domain.

Juniper Security Reference:

Mixed Mode Overview: Juniper SRX devices can operate in mixed mode to handle both Layer 2 and Layer 3 traffic simultaneously. Reference: Juniper Mixed Mode Documentation.

==========

==========

==========

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security References

Understanding Secure Wire:

Secure Wire Feature:

Connects two interfaces directly without any Layer 2 or Layer 3 processing.

No routing or switching lookup occurs.

Use Case:

Ideal for scenarios where traffic needs to pass through the SRX device transparently.

Option B: Secure wire

Explanation:

Secure wire creates a bidirectional link between two interfaces.

Traffic flows between the interfaces as if they are connected by a physical wire.
