DP-420 Designing and Implementing Cloud-Native Applications Using Microsoft Azure Cosmos DB Question and Answers

This is because the write concern is mapped to the default consistency level configured on your Azure Cosmos DB account, which is strong in this case. Strong consistency ensures that every write operation is synchronously committed to every region associated with your Azure Cosmos DB account. The eventual consistency level that the application uses only applies to the read operations. Eventual consistency offers higher availability and better performance, but it does not guarantee the order or latency of the reads.

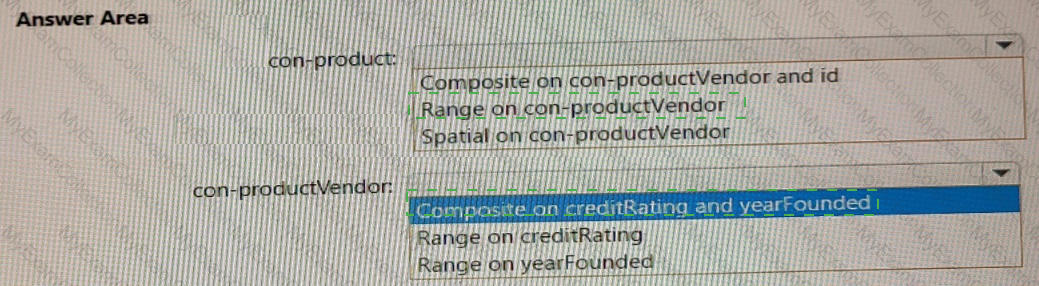

Box 1 = Range Azure Cosmos DB supports three types of indexes: range, spatial and composite. For the query you provided, which is an equality query on a single property, the best type of index to use is range. Range index is based on an ordered tree-like structure and it is used for equality queries, range queries and checking for the presence of a property1. Range index also supports any string or number2.

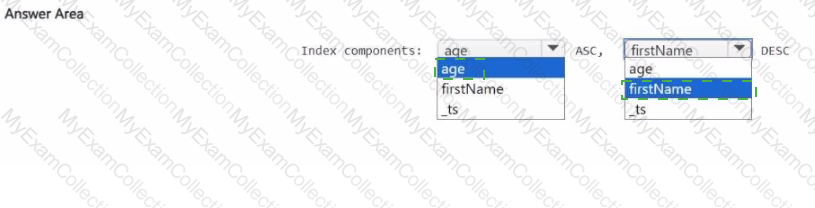

Box 2 = Composite

Azure Cosmos DB supports three types of indexes: range, spatial and composite. For the query you provided, which is an order by query on two properties, the best type of index to use is composite. Composite index is used for optimizing order by queries on multiple properties1. Composite index allows you to specify a list of property paths and sort orders that are used for ordering items2.

Box 3 = spatial

Azure Cosmos DB supports three types of indexes: range, spatial and composite. For the query you provided, which is a spatial query on a point property, the best type of index to use is spatial. Spatial index is used for querying items based on their location or proximity to a given point1. Spatial index supports point, polygon and linestring data types2.

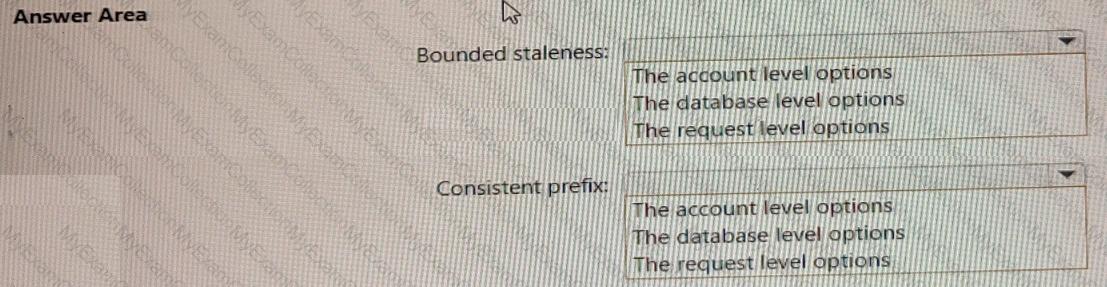

Box 1 = The request level options

Azure Cosmos DB offers five well-defined consistency levels: strong, bounded staleness, session, consistent prefix and eventual. You can configure the default consistency level on your Azure Cosmos DB account at any time2. The default consistency level applies to all databases and containers under that account1. You can also override the default consistency level for a specific request by using the request options2.

Box 2 = The request level options

To modify the consistency level of a read operation in Azure Cosmos DB, you can use request-level options to override the account's default consistency setting. Therefore, to ensure that the read operations of App1 can request either consistent prefix or session consistency, you need to modify the request-level options for each operation. Reference: - https://docs.microsoft.com/en-us/azure/cosmos-db/consistency-levels

Azure Monitor is a service that provides comprehensive monitoring for Azure resources, including Azure Cosmos DB. You can use Azure Monitor to collect, analyze, and alert on metrics and logs from your Azure Cosmos DB account. You can create alerts for Azure Cosmos DB using Azure Monitor based on the metrics, activity log events, or Log Analytics logs on your account1.

For your scenario, if you want to receive an alert when requests that target the database exceed the available request units per second (RU/s), you should use the Document Quota metric. This metric measures the percentage of RU/s consumed by your account or container. You can create an alert rule on this metric from the Azure portal by following these steps2:

In the Azure portal, select the Azure Cosmos DB account you want to monitor.

Under the Monitoring section of the sidebar, select Alerts, and then select New alert rule.

In the Create alert rule pane, fill out the Scope section by selecting your subscription name and resource type (Azure Cosmos DB accounts).

In the Condition section, select Add condition and choose Document Quota from the list of signals.

In the Configure signal logic pane, specify the threshold value and operator for your alert condition. For example, you can choose Greater than or equal to 90 as the threshold value and operator to receive an alert when your RU/s consumption reaches 90% or more of your provisioned throughput.

In the Alert rule details section, specify a name and description for your alert rule.

In the Actions section, select Add action group and choose how you want to receive notifications for your alert. For example, you can choose Email/SMS/Push/Voice as an action type and enter your email address or phone number as a receiver.

Review your alert rule settings and select Create alert rule to save it.

App1 queries the con-product and con-productVendor containers.

Note: Request unit is a performance currency abstracting the system resources such as CPU, IOPS, and memory that are required to perform the database operations supported by Azure Cosmos DB.

Scenario:

Develop an app named App1 that will run from all locations and query the data in account1.

Once multi-region writes are configured, maximize the performance of App1 queries against the data in account1.

Whenever there are multiple solutions for a requirement, select the solution that provides the best performance, as long as there are no additional costs associated.

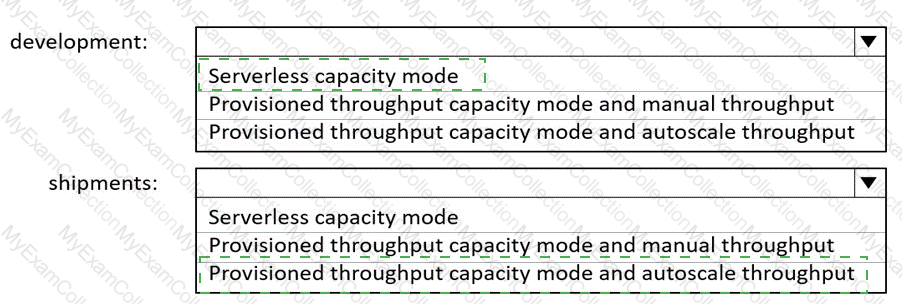

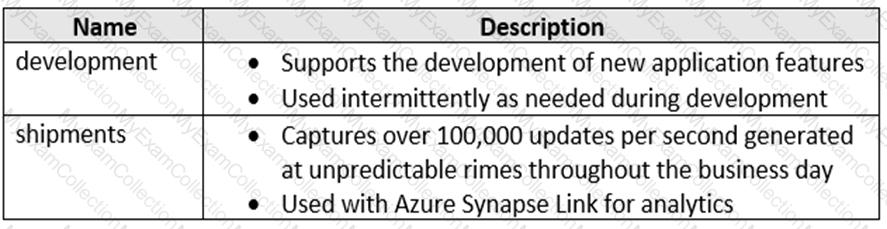

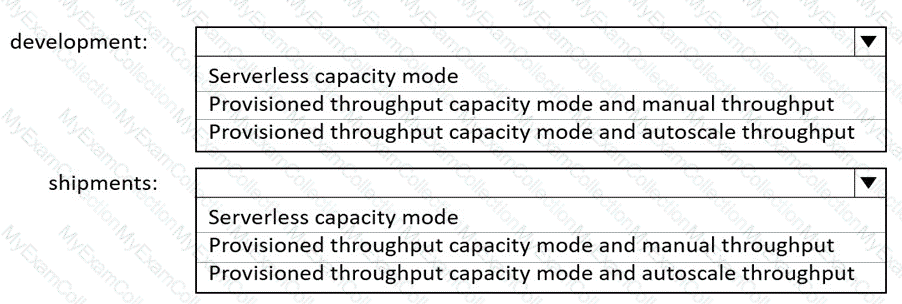

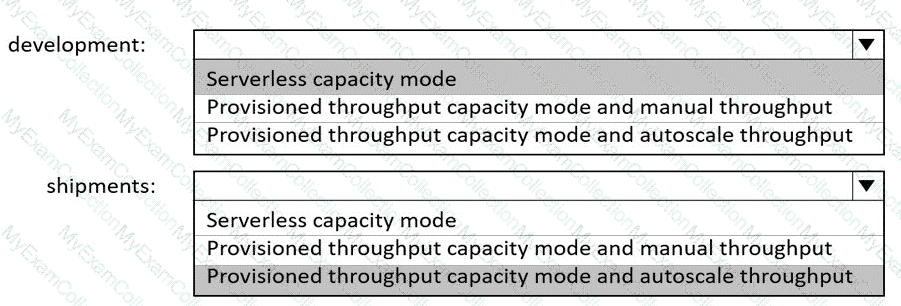

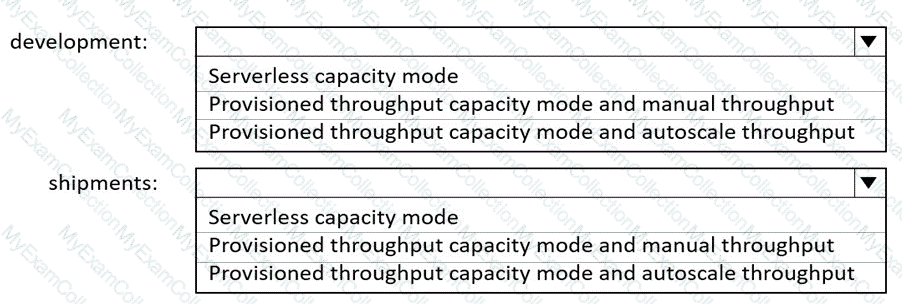

Box 1: Serverless capacity mode

Azure Cosmos DB serverless best fits scenarios where you expect intermittent and unpredictable traffic with long idle times. Because provisioning capacity in such situations isn't required and may be cost-prohibitive, Azure Cosmos DB serverless should be considered in the following use-cases:

Getting started with Azure Cosmos DB

Running applications with bursty, intermittent traffic that is hard to forecast, or low (<10%) average-to-peak traffic ratio

Developing, testing, prototyping and running in production new applications where the traffic pattern is unknown

Integrating with serverless compute services like Azure Functions

Box 2: Provisioned throughput capacity mode and autoscale throughput

The use cases of autoscale include:

Variable or unpredictable workloads: When your workloads have variable or unpredictable spikes in usage, autoscale helps by automatically scaling up and down based on usage. Examples include retail websites that have different traffic patterns depending on seasonality; IOT workloads that have spikes at various times during the day; line of business applications that see peak usage a few times a month or year, and more. With autoscale, you no longer need to manually provision for peak or average capacity.

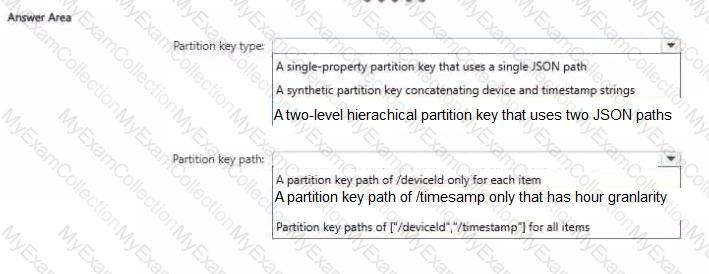

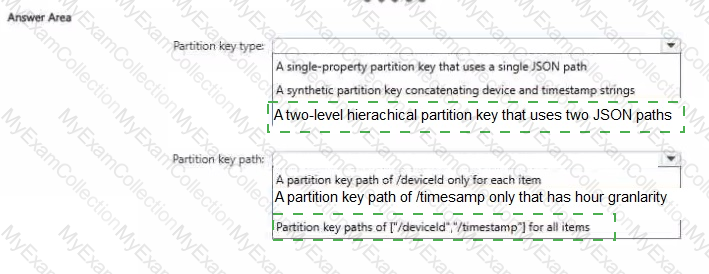

The partition key is what will determine how data is routed in the various partitions by Cosmos DB and needs to make sense in the context of your specific scenario. The IoT Device ID is generally the "natural" partition key for IoT applications.

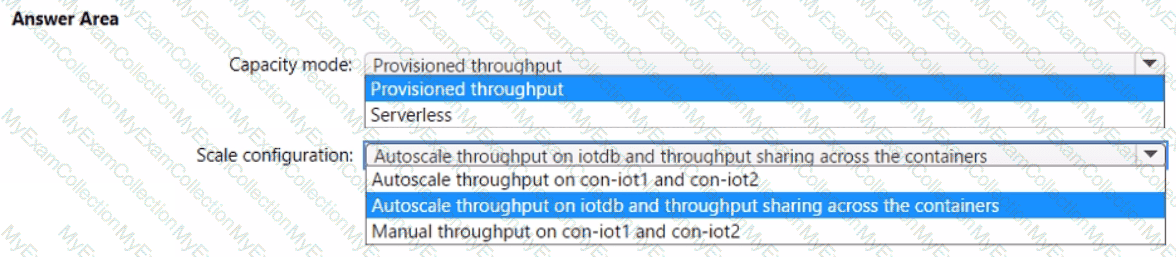

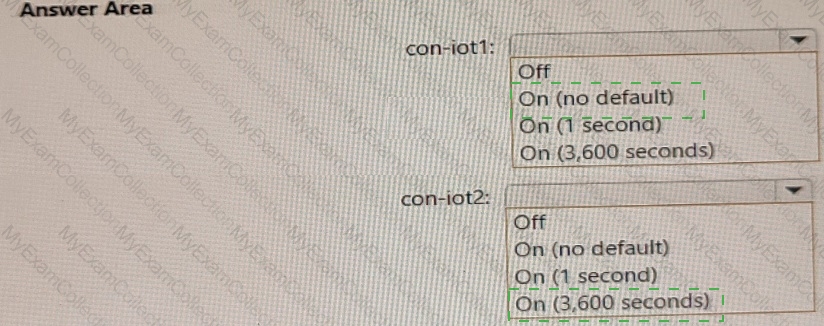

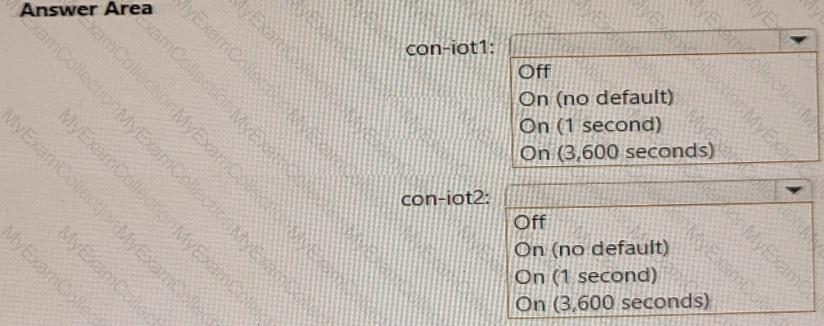

Scenario: The iotdb database will contain two containers named con-iot1 and con-iot2.

Ensure that Azure Cosmos DB costs for IoT-related processing are predictable.

leaseCollectionPrefix: when set, the value is added as a prefix to the leases created in the Lease collection for this Function. Using a prefix allows two separate Azure Functions to share the same Lease collection by using different prefixes.

Scenario: Use Azure Functions to send notifications about product updates to different recipients.

Trigger the execution of two Azure functions following every update to any document in the con-product container.

Bounded staleness is frequently chosen by globally distributed applications that expect low write latencies but require total global order guarantee. Bounded staleness is great for applications featuring group collaboration and sharing, stock ticker, publish-subscribe/queueing etc.

Scenario: Application updates in con-product frequently cause HTTP status code 429 "Too many requests". You discover that the 429 status code relates to excessive request unit (RU) consumption during the updates.

Scenario: Develop an app named App2 that will run from the retail stores and query the data in account2. App2 must be limited to a single DNS endpoint when accessing account2.

By using Azure Private Link, you can connect to an Azure Cosmos account via a private endpoint. The private endpoint is a set of private IP addresses in a subnet within your virtual network.

When you're using Private Link with an Azure Cosmos account through a direct mode connection, you can use only the TCP protocol. The HTTP protocol is not currently supported.
