D-XTR-OE-A-24 Dell XtremIO Operate Achievement Question and Answers

For integrating Oracle with XtremIO, along with path failover software, it is best practice to increase the queue depth and execution throttle to "maximum."

This configuration optimizes the handling of I/O requests, improving performance and efficiency.

Properly tuning these settings ensures that the HBA drivers can handle the high I/O demands of an Oracle environment on XtremIO.

References:

Dell XtremIO Oracle Integration Guide

XtremIO Configuration Best Practices

Latency is the performance metric that measures the time taken to complete an operation. It is often described as the delay between a user’s action and the response from the system to that action.In the context of storage systems like XtremIO, latency refers to the time it takes from when a read or write request is issued to when it is completed1.

Here’s a breakdown of the options provided:

A.Bandwidth: Bandwidth measures the amount of data that can be transferred over a network or processed by a system in a given amount of time.It is not a direct measure of time taken to complete an operation2.

B.Latency: Latency is the correct answer as it specifically measures the time delay in completing an operation.It is a critical metric in storage and networking environments, where lower latency is generally indicative of faster system performance1.

C.IOPS (Input/Output Operations Per Second): IOPS is a performance metric that measures the number of read and write operations that can be performed in one second.While it is related to system performance, it does not measure the time taken to complete a single operation2.

D.Throughput: Throughput refers to the rate at which data is processed or transferred.It is similar to bandwidth and measures performance over time but does not specifically measure the time taken to complete an individual operation2.

To provision XtremIO volumes to servers, the following steps are typically required:

Host Configuration: This involves setting up the host with the necessary drivers and tools to communicate with the XtremIO storage system.It may include installing HBAdrivers, multipathing software, and configuring host parameters to optimize performance1.

SAN Connectivity: Establishing SAN connectivity is crucial for the host to access the XtremIO volumes.This step involves zoning in the SAN switches to ensure that the host can see the XtremIO storage controllers1.

Initiator Group: An initiator group is a collection of host initiators (WWNs or IQNs) that are allowed to access a set of volumes.Creating and configuring an initiator group in the XtremIO system is necessary to control access to the volumes1.

Volumes Mapping: The final step is to map the volumes to the host. This is done by associating the volumes with the initiator group that contains the host’s initiators.Once mapped, the volumes will be accessible to the host for data storage and retrieval1.

The other options, such as RAID groups (OA), creating pools (OB), and encryption (OC), are not directly related to the provisioning process of XtremIO volumes to servers.RAID groups and pools are typically managed within the storage system itself, while encryption is a data security feature that may be configured as part of the overall storage setup1.

To create an iSCSI portal using the XtremIO X2 XMS WebUI, an administrator should navigate to Cluster Settings.

Within Cluster Settings, the configuration options for creating and managing iSCSI portals are available.

This is the starting point for setting up network configurations and ensuring the proper operation of iSCSI connections.

References:

Dell XtremIO X2 Configuration Guide

XtremIO XMS WebUI Documentation

When managing multiple XtremIO X2 clusters, it is accurate that a single XtremIO Management Server (XMS) can manage up to 16 X-Brick clusters. The XMS is a key component of the XtremIO environment, providing centralized management and monitoring capabilities for XtremIO clusters. Here’s a detailed explanation:

XMS Capabilities: The XMS is designed to manage multiple XtremIO clusters, offering a unified view and control over the entire storage environment.It allows administrators to perform various tasks such as provisioning, monitoring, and managing the clusters from a single interface1.

Scalability: The ability to manage up to 16 X-Brick clusters with a single XMS highlights the scalability of the XtremIO architecture.This scalability is essential for large-scale deployments where multiple clusters are used to meet performance and capacity requirements1.

Virtual and Physical XMS: The XMS can be deployed as either a physical server or a virtual machine (VM), providing flexibility in deployment options.Regardless of the deployment model, the XMS retains its capability to manage multiple clusters1.

XMCLI: While the XtremIO Management Command Line Interface (XMCLI) is used for managing clusters, it is not the only way to add or remove clusters.The XMS provides a graphical user interface (GUI) as well, which can also be used for these tasks1.

XtremIO X1 and X2 Compatibility: The statement regarding XtremIO X1 XMS managing XtremIO X2 clusters (OC) would require specific compatibility information, which typically depends on the software version and feature support2.

Limitations of Virtual XMS: The statement that a virtual XMS can manage up to four X-Brick clusters (OD) may not be accurate without specific context, as the capability can depend on the XMS version and the deployment configuration1.

cURL is an application that can be used to interact with an XtremIO cluster via the REST API.

It allows for the execution of various HTTP commands to manage and retrieve information from the storage array.

cURL is widely used for its simplicity and capability to handle RESTful web services, making it suitable for managing XtremIO clusters.

References:

Dell XtremIO RESTful API Guide

XtremIO API Documentation

Misalignment of data, particularly to the 4k boundaries, can significantly impact write operations on a Linux server connected to an XtremIO storage system. Here’s why:

Block Size Alignment: Modern storage systems, including SSDs used in XtremIO arrays, typically use a 4k (4096 bytes) block size for data storage1. This is the smallest unit of data that can be read or written to the storage.

Misalignment Issues: When data is misaligned, it means that the file system’s blocks do not line up with the storage device’s blocks.This misalignment can cause additional read-modify-write cycles, which can degrade performance and increase latency for write operations1.

Effect on Write Operations: If data is not aligned to the 4k boundaries, the storage system may need to perform extra work to handle the writes, as each write operation could span multiple physical blocks.This results in inefficient use of the storage array’s resources and can lead to reduced throughput and increased wear on the SSDs1.

Linux Server Configuration: On a Linux server, ensuring proper alignment is crucial for optimal performance. This can involve configuring the file system and partition alignment during the setup and using tools that can check and correct alignment issues.

In conclusion, misaligned data to the 4k boundaries (OA) is a non-optimal configuration that can have a significant effect on write operations on a Linux server connected to XtremIO.Proper alignment to the storage system’s block size is essential for maintaining high performance and longevity of the storage media1.

When using XtremIO storage arrays for Oracle ASM disk groups, the recommended redundancy type is typically external redundancy.This is because XtremIO arrays are built with inherent data protection and redundancy features that eliminate the need for additional mirroring at the ASM level1.

External Redundancy: With external redundancy, Oracle ASM does not mirror data within the disk group. Instead, it relies on the underlying storage system to provideredundancy and data protection.XtremIO’s unique data protection scheme, XDP (XtremIO Data Protection), provides such redundancy1.

XtremIO Features: XtremIO arrays are designed with high levels of fault tolerance and include features like SSD failover and advanced error correction.These features ensure data integrity and availability, making external redundancy a suitable choice1.

Performance Considerations: Choosing external redundancy can also lead to better performance since it avoids the overhead of additional mirroring at the ASM level, which is unnecessary given XtremIO’s capabilities1.

Best Practices: Dell EMC recommends using external redundancy for ASM disk groups when using storage arrays like XtremIO that provide their own robust data protection mechanisms1.

In summary, for Oracle ASM disk groups using XtremIO storage arrays, external redundancy (OC) is the recommended setting, as it leverages the array’s built-in redundancy features and optimizes performance1.

When creating a volume on an XtremIO X2-S array, administrators have the option to assign tags.

Tags are used to organize and manage volumes more efficiently, allowing for better categorization and retrieval based on specific criteria.

This feature enhances the management capabilities within the XtremIO environment, facilitating easier identification and handling of storage resources.

References:

Dell XtremIO X2-S Configuration Guide

In the XtremIO X2 WebUI cluster security settings, the available configuration options include LDAP, Login Banner, and Inactivity Timeout.

These settings provide administrators with the ability to manage user authentication, customize login messages, and set inactivity timeouts for enhanced security.

Configuring these options helps in maintaining a secure and compliant storage environment.

References:

Dell XtremIO X2 Administration Guide

XtremIO X2 Security Configuration Documentation

The XtremIO X2-S system allows for a minimum of 12 SSDs and a maximum of 36 SSDs per Disk Array Enclosure (DAE).

This flexibility in the number of SSDs per DAE allows for scalable storage configurations tailored to varying performance and capacity requirements.

References:

Dell XtremIO X2-S Technical Specifications

XtremIO Product Documentation

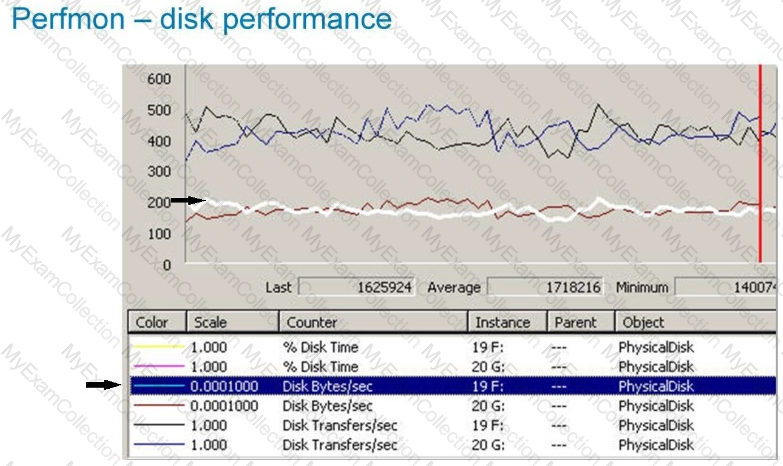

The transfer rate for disk 19F shown in the exhibit is 2 MB/s. The exhibit indicates that the scale for "Disk Bytes/sec" is set to 0.00010000. Given this scale, the displayed value of approximately 200 (in the highlighted blue line) corresponds to 200 x 0.00010000 MB/s, which equals 2 MB/s.

References:

Analysis of the exhibit data and the scale provided.

General understanding of performance monitoring metrics and their interpretations.

The iostat command is used for monitoring system input/output device loading by observing the time the devices are active in relation to their average transfer rates.It generates reports that can be used to change system configuration to better balance the input/output load between physical disks1.The iostat command is particularly useful for monitoring disk throughput and can help identify high disk utilization, which is essential for diagnosing performance issues related to storage2.

The iostat command provides information about input/output (I/O) statistics for block devices (like hard drives and SSDs) and CPUs, making it a valuable tool for analyzing the performance and usage of these resources on a system1.It is distributed as part of the sysstat package and is available on most Linux distributions1.

The other commands listed have different purposes:

stat (OA) is used to display file or file system status.

netstat (OB) displays network connections, routing tables, interface statistics, masquerade connections, and multicast memberships.

nbtstat (OC) is a Windows command-line utility that displays protocol statistics and current TCP/IP connections using NetBIOS over TCP/IP.

Therefore, for monitoring the performance of system input/output devices on Linux/UNIX systems, iostat (OD) is the correct command to use1.

When adding a user account to the XtremIO X2 XMS (XtremIO Management Server), the system requires specific information to create and manage the user profile effectively:

Unique User Name: A unique identifier for the user account is necessary to ensure that each user can be individually recognized and managed within the system.

Account Type: The type of account determines the level of access and permissions the user will have. This could range from read-only access to full administrative privileges.

E-mail Notification: Providing an email address enables the system to send notifications related to the user’s activities or alerts from the XtremIO system.

While the search results did not provide a direct source confirming these exact requirements, they are consistent with standard practices for user account creation in management systems1. It’s important to note that while LDAP (OA) can be used for authentication, it is not a requirement for creating a user account. Similarly, a password (OC) is typically required but was not listed as an option in the question. Public keys (OD) are generally used for SSH key-based authentication and are not a standard requirement for user account creation in XMS.

If the email server is not receiving notifications for major severity issues, it is likely because alert definitions have not been defined.

Alert definitions specify the conditions under which notifications are sent, and without these, the system will not trigger email alerts.

Ensuring proper configuration of alert definitions is essential for timely notifications of critical events.

References:

Dell XtremIO Administration Guide

XtremIO Alerts Configuration Documentation
