D-VXR-OE-23 Dell VxRail Operate 2023 Question and Answers

The vSAN Health history of the VxRail system is stored for 30 days. This retention period allows administrators to review historical health data, perform trend analysis, and diagnose issues based on past system performance and events.

In a VxRail Stretched Cluster, RAID 1 can be configured across sites to provide data protection. RAID 1 (mirroring) ensures that data is replicated across two sites, providing high availability and data redundancy in case one site fails. This configuration helps maintain continuous operations and data integrity in a multi-site deployment.

The deployment architecture used for these clusters, where there is only one vSphere Distributed Switch object for both clusters in vCenter, is "External vCenter Server with external DNS." This setup allows for centralized management of multiple clusters and network resources using a single vSphere Distributed Switch, facilitated by an external vCenter Server and DNS configuration.

The service on the ESXi host that allows automatic discovery when adding a node into an existing VxRail Cluster is "loudmouth." Loudmouth is a lightweight messaging daemon that enables the nodes in a VxRail cluster to discover each other automatically. This service facilitates the seamless addition of new nodes into an existing VxRail cluster by enabling them to communicate and integrate without manual configuration.

When deploying a VxRail Cluster with an existing customer-supplied vCenter Server, two key considerations are:

Supports Enhanced Link Mode with other VxRail-managed vCenter Servers: This allows the existing vCenter Server to link with other VxRail-managed vCenter Servers, providing a unified management interface across multiple vCenter instances, enabling seamless operations and better scalability.

Uses customer-defined procedures for vCenter LCM (Lifecycle Management): Since the vCenter Server is customer-supplied, the procedures for upgrading and maintaining it are defined and managed by the customer, rather than being automatically handled by VxRail's built-in lifecycle management tools.

To protect the vSAN storage against unauthorized access for both data on disk and in-flight, enable vSAN data-at-rest encryption and data-in-transit encryption. Follow these steps:

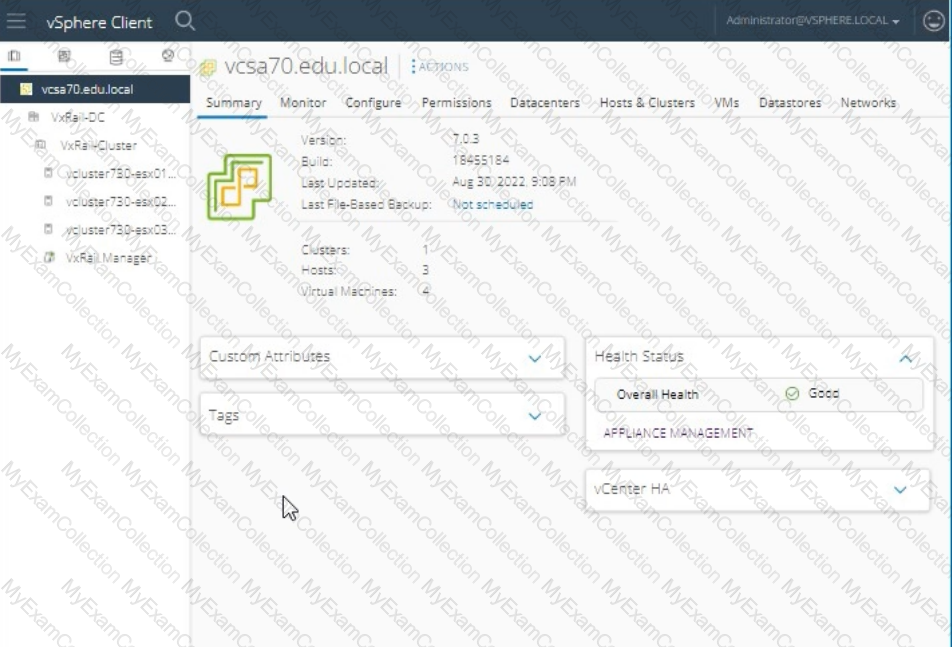

Log in to vSphere Client:

Open the vSphere Client.

Enter the username: administrator@vsphere.local.

Enter the password: VMw@r3!123.

Click Login.

Navigate to vSAN Cluster Settings:

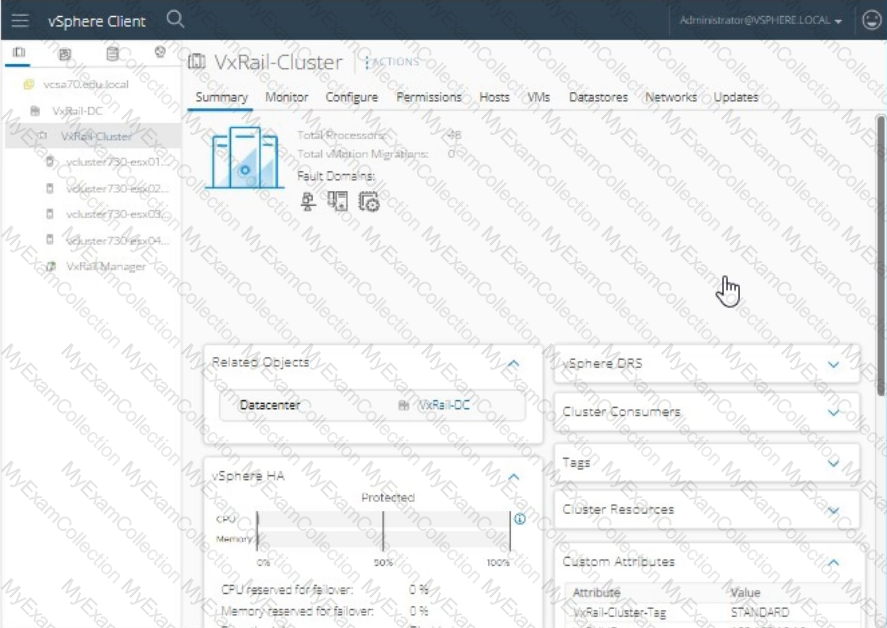

In the left-hand navigation pane, expand VxRail-DC and select VxRail-Cluster.

Click on the Configure tab.

Enable vSAN Data-at-Rest Encryption:

Under the vSAN section, select Services.

Click on Data-at-Rest Encryption.

Click Edit to configure encryption settings.

Ensure that the Enable Data-at-Rest Encryption checkbox is selected.

Choose the vSphere Native Key Provider that has already been configured.

Click Apply to enable data-at-rest encryption.

Enable vSAN Data-in-Transit Encryption:

Under the same vSAN section, select Services.

Click on Data-in-Transit Encryption.

Click Edit to configure encryption settings.

Ensure that the Enable Data-in-Transit Encryption checkbox is selected.

Click Apply to enable data-in-transit encryption.

Verify Configuration:

Return to the vSAN > Services section.

Ensure that both Data-at-Rest Encryption and Data-in-Transit Encryption are enabled and show as active.

Verify that there are no error messages indicating configuration issues.

Steps using the Simulator:

Login to vSphere Client:

Open the simulator and navigate to the vSphere Client interface.

Log in using the credentials:

Username: administrator@vsphere.local.

Password: VMw@r3!123.

Navigate to vSAN Settings:

In the vSphere Client interface, expand VxRail-DC and select VxRail-Cluster.

Click on the Configure tab on the right.

Enable Data-at-Rest Encryption:

Under vSAN, click Services.

Find Data-at-Rest Encryption and click Edit.

Check the box for Enable Data-at-Rest Encryption.

Select the vSphere Native Key Provider.

Click Apply.

Enable Data-in-Transit Encryption:

Still under vSAN > Services, find Data-in-Transit Encryption and click Edit.

Check the box for Enable Data-in-Transit Encryption.

Click Apply.

Verification:

Check the status of both encryption services under vSAN > Services to ensure they are enabled and operational.

To resolve the issue of health monitoring being disabled and enable the relevant service, follow these steps:

Log in to vSphere Client:

Open the vSphere Client.

Enter the username: administrator@vsphere.local.

Enter the password: VMw@r3!123.

Click Login.

Navigate to VxRail Manager:

In the vSphere Client interface, expand VxRail-DC and then VxRail-Cluster.

Select VxRail Manager.

Access VxRail Health Monitoring Settings:

Click on the Configure tab.

Under VxRail, select Health.

Enable Health Monitoring:

Find the option for Health Monitoring.

If it is disabled, click Edit or the relevant button to enable it.

Ensure that Enable Health Monitoring is checked.

Click Apply or OK to save the changes.

Verify Health Monitoring Status:

Go back to the Summary tab or the appropriate section in VxRail Manager.

Verify that the health monitoring status is now enabled and shows as healthy.

Steps using the Simulator:

Login to vSphere Client:

Open the simulator and navigate to the vSphere Client interface.

Log in using the credentials:

Username: administrator@vsphere.local.

Password: VMw@r3!123.

Navigate to VxRail Manager:

In the vSphere Client interface, expand VxRail-DC and then VxRail-Cluster.

Select VxRail Manager.

Enable Health Monitoring:

Click on the Configure tab.

Under VxRail, select Health.

Click Edit to modify the health settings.

Check the box for Enable Health Monitoring.

Click Apply or OK to save the changes.

Verify:

Go back to the Summary tab in VxRail Manager.

Ensure that the warning message about health monitoring being disabled is no longer present and that health monitoring is active.

To enable the system LED on vcluster730-esx03.edu.local for identification in the physical rack, follow these steps:

Log in to vSphere Client:

Open the vSphere Client.

Enter the username: administrator@vsphere.local.

Enter the password: VMw@r3!123.

Click Login.

Navigate to the Host:

In the vSphere Client interface, navigate to the Hosts and Clusters view.

Expand the VxRail-DC and then the VxRail-Cluster.

Select the host named vcluster730-esx03.edu.local.

Access Host Actions:

Right-click on vcluster730-esx03.edu.local.

From the context menu, select Actions.

Enable System LED:

In the Actions menu, locate and select Enable LED or Turn On Locator LED (the exact wording might vary).

Confirm the action if prompted.

Verify LED Activation:

Check the physical rack to ensure that the system LED on vcluster730-esx03.edu.local is enabled and the node is easily identifiable.

To prepare the system for maintenance mode and avoid unnecessary vSAN re-synchronization, follow these steps:

Log in to vSphere Client:

Open the vSphere Client.

Enter the username: administrator@vsphere.local.

Enter the password: VMw@r3!123.

Click Login.

Navigate to the Host:

In the vSphere Client interface, navigate to Hosts and Clusters.

Expand the VxRail-DC and then the VxRail-Cluster.

Select the Host for Maintenance:

Select the host you plan to put into maintenance mode (e.g., vcluster730-esx01.edu.local, vcluster730-esx02.edu.local, etc.).

Enter Maintenance Mode:

Right-click on the selected host and select Enter Maintenance Mode.

In the Enter Maintenance Mode window, you will have several options for vSAN data migration. To avoid unnecessary re-synchronization, choose Ensure Accessibility.

Ensure Accessibility: This option makes sure that the data remains accessible during maintenance but does not immediately trigger full data migration. It is the best choice to avoid unnecessary re-synchronization during a short maintenance window.

Confirm Maintenance Mode:

Click OK to confirm the selection and put the host into maintenance mode.

Verify the Host Status:

Monitor the status to ensure the host enters maintenance mode without triggering excessive re-synchronization.

To temporarily remove a node with a specific serial number from the VxRail cluster, follow these steps:

Log in to vSphere Client:

Open the vSphere Client.

Enter the username: administrator@vsphere.local.

Enter the password: VMw@r3!123.

Click Login.

Identify the Node with Serial Number "V0730040000000":

In the vSphere Client interface, navigate to the Hosts and Clusters view.

Expand the VxRail-DC and then the VxRail-Cluster.

Locate the Node:

Click on each host (e.g., vcluster730-esx01, vcluster730-esx02, vcluster730-esx03, vcluster730-esx04) and check the Summary tab to identify the node with the serial number V0730040000000.

The Summary tab provides details about the hardware, including the serial number.

Put the Node in Maintenance Mode:

Right-click on the identified node.

Select Maintenance Mode > Enter Maintenance Mode.

Select Ensure Accessibility and click OK.

Remove the Node from the Cluster:

Once the node is in maintenance mode, right-click the node again.

Select Remove from Inventory.

Confirm the action by clicking Yes or OK when prompted.

Verify the Node Removal:

Ensure that the node is no longer listed under the VxRail-Cluster.

Check the overall health and status of the cluster to confirm that it is functioning properly without the removed node.

To configure active-active teaming and set the failover order for the vSAN and vMotion port groups on a distributed switch using the vSphere Client, follow these steps:

Log in to vSphere Client:

Open the vSphere Client.

Enter the username: administrator@vsphere.local.

Enter the password: VMw@r3!123.

Click Login.

Navigate to Networking:

From the home screen, click on Networking in the left-hand navigation pane.

Select the Distributed Switch:

Locate and select the distributed switch that the vSAN and vMotion port groups are using.

Edit vSAN Port Group Settings:

Right-click on the vSAN port group and select Edit Settings.

In the Edit Settings window, click on Teaming and Failover.

Configure Active-Active Teaming for vSAN:

In the Teaming and Failover section, you will see the list of uplinks.

Ensure that both uplinks are set as Active Uplinks.

To do this, drag the uplinks from the Unused Uplinks or Standby Uplinks section to the Active Uplinks section if necessary.

Ensure that no uplinks are in the Standby Uplinks section (all should be in Active Uplinks).

Set Failover Order for vSAN:

Ensure the failover order is correctly set to use both uplinks for active-active teaming.

Click OK to save the changes.

Edit vMotion Port Group Settings:

Right-click on the vMotion port group and select Edit Settings.

In the Edit Settings window, click on Teaming and Failover.

Configure Active-Active Teaming for vMotion:

In the Teaming and Failover section, ensure that both uplinks are set as Active Uplinks.

Drag the uplinks from the Unused Uplinks or Standby Uplinks section to the Active Uplinks section if necessary.

Ensure that no uplinks are in the Standby Uplinks section (all should be in Active Uplinks).

Set Failover Order for vMotion:

Ensure the failover order is correctly set to use both uplinks for active-active teaming.

Click OK to save the changes.

Verify Configuration:

Check the Networking section to verify that the changes have been applied correctly and that both port groups are using active-active teaming with the appropriate failover order.
