D-UN-DY-23 Dell Unity Deploy 2023 Exam Question and Answers

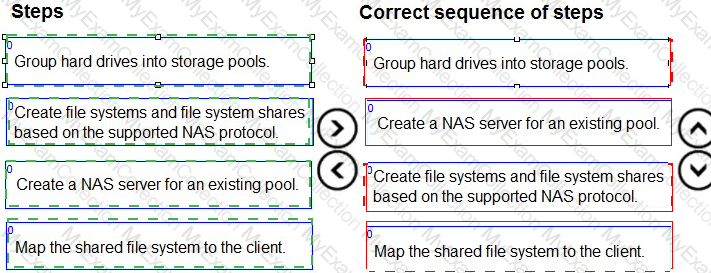

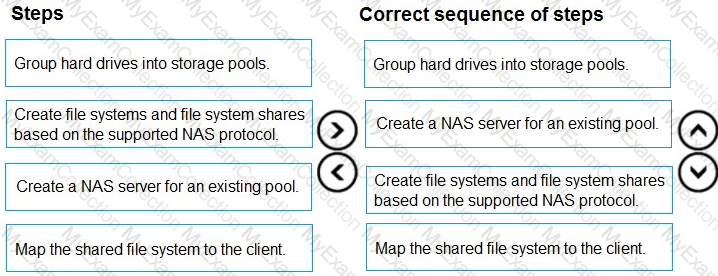

The correct sequence of steps to provision storage for SMB NAS clients is:

• Group hard drives into storage pools. This allows you to create a pool of storage resources that can be allocated to different types of storage objects, such as NAS servers, file systems, and LUNs.You can create different pools based on the performance and capacity requirements of your applications1
• Create a NAS server for an existing pool. A NAS server is a logical entity that provides file-level access to clients using SMB, NFS, or FTP/SFTP protocols. You need to create a NAS server before you can create file systems and shares.You can specify the pool, network settings, domain membership, and other properties for the NAS server2
• Create file systems and file system shares based on the supported NAS protocol. A file system is a logical container that stores files and folders on a NAS server. A file system share is a logical representation of a file system that can be accessed by clients using a specific protocol. For SMB NAS clients, you need to create SMB file system shares that support the SMB protocol.You can configure the share name, permissions, access policies, and other settings for the SMB share3
• Map the shared file system to the client. This allows the client to access the files and folders on the SMB share using a drive letter or a UNC path.You can use the Windows Explorer or the net use command to map the shared file system to the client4

The Unity XT 680 system supports four types of I/O modules: 12 Gb/s SAS back-end, 4-Port 16 Gb Fibre Channel, 4-Port 25 Gbps Ethernet, and 4-Port 10 Gbps Ethernet. The 12 Gb/s SAS back-end module provides connectivity to the disk drives and expansion enclosures, while the other three types of modules provide network connectivity to the hosts and clients. The Unity XT 680 system has six I/O module slots, three for each SP. The 12 Gb/s SAS back-end module must be installed in slot 0 of each SP, and the other modules can be installed in slots 1 and 2 of each SP. Therefore, the correct answer is D. 12 Gb/s SAS back-end. References:

• Dell EMC Unity XT: Hardware Information Guide
• Dell EMC Unity XT: Installation Guide

A drive partnership group is a collection of drives of the same drive type that have been combined into a hidden dynamic pool object. Each drive within a dynamic pool can only be part of a single drive partnership group, and a drive will never change the drive partnership group. The maximum size of a drive partnership group is 32 drives, regardless of the drive type or size. When expanding a dynamic pool, the system will automatically create new drive partnership groups as needed, and distribute the drives evenly across the groups. The number of drive partnership groups in a dynamic pool is equal to the number of drives divided by 32, rounded up to the nearest integer. References: Dell Unity: Dynamic Pools2, page 5.

VMware datastore is a logical container that holds virtual machine files and other data. There are three types of VMware datastore that can be defined by using UI or CLI interfaces from the Dell Unity XT platform:

• vVol (Block): A vVol datastore is a block-based storage object that is formatted with the VMware Virtual Volumes (vVol) framework and used to store virtual machine files and metadata. A vVol datastore can be created by using the Unisphere UI or the UEMCLI interface on the Dell Unity XT system. A vVol datastore can provide granular control, policy-based management, and improved performance for virtual machines.
• NFS (File): An NFS datastore is a file-based storage object that is formatted with the Network File System (NFS) protocol and used to store virtual machine files and other data. An NFS datastore can be created by using the Unisphere UI or the UEMCLI interface on the Dell Unity XT system. An NFS datastore can provide scalability, flexibility, and efficiency for virtual machines.
• VMFS (Block): A VMFS datastore is a block-based storage object that is formatted with the VMware File System (VMFS) and used to store virtual machine files and other data. A VMFS datastore can be created by using the Unisphere UI or the UEMCLI interface on the Dell Unity XT system. A VMFS datastore can provide high performance, reliability, and compatibility for virtual machines.

References:

• Dell EMC Unity: VMware ESXi Hosts and Clusters
• Dell EMC Unity: Unisphere Overview
• Dell EMC Unity: Unisphere CLI User Guide

The service task that the administrator should perform to fix the issue with minimal impact is Restart Management Software. This service task restarts the management software on both storage processors without affecting the data services or the host I/O. This can resolve the communication issues between Unisphere and the storage system. Reinitialize, Enable SSH, and Reboot Storage Processor are service tasks that have more impact and risk than Restart Management Software.

References: [Dell EMC Unity: Unisphere Overview], [Dell EMC Unity: Service Tasks]

To grant access of a Dell Unity XT provisioned NFS datastore to an ESXi host, the permission level required for the host depends on the NFS protocol and authentication method used by the NAS server. For NFSv4 with Kerberos NFS owner authentication, the ESXi host must have the Read/write, enable Root permission level. This allows the ESXi host to read and write data to the datastore, as well as perform administrative tasks such as creating and deleting virtual machines. The Read/write permission level alone is not sufficient, as it does not allow the ESXihost to perform root-level operations on the datastore. The Read-only permission level only allows the ESXi host to read data from the datastore, but not write or modify it. References: Dell EMC Unity: Configuring hosts to access NFS1, page 9.

To expand a dynamic pool, the number of drives added must be equal to or greater than the stripe width of the pool. The stripe width is the number of data drives plus the number of parity drives in a RAID group. In this case, the stripe width is 12 + 1 = 13. Therefore, the minimum number of drives needed for the pool expansion is 13. References: Dell EMC Unity: Dynamic Pools Technical White Paper1, page 8.
