D-PVM-OE-01 Dell PowerMax Operate v.2 Question and Answers

The Workload Planner then compares the two values to the maximum response time associated with its given service level. If both calculated values fall within (under) the service level defined response time band, the compliance state is STABLEhttps://www.dell.com/support/kbdoc/en-us/000022528/how-does-the-workload-planner-function

We need to terminate a clone session for the storage group named "DATA" in the Unisphere for PowerMax simulator.

Here's a step-by-step guide on how to do this, based on typical Unisphere functionality and the context of the question:

Steps:

1. Launch the Simulator and Navigate to the TimeFinder/Clone Section

Open Unisphere for PowerMax in your web browser.

Log in to the simulator (you should already be logged in with the array SID 1762 selected, based on the provided image).

In the left-hand navigation pane, locate the section related to TimeFinder operations. This is usually found under:

Data Protection

Local Protection

TimeFinder

Expand the relevant sections and click onTimeFinder SnapVXorTimeFinder Clone(the exact wording might vary slightly in the simulator). The goal is to get to the view where you can manage clone sessions.

2. Locate the Clone Session for the "DATA" Storage Group

The TimeFinder/Clone view will display a list of existing clone sessions.

You need to find the session associated with the "DATA" storage group. Look for the following:

Storage Group Name:The "DATA" storage group should be listed as the source of the clone session.

Session Type/Mode:Verify that it's a Clone session (not a SnapVX snapshot or another type of session).

3. Select the Clone Session

Once you've found the correct clone session for the "DATA" storage group, select it.

You can usually do this by:

Clicking a checkbox next to the session.

Clicking on the session itself (if the interface allows it).

4. Terminate the Clone Session

After selecting the clone session, look for an action button or menu option to terminate it. This might be labeled:

"Terminate"

"Delete"

"Remove"

"Fracture"(in some older versions)

"Stop"

Click the appropriate button to initiate the termination process.

Confirmation:You will likely be prompted with a confirmation message to ensure you want to terminate the selected clone session. Verify that you have selected the correct session (the one for the "DATA" storage group) and confirm the termination.

Step by Step Comprehensive Detailed Explanation:

In SRDF (Symmetrix Remote Data Facility), an "update" operation refers to a specific process where changes made on the target (R2) side are copied back to the source (R1) side. This is typically used in disaster recovery scenarios where:

Failover:A failover occurs, and the target (R2) becomes the active production site.

Data Modification:Data is modified or updated on the target (R2) while it's acting as the primary.

Update Operation:An "update" is initiated to synchronize the changes from the target (R2) back to the source (R1), ensuring that the source has the latest data.

This process is crucial for maintaining data consistency and ensuring a smooth transition back to the original production site after a failover event.

Why other options are incorrect:

A. process to retain the data on the target R2 side:This is not specific to an "update" operation. Data retention on the target is a general aspect of SRDF.

B. A process used to return to the original production site after a failover event:While an "update" is part of the failback process, it's not the entire process itself. Failback involves other steps like reversing replication direction and restoring host access.

D. A process that allows separate hosts to access the same data independently:This describes a different SRDF configuration (like Active/Active) and is not related to the "update" operation.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 SRDF Family CLI User Guide:This guide provides detailed information about SRDF commands and operations, including the symrdf update command used to initiate an update from R2 to R1. You can find this document on the Dell Support website by searching for "Solutions Enabler SRDF Family CLI User Guide."

Dell PowerMax Family: Essentials and Best Practices Guide:This guide offers a comprehensive overview of SRDF and its functionalities, including disaster recovery scenarios and the use of the "update" operation.

Step by Step Comprehensive Detailed Explanation:

A Gatekeeper in PowerMax is a small, dedicated device used for communication between the storage array and Solutions Enabler (SYMCLI), the command-line management interface. The default size of a Gatekeeper on a PowerMax array is3 cylinders.

While the size can technically be specified in kilobytes (KB), the traditional and preferred unit for Gatekeeper size is cylinders. This is because cylinders represent a specific number of blocks on the physical disks, and using cylinders helps ensure consistent sizing across different disk types and configurations.

Why other options are incorrect:

A. 3 KB, C. 6 KB:These sizes are too small to be practical for a Gatekeeper.

D. 6 cylinder:While older VMAX models might have used 6 cylinders, the current default for PowerMax is 3 cylinders.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 CLI User Guide:This guide provides information about Gatekeepers and their role in Solutions Enabler. While it might not explicitly state the default size, it mentions that Gatekeepers are typically small devices. You can find this document on the Dell Support website by searching for "Solutions Enabler CLI User Guide."

Dell PowerMax Family: Essentials and Best Practices Guide:This guide might offer general information about Solutions Enabler and its configuration, which can provide context for understanding the purpose and sizing of Gatekeepers.

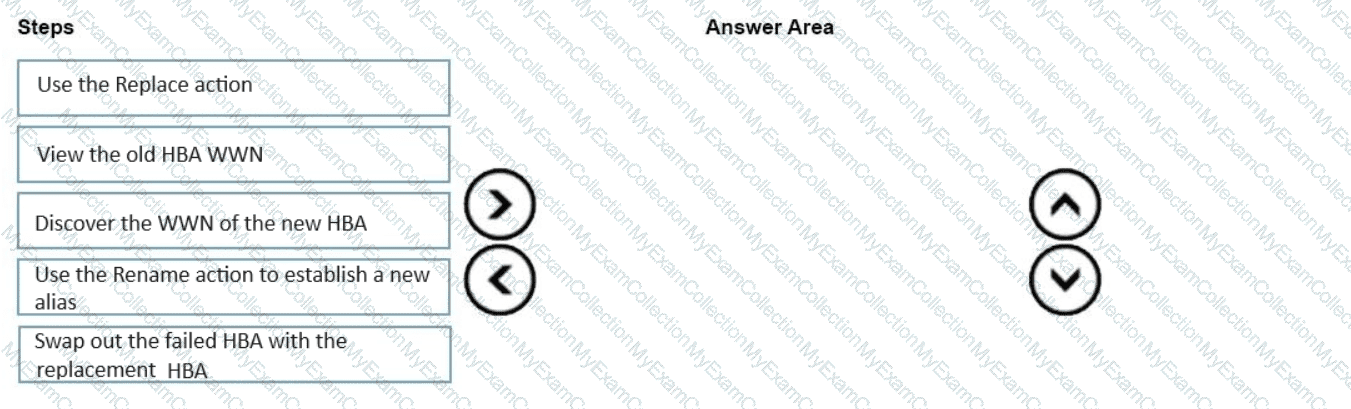

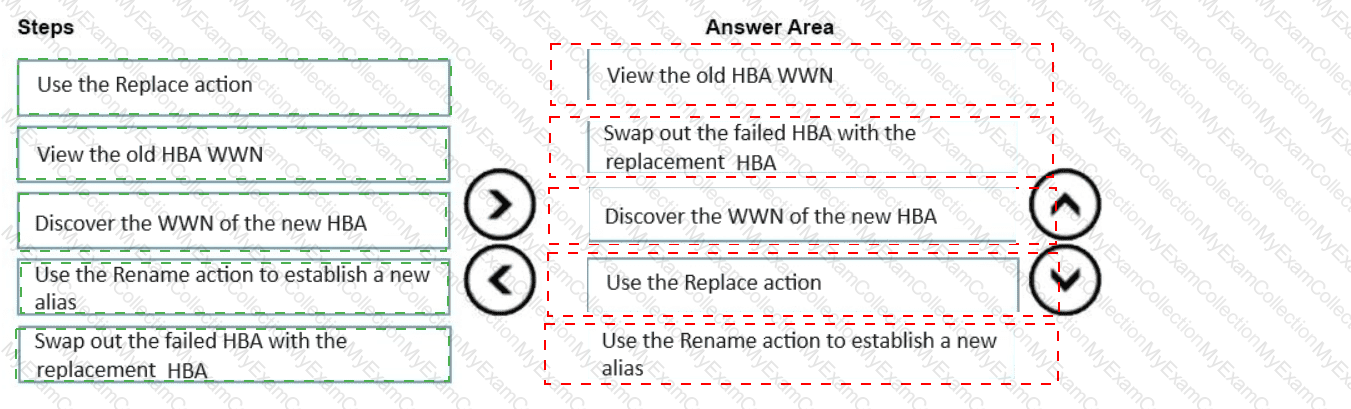

1.view old HBA WWN

2.swap out the old HBA

3.Discover the WWN

4.Use the replace action

5.Use the rename action

Step by Step Comprehensive Detailed Explanation:

SnapVX Clones:SnapVX clones are full, writable copies of a source volume created using the SnapVX snapshot technology. They are independent volumes that can be used for various purposes, such as testing, development, or data analysis.

Secure Snapshots:SnapVX offers the capability to create "secure snapshots." When a clone is derived from a secure snapshot, it inherits the same protection, making it immutable and preventing any modifications or deletion. This ensures data integrity and protection against accidental or malicious changes.

Crash Consistent:SnapVX clones can be made crash consistent. This means that the clone captures a point-in-time copy of the source volume that is consistent with a database or application crash. This is important for ensuring data integrity and recoverability in situations where the source volume experiences an unexpected outage.

Why other options are incorrect:

A. Maximum 1024 snaps per volume:This limit applies to the source volume, not the clones themselves. Each clone is an independent volume.

C. Restores directly to the source volume:Clones are independent copies and do not directly restore to the source volume. Data can be copied or moved from the clone to the source if needed.

D. Is Read-only:SnapVX clones are fully writable copies, not read-only.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 TimeFinder SnapVX CLI User Guide:This guide provides detailed information about SnapVX features and commands, including how to create and manage clones. It confirms the ability to create secure clones and the option to make them crash consistent.

Dell PowerMax Family: Essentials and Best Practices Guide:This guide offers a comprehensive overview of PowerMax technologies, including SnapVX. It highlights the benefits of SnapVX clones for various use cases.

Step by Step Comprehensive Detailed Explanation:

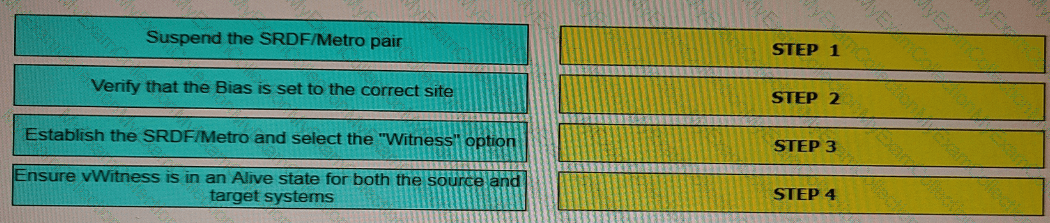

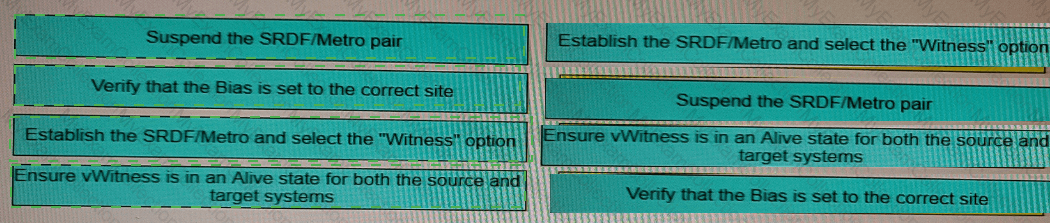

SRDF/Metro is a high-availability solution that provides synchronous replication between two storage arrays located within a metropolitan distance. It utilizes a witness to prevent data loss in the event of a split-brain scenario (where communication between the arrays is lost).

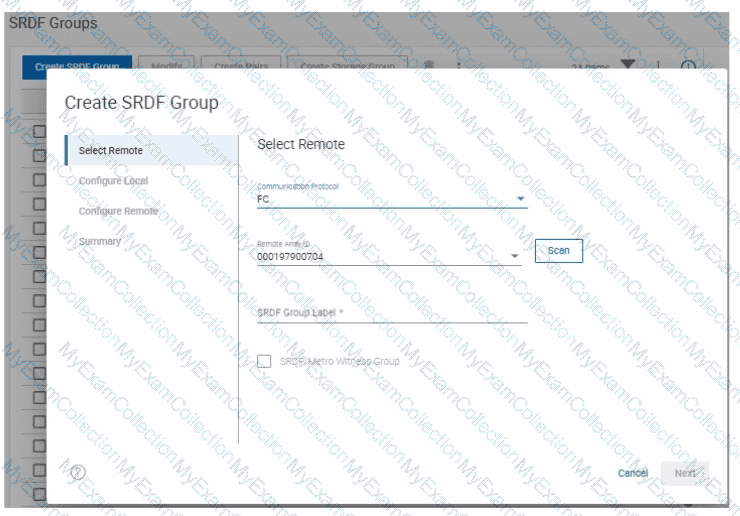

In SRDF/Metro, there can be onlyoneWitness Group defined between two specific arrays. This Witness Group manages the witness device that acts as a tie-breaker in case of a communication failure between the arrays.

Since the exhibit shows that SRDF/Metro has already been configured between the two arrays using a physical witness, the option to create another SRDF/Metro Witness Group is grayed out because a Witness Group already exists for that pair of arrays.

Why other options are incorrect:

B. SRDF/Metro Witness Groups can only be created with CLI:While CLI can be used, Witness Groups can also be created through Unisphere for PowerMax.

C. The SRDF Group Label needs to be left blank when creating an SRDF/Metro Witness Group:This is not a requirement. Witness Groups can have labels.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 SRDF Family CLI User Guide:This guide provides detailed information about SRDF/Metro configuration, including the role of the witness and the Witness Group. You can find this document on the Dell Support website by searching for "Solutions Enabler SRDF Family CLI User Guide."

Dell PowerMax Family: Essentials and Best Practices Guide:This guide offers a comprehensive overview of SRDF/Metro and its functionalities, including witness configuration and best practices.

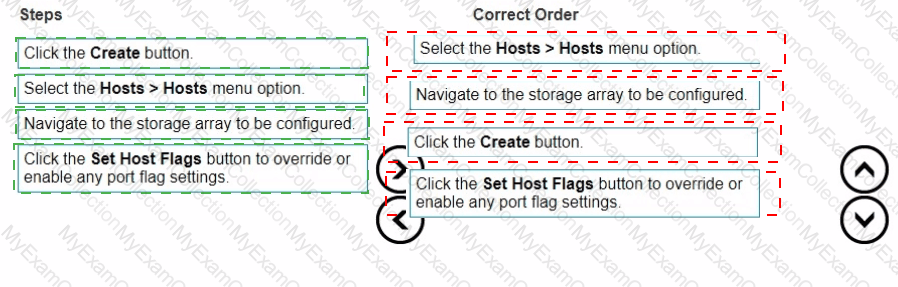

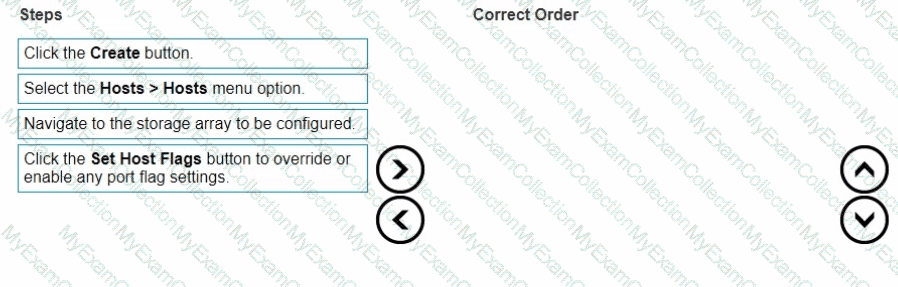

Here's the correct sequence of actions, along with explanations:

Correct Order:

Select the Hosts > Hosts menu option.

Why:This is the initial navigation step within Unisphere. You need to go to the "Hosts" section where you can manage and configure host connections to the PowerMax array.

Navigate to the storage array to be configured.

Why:In an environment with multiple PowerMax arrays, you need to select the specific array for which you want to configure host settings.

Click the Create button.

Why:This initiates the "Create Host" wizard, which will guide you through the process of adding a new host and configuring its settings, including the host flags.

Click the Set Host Flags button to override or enable any port flag settings.

Why:Within the Create Host wizard, you'll reach a point where you can configure host flags. Clicking the "Set Host Flags" button allows you to modify these flags.

Host Flags:These flags are settings that define how the PowerMax array interacts with the host. They control things like:

SCSI support:Different variations of SCSI protocols.

High availability:Features like auto-negotiation of failover.

Other host-specific behaviors.

Select the Hosts > Hosts menu option.

Navigate to the storage array to be configured.

Click the Create button.

Click the Set Host Flags button to override or enable any port flag settings.

Step by Step Comprehensive Detailed Explanation:

To register an ESXi server in Unisphere for PowerMax, you need to provide the following information:

IP Address:The IP address of the ESXi server that you want to manage. This allows Unisphere to communicate with the ESXi host.

ESXi Server Credentials:The username and password of an account with sufficient privileges to access and manage the ESXi server. This ensures that Unisphere has the necessary permissions to perform storage-related operations on the ESXi host.

Why other options are incorrect:

A. Unisphere credentials and hostname:Unisphere credentials are used to log in to Unisphere itself, not to register an ESXi server.

B. IP address and hostname:While the hostname might be helpful, the ESXi server credentials are essential for authentication and authorization.

D. ESXi server credentials and Unisphere credentials:Unisphere credentials are not required for registering an ESXi server.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell PowerMax and VMware vSphere Configuration Guide:This guide provides detailed instructions on how to register and manage ESXi servers in Unisphere for PowerMax. You canfind this document on the Dell Support website by searching for "PowerMax and VMware vSphere Configuration Guide."

Dell Unisphere for PowerMax 10.0.0 Online Help:The online help for Unisphere might also provide guidance on registering ESXi servers.

Okay, I understand. We need to configure a recurring exclusion window in the Unisphere for PowerMax simulator to exclude performance load during a weekly backup that occurs every Sunday from 8:00 AM to 9:00 AM. This exclusion will prevent the backup load from affecting system-level compliance calculations.

Here's a step-by-step guide on how to do this, based on typical Unisphere functionality:

Steps:

1. Launch the Simulator and Navigate to the System Settings

Open Unisphere for PowerMax in your web browser.

Log in to the simulator (you should already be logged in with the array SID 1762 selected, based on the image).

In the left-hand navigation pane, locate the settings or configuration section. The exact location might vary slightly, but it's often found under:

Home>System Settings

Settings(an icon representing settings, like a gear)

Admin>System

In this instance, click thegearicon on the top right corner of the Unisphere interface.

2. Find the Exclusion Window Settings

Within the system settings, look for a section related to performance monitoring, metrics, or thresholds.

Within this section, search for an option to configure "Exclusion Windows," "Scheduled Exclusions," or something similar. The exact name may vary.

3. Create a New Exclusion Window

Click on a button or link to create a new exclusion window. This might be labeled:

"Create"

"Add"

"+"(a plus icon)

A new window or panel will appear, allowing you to configure the exclusion window settings.

4. Configure the Exclusion Window Settings

Name (Optional):You can give the exclusion window a descriptive name, such as "Weekly Backup Exclusion."

Type:Select"Recurring"or"Repeating"as the exclusion window type.

Schedule:

Day of the Week:Select"Sunday".

Start Time:Set the start time to 08:00 (or 8:00 AM). Make sure the time is in 24-hour format or that you correctly select AM if using 12-hour format.

End Time:Set the end time to 09:00 (or 9:00 AM).

Scope/Target:Since we want this exclusion to apply at the system level, make sure the scope is set to"System"or the entire array (SID 1762 in this case). You might not need to explicitly select this if system-level is the default.

Components/Metrics:In some Unisphere versions, you can choose which components or metrics to exclude. In our case, we want to exclude the load for "all components." If there's an option to select components, either choose "All" or leave it at the default (which likely includes all components).

5. Save the Exclusion Window

After configuring all the settings, review them carefully to make sure they are correct.

Click the button to save the exclusion window. This might be labeled:

"Create"

"Save"

"OK"

"Apply"

6. Verify Exclusion Window Creation (Optional)

After the exclusion window is created, you can usually verify its settings in the exclusion window list.

You should see the new exclusion window listed with the correct schedule (Sunday, 8:00 AM - 9:00 AM) and scope (system level).

Topic2, Multiple Choice Questions

We need to remove all resources associated with a deprecated web application server named web_host_1 in the Unisphere for PowerMax simulator.

Here's a step-by-step guide on how to accomplish this, based on typical Unisphere functionality and the context of the question:

Steps:

1. Launch the Simulator and Navigate to the Hosts Section

Open Unisphere for PowerMax in your web browser.

Log in to the simulator.

In the left-hand navigation pane, click onHosts>Hosts. This will take you to the Hosts management view.

2. Locate the Host web_host_1

In the Hosts view, you'll see a list of all configured hosts.

Find the host named web_host_1. You might need to use the search or filtering options if there are many hosts listed.

3. Identify Associated Resources

Before deleting the host, it's crucial to identify all resources associated with it. These typically include:

Masking Views:These define the LUNs that a host can access.

Storage Groups:These contain the volumes presented to the host.

Port Groups:These define the connectivity paths (ports) used by the host.

How to Find Associated Resources:

Click on the web_host_1 host entry. This should open a details view or properties page for the host.

Look for tabs or sections labeled "Masking Views," "Storage Groups," or similar.

Note down the names of any masking views and storage groups associated with web_host_1.

4. Remove the Host from Masking Views

Navigate toHosts>Masking Views.

Locate the masking views that you identified in Step 3 as being associated with web_host_1.

Open each masking view's properties.

Remove the Host:There should be an option to edit the host list within the masking view. Find web_host_1 in the list of hosts and remove it.

Save Changes:Save the changes to the masking view.

Repeatfor all masking views associated with web_host_1.

5. Delete or Modify Storage Groups

Navigate toStorage>Storage Groups.

Locate the storage groups that were associated with web_host_1.

Two Options:

If the storage group is ONLY used by web_host_1:You can delete the entire storage group. Select the storage group and click theDeletebutton (or a similar option).

If the storage group is shared with other hosts:You need to remove the volumes associated with web_host_1 from the storage group.

Open the storage group's properties.

Go to the "Volumes" tab.

Identify the volumes that were presented to web_host_1.

Select those volumes and choose the option to "Remove from Storage Group" or a similarly worded option.

Save the changes to the storage group.

6. Delete the Host

Go back toHosts>Hosts.

Select web_host_1.

Click theDeletebutton (or a similar option, like a trashcan icon).

Confirm that you want to delete the host.

7. Verify Removal (Optional)

After deleting the host and modifying the storage groups and masking views, you can verify that the resources have been properly cleaned up.

Check theStorage GroupsandMasking Viewssections again to ensure that web_host_1 is no longer listed and that the storage groups have been either deleted or modified as intended.

Step by Step Comprehensive Detailed Explanation:

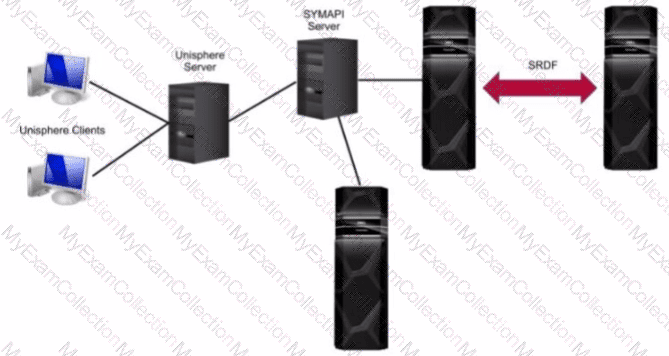

Unisphere for PowerMax offers different deployment options to manage PowerMax storage arrays. Based on the exhibit, we can identify the following:

Separate SYMAPI Server:The diagram shows a dedicated SYMAPI server. SYMAPI (Symmetrix Application Programming Interface) is a command-line interface used to manage PowerMax and VMAX storage arrays. This indicates that the Unisphere server is not directly connected to the storage arrays.

Unisphere Server Connected to SYMAPI Server:The Unisphere server is shown to be connected to the SYMAPI server. This means that the Unisphere server relies on the SYMAPI server to communicate with the PowerMax arrays.

No Direct Connection to Arrays:The Unisphere server does not have a direct connection to the PowerMax arrays.

Considering these points, the deployment option depicted in the exhibit is aremote deployment. In a remote deployment, the Unisphere server is installed on a separate host and communicates with the PowerMax arrays through a SYMAPI server. This allows for centralized management of multiple arrays from a single Unisphere instance.

Why other options are incorrect:

A. Embedded:In an embedded deployment, the Unisphere software runs directly on the PowerMax array itself. This eliminates the need for a separate Unisphere server.

B. Either remote or local:While the diagram could technically represent a local deployment with a dedicated SYMAPI server, the presence of the separate SYMAPI server and the lack of direct connection to the arrays strongly suggest a remote deployment.

D. Local:In a local deployment, the Unisphere server is typically installed on the same host as Solutions Enabler, which has direct connectivity to the storage arrays.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Unisphere for PowerMax 10.0.0 Installation Guide:This guide provides detailed information about the different Unisphere deployment options, including local, remote, and embedded. It also includes diagrams and explanations of each deployment scenario. You can find this document on the Dell Support website by searching for "Unisphere for PowerMax Installation Guide."

Dell PowerMax Family: Essentials and Best Practices Guide:This guide offers a general overview of PowerMax systems and their management using Unisphere. It may provide context for understanding the different deployment options.

Step by Step Comprehensive Detailed Explanation:

The Dell PowerMax 2500 is a mid-range storage array designed for enterprise environments. It offers a balance of performance, capacity, and scalability.

Scalability:The PowerMax 2500 scales from a single node pair to a maximum of two node pairs. This allows for increased performance and capacity as needed. Each node pair provides processing power, cache memory, and connectivity.

Why other options are incorrect:

A. Supports up to 16 nodes:This is incorrect. The PowerMax 8500, the higher-end model, supports up to 16 nodes.

B. Supports up to 15 PB of effective capacity:While the PowerMax 2500 offers significant capacity, its maximum effective capacity is lower than 15 PB.

D. Uses Storage Class Memory:Both the PowerMax 2500 and 8500 utilize Storage Class Memory (SCM) for enhanced performance.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell PowerMax 2500 Hardware Information Guide:This guide provides detailed technical specifications for the PowerMax 2500, including its scalability options, node configurations, and capacity limits. You can find this document on the Dell Support website by searching for "PowerMax 2500 Hardware Information Guide."

Dell PowerMax Family: Essentials and Best Practices Guide:This guide offers a general overview of the PowerMax family, including the 2500 and 8500 models. It highlights the key differences in scalability and performance between the two models.

Okay, I understand. We need to perform a system health check and review the compliance status for a PowerMax array with SID ending in 1762 using the Unisphere simulator, then generate and download a compliance report.

Here's how you would do it in the Unisphere for PowerMax simulator, based on the provided image and common Unisphere functionality:

Steps:

1. Launch the Simulator and Access the System Health View

Open Unisphere for PowerMax in your web browser.

You should already be logged in to the simulator, with the PowerMax array with SID 1762.

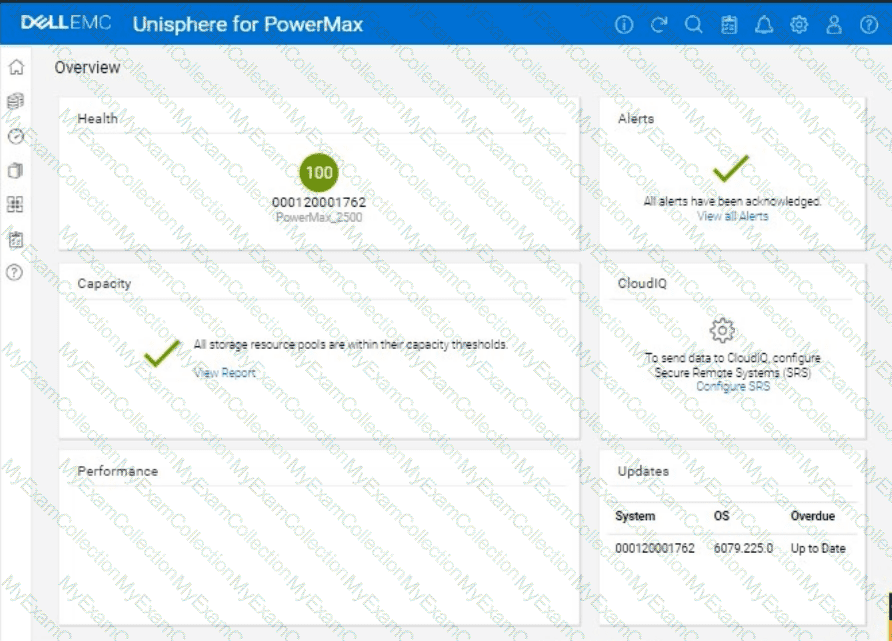

The initialOverviewpage (as shown in the image) provides a good starting point for a health check.

2. Analyze the Overview Page

Health:The "Health" section displays the overall health status of the array. In the image, it shows "100" with a green checkmark, which indicates that the array is currently healthy.

Alerts:The "Alerts" section will show if there are any active alerts. In the image, it shows a green checkmark and "All alerts have been acknowledged," meaning no unacknowledged alerts. You can click "View all Alerts" to see the alert history.

Capacity:The "Capacity" section indicates whether storage resource pools are within their capacity thresholds. The green checkmark and "All storage resource pools are within their capacity thresholds" message indicate that capacity is currently healthy. You can click "View Report" for more details.

Performance:The "Performance" section is not detailed in the image, but it would typically provide a quick overview of the array's performance.

Updates:The "Updates" section shows the system's PowerMaxOS code level and whether any updates are overdue. In the image, it shows that the system is "Up to Date."

3. Navigate to the Compliance Section

In the left-hand navigation pane, click onData Protectionto expand it.

Click onComplianceunder Data Protection.

4. Review Compliance Status

The Compliance view will show you the overall compliance status of your storage groups against the defined compliance policies.

Review the compliance status for each Storage Group.

Look for any storage groups that are marked as "Non-Compliant."

5. Generate the Compliance Report

Click on"Generate Report"(or a similarly worded button) within the Compliance view. This might also be represented as an icon in the simulator.

Select all Storage GroupsSince we need to generate the report for all storage groups.

Report Format:Choose the desired report format. Common options are usually PDF, CSV, or HTML. For this simulation, let's assume PDF is available and select it.

Download the Report:Once the report is generated, there will typically be a"Download"or similar option to save the report to your local system. Click it to download the compliance report.

6. Further Health Checks (Optional):

Detailed Performance Metrics:You can navigate to thePerformancesection in the left navigation pane (under "Dashboard") to view more detailed performance metrics for various components of the array.

Hardware Status:You can typically find a "Hardware" section (or similarly named section) that provides information about the physical components of the array (e.g., DAEs, directors, ports).

We need to create a secure snapshot named "Stor1" from the storage group "StorGroup1" in the Unisphere for PowerMax simulator, and the snapshot should be protected from deletion for two days.

Here's a step-by-step guide on how to do this, based on typical Unisphere functionality:

Steps:

1. Launch the Simulator and Navigate to the Storage Groups Section

Open Unisphere for PowerMax in your web browser.

Log in to the simulator (you should already be logged in with the array SID 1762 selected).

In the left-hand navigation pane, click onStorageand then selectStorage Groups.

2. Locate and Select "StorGroup1"

In the Storage Groups view, you'll see a list of all storage groups on the array.

Find the storage group named "StorGroup1".

Click on the name "StorGroup1" to open its details view.

3. Initiate the Snapshot Creation Process

Within the "StorGroup1" details view, look for an option related to creating snapshots or protecting the storage group. This might be a button labeled:

"Protect"

"Create Snapshot"

"SnapVX"

Or an icon representing snapshot creation.

Click the appropriate button or icon to start the snapshot creation process.

4. Configure Snapshot Settings

A new window or panel will appear, allowing you to configure the snapshot settings.

Snapshot Name:Enter Stor1 as the snapshot name.

Snapshot Technology:SelectSnapVX(or a similar option) as the snapshot technology.

Secure Snapshot:This is crucial. Look for an option labeled "Secure Snapshot," "Enable Secure Snap," "Secure Snap," or something similar.Check this option.

Retention/Expiration:You need to set the retention period for the secure snapshot. This will define how long the snapshot cannot be deleted. There are usually a few ways to configure this:

Expiration Time:Set an explicit expiration date and time that is two days from now.

Retention Period:Specify a retention period of 2 days.

No Expiry:This option is not what we want here. We want the snap to be secure for 2 days.

Choose the appropriate option to make the snapshot undeletable for two days.

Other Settings:Review any other available settings. You might be able to choose between creating a new snapshot or linking to an existing one. Select the option to create anew snapshot.

5. Create the Snapshot

After configuring all the snapshot settings, review them carefully to ensure they are correct.

Click the button to create the snapshot. This button might be labeled:

"Run Now"

"OK"

"Create"

"Finish"

6. Verify Snapshot Creation (Optional)

After the snapshot creation operation completes, you can verify that the snapshot was created successfully:

Go back to the "StorGroup1" details view.

Look for a tab or section related to snapshots (e.g., "Snapshots," "TimeFinder," "Local Replication").

You should see the "Stor1" snapshot listed there, and its status should indicate that it's a secure snapshot with the correct retention period (2 days).

Step by Step Comprehensive Detailed Explanation:

The symsan command in Solutions Enabler is used for various SAN (Storage Area Network) management tasks. One of its functions is to scan the SAN environment to discover and verify the configuration of devices and paths.

When used in the context of an Open Replicator Migrator for Dell EMC (O-MDM) session, the symsan command specifically:

Verifies SAN Configuration:It checks the connectivity and configuration of the SAN fabric to ensure that the source and target devices are accessible and properly configured for the migration.

Non-Disruptive:It performs this verification without disrupting any applications or host I/O operations on the remote host. This is crucial for maintaining business continuity during the migration planning phase.

Why other options are incorrect:

A. Temporarily stops the remote application to verify the SAN configuration:symsan does not stop applications; it performs a non-disruptive scan.

B. Verifies the SAN configuration and creates an ORS session on the remote host:symsan only verifies the SAN; it doesn't create ORS (Open Replicator Solutions) sessions.

D. Temporarily stops the remote application and creates an ORS session:Again, symsan doesn't stop applications or create ORS sessions.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 CLI User Guide:This guide provides detailed information about the symsan command and its various options, including its use for SAN discovery and verification. You can find this document on the Dell Support website by searching for "Solutions Enabler CLI User Guide."

Dell PowerMax Family: Essentials and Best Practices Guide:This guide may offer general information about SAN management and migration tools, providing context for understanding the role of the symsan command.

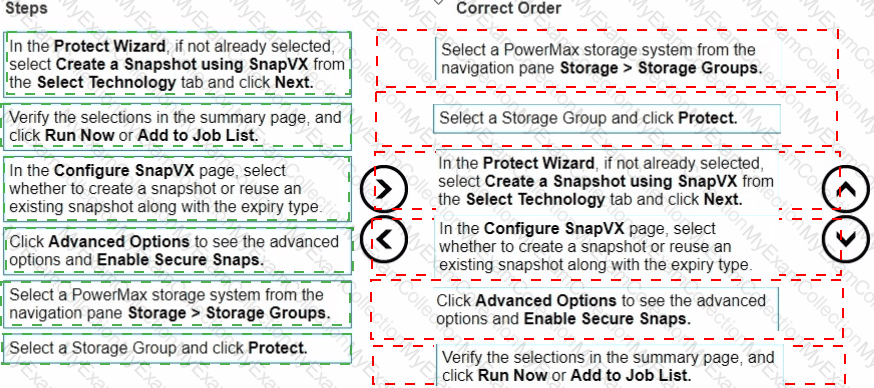

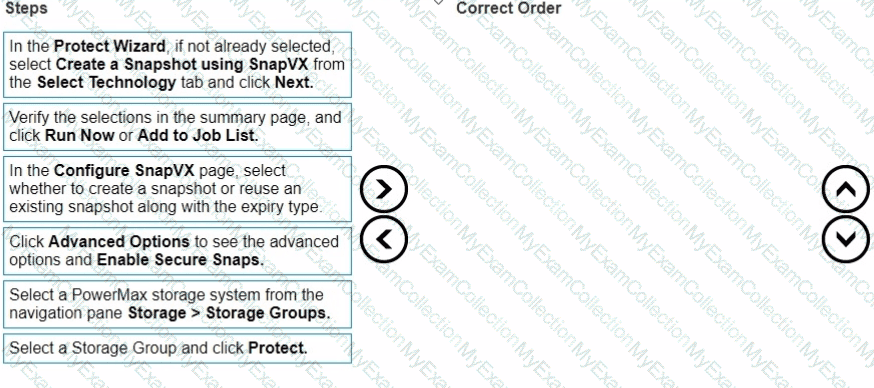

Okay, I'm ready to arrange those steps for creating a snapshot in Unisphere for PowerMax in the correct order, based on the image provided.

Here is the correct sequence, along with explanations:

Correct Order:

Select a PowerMax storage system from the navigation pane Storage > Storage Groups.

Why:This is the starting point in Unisphere. You need to navigate to the "Storage Groups" section within the specific PowerMax array where you intend to create the snapshot.

Select a Storage Group and click Protect.

Why:You're choosing the storage group that contains the data you want to snapshot. Clicking "Protect" initiates the process of creating a data protection operation (in this case, a snapshot).

In the Protect Wizard, if not already selected, select Create a Snapshot using SnapVX from the Select Technology tab and click Next.

Why:This specifies that you want to use the SnapVX technology to create a snapshot. SnapVX is the snapshot feature in PowerMax arrays.

In the Configure SnapVX page, select whether to create a snapshot or reuse an existing snapshot along with the expiry type.

Why:Here, you define the core parameters of the snapshot:

Create a new snapshot:This is what you'd typically do for a new point-in-time copy.

Reuse an existing snapshot:In some cases, you might want to update an existing snapshot.

Expiry type:This determines how long the snapshot will be retained (e.g., a specific duration or until manually deleted).

Click Advanced Options to see the advanced options and Enable Secure Snaps.

Why:This allows you to configure more granular settings for the snapshot, including:

Secure Snaps:Enabling this option prevents the snapshot from being deleted before its expiry time, adding an extra layer of protection.

Verify the selections in the summary page, and click Run Now or Add to Job List.

Why:This is the final step before creating the snapshot:

Summary page:Review all the settings you've configured.

Run Now:Immediately creates the snapshot.

Add to Job List:Schedules the snapshot creation for later.

Select a PowerMax storage system from the navigation pane Storage > Storage Groups.

Select a Storage Group and click Protect.

In the Protect Wizard, if not already selected, select Create a Snapshot using SnapVX from the Select Technology tab and click Next.

In the Configure SnapVX page, select whether to create a snapshot or reuse an existing snapshot along with the expiry type.

Click Advanced Options to see the advanced options and Enable Secure Snaps.

Verify the selections in the summary page, and click Run Now or Add to Job List.

Step by Step Comprehensive Detailed Explanation:

The PowerMax 8500 is a high-end storage array designed for enterprise environments with demanding capacity requirements. The maximum capacity per array in a PowerMax 8500 is24 petabytes effective (PBe).

This means that after considering data reduction technologies like deduplication and compression, the array can store up to 24 petabytes of usable data.

Why other options are incorrect:

A. 8 PBe, B. 18 PBe, C. 20 PBe:These values are lower than the actual maximum capacity of the PowerMax 8500.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell PowerMax 8500 Hardware Information Guide:This guide provides detailed technical specifications for the PowerMax 8500, including its maximum capacity. You can find this document on the Dell Support website by searching for "PowerMax 8500 Hardware Information Guide."

Dell PowerMax Family: Essentials and Best Practices Guide:This guide offers a general overview of the PowerMax family, including the 8500 model and its key features and capabilities.

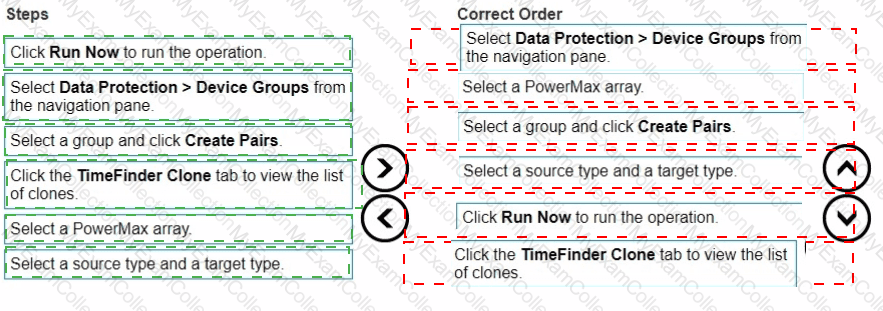

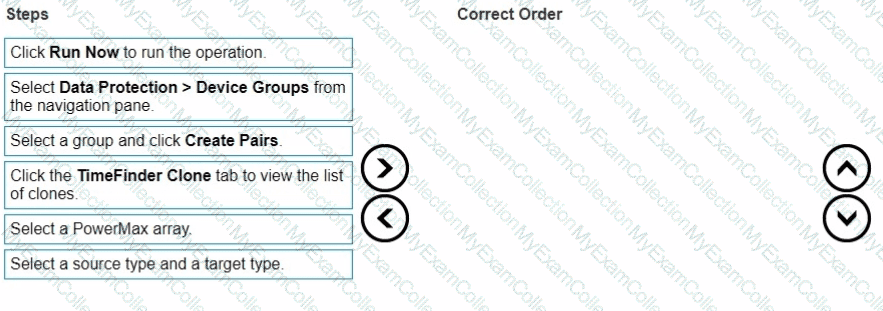

Here's the correct sequence of steps along with explanations:

Correct Order:

Select Data Protection > Device Groups from the navigation pane.

Why:This is the starting point within Unisphere for PowerMax. You need to navigate to the section where device groups are managed and where TimeFinder operations are initiated.

Select a PowerMax array.

Why:In an environment with multiple PowerMax arrays, you must specify the array on which you want to create the clone copy sessions.

Select a group and click Create Pairs.

Why:You are selecting the specific device group that will be the source for the clone operation and choosing the "Create Pairs" action to initiate the clone session creation process. This implies you are creating a clone from an existing group of devices.

Select a source type and a target type.

Why:This step defines the characteristics of the source and target devices for the clone session. This could involve selecting from different storage groups, specifying thin or thick provisioning, or other relevant settings. Note that in a clone context, the "target type" often refers to how the clone will be linked to the source (e.g., a full copy or a linked target).

Click Run Now to run the operation.

Why:After configuring all the settings for the clone session, this action triggers the actual creation of the clone pairs based on the selected source and target types and other parameters.

Click the TimeFinder Clone tab to view the list of clones.

Why:Once the operation has been initiated, this is how you would verify that the clone sessions were created successfully and monitor their status.

Select Data Protection > Device Groups from the navigation pane.

Select a PowerMax array.

Select a group and click Create Pairs.

Select a source type and a target type.

Click Run Now to run the operation.

Click the TimeFinder Clone tab to view the list of clones.

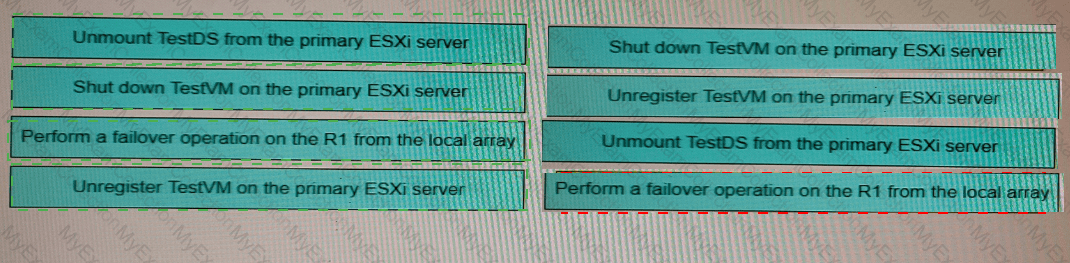

1.Shunt down testvm on the primary esxi server

2. unregister testvm.

3.Unamount testds .

4.perform a failover operation.

https://infohub.delltechnologies.com/en-US/l/dell-emc-powermax-and-vmax-all-flash-timefinder-snapvx-local-replication-1/redirect-on-write/

Step by Step Comprehensive Detailed Explanation:

Before performing an SRDF/S (synchronous) Restore operation, it is crucial tostop all host I/O activityto both the R1 (source) and R2 (target) devices. This ensures data consistency and prevents potential data loss or corruption during the restore process.

Here's why:

Data Integrity:An SRDF/S Restore operation involves copying data from the R1 device to the R2 device, overwriting any existing data on R2. If hosts are actively accessing and modifying data on either device during this process, it can lead to inconsistencies and data integrity issues.

Synchronization:SRDF/S maintains real-time synchronization between the R1 and R2 devices.1Performing a Restore operation while hosts are writing data can disrupt this synchronization and lead to unpredictable results.

Why other options are incorrect:

A. Continue accessing the R1 devices. Stop accessing the R2 devices:This would leave R1 vulnerable to data inconsistencies.

B. Stop accessing the R1 devices. Continue accessing the R2 devices:This would make R2 susceptible to data loss or corruption.

D. Continue accessing the R1 and R2 devices:This is the most dangerous option, as it would likely lead to data integrity issues.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 SRDF Family CLI User Guide:This guide provides detailed information about SRDF operations, including Restore. It emphasizes the importance of halting host I/O before performing such operations to ensure data consistency. You can find this document on the Dell Support website by searching for "Solutions Enabler SRDF Family CLI User Guide."

Dell PowerMax Family: Essentials and Best Practices Guide:This guide may offer general information about SRDF management and best practices, which would include recommendations for performing operations like Restore safely.
