ANVE Axis Network Video Exam Question and Answers

Axis' Corridor Format is designed to provide a vertically oriented video stream, which is ideal for monitoring narrow areas such as aisles. This format minimizes wasted space in the field of view and focuses on the desired area. For a retailer wanting to capture more of the aisle and less of the shelves, enabling Corridor Format on the AXIS M3204 camera would be the best solution. Detailed setup instructions can be found in Axis Communications' user manuals and configuration guides for Corridor Format.

IEEE 802.1X is a network access control protocol that provides an authentication mechanism for devices wishing to connect to a LAN or WLAN. It ensures that only approved devices are granted access to the network, thereby preventing unauthorized devices from connecting. This makes it impossible for someone to disconnect a camera and connect another device to eavesdrop on the network. Therefore, the correct answer is B. For more detailed information, refer to Axis Communications' documentation on network security features and IEEE 802.1X.

The AXIS Camera Application Platform (ACAP) is a powerful tool that allows users to install and run third-party applications directly on Axis cameras. This capability transforms the cameras into intelligent devices that can perform a variety of tasks, such as video analytics, object recognition, and event detection, without the need for additional hardware. By running applications directly on the camera, ACAP enhances the flexibility and functionality of surveillance systems. Axis Network Video documentation explains how ACAP leverages the processing power of the cameras to deliver advanced features and capabilities.

Axis P-iris technology is designed to optimize the camera's aperture to achieve better image quality. By precisely controlling the iris opening, P-iris technology can maintain the ideal aperture size for various lighting conditions. This helps limit optical artifacts such as diffraction and spherical aberration, ensuring sharp and clear images. While it can contribute to improved low light performance and reduce motion blur, its main advantage is optimizing the aperture to limit artifacts. Axis Network Video documentation explains that P-iris provides more precise iris control compared to traditional DC-iris, leading to enhanced image quality.

A VPN (Virtual Private Network) creates a secure tunnel through the network where your information travels encrypted. This means that data transmitted over the VPN is protected from eavesdropping and unauthorized access. It is not specifically optimized for video data packets nor does it translate domain names to IP addresses. Therefore, the correct answer is C. For more detailed information, refer to Axis Communications' guidelines on secure remote access and VPN usage.

When using a wireless network for video surveillance, protecting the video stream is crucial to prevent unauthorized access and ensure data integrity. VPN (Virtual Private Network) encrypts the data transmitted over the network, providing a secure tunnel between the camera and the viewing/recording device. WPA2 (Wi-Fi Protected Access 2) is a security protocol that encrypts wireless traffic, ensuring that only authorized users can access the network.

When a camera is zoomed out, the field of view increases, causing each object or movement to cover fewer pixels. As a result, more pixels need to change to trigger motion detection. This means the motion detection sensitivity may be reduced unless adjustments are made to the detection settings. For more information, refer to Axis Communications' motion detection setup guides.

Adding network surveillance cameras to an existing Ethernet network will benefit from using VLANs (Virtual Local Area Networks) to keep the surveillance video separate from other network traffic. This separation reduces the risk of network congestion by prioritizing surveillance video traffic and ensuring sufficient bandwidth is available for video data. VLANs enhance network performance and security by segmenting traffic and minimizing interference from other network activities.

Multicast video streaming has several important characteristics:

A. Multicast can help to save bandwidth in a network because it allows the same video stream to be delivered to multiple users simultaneously, reducing the need for multiple unicast streams.

B. Multicast can typically not be used to provide video over the internet because many routers and firewalls do not support multicast traffic across the internet, which is more suited for local network environments.

D. Multicast extends the viewer capacity of a camera or an encoder from 10-20 to an unlimited number, as it does not rely on multiple individual connections to distribute the video stream.

The main purpose of the remote focus function is to eliminate the need for an installer to manually set focus at the camera. This feature allows the camera to be focused remotely, saving time and effort during installation and setup. The installer can adjust the focus using the camera’s web interface or a video management system, ensuring optimal image sharpness without physically accessing the camera.

VAPIX® is an open API from Axis Communications that allows for the integration of Axis products with other system components. This openness facilitates the development of customized applications and solutions, making it easier for integrators to incorporate Axis products into broader security and surveillance systems, ensuring compatibility and flexibility. [Reference: Axis Communications - VAPIX API Documentation]

Top of Form

Bottom of Form

The feature in Axis cameras that allows a fixed box style camera to tell a PTZ camera to move to a preset is the HTTP server. Axis cameras can use HTTP commands to communicate with each other over the network. By sending an HTTP request from a fixed camera, the PTZ camera can be directed to move to a specific preset position, enabling coordinated surveillance coverage.

The AXIS P3301 is a fixed mini dome camera that features a DC-iris lens, a 2.8-10 mm varifocal lens, and wide dynamic range (WDR). This combination of features makes it the only suitable choice among the listed options to meet the customer's requirements for a fixed mini dome camera with these specific capabilities. More details can be found in the Axis Communications product specifications and data sheets for the AXIS P3301.

The f-stop value of a lens will get higher if you zoom in. This is true because as the focal length increases (when zooming in), the lens aperture typically becomes smaller, resulting in a higher f-stop value. This change affects the amount of light entering the camera, which is an important consideration for PTZ (Pan-Tilt-Zoom) cameras when they are used in varying lighting conditions.

The Arctic Temperature Control functionality in Axis cameras is designed to protect the camera electronics by ensuring the device can operate in extremely cold temperatures. This feature helps maintain the internal temperature of the camera, preventing the electronics from freezing and ensuring reliable performance in harsh environments. Detailed information on Arctic Temperature Control can be found in Axis Communications product specifications and user manuals.

Before upgrading an installation with analog PTZ cameras using Axis Q-line encoders, it is crucial to check that the PTZ driver is supported. Ensuring compatibility of the PTZ driver with the encoder guarantees that all pan, tilt, and zoom functionalities will work correctly after the upgrade, maintaining the camera's full operational capabilities.

The AXIS Q60 Series cameras are designed to work with 60W PoE to ensure full functionality, including optimal pan and tilt speeds. If connected to a 30W PoE, the camera will still operate, but the pan and tilt functions will be limited in speed due to insufficient power. This limitation is outlined in Axis’s technical documentation for the Q60 Series, which specifies the power requirements and the impact on camera functionality when those requirements are not met.

The Group of Video (GOV) length setting affects both the bandwidth and storage requirements of video streams. A longer GOV length, which specifies the interval between keyframes in a video stream, reduces the frequency of keyframes, thus lowering the bandwidth consumption. However, it can also increase the storage time on an SD card because fewer keyframes are stored over a given period, making the video stream more compression-efficient.

The AXIS Design Tool helps users estimate bandwidth and storage usage by using a statistical model based on the selected camera model. This tool takes into account factors such as scene complexity and motion to provide accurate estimates, enabling users to plan their surveillance system more effectively. [Reference: Axis Communications - AXIS Design Tool User Guide]

Top of Form

Bottom of Form

When installing a network camera with PoE, the following best practices should be considered:

C. The correct PoE standards are being used. This ensures compatibility between the camera and the PoE switch or injector, preventing power issues.

E. The correct cabling standards are being used. Category 5e or higher cabling is recommended to ensure reliable power delivery and data transmission over PoE.

Following these practices helps in achieving a stable and efficient PoE camera installation.

H.264 compression uses I-frames (intra-coded frames) as reference points, with P-frames (predictive frames) and B-frames (bi-directional frames) encoding only the changes from the previous frames. If a video contained no I-frames, there would be no reference frame for decoding, resulting in an inability to display any image. This would theoretically result in a black image being visible during the whole video. Therefore, the correct answer is B. For more detailed information, refer to Axis Communications' technical notes on video compression.

Deinterlacing in video encoding is used to eliminate the artifacts that occur when the two fields of an interlaced video frame capture different moments in time. These artifacts, known as tearing effects, can be particularly noticeable when there is motion in the scene. Deinterlacing processes the fields to produce a single frame, resulting in a smoother image with reduced tearing. [Reference: Axis Communications - Video Processing Techniques]

Operating cameras above their specified temperature limits can increase noise in the captured images. High temperatures can affect the electronic components of the camera, leading to higher thermal noise and degraded image quality. Ensuring cameras operate within their designated temperature ranges is critical for maintaining image clarity and overall performance. Refer to Axis Communications' product specifications and environmental guidelines for more information.

The AXIS M3204 is a cost-effective mini dome camera with a varifocal lens. It does not include DC-iris or audio capabilities, making it suitable for the specified requirements. The other options either include additional features that are not needed or do not meet the cost-effectiveness criteria. For detailed product specifications, refer to Axis Communications' datasheets and product catalogs.

Axis P-iris technology is designed to optimize the iris position for optimal depth of field, resolution, and image contrast. It also helps in managing challenging lighting conditions such as backlighting by controlling the amount of light reaching the image sensor. This allows the camera to produce clear images even when facing direct sunlight or other bright light sources.

Exposure time can become a limiting factor for the camera in delivering full frame rate. Longer exposure times allow more light to hit the camera sensor, improving image quality in low light conditions but also reducing the number of frames per second (fps) that the camera can capture. Shorter exposure times allow higher frame rates but may result in underexposed images in low light conditions.

The capability to view and record up to four different areas of the whole image of an AXIS P1346 camera is called Multi-view streaming. This feature allows multiple cropped views to be created from a single high-resolution video stream, enabling more efficient use of bandwidth and storage while focusing on specific areas of interest within the full image. For more information, refer to the Axis Communications product documentation and technical notes on Multi-view streaming capabilities.

An explosion-protected camera is specifically designed to contain any internal explosion within its housing. This type of camera is built to operate in hazardous environments where flammable gases or dust may be present. The robust housing prevents the internal explosion from igniting the surrou

nding atmosphere, thereby ensuring safety. Axis Communications offers explosion-protected cameras that adhere to stringent safety standards to prevent ignition and ensure reliable operation in dangerous conditions, as detailed in their product specifications.

"The field of view (FOV) of a camera is determined by the focal length of the lens and the size of the image sensor. A shorter focal length gives a wider FOV, while a larger sensor size also increases the FOV."

— Axis Communications Academy, Network Video Fundamentals, 2022

"FOV = 2 × arctan (sensor size / (2 × focal length))."

— Axis Lens Guide White Paper

Illumination is measured in lumens, which indicate the total amount of visible light emitted by a source. A light source with 10 watts and 4000 lumens emits more illumination than other options with lower lumens. Lumens are a direct measure of light output, so a higher lumen value corresponds to greater illumination. Axis product guides and technical references on lighting confirm that 4000 lumens provide the highest illumination among the given options.

"For best practices in device security, Axis recommends following the guidelines described in the AXIS OS Hardening Guide, which covers secure configuration, network security, user management, and firmware protection."

— Axis OS Hardening Guide

"Applying the AXIS OS Hardening Guide is the most comprehensive way to protect an Axis device against security threats."

— Axis Communications Academy, Network Video Fundamentals, 2022

On layer 3 of the OSI model, the protocol that enables network traffic is IP (Internet Protocol). IP is responsible for addressing and routing packets of data so that they can travel across networks and reach the correct destination. It provides logical addressing and handles the path through which data is transferred between source and destination nodes. Axis documentation confirms that IP is crucial for network communication and is fundamental for the operation of network video systems.

When recording a night scene with IR, using a day-and-night camera without an IR-corrected lens can cause the focus to shift. This happens because IR light and visible light have different wavelengths and refract differently through the lens. An IR-corrected lens is designed to handle both types of light without causing a focus shift, ensuring sharp images in both day and night conditions. References: Axis Communications product guides on day-and-night cameras and IR-corrected lenses.

For AXIS P3247-LVE, the last digit '7' indicates the camera resolution. Axis uses a numerical system where the last digit often denotes the resolution of the camera. In this case, '7' represents a camera with a resolution of 5 MP (megapixels), providing high-quality video surveillance suitable for detailed monitoring.

"The AXIS Camera Application Platform (ACAP) enables the development and deployment of edge applications directly on Axis devices, allowing for advanced analytics and custom functionality."

— Axis Camera Application Platform Overview

"ACAP is an open platform that allows partners and users to develop and run applications on Axis network devices."

— Axis Communications Academy, Network Video Fundamentals, 2022

"In Axis’ product naming convention, the suffix '-B' stands for 'Bullet camera,' indicating that the device is a bullet-style camera model."

— Axis Communications Academy, Network Video Fundamentals, 2022

“-B at the end of the model name typically refers to Bullet camera models, e.g., AXIS M2025-LE-B.”

— Axis Product Naming Guide

A continuously high bitrate in a video stream, even when using H.265 compression, is often due to significant movement within the scene. High levels of motion require more data to be encoded to maintain image quality, resulting in a higher bitrate. This is because the video encoder must frequently update large portions of the image to accurately represent the moving objects. Axis Communications' documentation on video bitrate management indicates that scenes with much movement lead to increased bitrate due to the dynamic changes requiring constant encoding.

"Motion blur is more prominent when an object moves perpendicularly (across) to the camera because it traverses more pixels per frame, compared to an object moving toward or away from the camera."

— Axis Communications Academy, Network Video Fundamentals, 2022

"Perpendicular movement causes greater pixel change in each frame, resulting in more noticeable motion blur."

— Axis Motion Blur Guide

A MAC (Media Access Control) address is a unique physical address assigned to network interfaces for communication on the physical network segment. It is used for direct data exchange within a network, ensuring that data packets are delivered to the correct device. Unlike IP addresses, MAC addresses operate at the data link layer (Layer 2) of the OSI model and are hard-coded into the network interface card (NIC) by the manufacturer. References: Axis Communications networking guides and standard networking principles.

The product selector tool for Axis products enables system designers to design a complete surveillance system and generate a bill of materials. This tool helps in selecting the appropriate cameras, accessories, and software based on specific project requirements, ensuring all necessary components are included for a functional setup. Axis Communications offers this tool on their website, supported by detailed documentation and tutorials to assist users in the system design process.

Top of Form

Bottom of Form

For outdoor cameras, not using the proper connectors, such as weatherproof or waterproof connectors, can lead to water ingress. This can damage the camera’s internal components, leading to malfunctions or complete failure of the device. Axis outdoor cameras are designed with specific connectors to ensure they are sealed against environmental factors like moisture, dust, and temperature extremes. According to Axis installation guides, ensuring the correct connectors are used is crucial for maintaining the camera's IP rating and long-term reliability.

"An IR-corrected lens is designed to keep the image in focus for both visible and infrared light, ensuring the camera stays in focus when switching from day (color) mode to night (IR) mode."

— Axis Communications Academy, Network Video Fundamentals, 2022

"IR-corrected lenses prevent focus shift when the camera switches between visible and infrared illumination."

— Axis Lens Accessories Guide

Accelerometers are used in Axis cameras primarily for shock detection. They detect sudden movements or impacts that might indicate tampering or vandalism. When a shock is detected, the camera can trigger alerts or initiate protective actions to safeguard the device and maintain surveillance integrity. Axis technical specifications detail the use of accelerometers in various models for enhanced security through shock detection.

"Lossy compression algorithms such as H.264 and H.265 achieve greater bitrate reduction by discarding some image information, which is not recoverable. This enables efficient transmission and storage while maintaining acceptable image quality."

— Axis Communications Academy, Network Video Fundamentals, 2022

"Lossy compression reduces the file size significantly by removing information that is not needed for human viewing. The removed content cannot be restored."

— Axis Web Article: Video Compression

"Lightfinder technology provides Axis cameras with extreme light sensitivity, enabling them to deliver high-quality, full color images in extremely low-light conditions."

— Axis Lightfinder Technology Overview

"Lightfinder technology allows for color images in situations where other cameras would only produce black-and-white."

— Axis Communications Academy, Network Video Fundamentals, 2022

"A key advantage of server-based storage is that the servers can be installed in secure, access-controlled locations, improving the physical security of recorded video data."

— Axis Video Surveillance Storage White Paper

"Server-based storage allows for secure placement and centralized management."

— Axis Communications Academy, Network Video Fundamentals, 2022

In environments with rain or snow, an Axis bullet camera benefits from having a weather shield that tilts with the camera. This shield helps protect the camera's glass front from raindrops and snow, ensuring clear visibility and reducing the need for frequent cleaning. The design helps maintain optimal image quality in various weather conditions.

"AXIS Device Manager gives you access to important device information, including warranty status, device age, and more. This helps users plan for maintenance and replacements."

— Axis Device Manager User Manual

"With AXIS Device Manager, you can view the warranty status of your Axis devices in your network."

— Axis Communications Academy, Network Video Fundamentals, 2022

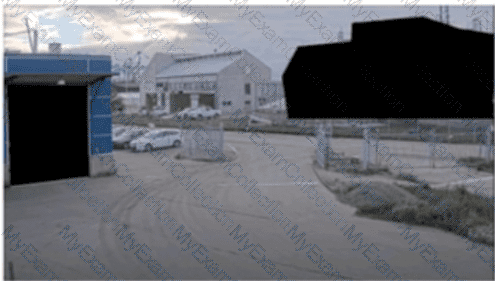

Privacy masks in an Axis camera can be activated and deactivated per stream profile. This allows for flexibility in managing different viewing needs and ensuring privacy in specific scenarios. Users can configure privacy masks to appear in one stream but not in another, making it a versatile feature for various applications. Axis Communications' documentation on privacy masks confirms this capability.

“Shutter speed determines how long the camera sensor is exposed to light. A fast shutter speed minimizes motion blur, while a slow shutter speed increases the likelihood of motion blur in moving objects.”

— Axis Communications Academy, Network Video Fundamentals, 2022

“Motion blur in surveillance footage is primarily affected by the camera’s shutter speed setting, not the frame rate or compression.”

— Axis Communications, Shutter and Exposure

"When a lens intended for a larger sensor is used on a smaller sensor camera, the projected image circle does not fully cover the sensor area, causing vignetting or black corners in the image."

— Axis Lens Guide White Paper

"Black corners or vignetting often result from a mismatch between lens and sensor size."

— Axis Communications Academy, Network Video Fundamentals, 2022

The maximum distance from a midspan to a camera requiring PoE+ (25.5 W) is 100 meters (328 feet). This distance limitation is due to the standard Ethernet cable length limit, ensuring effective power delivery and data transmission over the network.

Low contrast between an object and its background makes video analytics more challenging. Video analytics algorithms rely on distinguishing features and differences between objects and their surroundings to detect and analyze activity. When contrast is low, it becomes harder for these algorithms to accurately identify and track objects, leading to potential errors and reduced performance. Axis documentation highlights the importance of adequate contrast for effective video analytics and suggests measures to enhance contrast where necessary.

The primary purpose of the accessory on this dome camera is to reduce the weather impact. This accessory, often referred to as a weather shield or rain guard, helps protect the camera lens from rain, snow, and other environmental elements, ensuring clear visibility and reducing the need for maintenance. It also helps to minimize the impact of direct sunlight, reducing glare and improving image quality.

A PoE switch with a power budget of 90 W can power 12 class 2 devices. Class 2 PoE devices typically require up to 7.5 W each. By dividing the total power budget (90 W) by the power requirement per device (7.5 W), we get 12 devices. This calculation aligns with the PoE standards defined in IEEE 802.3af/at, as outlined in Axis Communications' technical resources.

Axis cameras offer several advanced focus technologies to enhance image clarity and ease of use. Focus Pinpoint allows for precise manual focus adjustments, ensuring sharpness in critical areas. Focus Recall enables cameras to remember and quickly return to pre-set focus positions, which is useful for surveillance scenarios where the camera frequently moves between different points of interest. According to Axis documentation, these technologies are designed to improve the accuracy and efficiency of camera setup and operation.

When replacing an analog camera with an IP camera, a video encoder is useful because it allows the integration of analog cameras into an IP-based system. The encoder converts analog video signals into digital streams that can be transmitted over an IP network, enabling the continued use of existing analog cameras while transitioning to modern IP infrastructure. Axis provides detailed information on their video encoders and their applications in various scenarios in their technical documentation and product brochures.

Top of Form

Bottom of Form

“Modular cameras (also called sensor units) are ideal for discreet and flexible installations in tight or unconventional spaces, such as ATMs, vending machines, and door intercoms, because the sensor and main unit can be separated and mounted independently.”

— Axis Communications Academy, Network Video Fundamentals, 2022

“Axis modular cameras are specifically designed for integration into machines, kiosks, and other compact environments where space is limited.”

— Axis Modular Cameras Product Overview

The main benefit of signed firmware is that it allows the device to verify the integrity and authenticity of the firmware before it is installed. This process ensures that the firmware has not been tampered with and is from a trusted source, thereby enhancing the security of the device. Signed firmware prevents unauthorized or malicious firmware from being installed, which is crucial for maintaining the security and reliability of network devices. Axis documentation emphasizes the importance of signed firmware in protecting devices from potential security threats by verifying the firmware's integrity.

Outdoor-ready cameras from Axis can be equipped with a cooling fan and a heater element to handle varying weather conditions. The cooling fan helps manage high temperatures by preventing overheating, while the heater element ensures the camera operates effectively in cold environments by preventing frost and condensation. These features allow the camera to maintain optimal performance and reliability regardless of the weather, as specified in Axis' product datasheets and technical specifications for outdoor models.

Top of Form

Bottom of Form

The three types of field of view are telephoto, wide-angle, and normal. A wide-angle lens provides a broader view, a normal lens offers a standard view comparable to the human eye, and a telephoto lens allows for a narrower field of view with greater magnification. Axis Communications' technical resources detail these field of view options for different camera lenses.

A system designer can compare the light sensitivity of network cameras from different manufacturers by checking the specified lux values of the cameras. Lux is a unit of measurement for illuminance, indicating how much light is needed for the camera to produce a usable image. Lower lux values indicate better low-light performance. While field testing can also be useful, lux values provide a standardized and quick reference for comparison. References: Axis Communications product specifications and industry standards on light sensitivity.

Top of Form

Bottom of Form

Typically, a system designer calculates the pixel density based on the horizontal resolution and the field of view. Pixel density is crucial in determining the level of detail a camera can capture in a specific area. Horizontal resolution refers to the number of pixels along the horizontal axis of the image sensor, while the field of view is the extent of the observable area captured by the camera. This calculation helps in ensuring that the camera setup meets the surveillance requirements.

"A solid amber (orange) status LED indicates that the device is starting up."

— Axis LED Indicators Guide

"During startup, the status indicator is amber."

— Axis Communications Academy, Network Video Fundamentals, 2022

“For covering narrow aisles, a vertical aspect ratio such as 9:16 is preferred as it matches the shape of the scene, allowing for better coverage and detail along the aisle’s length.”

— Axis Communications Academy, Network Video Fundamentals, 2022

“The corridor format (9:16 aspect ratio) maximizes image usability in vertically oriented scenes, such as warehouse aisles or hallways.”

— Axis Corridor Format Technology

A P-iris lens has better iris control in all lighting conditions. P-iris (Precise iris) lenses are designed to optimize the depth of field, contrast, and resolution of the camera by precisely controlling the iris opening, ensuring optimal image quality in varying light conditions. This technology is superior to manual, fixed, and DC-iris lenses. Axis Communications' product specifications highlight the benefits of P-iris lenses in maintaining image quality across different lighting scenarios.

External (non-integrated) IR illumination can significantly enhance the performance of surveillance cameras in low-light conditions. By increasing contrast in the scene, it allows the camera to capture clearer images with more detail. Additionally, external IR illumination provides more flexibility in placement and coverage, ensuring that the entire area of interest is adequately illuminated. This can be particularly useful in large or irregularly shaped areas where integrated IR might not be sufficient. Axis documentation supports the use of external IR illuminators to improve image quality and scene visibility in low-light environments.

An opportunistic attack is characterized by the attacker not being acquainted with the target. These attacks are typically random and take advantage of any available vulnerability rather than being specifically targeted at a particular system or organization. The attacker usually seeks easy targets with known vulnerabilities and acts quickly when an opportunity arises. Axis security documentation describes opportunistic attacks as generally unsophisticated, focusing on exploiting common and readily available weaknesses in systems.

OptimizedIR technology in Axis cameras adjusts the IR illumination to match the camera's field of view. This ensures that the IR light is evenly distributed across the scene, reducing the risk of overexposure and enhancing image quality. Furthermore, this alignment helps to maintain image clarity and detail by preventing hot spots and ensuring a balanced exposure across the entire frame. According to Axis documentation, these benefits help improve the effectiveness of night-time surveillance and reduce the need for additional external IR illuminators.

"A shorter exposure time, such as 1/500 second, is recommended for capturing fast-moving objects in order to minimize motion blur, especially in well-lit conditions where there is sufficient light for proper exposure."

— Axis Communications Academy, Network Video Fundamentals, 2022

"To freeze fast-moving subjects, use fast shutter speeds such as 1/500s or shorter."

— Axis Web Article: Shutter and Exposure

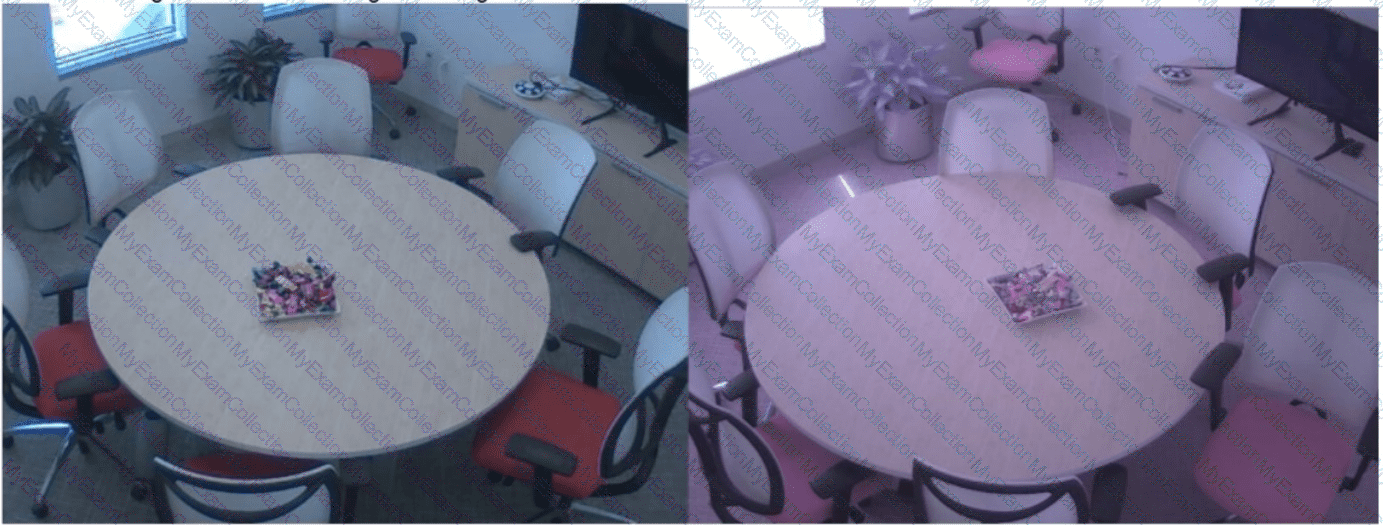

"If the IR-cut filter is stuck or not functioning properly, it can cause a color cast or unnatural tint in the image during daylight, similar to what is shown in the right image."

— Axis Communications Academy, Network Video Fundamentals, 2022

"A stuck IR-cut filter often causes an unnatural magenta or pinkish hue in daylight scenes."

— Axis Technical Note: IR-cut Filter Issues

The reason why the camera is not blinded by the headlights is that an IR-pass filter is in use. This filter blocks out visible light, including the bright headlights, and allows only infrared light to pass through. This is particularly useful in nighttime surveillance scenarios where the camera can rely on infrared illumination instead of visible light, ensuring clear visibility even in the presence of bright lights like headlights.

Video analytics applications detect movement perpendicular to the camera more easily than movement toward or away from the camera. This is because objects moving perpendicular to the camera create more significant changes in the pixel patterns, making it easier for the analytics software to detect and analyze the movement. Movement toward or away from the camera results in smaller changes in pixel patterns, which can be harder to detect accurately. References: Axis Communications documentation on video analytics and movement detection.

A full HD sensor has a 1080p resolution. Full HD, or FHD, refers to a resolution of 1920 x 1080 pixels, which is commonly used in high-definition video and surveillance systems for providing clear and detailed images.

For an outdoor school playground, the most appropriate IP rating is IP67. This rating indicates that the camera is completely protected against dust (the first digit '6') and can withstand immersion in water up to 1 meter for 30 minutes (the second digit '7'). This level of protection is ideal for outdoor environments where the camera may be exposed to dust, rain, and other environmental factors.

"Bandwidth refers to the maximum rate of data transfer across a given network path. It is measured in bits per second (bps) and determines how much data can be transmitted over a network in a given amount of time."

— Axis Communications Academy, Network Video Fundamentals, 2022

"Bandwidth is a measure of the network's capacity to carry data, not the amount of data a device produces or the storage available."

— Axis Communications, Understanding Bandwidth

Concrete has the lowest reflectance among the listed surfaces. Reflectance refers to the ability of a surface to reflect light, and concrete typically reflects less light compared to sand, grass, or snow. This characteristic is important for surveillance in terms of minimizing glare and ensuring better image quality. Axis Communications' documentation on environmental considerations supports this information.

“Axis devices can use action rules with conditions such as schedule, input, or motion detection. For example, an action rule can be set to play a sound through a network speaker if motion is detected outside of business hours.”

— Axis Communications Academy, Network Video Fundamentals, 2022

“Action rules allow users to automate responses to events by setting conditions. Example: If motion is detected after hours, play a pre-recorded message on a network speaker.”

— Axis Device Event Configuration Guide

Axis thermal cameras are designed to detect activity in both daylight and complete darkness by capturing the heat emitted by objects and people. Unlike traditional cameras that rely on visible light, thermal cameras are effective in various lighting conditions, including complete darkness, fog, smoke, and even camouflaged objects. This makes them suitable for perimeter protection and monitoring in challenging environments. [Reference: Axis Communications - Thermal Cameras]

AXIS Design Tool is used for determining camera coverage and creating a bill of materials. This tool helps system designers and installers to accurately plan camera placements, ensuring optimal coverage of the surveillance area, and to generate a comprehensive list of required components, facilitating project planning and budgeting.

When dealing with a poorly lit scene, adding light is the most effective option to improve image quality. Proper illumination ensures that the camera's sensor can capture clear and detailed images, reducing noise and enhancing visibility. While adjusting exposure settings, brightness, or changing camera placement can help, they are secondary to the fundamental requirement of adequate lighting.

The AXIS T8414 Installation Display is a portable tool used for easy and efficient installation of network cameras. It can power up a PoE (Power over Ethernet) camera, allowing the installer to work without needing an additional power source. Additionally, the display can take snapshots, which helps in verifying the camera's field of view and focus during installation. It does not support accessing a camera's home page, resetting to factory defaults, or reading user documentation directly. For more details, refer to Axis Communications' product manual for the AXIS T8414 Installation Display.

Top of Form

Bottom of Form

People counting analytics with Axis cameras are utilized for various purposes. In retail stores, these analytics provide valuable statistics on customer foot traffic, helping with operational and marketing decisions. Enhanced service levels for public transportation benefit from people counting by monitoring passenger loads and optimizing service schedules. Crowd detection for marketing purposes leverages the analytics to understand customer behavior and preferences in different areas, which can influence marketing strategies. Axis Communications highlights these use cases in their documentation, emphasizing the analytics' role in improving operational efficiency and strategic planning.

The H.264 compression standard is highly efficient and can significantly reduce bandwidth and storage requirements compared to Motion JPEG. This is because H.264 uses both intra-frame and inter-frame compression, which reduces the amount of data needed to represent video by eliminating redundant information between successive frames. Axis Network Video documentation states that H.264 can reduce the required bandwidth and storage by up to 50% or more in typical surveillance scenarios, making it an advantageous choice for video compression in surveillance systems.

The IP51 and IP52 ratings indicate that the camera is protected against dust and dripping water. IP51 means the camera is protected against dust ingress to a level that would interfere with the operation and against vertically dripping water. IP52 offers the same dust protection but also protects against dripping water when tilted up to 15 degrees. These ratings make the cameras suitable for indoor use where dust and minor water exposure might occur. Axis Network Video documentation specifies the IP rating system and the levels of protection provided by different ratings.

When using the AXIS Design Tool, it is crucial to convey to the end user that the calculations provided are only estimates and not final numbers. The tool is designed to offer a rough estimate of network bandwidth and storage needs based on various factors such as camera resolution, frame rate, and compression. However, real-world conditions and specific system configurations can affect these calculations, so they should be treated as approximations rather than exact figures.

If the live Motion JPEG video appears pixelated without digital zoom, decreasing the image compression would be the best approach to improve the image quality. Higher compression reduces the amount of data and can result in pixelation. By lowering the compression, the image retains more data and detail, thus reducing pixelation.

The P-iris (Precise Iris Control) technology in Axis cameras ensures optimal image quality by precisely controlling the iris position. In bright lighting conditions, P-iris prevents the iris from closing too much, which can cause blurring due to diffraction. Instead, it maintains an optimal iris opening to balance depth of field and image sharpness. For more information, consult Axis Communications' technical notes on P-iris technology.

To identify people with 80 pixels per face in a hallway that is 2.5 meters wide, a minimum resolution of 1280x720 (720p) is needed. This resolution ensures sufficient pixel density to capture detailed facial features necessary for identification purposes. Given the width of the hallway and the required pixel density, 720p provides the necessary coverage and detail.

The AXIS P1344-E and AXIS P3344-VE are outdoor-rated products designed to withstand harsh environmental conditions. The "E" in AXIS P1344-E denotes an enclosure suitable for outdoor use, providing protection against weather and vandalism. Similarly, the AXIS P3344-VE is specifically designed for outdoor environments, offering features such as weather resistance and rugged casing to ensure reliable operation in various conditions. [Reference: Axis Communications - Outdoor Surveillance Products Specifications]

The ONVIF (Open Network Video Interface Forum) standard provides several benefits to end users. One key benefit is that it helps create future-proof systems and more secure investments by ensuring interoperability between different manufacturers' devices, which protects against obsolescence. Additionally, ONVIF increases flexibility and offers greater freedom of choice, allowing users to mix and match devices from different vendors, thereby tailoring their security systems to specific needs without being locked into a single manufacturer's ecosystem.

Managed switches offer a variety of security features essential for maintaining the integrity and confidentiality of network data. IEEE 802.1X port-based authentication ensures that only authorized devices can connect to the network by requiring each device to authenticate itself before gaining access. HTTPS encryption provides secure communication over the network by encrypting the data being transmitted, protecting it from interception and tampering. These two features are critical for securing network traffic and preventing unauthorized access. Axis Network Video documentation highlights the importance of these features in maintaining a secure video surveillance network.

The AXISP7214 encoder is designed to support multiple video streams per channel and is capable of delivering high frame rates and resolutions, such as D1 resolution at 30 fps in H.264 format. This encoder can handle the strict requirements of delivering 30 fps for recorded video while managing three streams per channel. Axis Network Video documentation specifies that the AXISP7214 is optimized for high-performance video encoding, making it suitable for applications demanding multiple streams and high frame rates.

In a network surveillance installation, the primary purpose of a switch is to forward the video stream to the correct receiver within a network. This functionality ensures that the video data captured by cameras is correctly directed to the appropriate storage device, monitoring station, or viewing client within the local network. Switches operate at the data link layer (Layer 2) of the OSI model and utilize MAC addresses to ensure that data packets reach their intended destination efficiently.
