300-720 Securing Email with Cisco Email Security Appliance (300-720 SESA) Question and Answers

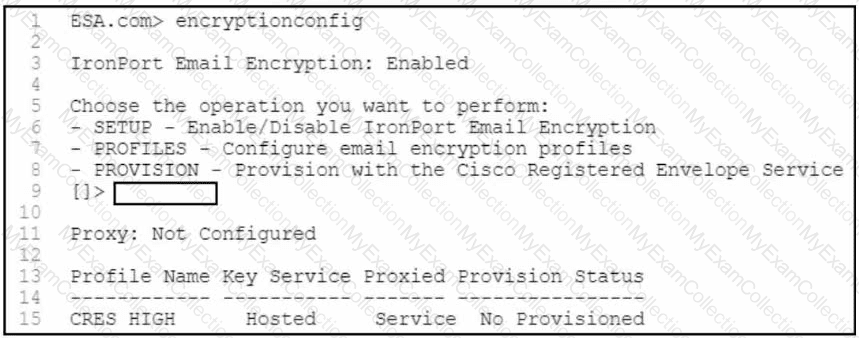

To allow the Cisco ESA to encrypt an email using the CRES (Cisco Registered Envelope Service), a provisioned email encryption profile must be configured on Cisco ESA. A provisioned email encryption profile is a type of encryption profile that specifies how messages are encrypted using CRES, such as the encryption key strength, the notification options, the branding settings, etc.

References: User Guide for AsyncOS 15.0 for Cisco Secure Email Gateway, page 12-4.

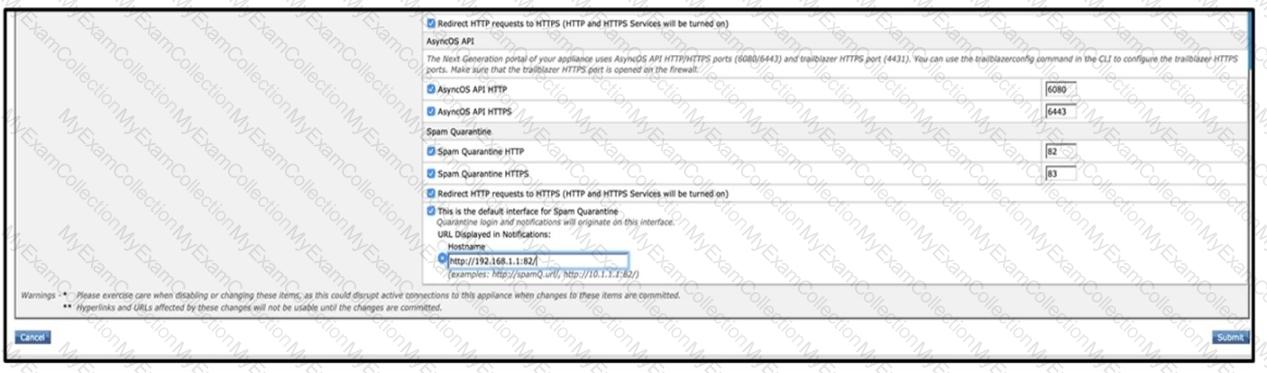

The default port to deliver emails from the Cisco ESA to the Cisco SMA using the centralized Spam Quarantine is 6025. This is the default value for the Port setting in the External Spam Quarantine configuration on Cisco ESA. This port must be open on both Cisco ESA and Cisco SMA for the communication to work.

References: User Guide for AsyncOS 15.0 for Cisco Secure Email Gateway, page 10-4.

A filter is a method that enables an engineer to deliver a flagged message to a specific virtual gateway address in the most flexible way. A filter is a rule that allows Cisco ESA to perform actions on messages based on predefined or custom conditions, such as headers, envelope, body, attachments, etc.

To deliver a flagged message to a specific virtual gateway address using a filter, the engineer can create a content filter or message filter that matches the flag condition and applies an action of “deliver via alternate host” with the virtual gateway address as the parameter.

The other options are not methods that enable an engineer to deliver a flagged message to a specific virtual gateway address in the most flexible way, because they have more limitations or requirements than using a filter.

References: User Guide for AsyncOS 15.0 for Cisco Secure Email Gateway, page 8-3 and page 8-7.

To use DKIM for outbound email, the administrator must export the DNS TXT record from the Cisco Secure Email Gateway and provide it to the DNS registrar of the domain. This will allow the recipient servers to verify the DKIM signature of the email by querying the DNS record of the sender domain. References: [Cisco Secure Email Gateway Administrator Guide - Configuring DKIM Signing]

To allow the Cisco ESA to encrypt an email using the CRES (Cisco Registered Envelope Service), a provisioned email encryption profile must be configured on Cisco ESA. A provisioned email encryption profile is a type of encryption profile that specifies how messages are encrypted using CRES, such as the encryption key strength, the notification options, the branding settings, etc.

References: User Guide for AsyncOS 15.0 for Cisco Secure Email Gateway, page 12-4.

The altsrchost command enables an engineer to deliver a flagged message to a specific virtual gateway address in the most flexible way. This command allows you to specify an alternate source host for messages that match a message filter. You can use this command to route messages to different virtual gateways based on the message content or attributes.

References: Securing Email with Cisco Email Security Appliance (SESA) v3.1, Module 5: Using Message Filters to Enforce Email Policies, Lesson 1: Using Message Filters

A regular expression is a sequence of characters that defines a search pattern for text. To match a string of 123ABCDEFGHJ, you need to use the following regular expression: \d{3}[A-Z]{9}. This expression means that the string must start with three digits (\d{3}), followed by nine uppercase letters ([A-Z]{9}). This expression will match any string that has the same format as 123ABCDEFGHJ. References = User Guide for AsyncOS 12.0 for Cisco Email Security Appliances - GD (General Deployment) - Regular Expressions [Cisco Secure Email Gateway] - Cisco

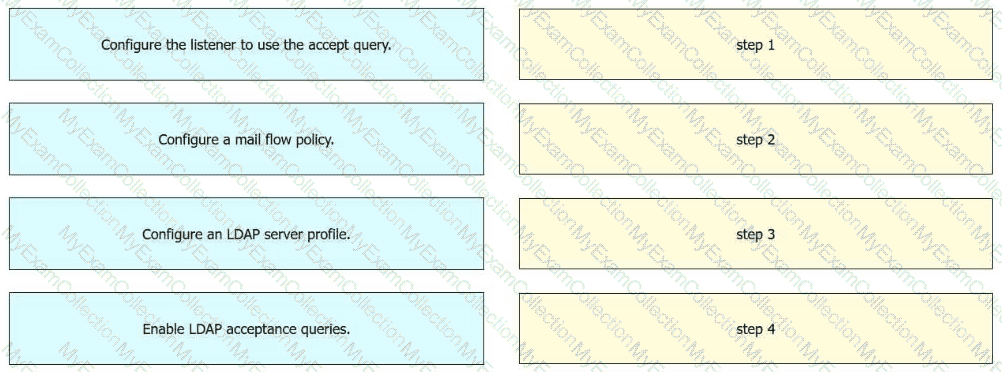

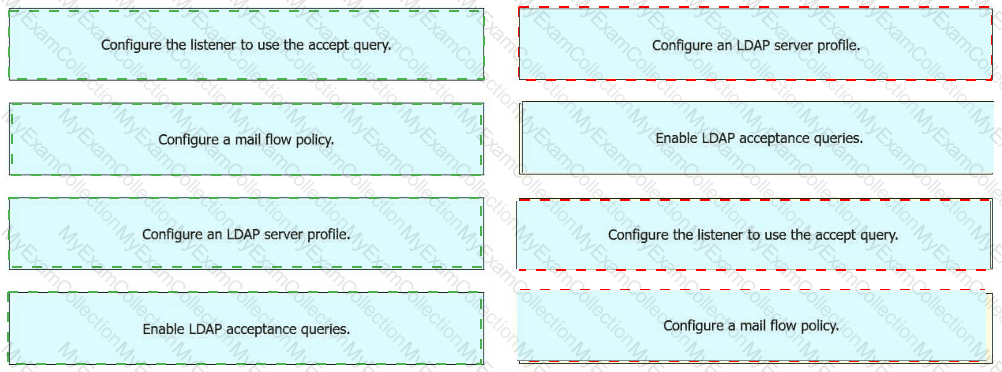

If you store user information within LDAP directories in your network infrastructure you can configure the appliance to query your LDAP servers to accept, route, and authenticate messages. https://www.cisco.com/c/en/us/td/docs/security/esa/esa11-0/user_guide_fs/b_ESA_Admin_Guide_11_0/b_ESA_Admin_Guide_chapter_011010.html

The maximum attachment size to scan is a configuration on the scan behavior that determines the maximum size of an attachment that Cisco ESA will scan for viruses and malware. If an attachment exceeds this size, Cisco ESA will apply the configured action for unscannable messages, such as deliver, drop, or quarantine.

To allow the attachment to be scanned on the Cisco ESA, this configuration must be updated to a larger value than the attachment size, which is 10 MB according to the message header.

The other options are not valid configurations to allow the attachment to be scanned on the Cisco ESA, because they do not affect the maximum attachment size to scan.

References: User Guide for AsyncOS 15.0 for Cisco Secure Email Gateway, page 7-3 and page 7-4.

STARTTLS is an SMTP extension that allows email servers to negotiate a secure connection using TLS or SSL encryption. Cisco ESA supports STARTTLS for both inbound and outbound email delivery.

References: User Guide for AsyncOS 15.0 for Cisco Secure Email Gateway, page 5-2.

SenderBase Reputation Filtering is a feature that allows Cisco ESA to reject or throttle connections from email servers based on their reputation score, which is calculated by Talos using sensor information from various sources.

References: User Guide for AsyncOS 15.0 for Cisco Secure Email Gateway, page 6-2.

A DMARC verification profile is a list of parameters that the mail flow policies of the appliance use for verifying DMARC. The name of the verification profile identifies the profile and allows you to apply it to different mail flow policies. The message action to take when the policy is reject/quarantine determines how the appliance handles messages that fail DMARC verification based on the sender’s DMARC policy.

References: User Guide for AsyncOS 12.0 for Cisco Email Security Appliances - GD (General Deployment), Chapter: Email Authentication, Section: Configuring DMARC Verification

ceo@example.com is the data that must be added to the dictionary to accomplish this goal. A content dictionary is a list of values that can be used as a condition in a content filter or a message filter. Forged Email Detection is a feature that allows Cisco ESA to detect and prevent email spoofing attacks, where the sender’s address or domain is forged to appear as someone else, such as the CEO of the organization.

To create a content dictionary for use with Forged Email Detection on Cisco ESA, the administrator can follow these steps:

• Select Mail Policies > Content Dictionaries and click Add Dictionary.
• Enter a name and description for the content dictionary, such as CEO Email.
• Under Dictionary Values, click Add Value.
• Enter the email address of the CEO, such as ceo@example.com.
• Click Submit.

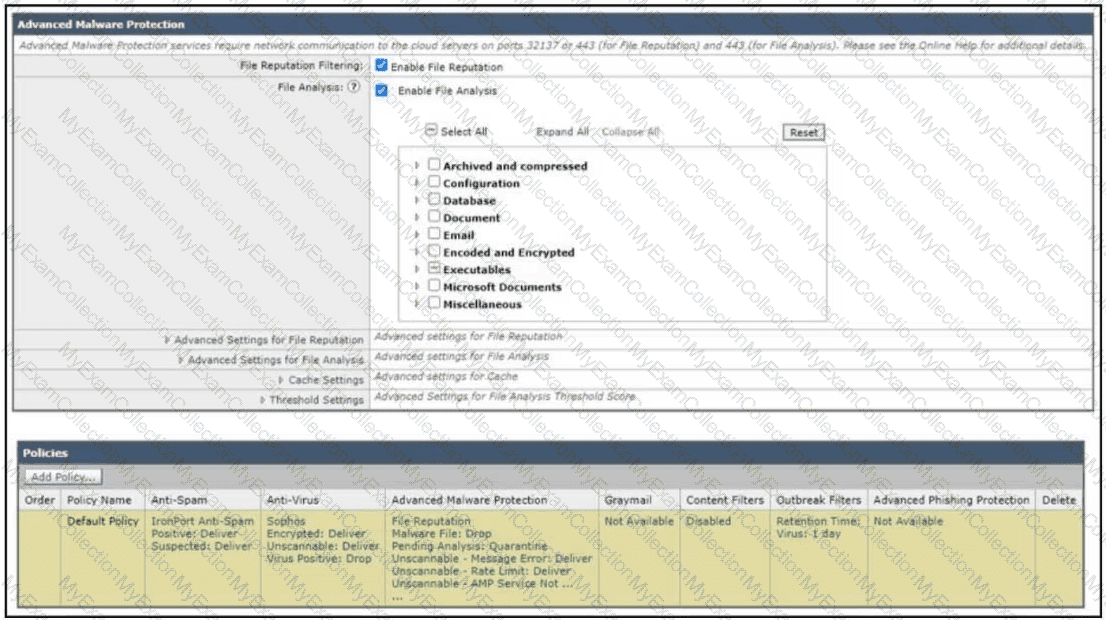

Overview of File Reputation Filtering and File Analysis:

Advanced Malware Protection protects against zero-day and targeted file-based threats in email attachments by:

-Obtaining the reputation of known files.

-Analyzing behavior of certain files that are not yet known to the reputation service.

-Continuously evaluating emerging threats as new information becomes available, and notifying you about files that are determined to be threats after they have entered your network.

-This feature is available for incoming messages and outgoing messages.

https://www.cisco.com/c/en/us/td/docs/security/esa/esa11-1/user_guide/b_ESA_Admin_Guide_11_1/b_ESA_Admin_Guide_chapter_010000.html?bookSearch=true

Relay is the connection behavior that must be selected to properly process the messages. Relay allows Cisco ESA to accept messages from the specified source and deliver them to the intended destination, without applying any content or reputation filters.

To configure a mail flow policy with relay connection behavior on Cisco ESA, the administrator can follow these steps:

• Select Mail Policies > Mail Flow Policies and click Add Policy.
• Enter a name and description for the mail flow policy, such as Exchange Outbound.
• Under Connection Behavior, select Relay.
• Click Submit.

The other options are not valid connection behaviors to properly process the messages, because they either reject, delay, or accept the messages with content or reputation filters applied.

References: [User Guide for AsyncOS 15.0 for Cisco Secure Email Gateway], page 6-2 and page 6-3.

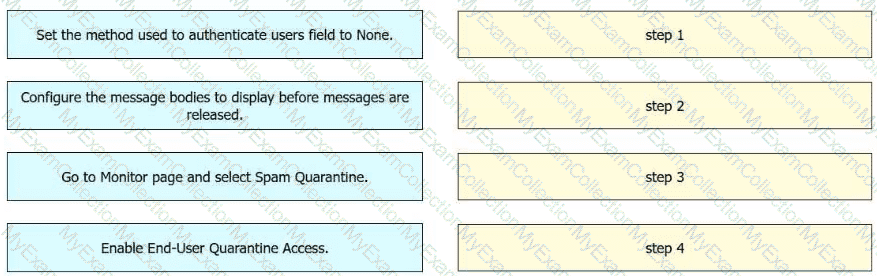

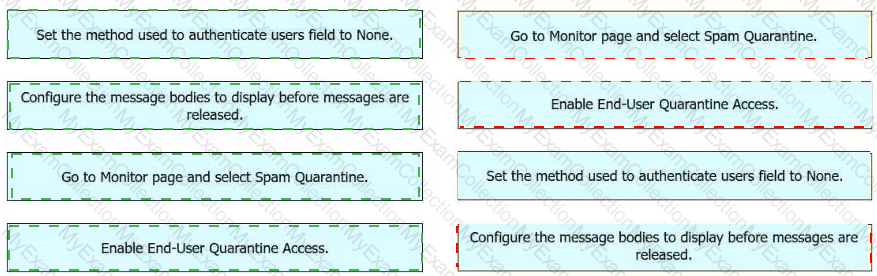

Enabling End-User Quarantine Access and pointing to an LDAP server for authentication is the action that must be taken to meet this requirement. End-User Quarantine Access is a feature that allows users to access their personal quarantine on Cisco ESA using their email address and password, without requiring an administrator account or access to Secure Email and Web Manager.

To enable End-User Quarantine Access on Cisco ESA, the administrator can follow these steps:

• Select Security Services > IronPort Anti-Spam > End User Safelist/Blocklist Settings and click Edit Settings.
• Under End User Quarantine Access, select Enable End User Quarantine Access.
• Under Authentication Server, select LDAP Server from the drop-down menu and choose an LDAP server profile from the drop-down menu.
• Click Submit.

 in the spam quarantine section, you can configure settings for access to the spam quarantine, and by default, HTTP uses port 82 and HTTPS uses port 83.

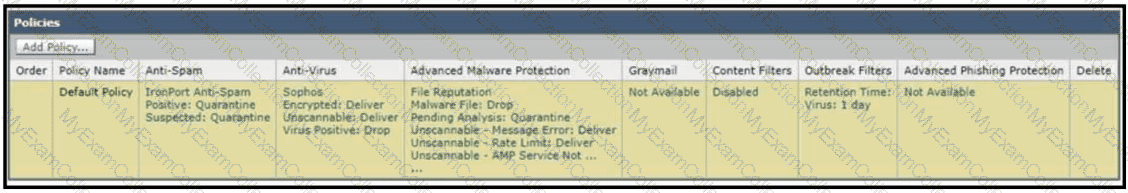

Outbreak filters and antivirus are two features that can be applied to either incoming or outgoing mail policies on Cisco ESA. Outbreak filters allow Cisco ESA to detect and block messages that contain new or emerging email threats, such as viruses, worms, phishing, or spam, by using real-time updates from Talos intelligence. Antivirus allows Cisco ESA to scan messages for known viruses and malware using one or two antivirus engines (Sophos and McAfee).

References: User Guide for AsyncOS 15.0 for Cisco Secure Email Gateway, page 6-16 and page 7-2.

• System: This is the default list of trusted certificate authorities that is provided by Cisco and updated automatically. It contains the certificates of well-known and widely used certificate authorities, such as VeriSign, Thawte, and GoDaddy.
• Custom: This is the list of additional certificate authorities that you can add manually or import from a file. It allows you to trust certificates that are issued by your own or third-party certificate authorities that are not included in the system list.

By modifying the mail policies, specifically the recipient matching criteria, you can ensure that email recipients do not match multiple policies simultaneously. When recipients in the email message belong to different domains (e.g., cisco.com and test.com), it can result in multiple policies being triggered simultaneously, leading to inconsistent delivery of emails with attachments.

DLP is for outgoing mail only and not relevant to incoming mail.

Spam threshold is a setting that determines the minimum score that a message must have to be classified as spam by Cisco ESA. The lower the threshold, the more aggressive the spam detection is.

References: User Guide for AsyncOS 15.0 for Cisco Secure Email Gateway, page 6-5.

ceo@example.com is the data that must be added to the dictionary to accomplish this goal. A content dictionary is a list of values that can be used as a condition in a content filter or a message filter. Forged Email Detection is a feature that allows Cisco ESA to detect and prevent email spoofing attacks, where the sender’s address or domain is forged to appear as someone else, such as the CEO of the organization.

To create a content dictionary for use with Forged Email Detection on Cisco ESA, the administrator can follow these steps:

• Select Mail Policies > Content Dictionaries and click Add Dictionary.
• Enter a name and description for the content dictionary, such as CEO Email.
• Under Dictionary Values, click Add Value.
• Enter the email address of the CEO, such as ceo@example.com.
• Click Submit.

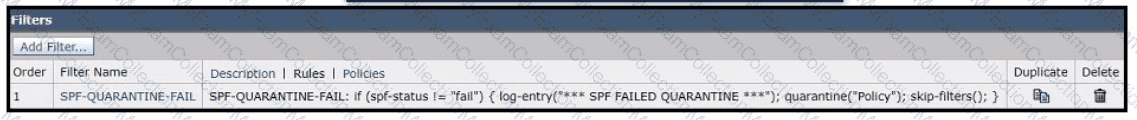

spf-status is the section of the filter that must be modified to correct this behavior. spf-status is a condition that determines whether a message matches the content filter rule based on the result of SPF verification, such as pass, fail, neutral, etc.

The content filter in the exhibit has a spf-status condition set to “Pass”, which means that it will match messages that passed SPF verification and apply the action of “Quarantine”. This is the opposite of what the network engineer intended to do.

To correct this behavior, the network engineer can modify the spf-status condition to “Fail”, which means that it will match messages that failed SPF verification and apply the action of “Quarantine”.

The other options are not valid sections of the filter that must be modified to correct this behavior, because they do not affect the spf-status condition.

References: [User Guide for AsyncOS 15.0 for Cisco Secure Email Gateway], page 8-3 and page 8-4.

Modify Subject is an additional option that should be used to help the end users be aware of the elevated risk of interacting with these messages. Modify Subject allows the administrator to add a prefix or suffix to the message subject, such as “[SPF Fail]”, to indicate that the message has failed the SPF verification and may be fraudulent or spoofed.

The other options are not valid additional options to help the end users be aware of the elevated risk of interacting with these messages, because they do not affect the message subject or provide any warning to the end users.

References: User Guide for AsyncOS 15.0 for Cisco Secure Email Gateway, page 8-7 and page 8-8.

The default port to deliver emails from the Cisco ESA to the Cisco SMA using the centralized Spam Quarantine is 6025. This is the default value for the Port setting in the External Spam Quarantine configuration on Cisco ESA. This port must be open on both Cisco ESA and Cisco SMA for the communication to work.

References: User Guide for AsyncOS 15.0 for Cisco Secure Email Gateway, page 10-4.

To enable domain protection for the organization, the administrator must configure an outgoing mail policy that matches the sender and the from headers of the email. The sender header is the envelope sender address that is used by SMTP to route the email. The from header is the address that is displayed to the recipient as the source of the email. These headers are used to generate and verify a DomainKeys Identified Mail (DKIM) signature, which is a cryptographic method of validating the authenticity and integrity of an email message.

The other headers are not relevant for domain protection. The message-ID header is a unique identifier for each email message. The URL reputation header is a score that indicates the likelihood of a URL being malicious. The mail-from header is an alias for the sender header.

Table Description automatically generated

Content filters are rules that allow Cisco ESA to perform actions on messages based on predefined or custom conditions, such as headers, envelope, body, attachments, etc.

The two primary components of content filters are:

• Conditions, which are the criteria that determine whether a message matches a content filter rule or not, such as message size, sender address, attachment type, etc.
• Actions, which are the operations that Cisco ESA performs on a message if it matches the conditions of a content filter rule, such as deliver, drop, quarantine, encrypt, etc.

The other options are not primary components of content filters on Cisco ESA.

References: User Guide for AsyncOS 15.0 for Cisco Secure Email Gateway, page 8-3 and page 8-4.

To enable domain protection for the organization, the administrator must configure an outgoing mail policy that matches the sender and the from headers of the email. The sender header is the envelope sender address that is used by SMTP to route the email. The from header is the address that is displayed to the recipient as the source of the email. These headers are used to generate and verify a DomainKeys Identified Mail (DKIM) signature, which is a cryptographic method of validating the authenticity and integrity of an email message.

The other headers are not relevant for domain protection. The message-ID header is a unique identifier for each email message. The URL reputation header is a score that indicates the likelihood of a URL being malicious. The mail-from header is an alias for the sender header.

Undesirable URL protection is a feature that allows Cisco ESA to detect and block messages that contain URLs that lead to malicious or unwanted websites, such as phishing, malware, or adult content sites. To enable this feature, outbreak filters and antispam scanning must be enabled on Cisco ESA.

References: User Guide for AsyncOS 15.0 for Cisco Secure Email Gateway, page 6-17.

A benefit of implementing URL filtering on the ESA is that it provides URL reputation protection. URL filtering uses SenderBase, a web-based service that collects information about URLs and domains from various sources, to assign a reputation score and a category to each URL. Based on these attributes, you can configure content or message filters to take actions on messages containing malicious or undesirable URLs.

References: User Guide for AsyncOS 12.0 for Cisco Email Security Appliances - GD (General Deployment), Chapter: Protecting Against Malicious or Undesirable URLs, Section: URL-Related Protections and Controls

Content filters are rules that allow Cisco ESA to perform actions on messages based on predefined or custom conditions, such as headers, envelope, body, attachments, etc.

The two primary components of content filters are:

• Conditions, which are the criteria that determine whether a message matches a content filter rule or not, such as message size, sender address, attachment type, etc.
• Actions, which are the operations that Cisco ESA performs on a message if it matches the conditions of a content filter rule, such as deliver, drop, quarantine, encrypt, etc.

The other options are not primary components of content filters on Cisco ESA.

References: User Guide for AsyncOS 15.0 for Cisco Secure Email Gateway, page 8-3 and page 8-4.

Enabling Logging of URLs and Message Tracking Details for URLs

Logging of URL-related logs, and display of this information in Message Tracking details, is disabled by default. This includes the logs for the following events:

Category of any URL in the message matches the URL category filters

Reputation score of any URL in the message matches URL reputation filters

Outbreak Filter rewrites any URL in the message

To enable logging of these events, use the outbreakconfig command in the command-line interface (CLI).

https://www.cisco.com/c/en/us/td/docs/security/esa/esa11-1/user_guide/b_ESA_Admin_Guide_11_1/b_ESA_Admin_Guide_chapter_01110.html?bookSearch=true

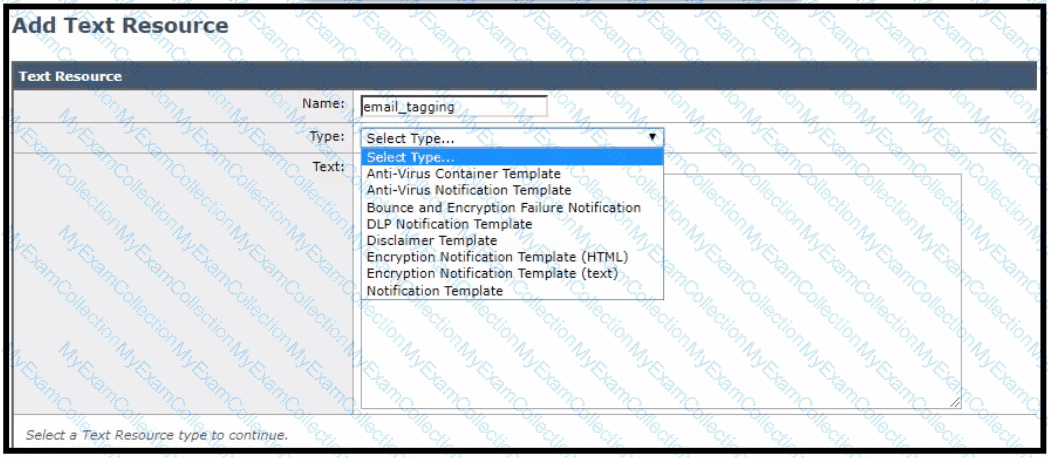

According to the [Cisco Secure Email User Guide], you can create a text resource of type Disclaimer Template and use the code view option to insert HTML code into the text box. Then, you can use this text resource in a content filter to prepend or append the HTML message to the email body[1, p. 15-16].

The other options are not valid because:

• A. Creating a text resource type of Disclaimer Template and pasting the HTML code into the text box without changing to code view will not work, as the HTML code will be treated as plain text and not rendered properly[1, p. 15].
• C. Creating a text resource type of Notification Template and pasting the HTML code into the text box will not work, as Notification Templates are used for sending notifications to senders or recipients, not for modifying the email body[1, p. 17].
• D. Creating a text resource type of Notification Template and changing to code view to paste the HTML code into the text box will not work, as Notification Templates are used for sending notifications to senders or recipients, not for modifying the email body[1, p. 17].

According to the [Cisco Secure Email Encryption Service Add-In User Guide], you can create an encryption profile that defines the encryption settings and options for your encrypted messages[2, p. 11]. You can also create an outgoing content filter that applies the encryption profile to the messages that match certain conditions, such as having [SECURE] in the subject header[2, p. 12]. This way, you can allow users to flag the messages that require encryption by adding [SECURE] to the subject line.

The other options are not valid because:

• A. Creating an encryption profile with [SECURE] in the Subject setting and enabling encryption on the mail flow policy will not work, as the Subject setting in the encryption profile is used to specify the subject line of the encrypted message envelope, not the original message[2, p. 11].
• B. Creating an outgoing content filter with no conditions and with the Encrypt and Deliver Now action configured with [SECURE] in the Subject setting will not work, as this will encrypt all outgoing messages regardless of whether they have [SECURE] in the subject line or not[2, p. 12].
• D. Creating a DLP policy manager message action with encryption enabled and applying it to active DLP policies for outgoing mail will not work, as this will encrypt messages based on DLP rules that detect sensitive data in the message content, not based on user flags in the subject line.
