300-620 Implementing Cisco Application Centric Infrastructure (300-620 DCACI) Question and Answers

In Cisco ACI, Intra-EPG Isolation is a feature that prevents communication between endpoints within the same EPG. By default, endpoints in the same EPG can communicate freely without requiring contracts. To disable communication between two backup servers within the same EPG (e.g., in the "Backup EPG"), you need to enforce Intra-EPG Isolation.

 To redistribute externally learned OSPF routes within the ACI fabric, a Route Control Profile must be configured1. This profile allows for the control of route redistribution and the application of route maps to influence routing decisions within the fabric1.

In a Cisco ACI fabric, when a silent host moves from one location to another without notifying the ACI leaf switch (e.g., via Gratuitous ARP), the detection mechanism depends on how the bridge domain is configured. Specifically, ARP flooding can help detect such silent hosts.

To ensure that destination updates from a newly created L3Out are propagated to all Cisco ACI leaf switches, a BGP route reflector policy should be applied. This policy allows the border leaf switches, which act as BGP route reflectors, to redistribute the learned routes to other leaf switches within the fabric1.

To prevent frequent MAC and IP address moves between different leaf switch ports, enabling rogue endpoint control is the recommended action. This feature helps in identifying and mitigating the movement of endpoints that could potentially cause loops or other issues within the network.

To create a backup of the Cisco ACI fabric for disaster recovery that is secure, encrypted, and in a format conducive to processing with a Python script, the engineer must select Secure Copy Protocol (SCP) for secure and encrypted transport. The backup file should be in JSON format, which is similar to a Python dictionary and can be easily processed by a Python script. Additionally, enabling Global AES Encryption ensures that all user and password-related information is included securely in the backup1.

 In the process of discovering a new Cisco ACI fabric, after the discovery of leaf 1 has been completed, the next nodes expected to be discovered are the spine switches. This is because the spines are typically connected to the leaf switches and play a central role in the fabric’s topology6.

https://www.cisco.com/c/en/us/td/docs/dcn/aci/apic/6x/l4-l7-configuration/cisco-apic-layer-4-to-layer-7-services-deployment-guide-60x/defining-a-logical-device-60x.html

The type of port used for in-band management within ACI fabric is the spine switch port4.

The import mode that must be used to ensure that the import process terminates if the imported configuration is incompatible with the existing system is the ‘atomic’ mode. This mode ignores shards that contain objects that cannot be imported while proceeding with shards that can be imported. If the incoming configuration’s version is incompatible with the existing system, the import process will terminate2.

To ensure that servers supporting only Cisco Discovery Protocol are discovered automatically by the Cisco ACI fabric when connected, the action that must be taken is to Create an override policy that enables Cisco Discovery Protocol after LLDP is enabled in the default policy group

To extend the EPG-100 to the vCenter as a port group with a tagged VLAN ID of 100, the following actions should be taken:

Define a static VLAN range (from 100-200) under a VLAN pool: This step involves creating a VLAN pool that includes the desired VLAN range. The VLAN pool is then associated with the VMM domain that corresponds to the vCenter integration1.

Associate the dc1vcdev domain with EPG: The VMM domain named ‘dc1vcdev’ should be associated with the EPG-100. This association allows for the automatic creation of port groups in vCenter when the EPG is associated with a VMM domain1.

Select the appropriate settings for the domain association:

Untagged VLAN Access: This should be unselected because the VLAN ID needs to be tagged.

VLAN Mode: Set to ‘Static’ to specify the encapsulation VLAN ID.

Encap: Set to ‘100’ to define the specific VLAN ID that should be tagged for the port group1.

References :=

Cisco APIC Layer 2 Networking Configuration Guide1

Cisco APIC Layer 2 Networking Configuration Guide1

When implementing a connection that represents an external bridged network, the configurations used are Layer 2 outside (Option B) and Static path binding (Option D)12. Layer 2 outside is typically used to connect a bridged external network trunk switch to a leaf switch in the ACI fabric, while static path binding is used to assign specific ports on a leaf switch to an external bridged network12.

ACI uses the SCP (Secure Copy Protocol) to securely save the configuration in a remote location. SCP is a network protocol that supports file transfers and relies on the Secure Shell (SSH) protocol to provide security for the transferred data.

 In Cisco ACI, communication between Endpoint Groups (EPGs) is controlled by contracts. Contracts define the types of traffic and the rules that govern how EPGs can communicate with each other. They act as a policy framework that enforces security and segmentation within the ACI fabric.

On border leaf switches in Cisco ACI, the two types of interfaces supported to connect to an external router are subinterface with 802.1Q tagging and Switch Virtual Interface (SVI)7. These interfaces allow for the segmentation of traffic and the extension of Layer 2 and Layer 3 services to external networks7.

To meet the requirements for the new e-commerce software deployed on the Cisco ACI fabric, the scope of the contracts should be set to “Application Profile”. This scope ensures that the contracts are applied within the same Application Network Profile (ANP), allowing the e-commerce software to communicate only with software Endpoint Groups (EPGs) that are part of the same ANP. It also prevents communication with applications in different ANPs, thus maintaining the necessary isolation and reducing the overall number of contracts by reusing existing ones within a VRF.

References :=

Cisco ACI Contracts and Scopes Documentation

Cisco ACI Best Practices Guide

To enable inter-VRF communication, the following configurations are necessary:

Set the subnet scope to Shared Between VRFs: This allows the subnets to be shared across different VRFs within the same tenant or across tenants, enabling communication between EPGs that are in different VRFs1.

Export the contract and import as a contract interface: By exporting a contract from the provider tenant and importing it as a contract interface in the consumer tenant, you establish a relationship that allows for controlled communication between EPGs in separate VRFs or tenants1.

References :=

ACI Inter VRF/Tenant Route Leaking Configuration Example1

To complete the task of configuring a Layer 3 connection to the WAN router and allowing hosts in the production VRF to access WAN subnets, the engineer should configure the Export Route Control Subnet scope for the external EPG. This setting allows the subnets associated with the external EPG to be advertised to external routers, enabling connectivity to the WAN.

The two IP address types that are available for transport over the Inter-Site Network (ISN) when they are configured from Cisco ACI Multi-Site Orchestrator (MSO) are the Anycast Overlay Multicast Tunnel Endpoint (TEP) and the MP-BGP EVPN Router-ID. These IP addresses are used for inter-site communication and routing in a Multi-Site deployment.

The two essential components of a Cisco ACI Virtual Machine Manager (VMM) domain policy configuration are:

VMM domain profile1.

EPG association1.

https://www.cisco.com/c/en/us/td/docs/switches/datac enter/aci/apic/sw/1-x/aci-fundamentals/b_ACI-Fundamentals/b_ACI-Fundamentals_chapter_01011.html#concept_74EFC437C0AA44A391676F70ACE59DF3

When a bridge domain is configured with the hardware-proxy option for Layer 2 unknown unicast traffic, if the spine switch is unable to find the MAC address in the proxy database, it will drop the Layer 2 unknown unicast packet4. This behavior is controlled by the hardware proxy option associated with a bridge domain4.

To enable the APIC in a Cisco ACI fabric using out-of-band management connectivity to access a routable host with an IP address of 192.168.11.2, you need to add a Fabric Access Policy that allows management connections. This involves configuring a contract that will be consumed and provided to your OOB devices. The contract will let the system know what traffic is allowed. In this case, you will use the default/common contract to permit any traffic. This is necessary because the APIC needs to be able to send traffic to and receive traffic from the management network1.

References :=

ACI: Configuring Out-of-Band (OOB) Access for Your Fabric - Cisco1

Troubleshoot ACI Management and Core Services - In-band and Out-of-band Management - Cisco2

To ensure that Cisco ACI flushes the appropriate endpoints when a topology change notification message is received in an MST domain, the three steps required are:

Enable the BPDU interface controls under the spanning tree interface policy (Option A)2.

Bind the spanning tree policy to the switch policy group (Option C)3.

Associate the STP interface policy to the appropriate interface policy group (Option D)3. These steps ensure that the ACI fabric responds correctly to STP events, such as topology changes, by flushing the MAC address table and the Local Station Table for the affected VLAN on the leaf switch4.

To enable the APIC in a Cisco ACI fabric using out-of-band management connectivity to access a routable host with an IP address of 192.168.11.2, you need to add a Fabric Access Policy that allows management connections. This involves configuring a contract that will be consumed and provided to your OOB devices. The contract will let the system know what traffic is allowed. In this case, you will use the default/common contract to permit any traffic. This is necessary because the APIC needs to be able to send traffic to and receive traffic from the management network1.

References :=

ACI: Configuring Out-of-Band (OOB) Access for Your Fabric - Cisco1

Troubleshoot ACI Management and Core Services - In-band and Out-of-band Management - Cisco2

 In the Cisco ACI VMM domain configuration, to generate port groups with names formatted as “Tenant=Application=EPG”, the configuration option used is delimiter. The delimiter is a character that separates the elements of the port-group name. By changing the delimiter setting to “=”, the port-group names will be generated with the desired format.

The scenario involves a Cisco ACI fabric with 10 standalone leaf switches, and the engineer must configure only the first two leaf switches (e.g., Leaf-1 and Leaf-2) in a Virtual Port Channel (vPC) configuration. The goal is to select the appropriate vPC protection type to achieve this specific pairing while leaving the other eight leaf switches standalone.

Requirement Analysis

In Cisco ACI, vPC is used to provide active-active link redundancy and load balancing between two leaf switches connected to the same set of endpoints (e.g., servers or external devices).

The fabric contains 10 standalone leaf switches, meaning no pre-existing vPC pairs are configured, and the task is to form a vPC specifically between the first two leaf switches.

The vPC protection type determines how the pair is defined and protected within the ACI fabric, ensuring the configuration is limited to the intended switches.

Option Evaluation

A. serial:

The "serial" protection type is not a valid vPC protection option in Cisco ACI. This term might be confused with serial link configurations or other networking contexts, but it does not apply to vPC in ACI.

The Infrastructure VLAN is automatically configured during the Cisco ACI fabric discovery process. This VLAN, often referred to as the “infra VLAN,” is used to enable internal communication between the ACI fabric components, such as the leaf and spine nodes. It is vital for the overlay network and the control plane functionality. In the provided output, VLAN 3600 represents the Infrastructure VLAN, which is configured for inter-node communication.

 When the VMM resolution immediacy is set to pre-provision in a Cisco ACI environment, policies are downloaded to the ACI leaf switch regardless of Cisco Discovery Protocol neighborship1. This setting ensures that the policies are in place on the leaf switches even before a VM controller is attached to the virtual switch1.

The feature that dynamically assigns or modifies the EPG association of virtual machines based on their attributes is uSeg EPGs. uSeg EPGs allow for microsegmentation within the Cisco ACI environment, enabling the dynamic assignment of VMs to EPGs based on attributes such as VM name, tag, or other identifiers

 Changing the Layer 2 unknown unicast policy from Flood to Hardware Proxy results in the traffic being forwarded to one of the spines to perform as a spine proxy4. If the spine proxy also does not know the address, the packet is discarded4.

 To determine if a change in the behavior of the ACI fabric was due to human intervention, an ACI administrator should inspect the audit logs in the APIC UI. The audit logs provide a record of all user events, which includes actions performed by users, making it possible to trace any changes back to specific human activities1.

The group of settings required to meet the requirements for workload migration where servers will physically terminate at the Cisco ACI, but their gateway must stay in the existing network, is:

L2 Unknown Unicast: Flood

L3 Unknown Multicast Flooding: Flood

Multi Destination Flooding: Flood in BD

ARP Flooding: Enable5

These settings ensure that the bridge domain is configured to handle unknown unicast and multicast traffic appropriately, and ARP flooding is enabled to allow for the resolution of IP addresses when the gateway is outside the fabric5.

https://www.cisco.com/c/en/us/td/docs/switches/datac enter/aci/apic/sw/migration_guides/migrating_existing_networks_to_aci.html

To meet the criteria for configuring the Cisco ACI fabric to connect to vCenter, the following actions should be taken:

Create a dynamic VLAN pool with the VLAN range of 20-30: This step involves creating a VLAN pool that dynamically assigns VLANs within the specified range to the port groups as they are created1.

Create a VMM domain and associate it with the VLAN pool: The VMM domain is a representation of the VMware vSphere Distributed Switch (VDS) in ACI, and associating it with the VLAN pool allows for the automatic creation of port groups on the VDS1.

Create the EPG and associate the domain: An Endpoint Group (EPG) is a logical entity to which workloads are attached. Associating the EPG with the VMM domain ensures that the port groups are automatically created in vCenter when the EPG is associated with a VMM domain1.

Set the deployment immediacy to On Demand: Setting the deployment immediacy to ‘On Demand’ optimizes the CAM space on the leaf switches by deploying policies to leaf nodes only when endpoints assigned to this EPG are connected, rather than immediately upon configuration12.

By following these steps, the network engineer can ensure that the Cisco ACI fabric is correctly configured to connect to vCenter, with port groups being automatically created on the distributed virtual switch, using the VLAN allocation in the range between 20-30, and optimizing the CAM space on the leaf switches.

For external connections to the fabric that only require a default route, there is support for originating a default route for OSPF, EIGRP, and BGP L3Out connections. If a default route is received from an external peer, this route can be redistributed out to another peer following the transit export route control as described earlier in this article. A default route can also be advertised out using a Default Route Leak policy. This policy supports advertising a default route if it is present in the routing table or it always supports advertising a default route. The Default Route Leak policy is configured in the L3Out connection. https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/2-x/L3_config/b_Cisco_APIC_Layer_3_Configuration_Guide/b_Cisco_APIC_Layer_3_Configuration_Guide_chapter_010100.html

To configure a Cisco ACI system to detect network loops for both untagged and tagged traffic and to stop the loop by disabling an interface within 4 seconds, the following configuration must be used:

Enable Mis-Cabling Protocol (MCP): MCP detects loops from external sources and will err-disable the interface on which Cisco ACI receives its own packet. This is crucial for preventing loops in the network1.

Configure MCP Transmit Frequency: Set the MCP transmit frequency to a value that allows for quick loop detection. The Cisco ACI fabric provides faster loop detection with transmit frequencies from 100 milliseconds to 300 seconds. To meet the requirement of detecting and stopping a loop within 4 seconds, you would set the transmit frequency to a value less than 4 seconds2.

Set Action on Loop Detection: Configure the MCP policies to identify loops and decide how to act upon them. You can set the policy to generate a syslog message or disable the port upon loop detection2.

Implement Error Disabled Recovery Policy: Configure an error disabled recovery policy to automatically re-enable ports that were disabled due to loop detection after a configurable interval2.

By implementing these configurations, the Cisco ACI system will be able to detect and stop network loops quickly and efficiently, ensuring network stability and preventing potential disruptions.

References :=

Cisco APIC Online Help - Loop Detection2

Cisco ACI Best Practices Quick Summary

The scenario involves a tenant configured with a single L3Out and a single-homed link from the ACI fabric (via border leaf BL-1001) to a core router (Core-1). The engineer must add a second link to the L3Out, connecting to Core-2 via BL-1002, ensuring that traffic from Core-2 to BL-1002 has the same connectivity as traffic from Core-1 to BL-1001. The exhibit shows a single-homed setup with BL-1001 and BL-1002 as potential border leaves, with a dashed line indicating a planned second link.

Requirement Analysis

The existing L3Out is single-homed to Core-1 via BL-1001, and the goal is to extend it to a multi-homed configuration with Core-2 via BL-1002.

"Same connectivity" implies that the second link must be integrated into the existing L3Out configuration, sharing the same routing policies, external EPG, and subnet reachability.

The solution must leverage ACI’s L3Out framework to add the new path without creating a separate L3Out or altering the current routing setup unnecessarily.

Option Evaluation

A. Add a second path to the logical interface profile of the existing L3Out:

The logical interface profile in an L3Out defines the interfaces (e.g., routed ports or sub-interfaces) and their associations with nodes (border leaves). Adding a second path to this profile allows the inclusion of the new link from BL-1002 to Core-2, ensuring it operates under the same L3Out configuration (e.g., routing protocol, external EPG). This maintains consistent connectivity and leverages ACI’s multi-homing support.

To extend functional VMM integration to the new group of 70 bare-metal ESXi servers, a separate VMM domain should be implemented using the AEP_VMM. This allows for the management and automation of network policies for the bare-metal servers in a manner similar to the virtualized environment managed by vCenter1.

 To perform a Cisco ACI fabric upgrade that minimizes the impact on user traffic and allows only permitted users to perform an upgrade, the following configuration steps should be taken:

Divide Cisco APIC controllers into two or more maintenance groups: This step involves organizing the APIC controllers into separate maintenance groups to allow for a phased upgrade process, reducing the impact on user traffic5.

Divide switches into two or more maintenance groups: This step involves organizing the switches into separate maintenance groups, which allows for a controlled and phased upgrade process, minimizing the impact on the network during the upgrade5.

When configuring Cisco ACI VMM domain integration with VMware vCenter, the object that is created in vCenter is a VMware vSphere Distributed Switch (VDS)12. The VDS is a virtual switch that extends across all esxi hosts in the cluster and provides a centralized interface from which network configurations can be managed12. This switch allows network administrators to manage networking for multiple hosts and virtual machines from a single interface within vCenter12.

To meet the requirement of sending all faults and events related to endpoint groups, bridge domains, and VRFs to the new SNMP configuration and syslog servers, the network engineer should utilize common tenant monitoring policies in the Cisco APIC. The common tenant is used for global configurations that apply across the entire fabric, including monitoring policies.

To enable communication between EPGs and BDs from any tenant without the need for contracts or VRF route leaking, the best approach is to implement an unenforced VRF within the common tenant. By doing so, all bridge domains that are associated with this VRF will be able to communicate with each other without additional configurations. This method simplifies the network architecture and reduces the complexity associated with contract management and VRF route leaking1.

References :=

Cisco ACI Contract Guide White Paper1

The method that the Cisco ACI fabric uses to load-balance multidestination traffic is forwarding tag trees3. This method involves assigning a forwarding tag (FTAG) to the traffic when it is forwarded within the fabric, ensuring efficient load balancing of multi-destination traffic3.

https://www.cisco.com/c/en/us/td/doc s/switches/datacenter/aci/apic/sw/1-x/aci-fundamentals/b_ACI-Fundamentals/b_ACI-Fundamentals_chapter_010010.html

To resolve the issue of STP convergence causing a microloop and significant CPU spike on all switches after connecting legacy non-ACI switches to the Cisco ACI fabric, BPDU filtering should be configured on the interfaces of the external switches that face the Cisco ACI fabric. BPDU filtering prevents Bridge Protocol Data Units (BPDUs) from being sent or received on those interfaces, which stops the STP process and eliminates the possibility of microloops.

 To redirect traffic to the firewall using a one-armed policy-based redirect service insertion, the following configuration set should be used:

Configure a service graph: This involves defining the service graph template that represents the logical flow of traffic through network services.

Associate the service graph with All_Traffic_Allowed: By associating the service graph with the contract named All_Traffic_Allowed, traffic that matches the contract will be redirected through the service graph to the firewall device.

References :=

Cisco ACI Fabric Administration Guide, Release 4.2(1)

Cisco ACI Virtualization Guide, Release 4.2(1)

The XML configuration snippet provided in the exhibit results in the creation of two objects within the Cisco ACI environment:

Bridge Domain (Option C): This is indicated by the XML element , which defines a bridge domain with the name “bd1”.

VRF (Option E): This is shown by the XML element , which defines a Virtual Routing and Forwarding instance named “pvn1”.

These objects are essential for network segmentation and routing within the ACI fabric, where the bridge domain represents a Layer 2 broadcast domain and the VRF is used for Layer 3 routing separation.

To backup the PRODUCTION tenant configuration on the APIC using a markup language and include all secure information, the network engineer must use an export policy that allows for exporting in a markup language format such as XML or JSON and includes secure attributes. In this case, the correct export policy is Option A, which shows an interface with “Export-Tenant-Production” where the format can be selected as ‘xml’ or ‘json’, and there is an option to modify global AES encryption settings, indicating that secure information can be included in the backup.

References :=

Cisco Application Policy Infrastructure Controller (APIC) - Cisco APIC

Cisco Application Centric Infrastructure Best Practices Guide - Cisco ACI Design Guide

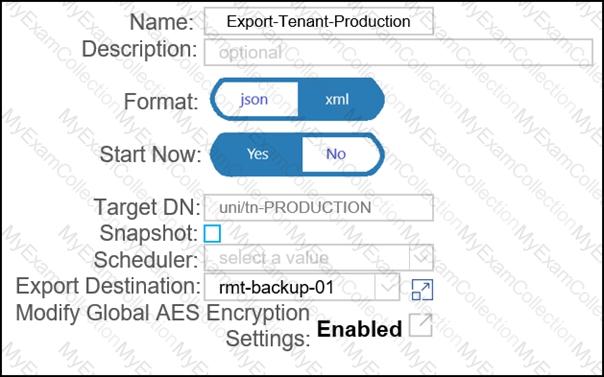

The image shows a graphical user interface for an export policy named “Export-Tenant-Production.” The interface provides options to select the format of the backup (either ‘json’ or ‘xml’), whether to start now with options ‘Yes’ or ‘No’, a field for Target DN with ‘/tn-PRODUCTION’ filled in, a scheduler dropdown menu, and a checkbox for modifying global AES encryption settings which is enabled. This image is relevant because it depicts how to configure an export policy on Cisco’s APIC to backup tenant configurations securely.

Associating the VMM domain with the EPGs (Endpoint Groups) that must be available in vCenter is the action that accomplishes the goal of creating port groups automatically in vSphere and propagating them to hypervisors when created in the ACI environment. This integration allows the APIC to automatically create port groups in the VMware vCenter under the VDS (vSphere Distributed Switch), which provisions the network policy in the VMware vCenter

 In a Cisco ACI Multi-Site fabric, when the Inter-Site BUM Traffic Allow option is enabled for a stretched bridge domain, ingress replication on the spines in the source site is used to forward Broadcast, Unknown unicast, and Multicast (BUM) traffic to all endpoints in the same broadcast domain. This method ensures that BUM traffic is replicated and sent out through the spines to the destination sites.

The initial APIC cluster discovery process involves each APIC using an internal private IP address from a pool to communicate with the nodes and other APICs in the cluster. The APICs discover the IP addresses of other APIC controllers through an LLDP-based discovery process

The COOP (Council Of Oracle Protocol) database is located on each spine switch within the Cisco ACI fabric. The COOP database is responsible for maintaining a consistent copy of endpoint address and location information across the fabric

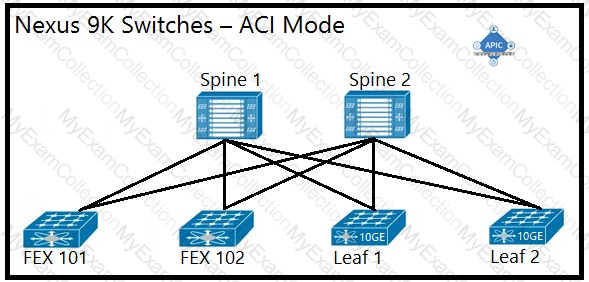

The supported physical topology for a Cisco ACI data center network that includes Cisco Nexus 2000 Series 10G fabric extenders is depicted in Option A. This topology illustrates a pair of spine switches connected to leaf switches, which are then connected to the fabric extenders. The Cisco Nexus 2000 Series Fabric Extenders act as remote line cards for a parent Cisco Nexus switch, extending the network fabric. The topology shown is a spine-leaf architecture, which is a scalable, high-bandwidth framework that is typical in ACI deployments.

References :=

For a detailed understanding of the ACI fabric and supported topologies, you can refer to the Cisco Application Centric Infrastructure Design Guide, which provides comprehensive information on design recommendations and deployment models: Cisco ACI Design Guide.

To learn more about the role of fabric extenders in the ACI architecture, the following resource offers insights into how they integrate with the ACI fabric: Understanding the ACI Fabric.

To monitor the statistics of unicast and BUM traffic seen in a certain EPG, the collection of statistics must be enabled at the EPG level. This is done by enabling the statistics specifically for unicast and BUM traffic within the EPG settings3.

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/1-x/Operating_ACI/guide/b_Cisco_Operating_ACI/b_Cisco_Operating_ACI_chapter_01011.html

The scenario involves deploying a WAN with Cisco ACI, where Routers 1 and 2 (connected via an L3Out with OSPF Area 0) must receive specific routes (192.168.11.0/24 and 192.168.21.0/24) from the ACI fabric, and reachability to WAN users must be permitted only for servers in vrf_prod. The diagram shows three bridge domains (bd_vlan11, bd_vlan21, bd_vlan31) with their respective subnets and EPGs, all under vrf_prod, along with an L3Out (epg_l3out) for WAN connectivity.

Requirement Analysis

Routers 1 and 2 must receive only routes 192.168.11.0/24 and 192.168.21.0/24:

These subnets belong to bd_vlan11 and bd_vlan21, respectively. To advertise these routes to Routers 1 and 2 via the L3Out, they must be marked with the appropriate scope in the bridge domain configuration.

In ACI, the "Advertised Externally" scope on a subnet ensures that it is advertised to external routers via the L3Out routing protocol (OSPF in this case).

Reachability to WAN users must be permitted only for servers in vrf_prod:

This implies that only the subnets in vrf_prod (192.168.11.0/24, 192.168.21.0/24, and 192.168.31.0/24) should be accessible, but WAN users should only reach specific subnets based on policy.

The external EPG (epg_l3out) represents the WAN users (10.171.0.0/16), and its subnet scope must control inbound reachability.

The subnet 192.168.31.0/24 (bd_vlan31) should not be advertised to the WAN, as it is not listed in the routes Routers 1 and 2 should receive.

Option Evaluation

A. Configure the subnets 192.168.11.0/24 and 192.168.21.0/24 as Private to VRF. Configure the subnet 192.168.31.0/24 as Advertised Externally. Configure an EPG subnet 0.0.0.0/0 as External Subnets for External EPG:

Setting 192.168.11.0/24 and 192.168.21.0/24 as "Private to VRF" means they are not advertised externally, which fails the requirement for Routers 1 and 2 to receive these routes.

Setting 192.168.31.0/24 as "Advertised Externally" incorrectly advertises this subnet to the WAN, which is not desired.

The "External Subnets for External EPG" scope on 0.0.0.0/0 allows WAN users to reach all subnets in vrf_prod, which is correct for reachability.

Conclusion: Fails the first requirement (route advertisement).

To implement the inter-tenant service graph, the set of actions that must be taken are:

Define the contract in the provider tenant and export it to the consumer tenant (Option B).

Define the L4-L7 device and service graph template in the provider tenant and the ASA bridge domains in the consumer tenant (Option B).

This approach allows for the proper configuration and association of the service graph between the provider and consumer tenants, ensuring that the services are correctly applied to the traffic flowing between them.

The "Import Route Control Subnet" scope is used to control which external routes are imported into the ACI fabric's routing table

To divert traffic between VM-1 and VM-2 using a Multi-Node service graph while preventing an insufficient number of available Layer 4 to Layer 7 devices in the first cluster, the following configuration set should be used:

PBR node tracking: This feature monitors the health of the nodes (Layer 4 to Layer 7 devices) in the service graph. If a node becomes unavailable, the system can take action based on the tracking threshold1.

Tracking threshold with action bypass: When the number of healthy nodes falls below the tracking threshold, the action ‘bypass’ ensures that traffic is not sent to the unhealthy nodes, thus preventing service disruption1.

Symmetric PBR: This ensures that return traffic follows the same path as the original traffic, maintaining session consistency and avoiding asymmetric routing issues1.

Resilient hashing: This hashing mechanism provides a consistent and optimal distribution of traffic across the available Layer 4 to Layer 7 devices, even when the number of nodes changes due to a failure or maintenance1.

References :=

Cisco APIC Layer 4 to Layer 7 Services Deployment Guide, Release 5.2(x)

To clear the critical fault related to B2B credit oversubscription in the ACI domain connectivity to the fiber channel storage, the value that should be chosen is 5101. This value is set to address the issue of B2B credit oversubscription and clear the critical fault as reported by the client1.

The question asks which bridge domain setting is used when a Cisco ACI leaf switch learns the source IP address of a packet entering the front panel port. This involves understanding how ACI handles endpoint learning and IP address association within a bridge domain.

Requirement Analysis

When a packet enters a leaf switch’s front panel port, ACI learns the source IP and MAC address of the endpoint to populate its endpoint table.

The bridge domain settings control how IP addresses are learned and routed, especially for Layer 3 traffic.

The correct setting must enable the leaf switch to associate the source IP with the endpoint.

Option Evaluation

A. Unicast Routing:

The "Unicast Routing" setting in a bridge domain enables Layer 3 routing and allows the leaf switch to learn the source IP address of a packet by associating it with the MAC address and VLAN. When enabled, the switch performs IP-to-MAC mapping and updates the endpoint database, which is the standard mechanism for learning source IP addresses from incoming traffic.

 When VM2 is live migrated from POD1 to POD2, the spines in POD2 will send an MP-BGP EVPN update to the leaves in POD1. This update informs the leaves in POD1 about the new location of VM2, allowing them to update their forwarding tables and ensure that traffic destined for VM2 is correctly routed to its new location in POD2.

When Cisco ACI connects to an outside Layer 2 network, the ACI fabric floods the STP BPDU frame within the bridge domain (Option A)5. This ensures that BPDUs are properly propagated within the relevant VLAN encapsulation associated with the bridge domain5.

 In the Cisco ACI Active-Active Across Pods deployment mode, one of the key characteristics of Policy-Based Redirect (PBR) is that traffic is dynamically redirected to the firewall that owns the connection. This allows for load distribution across multiple Layer 4 to Layer 7 devices, also known as symmetric PBR. Additionally, deployment in this mode occurs in go-to mode only, which means that traffic is explicitly directed to a service node or firewall for processing

The scenario involves an application (App_1) on server S1 and a silent host application (App_2) on S2, both using the same VLAN encapsulation. The task is to force the ACI fabric to learn App_2 on Leaf-2. A silent host does not generate traffic, so special handling is needed.

Requirement Analysis

A silent host requires flooding (e.g., ARP or unknown unicast) to be learned by the fabric when it moves or is detected.

The goal is to ensure Leaf-2 learns App_2’s endpoint.

Option Evaluation

A. Set Multi-Destination Flooding to Drop:

Dropping multi-destination traffic prevents learning, which is counterproductive for a silent host.

In a Cisco ACI Multi-Pod environment, the supported routing protocol between Cisco ACI spines and IPNs (Inter-Pod Network) is Open Shortest Path First (OSPF)4.
