TEP (Tunnel Endpoint): TEPs (Tunnel Endpoints) are configured on transport nodes to handle the encapsulation and decapsulation of the Geneve protocol. TEPs are responsible for creating the overlay network by encapsulating traffic in the Geneve protocol when it moves between transport nodes and decapsulating it upon arrival.

When a stateful service (such as NAT or firewall) is enabled for the first time on a Tier-0 Gateway, the Service Router (SR) is instantiated on the NSX Edge node and automatically connected with the Distributed Router (DR). This connection enables the Tier-0 Gateway to handle stateful services by routing traffic through the SR, which manages stateful packet processing, while the DR provides distributed routing functionality.

VMware recommends setting the MTU (Maximum Transmission Unit) to 1700 or greater for NSX deployments. This is to ensure that the VXLAN encapsulation, which adds overhead to the original Ethernet frame, can be accommodated without fragmentation. This MTU requirement includes the entire data center network, including inter-data center connections, to ensure consistent communication across all network components involved in the NSX deployment.

None: No permissions are granted, restricting the user’s access entirely.

Read: Grants read-only access, allowing the user to view configurations and settings without making changes.

Auditor: Similar to Read, but typically includes access to audit logs and more detailed viewing permissions for compliance purposes.

Full Access: Grants complete control over all NSX configurations and settings, allowing unrestricted access.

According to the VMware NSX Documentation, these are two of the ways that you can use to configure Distributed Firewall on VDS:

NSX API: This is a RESTful API that allows you to programmatically configure and manage Distributed Firewall on VDS using HTTP methods and JSON payloads. You can use tools such as Postman or curl to send API requests to the NSX Manager node.

NSX UI: This is a graphical user interface that allows you to configure and manage Distributed Firewall on VDS using menus, tabs, buttons, and forms. You can access the NSX UI by logging in to the NSX Manager node using a web browser.

https://docs.vmware.com/en/VMware-NSX/4.1/administration/GUID-0DEF9F18-608D-4B5C-9175-5514750E901B.html

An error with code 1001 during the configuration of a time-based firewall rule often indicates a time synchronization issue. Restarting the NTP service on the ESXi host can resolve this issue by ensuring that the host’s time is synchronized correctly, which is essential for time-based rules to function accurately.

In NSX, BGP is the only supported dynamic routing protocol on a Tier-1 Gateway. OSPF is not supported at the Tier-1 level; it is only available on Tier-0 Gateways. This limitation means that for dynamic routing on a Tier-1 Gateway, administrators can configure BGP to exchange routing information with connected Tier-0 Gateways.

The show log manager follow command is used on the NSX Manager to view the syslog in real-time. This command displays ongoing log entries, allowing administrators to monitor syslog messages as they are generated, which is helpful for troubleshooting and real-time analysis.

In Non-Preemptive failover policy, once a failover occurs and a new Active node is designated, the original failed node will not automatically become the Active node upon recovery. This setting ensures that the failover does not revert to the original node after it comes back online, maintaining the stability of the network by keeping the current Active node as is.

To enable two-factor authentication (2FA) for NSX Manager, VMware Identity Manager must be configured and integrated with NSX. The NSX Manager should be added as a web application in VMware Identity Manager, which will allow 2FA to be applied during the authentication process. VMware Identity Manager supports 2FA methods, including integration with external identity providers, and it can manage access to NSX with additional security layers.

VMware Aria Operations Networks (formerly known as vRealize Network Insight) is a tool specifically designed for network visibility and troubleshooting. It provides insights into both virtual and physical network infrastructures, making it ideal for identifying problems in a physical network.

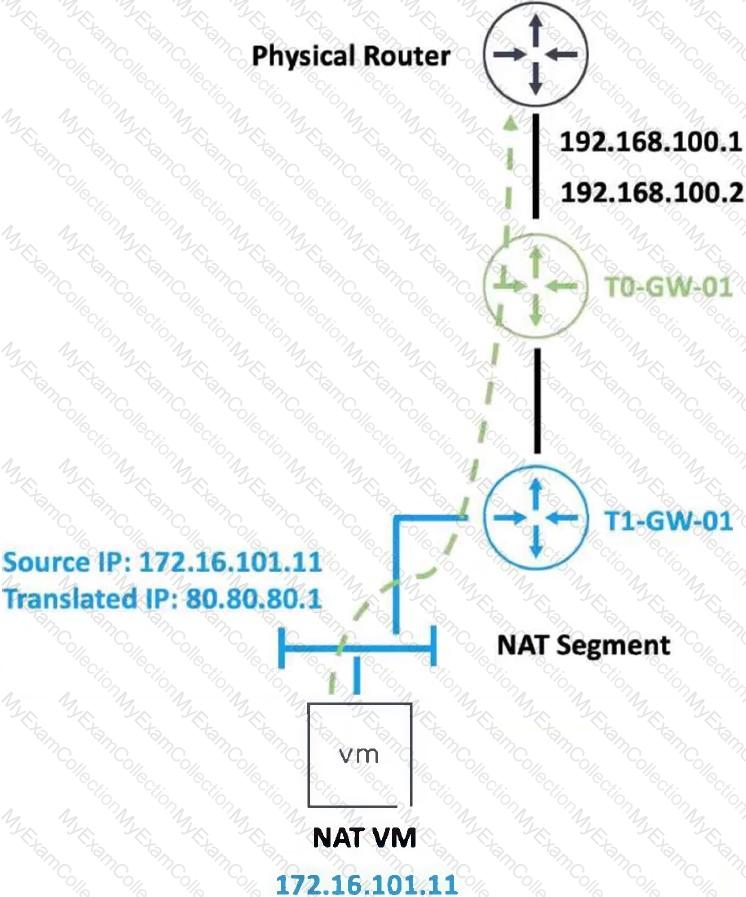

Source NAT (SNAT) is used to translate the private IP address (172.16.101.11) of the NAT VM to a public IP address (80.80.80.1) as the packets leave the NAT-Segment network. SNAT changes the source IP of outbound packets, allowing private IP addresses within the internal network to be mapped to public IP addresses for communication with external networks.

Distributed Firewall on VDS is a feature of NSX-T Data Center that allows users to install Distributed Security for vSphere Distributed Switch (VDS) without the need to deploy an NSX Virtual Distributed Switch (N-VDS). This feature provides NSX security capabilities such as Distributed Firewall (DFW), Distributed IDS/IPS, Identity Firewall, L7 App ID, FQDN Filtering, NSX Intelligence, and NSX Malware Prevention. To enable this feature, the following requirements must be met in the environment:

The NSX version must be 3.2 and later1. This is the minimum version that supports Distributed Security for VDS.

The VDS version must be 6.6.0 and later1. This is the minimum version that supports the NSX host preparation operation that activates the DFW with the default rule set to allow.

References:

Overview of NSX IDS/IPS and NSX Malware Prevention

In NSX and VMware environments, an alarm in a suppressed state can typically be set to remain suppressed for a specific duration measured in hours. This allows administrators to temporarily ignore the alarm for a set period while working on a resolution without continuous alerts.

https://docs.vmware.com/en/VMware-NSX/4.1/administration/GUID-26C44DE8-1854-4B06-B6DA-A2FD426CDF44.html

IPSec VPN services can be configured at Tier-0 and Tier-1 gateways: In NSX, IPSec VPN services can be applied to both Tier-0 and Tier-1 gateways, allowing secure site-to-site connections from these gateway levels.

IPSec VPNs use the DPDK accelerated performance library: NSX leverages the Data Plane Development Kit (DPDK) for optimized performance, which accelerates packet processing for IPSec VPNs and improves throughput.

Security policy recommendations: Are East-West distributed firewall (DFW) security policies in the application category12.

Security group recommendations: Are VMs or physical servers whose traffic flows were analyzed for the time period and the boundary you had specified12.

Service recommendations: Are service objects that were used by applications in the VMs or physical servers that you had specified, but the services are not yet defined in the NSX inventory12.

https://docs.vmware.com /en/VMware-NSX-Intelligence/4.1/user-guide/GUID-BA3B0D67-4AA8-439E-A845-4598DAD6B9D0.html

NSX Intelligence is a distributed analytics solution within the VMware NSX Portfolio that provides visibility and dynamic security policy enforcement in NSX environments. It enables detailed traffic analysis, identifies security threats, and helps in the automated creation and enforcement of security policies based on observed network traffic patterns and behaviors.

NAT64 is supported on both Tier-0 and Tier-1 gateways, allowing for IPv6-to-IPv4 address translation at different gateway levels within NSX.

NAT64 requires the Tier-1 gateway to be configured in active-standby mode, as this configuration ensures stateful translation and consistency for IPv6-to-IPv4 traffic handling.

To validate the BGP connection status between the Tier-0 Gateway and the upstream physical router on an NSX Edge node, the correct sequence involves enabling the specific logical router (Tier-0 Gateway), checking the VRF (Virtual Routing and Forwarding) context, and then using the show bgp neighbor command to view the BGP session status.

enable : This command enables the logical router interface (Tier-0 Gateway) to access its configuration.

get vrf : This command checks the specific VRF (used for routing separation) to see the associated routing table.

show bgp neighbor: This command displays the status of the BGP connection, including details about the neighbor relationships and their state.

Switch Visualization in the NSX UI provides a clear mapping between virtual NICs (vNICs) and the physical adapters on the host. This feature allows administrators to see how virtual network interfaces connect to the underlying physical network infrastructure, which is essential for troubleshooting connectivity issues on transport nodes.

When the NSX UI is inaccessible, an NSX administrator can use the get support-bundle file vcpnv.tgz command in the CLI on the NSX Manager to generate a support bundle. This command creates a compressed file (vcpnv.tgz) containing logs and diagnostic information needed for troubleshooting.

The vmkping ++netstack=geneve -d -s 1572 command is used to check connectivity for VMware kernel ports specifically for Geneve tunnel endpoints (TEPs). The -s 1572 option sets the packet size to test within the 1600 MTU limit, accounting for the Geneve encapsulation overhead. The -d option enables the "Don't Fragment" bit, ensuring the packet isn’t fragmented along the path, which is essential for verifying MTU consistency across the network.

Tier-1 SR Router Port: This port is used for ingress traffic on the Tier-1 Service Router (SR), which handles traffic as it enters the Tier-1 gateway.

Tier-1 SR Router Port: This port is used for ingress traffic on the Tier-1 Service Router (SR), which handles traffic as it enters the Tier-1 gateway.

When two virtual machines are connected on the same overlay segment, they are part of the same Layer 2 broadcast domain. In this case, the communication between the two VMs is happening within the same broadcast domain, which means that broadcast traffic can be sent to all devices on the segment. Since the ping is successful, the two VMs can communicate directly over Layer 2 without needing routing.

NSX Federation allows consistent policy configuration and enforcement across multiple NSX instances or environments. It provides a unified framework to manage security and networking policies across different NSX deployments, enabling centralized control and consistent application of policies across multiple sites or data centers.

Configure ECMP on the Tier-0 gateway: ECMP (Equal-Cost Multi-Path) allows multiple paths for traffic between the Tier-0 Gateway and the upstream physical routers, effectively distributing the traffic load and improving throughput. By enabling ECMP, you can reduce congestion and increase bandwidth utilization, thus addressing performance issues.

Deploy Large size Edge node/s: Deploying larger Edge nodes can provide more resources (CPU, memory, and network interfaces) to handle higher throughput and reduce congestion. This is especially important if the existing Edge node is overwhelmed by the amount of traffic.

The correct answer is to enable the option All LB VIP Routes on the Tier-1 gateway route advertisement settings. This option allows the Tier-1 gateway to advertise the NSX Advanced Load Balancer LB VIP routes to the Tier-0 gateway and other peer routers, so that the end users can reach the production website by using the VIP address1. The other options are not relevant for this scenario.

To mark the correct answer by clicking on the image, you can click on the toggle switch next to All LB VIP Routes to turn it on. The switch should change from gray to blue, indicating that the option is enabled. See the image below for reference:

The esxcli network ip interface ipv4 get command is used to display the IP address configuration of the VMkernel network interfaces, including those used for the Geneve protocol.

The esxcfg-vmknic -l command lists all VMkernel network interfaces, including their IP addresses, which can help identify the VMkernel port for the Geneve protocol.

The Tier-0 gateway is the valid insertion point for North-South network introspection in an NSX environment. North-South traffic refers to traffic entering or leaving the data center, and the Tier-0 gateway is responsible for routing this traffic between the NSX environment and external networks. Placing network introspection at the Tier-0 gateway allows for inspection and security policies to be applied to traffic as it moves in and out of the data center.
