220-1101 CompTIA A+ Certification Exam: Core 1 Question and Answers

A USB-C cable is the best option for installing an RS-232 serial signature pad to an ultralightweight laptop. USB-C is a universal connector that supports various protocols and devices, including serial devices. A port replicator is a device that expands the connectivity options of a laptop by providing additional ports. Wi-Fi Direct is a wireless technology that allows devices to connect directly without a router or access point. Hotspot is a feature that allows a device to share its internet connection with other devices via Wi-Fi, Bluetooth, or USB.

Following corporate procedures would have been the most likely factor that could have prevented the technician from receiving the written warning. Following established procedures, such as change management, helps ensure that changes made to the production environment are thoroughly tested, approved, and implemented in a controlled and safe manner, reducing the risk of system-wide outages and other unintended consequences.

The error message "Reboot and Select Proper Boot Device" indicates that the computer cannot find the boot device that contains the operating system12. This can happen if the hard drive that stores the operating system is damaged or failed, and the BIOS cannot detect it or read from it23. A failed hard drive can also cause other symptoms such as clicking noises, corrupted files, or slow performance4.

The correct answer is C. PoE switch.

A PoE switch is a network device that can provide both data and power to other devices over an Ethernet cable. PoE stands for Power over Ethernet, which is a technology that allows electrical power to be transmitted along with data on twisted pair Ethernet cabling. This eliminates the need for separate power supplies or AC adapters at the users’ desks, as the VoIP devices can receive power from the PoE switch12.

A firewall is a network device that monitors and controls incoming and outgoing network traffic based on predefined security rules. It does not provide power to other devices1.

A power injector is a device that adds electrical power to an Ethernet cable for a single device. It is not suitable for a large number of devices, as it would require one power injector per device1.

A router is a network device that connects multiple networks and forwards data packets between them. It does not provide power to other devices1.

The technician should ensure the input connections to the screen are secure1. The screen may not be receiving the signal from the device outputting the data if the input connections are not secure1. Swapping cables with a screen that works is not likely to be the correct option1

The digitizer is a crucial component of a touchscreen device, responsible for translating touch actions into digital signals that the device can interpret. If a hard reset does not resolve the touchscreen's unresponsiveness, it's likely that the digitizer is damaged. Physical damage, such as cracks or heavy impacts, can impair the digitizer's ability to function correctly, leading to an unresponsive touchscreen. This type of hardware issue requires professional repair or replacement of the touchscreen assembly to restore functionality.References: Mobile Devices 1101.docx, "Touchscreen Technology" section.

 The USB 2.0 port has insufficient bandwidth to support a high-definition webcam that can update 30 frames per second. USB 2.0 has a maximum theoretical bandwidth of 480 Mbps, which may not be enough for HD video streaming. The user should try using a USB 3.0 port or a Thunderbolt connector, which have higher bandwidths and can support HD webcams. The Thunderbolt connector is compatible with USB devices, so it is not the cause of the issue. The VGA cable and the STP cable are not related to the webcam, as they are used for video output and network connection respectively.

Cleaning the air filter is the best action to resolve the issue of a projector that shuts down after fifteen minutes of use. A dirty air filter can cause overheating and trigger the projector’s thermal protection mechanism. Replacing the video input cable, changing the bulb, or swapping the power cord are unlikely to solve the overheating issue

A client-side hypervisor is a virtual machine monitor (VMM) that resides in and virtualizes a user’s computer, allowing it to run multiple operating systems (or virtual machines) on shared hardware12. A client-side hypervisor can be useful for a software developer who needs to test an application in many environments, such as different versions of Windows, Linux, or Mac OS. By using a client-side hypervisor, the developer can switch between different virtual machines without rebooting the computer or using multiple physical devices3.

Optical fiber is the type of cable that should be used to terminate ST connectors on each end. ST connectors are commonly used for fiber optic cables, which transmit data using light pulses. Coaxial, shielded twisted pair, and HDMI are not types of cables that use ST connectors, but different types of connectors and transmission methods.

One of the possible causes of slow OS performance, random shutdowns, and loud fan noise is the CPU overheating. This can happen due to dust accumulation, faulty cooling system, or high CPU usage. Overheating can damage the CPU and other components, so it is important to monitor the CPU temperature and take preventive measures.

References:

The Official CompTIA A+ Core 1 Student Guide (Exam 220-1101) eBook1, page 2-9, section “CPU Cooling Methods”.

The Official CompTIA A+ Core 1 (220-1101) Certification Study Guide2, page 2-11, section “Troubleshooting CPUs”.

A community cloud model is a cloud solution in which infrastructure is shared among organizations that have common interests, goals, or concerns, such as security, compliance, or industry standards. This model would best address the bank’s need to leverage cloud computing while maintaining a high level of security and privacy for its data and transactions. The other cloud models are not suitable for this scenario, as they either do not offer enough control over the infrastructure (public cloud), or do not allow for sharing of resources among similar organizations (private cloud and hybrid cloud). Verified References: [What Is Community Cloud?]

The best action for the salesperson to take in order to view weather forecasts while traveling and minimize the battery drain on their mobile device is to configure fewer location checks using cellular location services. This can be done by adjusting the settings for the weather application to limit how often it checks for updates and uses location services. This will help to conserve the battery on the device and keep the application from consuming too much power.

A sandbox is a lab environment in which virtual machines can be created, rebooted, and shut down without affecting the production network. This allows for testing and experimentation without the risk of damaging the production environment123..

A private cloud is a cloud computing model that provides services and resources to a specific organization or group over a private network. A private cloud can offer more security and control than other cloud models, as well as customized infrastructure that suits the organization’s needs. A bank would most likely choose a private cloud model to leverage cloud computing while maintaining isolation from other businesses. A public cloud is a cloud computing model that provides services and resources to anyone over the internet. A hybrid cloud is a combination of public and private cloud services that share data and resources.

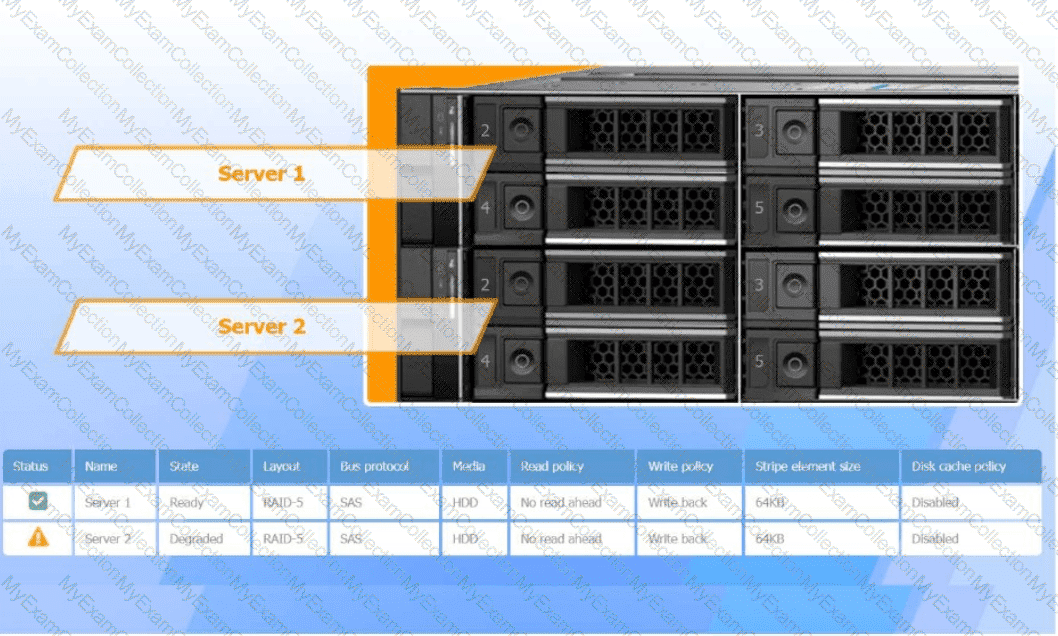

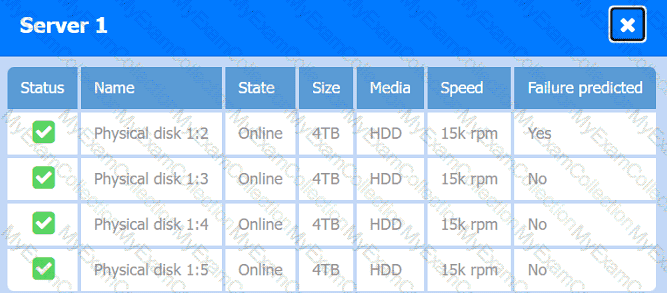

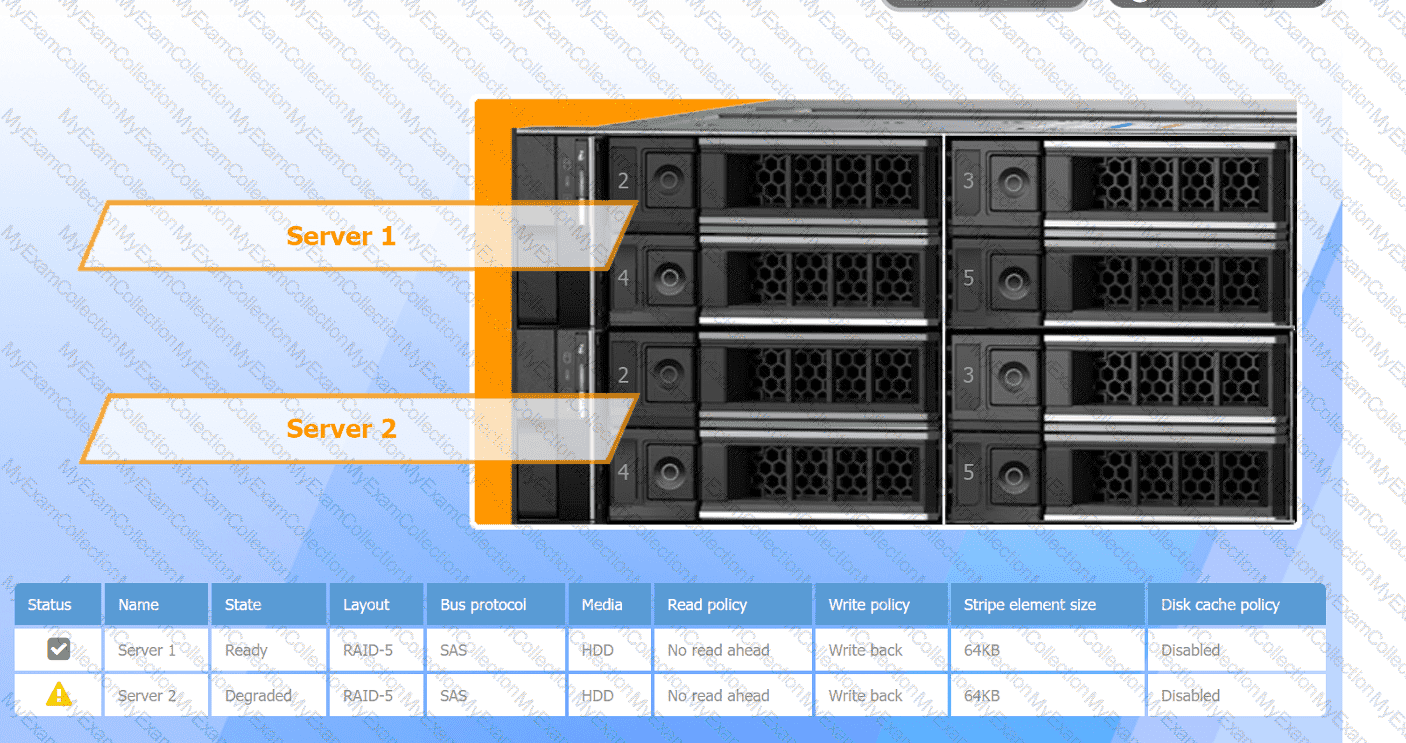

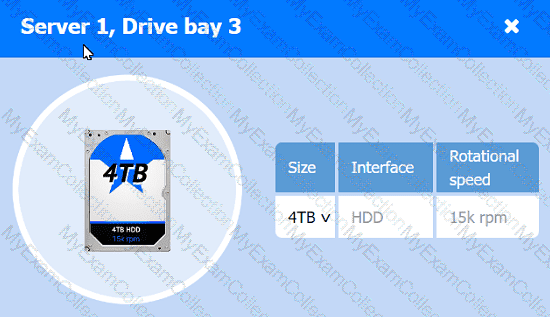

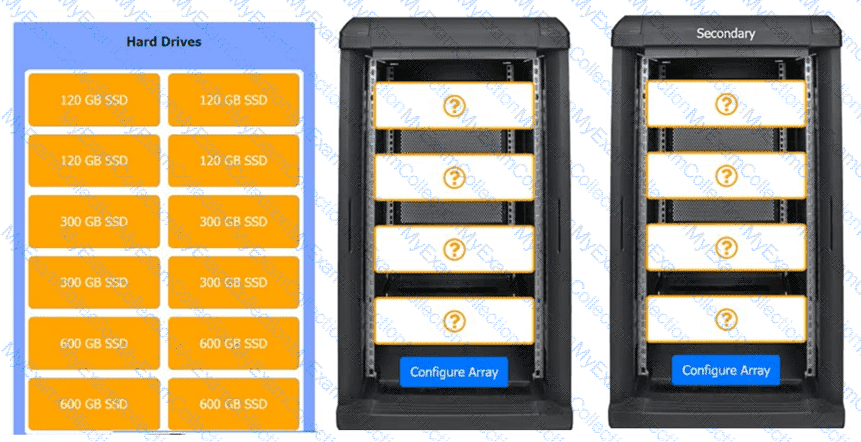

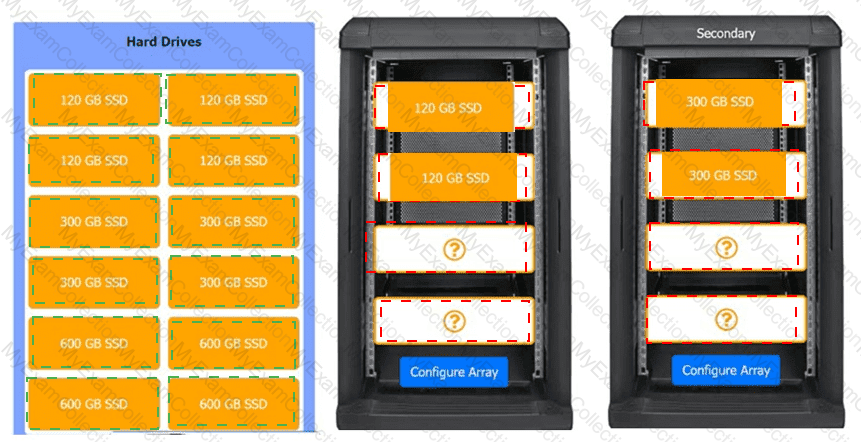

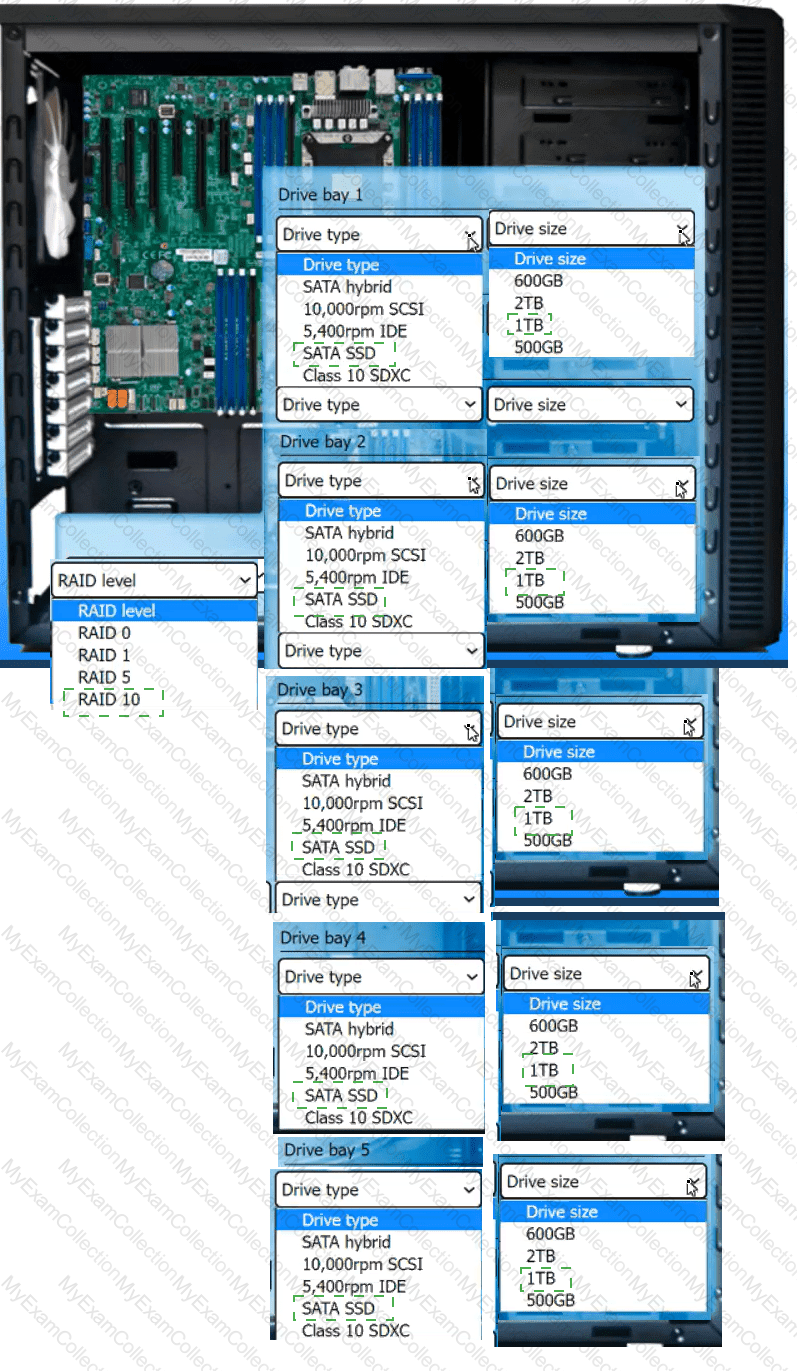

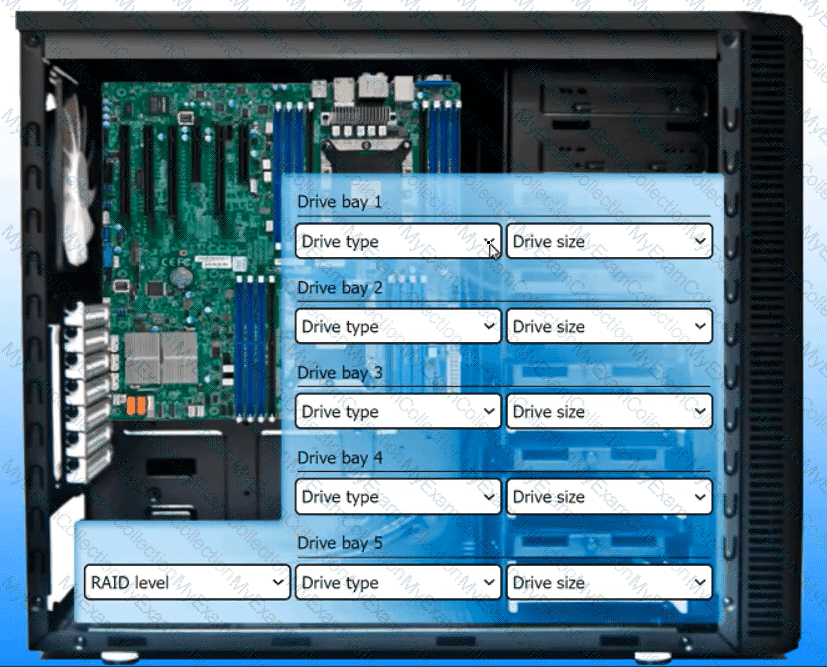

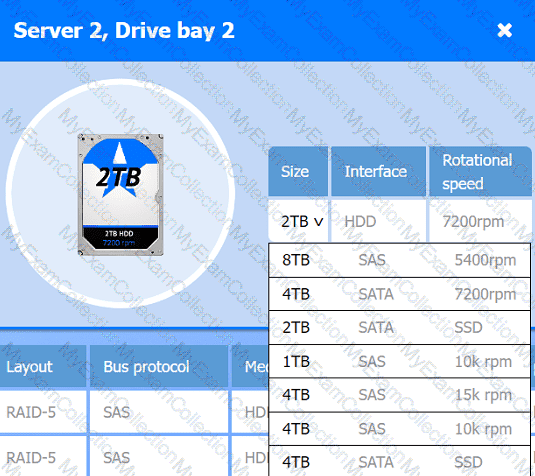

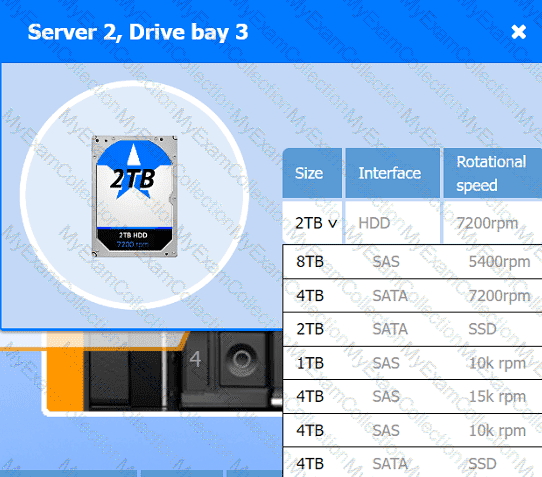

RAID stands for Redundant Array of Independent Disks, which is a technology that combines multiple disks into a logical unit to improve performance, reliability, or both. There are different types of RAID levels that use different methods of data distribution and redundancy.

RAID 0 is a level that stripes data across multiple disks without any redundancy. It offers the highest performance but no fault tolerance. If any disk fails, the entire array is lost.

RAID 1 is a level that mirrors data across two disks. It offers the lowest performance but the highest fault tolerance. It can survive the failure of one disk.

RAID 5 is a level that stripes data across multiple disks with parity information. It offers a balance between performance and fault tolerance. It can survive the failure of one disk, but not two or more disks.

RAID 10 is a level that combines RAID 1 and RAID 0. It creates a striped array of mirrored pairs. It offers high performance and high fault tolerance. It can survive the failure of one disk in each pair, or multiple disks in different pairs.

Therefore, if the server administrator wants to rebuild the array to withstand a potential multidrive failure in the future, RAID 10 is the most likely choice.

One of the benefits of virtualization is that it allows you to create and manage multiple virtual machines (VMs) on a single physical computer. This can be used to enhance security by centralizing all user desktops on a server, rather than storing them on individual user machines. This way, the user desktops can be isolated from each other and from the host machine, preventing malware infections, data breaches, and unauthorized access. Additionally, the user desktops can be easily backed up, restored, updated, and monitored by the administrator, reducing the risk of data loss and downtime.

This type of virtualization is called desktop virtualization, and it separates the desktop environment from the physical hardware the user interacts with1. The user can access their virtual desktop from any device, such as a laptop, tablet, or smartphone, using a remote display protocol. The user experience is similar to using a local desktop, but with improved security and manageability.

References:

•What Is Virtualization, and Why Should You Use it?, section “Desktop Virtualization”.

A network tap is a physical device that allows promiscuous monitoring of network traffic by creating a copy of the data packets for analysis. A toner probe is used to trace and identify cables. A Wi-Fi analyzer is used to measure wireless signal strength and interference. A loopback plug is used to test network ports or cables by sending and receiving signals from the same device.

Server message block (SMB) is the setting on the multifunction printer (MFP) that the technician should edit to best address the user’s request of making the scans viewable on the network for the entire department. SMB is a network protocol that allows file sharing and printer access among different devices on a network. The technician can configure the MFP to scan to a shared folder on the network using SMB. Scan to email is a feature that allows the MFP to send scanned documents as email attachments, which may not be viewable by everyone in the department. Secured prints is a feature that allows the MFP to print documents only after entering a PIN or password, which does not address the user’s request. Web services is a feature that allows the MFP to access online services such as cloud storage or email, which may not be viewable by everyone in the department either. Printer share is not a setting on the MFP, but a feature that allows a device to share its printer with other devices on a network

SODIMM stands for Small Outline Dual In-line Memory Module and is a type of memory module that is compatible with laptops and other small devices. SODIMMs are smaller and thinner than DIMMs (Dual In-line Memory Modules), which are typically used for desktop PCs and servers. Upgrading or adding SODIMMs can increase the amount of RAM available for a laptop, which can improve its performance and speed when running process-intensive tasks. Reference: https://partners.comptia.org/docs/default-source/resources/a-core-se ries-combined-content-guide (page 24)

The internal antennas are the components that allow the laptop to receive and transmit wireless signals. If the internal antennas are not connected properly, the laptop may have a weak or no Wi-Fi signal. The technician should verify that the internal antennas are connected to the wireless card and routed correctly inside the laptop case. The internal antennas may have been disconnected or damaged during the screen replacement. The device having the latest OS updates, the wireless device drivers being the latest version, airplane mode being disabled, and the battery being charging are not related to the issue, as they do not affect the physical connection of the internal antennas. References: https://www.comptia.org/blog/what-is-a-laptop-antenna

The technician should research the requirements of the CAD program to see if the computer meets them or needs any upgrades or updates to run it properly. The technician should also check the Event Viewer logs to see if there are any errors or warnings related to the application or system performance that could indicate the cause of the problem or suggest a solution. Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (pages 43, 47)

To resolve the issue of new memory modules not being recognized, the systems administrator should configure appropriate settings within the BIOS. This can include enabling memory mapping or setting memory speed and timings. References: CompTIA A+ Certification Exam Objectives, 220-1001 Section 1.8

Configure appropriate settings within the BIOS. If new memory modules were installed in several Windows desktops but some users are still reporting performance issues and the desktop has not recognized the new memory modules, the systems administrator should configure appropriate settings within the BIOS to help resolve this issue.

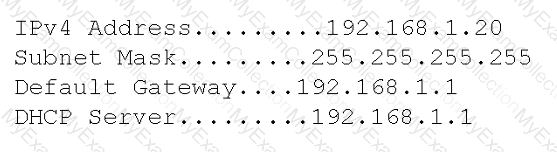

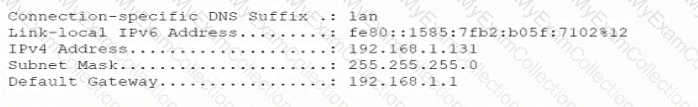

The most likely reason for a computer showing an APIPA address after being plugged into a network port is that the PC is unable to contact a DHCP server1. Automatic Private IP Addressing (APIPA) is a DHCP fail-safe that protects a computer system from failure. It invokes a standby mechanism for local Internet Protocol version 4 (IPv4) networks supported by Microsoft Windows. With APIPA, DHCP clients can obtain IP addresses even when DHCP servers are not functional1. The other options are less likely to be the cause of the issue1.

 M2PCIeNVMeSSD. M.2 PCIe NVMe SSDs are the fastest internal storage devices available for desktops. They are faster than SATA SSDs and PCIe SATA HDDs12.

Platform as a service (PaaS) is a cloud-computing concept that describes an application that is hosted on the internet but can be used and configured as needed internally per organization. PaaS provides a platform for developing, testing, deploying, and managing applications without having to maintain the underlying infrastructure or software. Hybrid cloud is a combination of public and private cloud services that share data and resources. Public cloud is a cloud computing model that provides services and resources to anyone over the internet. Infrastructure as a service (IaaS) is a cloud computing model that provides servers, storage, networking, and software over the internet

The first step in troubleshooting any network issue is to identify the problem and gather information from the user and the device. Reviewing the network settings in the OS can help the technician verify if the laptop is configured correctly to connect to the wireless network, such as the SSID, security type, password, IP address, DNS server, etc. This can also help the technician rule out any software or driver issues that might prevent the laptop from connecting to the network. This is a logical and simple step that can be done before attempting any other actions that might affect the network infrastructure or other devices.

References:

CompTIA A+ 220-1101 – 5.1 - How to Troubleshoot

CompTIA A+ Core 1: Troubleshooting Wired & Wireless Networks

CompTIA A+ Core 1 (220-1101) Certification Study Guide

A CPU fan is a component that cools down the CPU, which is the main processor of the computer. If the CPU fan is failing, it can cause the computer to slow down and the fans to alternate between silent and very loud12. This is because the CPU fan cannot maintain a consistent speed and airflow to keep the CPU at a safe temperature. When the CPU gets too hot, it throttles its performance to avoid overheating, which results in a slower computer. The other fans in the computer also try to compensate for the lack of cooling from the CPU fan by spinning faster and louder2.

The power supply unit (PSU) is the component that converts AC power from the outlet to DC power for the computer. If the PSU fails, the computer will not turn on. The CPU, RAM, and GPU are not directly related to the power supply and would not prevent the computer from turning on.

A digitizer is a component that handles touch-screen operation on a mobile device. It is a layer of material that detects and converts the touch of a finger or a stylus into an electrical signal that can be processed by the device12. A digitizer works with a display screen to create a touch-screen interface that allows a user to interact with the device by touching pictures or words on the screen.

This is because HDMI (High-Definition Multimedia Interface) is a digital video cable that can also carry audio signals1. HDMI cables are commonly used to connect devices like Blu-ray players, game consoles, and streaming boxes to HDTVs and monitors. The other options are not capable of carrying audio signals. VGA (Video Graphics Array) is an analog video cable that only carries RGBHV signals12. S-Video (Super Video) is another analog video cable that carries separate luminance and chrominance signals1. DVI (Digital Visual Interface) is a digital video cable that can carry either analog or digital signals, but not audio1.

When installing RAM into a server that will be used as a VM host, it is recommended to install ECC (Error-Correcting Code) RAM to help prevent errors that can cause virtual machines to crash. References: https://www.servermonkey.com/blog/ecc-vs-non-ecc-ram-what-are-the-differences.html

When installing RAM into a rackmount server that will be used as a VM host, it would be best to install ECC (Error Correcting Code) RAM which can detect and correct common types of data corruption.

The domain name system (DNS) is the component that houses the MX record. The MX record is a type of DNS record that specifies which mail server is responsible for receiving email messages for a domain name. VLAN is an acronym for virtual local area network, which is a logical subdivision of a network that allows devices to communicate as if they were on the same physical segment. DHCP is an acronym for dynamic host configuration protocol, which is a network protocol that assigns IP addresses and other configuration parameters to devices on a network automatically. SMTP is an acronym for simple mail transfer protocol, which is a network protocol that allows sending and receiving email messages over TCP/IP networks

The correct answer is B. Use the Function key.

The explanation is that some laptops have a Function key (Fn) that can be used to toggle the track pad on or off. This can be useful if the user wants to use an external mouse instead of the track pad, or if the track pad is accidentally activated by palm movements. The user should look for a Fn key on their keyboard and a track pad icon on one of the other keys, such as F5 or F9, and press them together to enable or disable the track pad.

RAID 0 is a configuration that stripes data across multiple disks without parity or redundancy. It provides the fastest speed and maximum storage capacity among the RAID types listed, but it also has no fault tolerance. RAID 1 mirrors data across two disks, providing redundancy but halving the storage capacity. RAID 5 stripes data across three or more disks with parity, providing fault tolerance but reducing the storage capacity by one disk. RAID 10 combines mirroring and striping across four or more disks, providing both speed and redundancy but reducing the storage capacity by half.

 If a technician is on site troubleshooting a customer’s laptop and needs to download a software update but the company’s proxy is blocking updates, the most appropriate action for the technician to take would be to request a traffic exemption from the company’s IT department.

The best option to allow all users to print to the new network printer is to install all applicable print drivers on the print server. This way, the print server can automatically provide the correct driver to the client computers when they connect to the printer. This option also reduces the administrative overhead and security risks of the other options, which involve either granting users more privileges, mapping them to a shared folder, or remotely accessing their computers.

References1 CompTIA A+ Core 1 (220-1101) Certification Study Guide, Chapter 16: Installing and Configuring Printers, page 419.2 The Official CompTIA A+ Core 1 Instructor Guide (Exam 220-1101), Lesson 16: Installing and Configuring Printers, page 16-7.3 CompTIA A+ Core 1 (220-1101) Complete Video Course, Lesson 16: Installing and Configuring Printers, Video 16.2: Installing and Configuring Network Printers.

Dropping a smartphone can damage the digitizer, which is the component responsible for sensing touch input. This can cause issues with tapping and swiping on the screen, as well as other touchscreen-related issues. References: CompTIA A+ Certification Exam Core 1 Exam Objectives - 3.3 Given a scenario, troubleshoot mobile device issues

The first thing that the technician should check when troubleshooting a wireless network issue with slow throughput and frequent connection drops is the channel interference. Channel interference is a common cause of poor Wi-Fi performance, as it occurs when multiple wireless networks or devices use the same or overlapping frequency bands, resulting in signal degradation, congestion, or collision. Channel interference can affect both 2.4 GHz and 5 GHz networks, but it is more likely to happen on the 2.4 GHz band, as it has fewer and narrower channels than the 5 GHz band.

To check for channel interference, the technician can use a Wi-Fi analyzer tool, such as the ones found in the web search results123, to scan the wireless environment and identify the best channel to use for the network. A Wi-Fi analyzer tool can display various information, such as the network name (SSID), signal strength (RSSI), channel number, frequency, bandwidth, and security type. The technician can look for the following indicators of channel interference:

High network density: If there are many wireless networks or devices in the vicinity, they may compete for the same or adjacent channels, causing interference and congestion. The technician can look for the number of networks or devices on each channel and avoid the crowded ones.

Channel overlap: If there are wireless networks or devices that use the same or partially overlapping channels, they may interfere with each other and degrade the signal quality. The technician can look for the channel width and frequency of each network and avoid the overlapping ones. For example, on the 2.4 GHz band, the technician should use only the non-overlapping channels 1, 6, and 11, and avoid the channels in between.

Signal interference: If there are other sources of electromagnetic radiation or noise that operate on the same or similar frequency bands as the wireless network, they may interfere with the wireless signals and cause distortion or loss. The technician can look for the signal strength and quality of each network and avoid the ones that are weak or noisy. For example, some common sources of signal interference are microwave ovens, cordless phones, Bluetooth devices, or baby monitors.

To fix the channel interference issue, the technician can try the following solutions:

Change the channel of the wireless network: The technician can use the Wi-Fi analyzer tool to find the least congested and most optimal channel for the network, and then change the channel settings on the router or the access point. The technician should also consider using the 5 GHz band instead of the 2.4 GHz band, as it offers more and wider channels and less interference.

Relocate the router or the access point: The technician can move the router or the access point to a different location, away from potential sources of interference or obstacles that may block or weaken the wireless signals, such as walls, furniture, or metal objects. The technician should also place the router or the access point in a central and elevated position, to provide better coverage and signal quality for the network.

Upgrade the router or the access point: The technician can replace the router or the access point with a newer and more advanced model, that supports the latest Wi-Fi standards, such as Wi-Fi 6 (802.11ax) or Wi-Fi 5 (802.11ac). These standards offer higher data rates, lower latency, and better performance in dense and noisy environments, compared to the older standards, such as Wi-Fi 4 (802.11n) or Wi-Fi 3 (802.11g).

References:

How to Fix Wi-Fi Connection Drops - Lifewire4

How to Fix When Wi-Fi Keeps Disconnecting on Windows 115

How to Fix Wi-Fi Connection Drops - Lifewire6

How to Fix Wi-Fi Connection Drops - Lifewire7

How to Fix Wi-Fi Connection Drops - Lifewire8

Using a USB 3.1 flash drive with BitLocker to Go installed is the best option for complying with corporate policy for data protection when copying files to portable media. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 12

The correct answer is D. UDP.

UDP (User Datagram Protocol) is a connectionless protocol that does not establish a connection before sending or receiving data. UDP simply sends datagrams to the destination without checking if the receiver is ready or not. UDP does not guarantee reliable delivery, error correction, or in-order arrival of the data. UDP is faster and more efficient than connection-oriented protocols for applications that do not require reliability, such as streaming audio or video1

A. SSH (Secure Shell) is not a correct answer. SSH is a connection-oriented protocol that uses TCP (Transmission Control Protocol) as its transport layer. SSH establishes a secure and encrypted connection between two network endpoints before exchanging data. SSH provides authentication, confidentiality, and integrity for remote login and command execution2

B. TCP (Transmission Control Protocol) is not a correct answer. TCP is a connection-oriented protocol that establishes a connection before sending or receiving data. TCP ensures reliable delivery, error correction, and in-order arrival of the data. TCP is slower and more complex than connectionless protocols, but it provides more reliability and quality of service for applications that require it, such as web browsing or email1

C. HTTPS (Hypertext Transfer Protocol Secure) is not a correct answer. HTTPS is a connection-oriented protocol that uses TCP as its transport layer and SSL/TLS as its security layer. HTTPS establishes a secure and encrypted connection between a web browser and a web server before exchanging data. HTTPS provides authentication, confidentiality, and integrity for web transactions, such as online banking or shopping1

A line-of-sight wireless system is a type of wireless communication that requires a clear and unobstructed path between the transmitter and the receiver. This can be achieved by using directional antennas that focus the radio signals in a narrow beam. A line-of-sight wireless system can provide a stable network connection between two buildings that are within the range and visibility of each other.

However, before purchasing and installing a line-of-sight wireless system, one of the factors that needs to be considered is the regulatory power limits. The power limit is the maximum amount of radio frequency (RF) energy that a transmitter can emit. Different countries and regions have different regulations and standards for the allowable power levels of wireless devices. Exceeding the power limit can cause interference with other wireless services, such as aviation, radio, television, etc. It can also pose health and safety risks to humans and animals.

Therefore, a technician should check the local laws and regulations for the power limits of the wireless system before buying and installing it. The technician should also use a proper tool to measure the actual power output of the transmitter and adjust it accordingly. The technician should also ensure that the transmitter and receiver are aligned properly and have a clear line of sight without any obstacles.

The other options are not relevant to the line-of-sight wireless system. The IP address range is a set of numerical identifiers that are assigned to devices on a network. It does not affect the physical transmission of wireless signals. The SSID broadcast is a feature that allows a wireless network to announce its name and availability to nearby devices. It does not affect the stability of the network connection between two buildings. The firewall rules are a set of policies that control the incoming and outgoing traffic on a network. They do not affect the line-of-sight wireless system.

References:

Wireless line-of-sight, non-line-of-sight, beyond-line-of-sight propagation

Point-to-point Wi-Fi bridging between buildings—the cheap and easy way

How Does Wireless Internet, or Line of Sight Internet Work?

Line-of-Sight Transmission - Engineering LibreTexts

What is Line of Sight (LoS)? - Definition from Techopedia

A hypervisor is a software layer that manages and allocates resources for virtual machines (VMs) on a physical host machine. A technician can use a hypervisor to adjust the resource allocation for a virtual workstation, such as increasing the amount of RAM assigned to it from the available pool of memory on the host machine. This can improve the performance and functionality of the virtual workstation without requiring any hardware changes or modifications. Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (page 59)

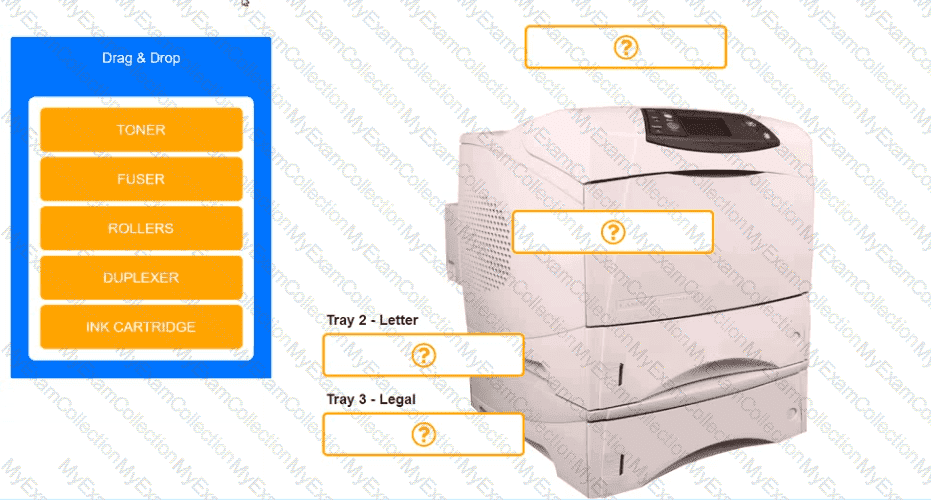

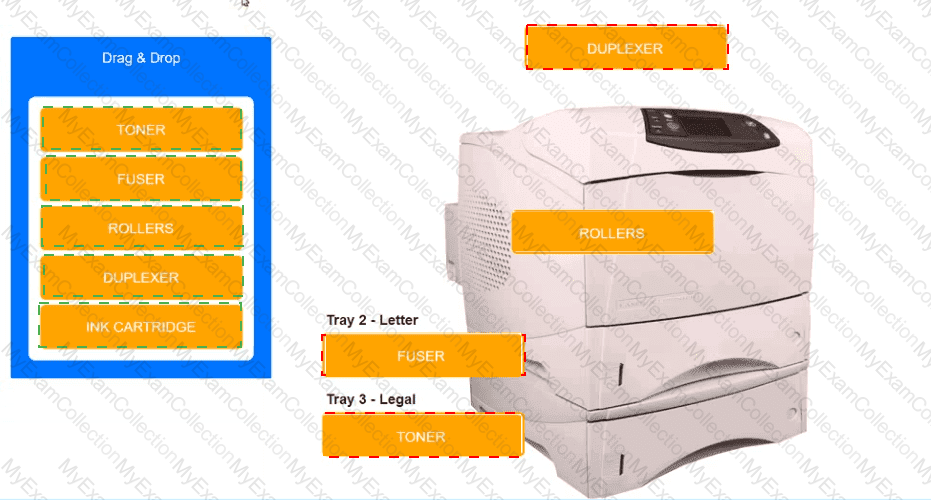

An imaging drum is a component of a laser printer that transfers the toner to the paper. It is sensitive to light and can wear out over time, resulting in poor print quality or missing colors. If the cleaning cycle does not resolve the issue, the imaging drum may need to be replaced1.

A fuser is a component of a laser printer that heats and melts the toner onto the paper. It does not affect the color output of the printer, but it can cause paper jams, smudges, or wrinkles if it is defective2.

An ink cartridge is a component of an inkjet printer, not a laser printer. A laser printer uses toner, which is a dry powder, instead of ink, which is a liquid. An ink cartridge would not be compatible with a laser printer3.

A toner tank is a container that holds the toner for a laser printer. It can be either integrated with the imaging drum or separate from it. If the toner tank is empty or low, the printer will display a warning message and the print quality will deteriorate. However, if only one color is missing, the problem is more likely with the imaging drum than the toner tank4.

Resin is a material that is used in some types of 3D printers, not laser printers. Resin printers use a liquid resin that is cured by a light source to create solid objects. Resin has nothing to do with laser printing5.

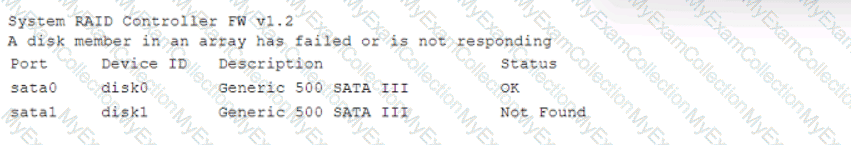

The correct answer is B. Replace the bad drive.

A clicking noise coming from a hard drive is a sign of a mechanical failure, which can cause data loss or corruption. Replacing the bad drive as soon as possible is the best way to prevent further damage and restore the RAID array to a healthy state. Reinstalling the drive, resetting the RAID software, or running a chkdek on the drive will not fix the underlying hardware problem and may even worsen the situation. Therefore, option B is the correct answer.

References:

CompTIA A+ Core 1 (220-1101) Certification Study Guide, page 131: “Clicking noises indicate that the hard drive is failing mechanically.”

RAID configuration on Linux - Amazon Elastic Compute Cloud, section “Replace a failed volume in a RAID 0 array”: “If one of the volumes in your RAID 0 array fails, you must replace it as soon as possible to avoid data loss.”

A router is a device that can dynamically distribute an IP address to the devices connected to its network using a protocol called DHCP (Dynamic Host Configuration Protocol). DHCP allows a router to automatically assign an IP address and other network configuration information to a device when it joins the network, without requiring manual intervention from the administrator. A router can also act as a gateway between different networks, such as a local area network (LAN) and the internet1.

A hub is a device that connects multiple devices on a network and forwards data packets between them. However, a hub does not assign IP addresses or perform any routing functions. A hub operates at the physical layer of the OSI model and does not understand IP addresses or other network protocols.

A switch is a device that connects multiple devices on a network and forwards data packets between them based on their MAC addresses. A switch can improve the performance and security of a network by reducing collisions and isolating traffic. However, a switch does not assign IP addresses or perform any routing functions. A switch operates at the data link layer of the OSI model and does not understand IP addresses or other network protocols.

An injector is a device that provides power to another device over an Ethernet cable, such as a wireless access point or a security camera. This is also known as Power over Ethernet (PoE). An injector does not assign IP addresses or perform any routing functions. An injector operates at the physical layer of the OSI model and does not understand IP addresses or other network protocols.

The correct answer is B. 802.11ax.

802.11ax, also known as Wi-Fi 6 or Wi-Fi 6E, is the latest wireless standard that can operate in the 6GHz frequency range. This standard was approved by the IEEE in February 2021 and offers higher throughput, lower latency, and improved efficiency compared to previous standards1

The 6GHz frequency range spans from 5.925 GHz to 7.125 GHz and provides 1200 MHz of additional spectrum for Wi-Fi devices. This means that Wi-Fi 6E can support more channels, wider bandwidths, and less interference than the existing 2.4 GHz and 5 GHz bands. Wi-Fi 6E can access up to 59 20-MHz channels, 29 40-MHz channels, 14 80-MHz channels, or 7 160-MHz channels in the 6GHz band1

802.11ac, also known as Wi-Fi 5, is the previous wireless standard that can only operate in the 5GHz frequency range. It was approved by the IEEE in December 2013 and offers faster speeds and better performance than older standards. However, it cannot use the new spectrum in the 6GHz band and has limited channel availability and capacity in the crowded 5GHz band2

802.11g and 802.11n are older wireless standards that can only operate in the 2.4GHz frequency range. They were approved by the IEEE in June 2003 and October 2009, respectively, and offer lower speeds and performance than newer standards. They also suffer from more interference and congestion in the saturated 2.4GHz band, which is shared by many other devices and technologies32

802.11 ax is a wireless networking protocol that utilizes the 5.0GHz frequency and has the best speed and reception among the options given. 802.11 ax offers higher data rates, lower latency, increased capacity, and improved power efficiency than previous protocols. It is also known as Wi-Fi 6 or High Efficiency Wireless (HEW). 802.11a also uses the 5.0GHz frequency, but it is an older protocol that has lower speed and reception than 802.11 ax. 802.11b/g/n use the 2.4GHz frequency, which is more crowded and prone to interference than the 5.0GHz frequency. 802.11n can use both frequencies, but it is also slower and less efficient than 802.11 ax. Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (page 82)

The most likely use case for client-side virtualization for a software developer is D. Testing on different operating systems.

Client-side virtualization is a type of virtualization that allows a single physical machine, such as a laptop or a desktop, to run multiple virtual machines, each with its own operating system and applications. Client-side virtualization can provide several benefits, such as:

Increasing the application performance by allocating more resources to the virtual machine that runs the application.

Enhancing the security of physical machines by isolating the virtual machines from each other and from the host machine, and preventing malware or attacks from spreading or affecting the data.

Reducing the operational costs by consolidating multiple physical machines into one, and saving on hardware, software, and energy expenses.

However, the most likely use case for client-side virtualization for a software developer is testing on different operating systems. This means that a software developer can use client-side virtualization to create and run different virtual machines with different operating systems, such as Windows, Linux, or Mac OS, and test how their software works and performs on each of them. This can help the software developer to ensure the compatibility, functionality, and quality of their software across different platforms and environments. It can also help the software developer to debug and fix any issues or errors that may arise on different operating systems.

For more information about client-side virtualization and its use cases, you can refer to the following web search results: [What Is Client-Side Virtualization?], [Client-Side Virtualization: Benefits and Challenges], [How Client-Side Virtualization Can Help Developers].

Hyperthreading is a feature of some CPUs that allows them to execute two threads (sequences of instructions) simultaneously on each core. Hyperthreading can improve the performance of CPU-intensive tasks, such as data analytics, by increasing the utilization of CPU resources and reducing idle time. The technician should verify that hyperthreading is enabled in the BIOS settings of the workstation.

The next step that the technician should take after replacing the battery in the phone is to check the device for malware. Malware is a malicious software that can infect the phone and cause various problems, such as overheating, battery drain, data theft, pop-up ads, or performance slowdowns. Malware can enter the phone through various sources, such as downloading apps from untrusted sources, clicking on suspicious links or attachments, or connecting to insecure Wi-Fi networks.

To check the device for malware, the technician can use a reputable antivirus or anti-malware app, such as the ones found in the web search results123. The technician can follow these steps:

Download and install the antivirus or anti-malware app from a trusted source, such as the Google Play Store or the Apple App Store.

Launch the app and grant it the necessary permissions to scan the device.

Run a full scan of the device and wait for the results.

If the app detects any malware, follow the app’s instructions to remove or quarantine it.

Restart the device and check if the overheating and battery drain issues are resolved.

Other steps, such as checking the device for updates, checking the device for liquid damage, or checking the device’s charging adapter, may not be relevant or effective for solving the overheating and battery drain issues caused by malware. Checking the device for updates may improve the security and performance of the device, but it may not remove the existing malware. Checking the device for liquid damage may reveal physical damage to the device, but it may not explain the constant overheating and battery drain. Checking the device’s charging adapter may ensure the proper charging of the device, but it may not affect the device’s temperature or battery life when it is not plugged in.

References:

Best Android antivirus apps of 2023 | Tom’s Guide1

Best iPhone antivirus apps in 2023 | TechRadar2

The best antivirus software for Android - AV-TEST3

The connector that the IT technician should inspect further is Molex. The Molex connector is used to provide power to the motherboard and other components in the computer. If there is a suspected power issue with the motherboard, the IT technician should inspect the Molex connector to ensure that it is properly connected and providing power to the motherboard1

A PSU (power supply unit) is a component that converts the AC power from the wall outlet into DC power that the PC components can use. A faulty or failing PSU can cause random system crashes, as well as other problems such as noise, overheating, or no power at all. A PSU can fail due to various reasons, such as age, dust, power surges, or poor quality.

To troubleshoot a PSU, the technician can use a multimeter to measure the voltage output of the PSU connectors. The voltage should be within the acceptable range of the specifications. For example, the 12V rail should be between 11.4V and 12.6V. If the voltage is too low or too high, the PSU is likely defective and needs to be replaced.

Alternatively, the technician can try swapping the PSU with a known good one and see if the system crashes persist. If the system works fine with a different PSU, then the original PSU is the problem and should be replaced.

The other options are not likely to fix the random system crashes. Testing the fan speed may help to diagnose overheating issues, but it is not related to the PSU. Disabling the USB ports may help to eliminate potential conflicts with USB devices, but it is not related to the PSU. Decreasing the RAM timings may help to improve performance and stability, but it is not related to the PSU.

References:

Fix Random PC Crashes: 10 Steps to Identify and Fix Issues

Why Does Windows Crash? The 9 Most Common Reasons

Since the on-premises email server has been decommissioned and users are experiencing issues with scan-to-email functionality, the best solution would be to configure an email relay. An email relay server can accept emails from devices like printers and forward them to the correct destination (such as a cloud-based email service). This avoids the need to bring back the old server or set up a new one.

A. Configure an email relay on an existing server: This allows the scanner to send emails through another server, ensuring the functionality is restored.

Why the other options are incorrect:

B. Configure a secure, cloud-based email relay: While a cloud-based solution could work, configuring an email relay on an existing server is a more immediate and likely solution.

C. Bring the old email server back into production: This is unnecessary and would defeat the purpose of decommissioning it.

D. Configure a new email server from scratch: Setting up a new email server would be time-consuming and not necessary in this situation.

This is part of the Networking and Troubleshooting domain in the CompTIA A+ Core 1 exam​.

A swollen battery is the most likely cause of the issue that the customer is reporting. A swollen battery is a battery that has expanded in size due to a chemical reaction, gas buildup, or overheating. A swollen battery can cause pressure on the laptop’s chassis, keyboard, track pad, and other components, making them hard to press or click. A swollen battery can also pose a fire hazard and damage the laptop’s performance and lifespan.

The other options are not as likely or relevant to the issue. Dropping the laptop may cause cracks or other visible damage to the chassis or screen, but the technician did not notice any. The digitizer is the part of the laptop that converts touch input into digital signals, and it has nothing to do with the keyboard or the track pad buttons. An open bottle of rubbing alcohol falling onto the keyboard may cause liquid damage, corrosion, or short circuits, but it would not affect the track pad buttons or the bottom edge of the keyboard.

To troubleshoot and resolve the issue, the technician should remove the battery from the laptop and inspect it for signs of swelling, such as bulging, deformation, or leakage. The technician should also check the laptop’s chassis, keyboard, and track pad for any signs of damage or warping caused by the battery. The technician should then replace the swollen battery with a new one that is compatible with the laptop’s model and specifications. The technician should also dispose of the swollen battery properly and safely, following the local regulations and guidelines.

References:

CompTIA A+ Certification Exam Core 1 Objectives1

The Official CompTIA A+ Core 1 Student Guide (Exam 220-1101) eBook2

How to Fix a Swollen Laptop Battery - Lifewire3

How to Tell If Your Laptop Battery Is Swollen - Techwalla4

The 8-pin PCle power cable is designed to supply power to a graphics card that requires more power than the PCle slot can provide. A workstation that is running multiple GPUs in an SLI configuration would need this cable to ensure adequate power delivery and stability. The other cables are not suitable for this purpose, as they are either meant for the motherboard (4+4-pin ATX12V and 8-pin ATX12V) or for older devices (4-pin Molex)

https://superuser.com/questions/849265/is-there-a-difference-between-8-pin-eps12v-and-pci-e-connectors

The best option to help the administrator secure the corporate resources is B. Biometric scanner.

A biometric scanner is a device that can authenticate a user’s identity based on their physical or behavioral characteristics, such as fingerprint, iris, face, voice, or signature. A biometric scanner can provide a high level of security and convenience for accessing corporate laptops, as it can prevent unauthorized users from accessing the devices and eliminate the need to remember passwords .

The other options are not the best options for this scenario. A Trusted Platform Module (TPM) is a chip that can store encryption keys and other sensitive data on a laptop. A TPM can enhance the security of data and devices, but it does not limit access to authorized users by itself. A TPM can work with a password or a biometric scanner to provide multifactor authentication . A laptop lock is a device that can physically secure a laptop to a desk or other object using a cable and a lock. A laptop lock can deter theft or tampering, but it does not prevent unauthorized users from accessing the laptop if they have the password or the key. Encryption is a process that can protect data on a laptop by transforming it into an unreadable format using a key. Encryption can prevent unauthorized users from accessing or modifying the data, but it does not prevent them from accessing the laptop itself.

The correct answer is A. Imaging drum.

An imaging drum is a part of a laser printer that transfers the toner to the paper. The imaging drum is coated with a photosensitive material that reacts to light and creates an electrostatic charge. The charge attracts the toner particles from the cartridge and forms an image on the drum. The image is then transferred to the paper by heat and pressure from the fuser assembly.

If the imaging drum is defective or damaged, it can cause various printing problems, such as solid black pages, blank pages, streaks, spots, or faded prints. A solid black page can occur when the imaging drum is unable to create a charge pattern on its surface, and instead attracts all the toner from the cartridge. This can happen due to a faulty laser unit, a dirty or scratched drum surface, or a worn-out drum.

To fix this issue, the technician should replace the imaging drum with a new one. The imaging drum usually has a limited lifespan and needs to be replaced periodically. The technician should also check the toner cartridge and the fuser assembly for any signs of damage or leakage123

The correct answers are C. Pickup roller and D. Separation pad.

A pickup roller is a rubber wheel that grabs the paper from the paper tray and feeds it into the printer. A separation pad is a small piece of cork or rubber that prevents more than one sheet of paper from being fed at a time. If the pickup roller or the separation pad is worn out, dirty, or damaged, it can cause the printer to pull multiple sheets of paper instead of a single sheet. This can lead to paper jams, misprints, or wasted paper.

To resolve this issue, a technician should investigate the condition of the pickup roller and the separation pad and replace them if necessary. The technician should also clean the paper tray and make sure the paper is loaded correctly and not stuck together.

A toner cartridge is a component that contains the toner powder used to create the printout on a laser printer. A tractor feed is a mechanism that uses sprockets to move continuous paper through a dot matrix printer. A duplexer is a device that allows a printer to print on both sides of the paper automatically. A fuser is a part of a laser printer that melts the toner onto the paper using heat and pressure. None of these components are related to the issue of pulling multiple sheets of paper from the paper tray.

The correct answer is B. Install a powered hub as close as possible to the halfway point in the Cat 5 UTP cable run.

The problem is most likely caused by the excessive length of the Cat 5 UTP cable, which exceeds the maximum limit of 100 meters (328 feet) for Ethernet over twisted pair12. This can result in signal degradation, interference, and packet loss, which can affect the network performance and connectivity. The flashing green LED indicates that the NIC is receiving data, while the flashing orange LED indicates that the NIC is sending data3. However, these LEDs do not indicate the quality or speed of the data transmission, which may be poor due to the long cable run.

The best solution is to install a powered hub as close as possible to the halfway point in the Cat 5 UTP cable run. A powered hub is a device that can amplify and regenerate the signal, as well as provide additional ports for connecting more devices. A powered hub can extend the effective range of the cable and improve the network performance and connectivity1.

The other options are not the best solutions for this problem. Checking for loose connections, pinched bends, and physical damage is a good troubleshooting step, but it is unlikely to solve the problem if the cable is too long. Replacing the entire run of Cat 5 UTP cable with Cat 5 STP cable may reduce some interference, but it will not solve the problem of signal degradation due to the length. Upgrading the entire cable run to multimode fiber may provide better performance and range, but it will also require replacing the NICs and switches, which will be costly and time-consuming.

When a phone's battery overheats and expands, it poses a significant safety risk, including the potential for fire or the battery bursting. The first and most critical action is to turn off the device to prevent further chemical reactions within the battery that could exacerbate the situation. Turning off the phone halts its operations, minimizing the heat generation and reducing the risk of further damage or danger. This is a precautionary measure to ensure the user's safety and to prevent any additional harm to the phone itself. It's important for the user to not attempt to charge or use the phone in this condition and to seek professional help or replacement of the battery or device as needed.References: Mobile Devices 1101.docx, Safety and Environmental Concerns section.

The most likely cause of the issue is that the laptop has a swollen battery, which is a condition where the battery expands due to gas buildup inside the cells. A swollen battery can cause physical damage to the laptop, such as pushing against the track pad or keyboard and preventing them from functioning properly. The technician should inspect the battery and replace it if it is swollen. A damaged digitizer is not the cause of the issue, as the digitizer is a component that converts touch input into digital signals, and it does not affect the track pad or keyboard. Distended capacitors are not the cause either, as capacitors are electronic components that store electric charge, and they do not affect the track pad or keyboard. A failed accelerometer is not the cause as well, as an accelerometer is a sensor that measures acceleration, and it does not affect the track pad or keyboard. References: https://www.comptia.org/blog/what-is-a-laptop-battery

The correct answer is C. Hybrid.

A hybrid cloud model is a combination of two or more different cloud models, such as public, private, community, or on-premises. A hybrid cloud model allows an organization to retain data on site as well as in the cloud, depending on the security and performance requirements of the data. A hybrid cloud model can also provide flexibility, scalability, and cost-efficiency for the organization12.

A public cloud model is a cloud service that is available to anyone over the internet. A public cloud model does not allow an organization to retain data on site, as the data is stored and managed by a third-party provider. A public cloud model can offer lower costs, higher availability, and easier access, but it may have less security and control over the data12.

A community cloud model is a cloud service that is shared by a group of organizations that have similar needs or goals. A community cloud model does not allow an organization to retain data on site, as the data is stored and managed by a third-party provider or one of the participating organizations. A community cloud model can offer higher security, privacy, and compliance, but it may have higher costs and lower availability than a public cloud model12.

A private cloud model is a cloud service that is exclusively used by a single organization. A private cloud model can allow an organization to retain data on site or in the cloud, depending on the configuration of the private cloud. A private cloud model can offer higher security, control, and customization, but it may have higher costs and lower scalability than a public cloud model12.

A video production workstation that will consist of two high-end GPUs will require a lot of power and a modular power supply. A modular power supply allows the technician to connect only the cables that are needed for the components, which reduces clutter and improves airflow. A 1,200W power supply should be enough to power the two GPUs and other components, but the exact wattage depends on the specifications of the GPUs and other components. A 400W external power supply is not enough to power the workstation and may not be compatible with the ATX case. Two 600W redundant power supplies are unnecessary and may not fit in the ATX case. A 1,500W uninterruptible power supply (UPS) is a device that provides backup power in case of a power outage, but it is not a replacement for a power supply unit (PSU). References: https://www.comptia.org/blog/what-is-a-power-supply-unit

The correct answer is A. Bluetooth.

Bluetooth is a wireless technology that allows devices to communicate with each other over short distances. It is commonly used for connecting wireless headsets, speakers, keyboards, mice, and other peripherals to mobile phones, laptops, and other devices.

To use a Bluetooth device with a mobile phone, the user needs to enable Bluetooth on both devices and pair them together. Pairing is a process of exchanging security codes and creating a trusted connection between the devices. Once paired, the devices can automatically connect when they are in range and turned on.

If the user is experiencing an issue when trying to use a wireless headset with a mobile phone, the first thing to check is whether Bluetooth is enabled on both devices. If Bluetooth is turned off, the devices will not be able to connect or communicate with each other.

To enable Bluetooth on a mobile phone, the user can follow these steps:

•Check in quick settings: Select the Network, Sound, or Battery icons ( ) on the right side of the taskbar, look for the Bluetooth quick setting, then select Bluetooth to turn it on. You’ll see “Not connected” if your Windows 11 device isn’t connected to any Bluetooth accessories.

•Check in Settings: Select Start > Settings > Bluetooth & devices . Make sure Bluetooth is turned on.

These steps are based on Windows 11 operating system1. The exact steps may vary depending on the type and model of the mobile phone and its operating system.

If Bluetooth is enabled on both devices but they still cannot connect, the user can try some other troubleshooting steps, such as:

•Turn off your Bluetooth device, wait a few seconds, then turn it back on.

•Make sure your Bluetooth device is in range of your mobile phone.

•Remove the Bluetooth device from your mobile phone’s list of paired devices, then add it again.

•Update the Bluetooth driver on your mobile phone or the firmware on your Bluetooth device.

•Restart your mobile phone or reset your Bluetooth device.

For more details and tips on how to fix Bluetooth problems in Windows 112 or other operating systems1, you can visit the links provided.

The best way to protect the data of a virtual machine in the event of hardware failure is to use a cloud-based backup solution. A cloud-based backup solution is a service that copies and stores the data of a virtual machine to a remote server or storage device over the internet. A cloud-based backup solution can offer several benefits, such as:

High availability and reliability: A cloud-based backup solution can ensure that the data of a virtual machine is always accessible and recoverable, even if the hardware that hosts the virtual machine fails or is damaged. A cloud-based backup solution can also provide redundancy and fault tolerance, by replicating the data across multiple locations or regions.

Scalability and flexibility: A cloud-based backup solution can adapt to the changing needs and demands of the virtual machine, by allowing the user to adjust the backup frequency, retention period, and storage capacity. A cloud-based backup solution can also support different types of backup, such as full, incremental, or differential, depending on the user’s preferences and requirements.

Cost-effectiveness and simplicity: A cloud-based backup solution can reduce the cost and complexity of maintaining a backup infrastructure, by eliminating the need to purchase, install, or manage hardware, software, or licenses. A cloud-based backup solution can also automate and streamline the backup process, by providing easy-to-use tools and interfaces, such as web portals, APIs, or scripts.

Other options, such as redundant hardware, UPS, or RAID, may improve the performance or resilience of the hardware that hosts the virtual machine, but they do not provide a complete protection for the data of the virtual machine in the event of hardware failure. Redundant hardware is a technique that uses multiple components or devices to perform the same function, so that if one fails, another can take over. UPS (uninterruptible power supply) is a device that provides backup power to a system in case of a power outage or surge. RAID (redundant array of independent disks) is a technology that combines multiple disks into a logical unit, to improve the speed, capacity, or reliability of the storage. However, these options may not prevent data loss or corruption due to other causes, such as human error, malware, or natural disasters. Therefore, a cloud-based backup solution is the best way to protect the data of a virtual machine in the event of hardware failure.

References:

What is Cloud Backup? | Microsoft Azure1

Cloud Backup - What is it and how does it work? | Veeam2

Cloud Backup vs. Local Backup: Which Option is Right for You?3

The user's smartphone is losing its charge rapidly and feels thicker than it was when new. Both of these symptoms point towards a bad battery.

A bad battery loses its ability to hold a charge, leading to rapid draining. Additionally, a bad battery can physically swell, which explains why the phone feels thicker.

Malware infection, damaged charge port, and poor connectivity are unlikely causes for both the rapid draining and the increased thickness.

References

CompTIA A+ Certification Core 1 220-1101 Study Guide, Chapter 2: Mobile Devices, Section 2.2 Mobile Device Batteries

https://www.comptia.org/training/books/a-core-1-220-1101-study-guide

The best option that the technician should choose for the best performance is A. PCIe SSD connected via NVMe interface. This option means that the technician should install a solid state drive (SSD) that uses the PCIe (Peripheral Component Interconnect Express) bus and the NVMe (Non-Volatile Memory Express) protocol to communicate with the motherboard. This option can offer the following advantages:

Faster speed: PCIe SSDs can transfer data faster than SATA or IDE SSDs, as they use more lanes and have higher bandwidth. PCIe SSDs can reach speeds of up to 7,000 MB/s, while SATA SSDs are limited to 600 MB/s and IDE SSDs are even slower12. NVMe is a protocol that is designed specifically for SSDs and can optimize their performance by reducing latency and increasing parallelism3.

Smaller size: PCIe SSDs can be smaller than SATA or IDE SSDs, as they do not require additional cables or connectors. PCIe SSDs can come in different form factors, such as M.2 or U.2, which can fit in different slots on the motherboard12.

Higher reliability: PCIe SSDs can be more reliable than SATA or IDE SSDs, as they have less moving parts and are less prone to mechanical failures or data corruption. PCIe SSDs can also support features such as error correction and wear leveling, which can enhance their durability and lifespan12.

To pair a Bluetooth speaker with a smart device, the user needs to enter the PIN code that is provided by the speaker manufacturer or displayed on the speaker itself. This is a security measure to prevent unauthorized pairing and access. Enabling and configuring MFA, synchronizing data to the cloud, or enabling location services are not required for Bluetooth pairing.

One of the possible causes of a laptop randomly turning off is liquid damage, which can cause short circuits, corrosion, and overheating of the internal components1. Liquid damage can be hard to detect, especially if the laptop has been dried or cleaned after the spill2. However, one of the indicators of liquid damage is the presence of small sticker paper within the device that changes color from red to blue3.

These stickers are called liquid contact indicators (LCIs), and they are designed to show if a device has been exposed to water or other liquids3. LCIs are usually red when dry, but they turn blue or purple when wet3. LCIs are often placed near the ports, battery, keyboard, and motherboard of laptops and other electronic devices3. LCIs can help technicians diagnose liquid damage and determine if the device is covered by warranty or not3.

M.2 SSD and NVMe interface are the best options for storage devices and interfaces that provide the best performance. M.2 SSD is a form factor that allows for faster data transfer and lower power consumption than traditional SATA SSDs. NVMe is a protocol that enables direct communication between the SSD and the PCIe bus, bypassing the SATA controller and reducing latency and overhead. Together, they offer the highest speed and efficiency for storage devices.

References:

The Official CompTIA A+ Core 1 Student Guide (Exam 220-1101) eBook1, page 3-17, section “M.2 Interface”.

The Official CompTIA A+ Core 1 (220-1101) Certification Study Guide2, page 3-21, section “NVMe”.

A sandbox is a virtual environment that allows testing or running applications without affecting the main system. A sandbox can isolate the applications from the rest of the system, preventing any unwanted changes, errors, or security risks. A sandbox can also be easily reset to the initial state, discarding any modifications or data generated by the applications12.

A sandbox is a useful tool for stress testing multiple applications, as it can:

•Simulate different scenarios and conditions for the applications, such as high load, low memory, network latency, etc.

•Monitor and measure the performance, stability, and resource consumption of the applications under stress.

•Compare and analyze the results of different applications or different versions of the same application.

•Identify and fix any bugs, errors, or vulnerabilities in the applications before deploying them to the main system.

The correct answer is C. Cat 6.

An RJ45 connector is a standard type of physical connector for network cables. RJ45 connectors are used almost exclusively with Ethernet cables and networking1. Ethernet cables are twisted pair cables that carry data signals between devices on a network, such as computers, routers, switches, and servers2.

There are different categories of Ethernet cables, such as Cat 5, Cat 5e, Cat 6, and Cat 7, that have different specifications and performance levels. Cat 6 is one of the most common types of Ethernet cables, which supports data transfer speeds up to 10 Gbps and bandwidth up to 250 MHz3. Cat 6 cables have four pairs of copper wires, each with a plastic insulation and a foil or braided shield. The wires are twisted together to reduce crosstalk and interference4.

To terminate a Cat 6 cable, an administrator needs to use an RJ45 connector that matches the wiring scheme of the cable. There are two common wiring schemes for Ethernet cables: T568A and T568B. The administrator needs to strip the cable jacket, untwist the wires, arrange them in the correct order according to the chosen scheme, trim the excess wire, and insert them into the RJ45 connector. Then, the administrator needs to use a crimping tool to secure the wires and the connector4.

Optical cables are not terminated with RJ45 connectors, but with different types of connectors that can transmit light signals, such as SC, ST, LC, or MTRJ connectors. Optical cables are used for fiber-optic networks that can carry data over long distances at high speeds.

Serial cables are not terminated with RJ45 connectors, but with different types of connectors that can transmit serial data signals, such as DB9, DB25, or DE9 connectors. Serial cables are used for connecting devices that use serial communication protocols, such as modems, printers, scanners, or keyboards.

USB cables are not terminated with RJ45 connectors, but with different types of connectors that can transmit universal serial bus data signals, such as USB-A, USB-B, USB-C, or Micro-USB connectors. USB cables are used for connecting devices that use USB communication protocols, such as flash drives, cameras, mice, or chargers.

To enable devices to connect to the internet after installing a new router at a small office, the technician should configure DHCP (Dynamic Host Configuration Protocol) on the router. DHCP is a network protocol that automatically assigns IP addresses and other network configuration parameters to devices on a network. By configuring DHCP on the router, the technician can ensure that all devices on the network are assigned a valid IP address that allows them to connect to the internet.

If all devices have a 169.254.x.x IP address, this suggests that the router is not assigning IP addresses to the devices using DHCP (Dynamic Host Configuration Protocol). Configuring the DHCP settings on the router can enable the devices to receive IP addresses automatically and access the internet. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition, Chapter 14

The primary security concern with virtual machine escape is compromising the hypervisor, which can allow attackers to gain access to other virtual machines or the host system. Virtual machine escape refers to an attack that allows a guest virtual machine to break out of its isolated environment and access other parts of the system.

Adjusting the lens is the best solution to improve image quality in a projector. The lens can become misaligned over time or during transportation, causing the image to appear fuzzy.

Dynamic Host Configuration Protocol (DHCP) allows a networked device to always be assigned the same IP address based on the device's MAC address. DHCP can also assign other network configuration settings to devices automatically.

The technician will need to connect the DVI port on the computer to the new display's HDMI port. To do this, a DVI to HDMI cable will be needed. This type of cable will allow the computer's DVI video signal to be transmitted to the new display's HDMI port.

A digital-to-analog converter (DAC) is used to convert a digital signal to an analog signal. An A/V switcher is used to switch between multiple audio and video sources and display them on a single monitor or display. A DisplayPort to HDMI adapter is used to convert a DisplayPort signal to an HDMI signal, but it is not necessary in this scenario as the computer has a DVI port and not a DisplayPort.

The cause of the issue is likely due to a DNS resolution issue. While the technician can ping the servers by IP address, they cannot ping the UNC path, indicating an issue with the name resolution. This can be resolved by configuring the correct DNS server settings.

After successfully resolving a log-on issue by resetting the password, the next step should be to document the findings. This documentation is crucial for maintaining a record of the problem and the solution, which can be useful for future reference if similar issues arise. It also ensures that any changes made to the system or user account are recorded, which is essential for maintaining the integrity and security of IT systems. This step is in line with the CompTIA A+ best practice methodology for resolving problems, as outlined in the CompTIA A+ Core 2 (220-1102) Exam Objectives, particularly in section 4.0 "Operational Procedures", which emphasizes the importance of documentation in managing and configuring security settings and operational procedures​​.

The output from the cable tester indicates that there is an open fault in the cable, which means that one or more of the wires in the cable are not connected properly or are broken. The open fault affects the wires 3, 4, and 6, which are used for transmitting and receiving data in Ethernet networks. The open fault can cause network connectivity issues, such as no link, slow speed, or packet loss12.

To resolve this issue, the technician should use a crimper and a punchdown tool, which are tools that are used to attach connectors to cables or wires to patch panels. A crimper is a tool that squeezes or crimps a connector, such as an RJ-45, to the end of a cable, ensuring that the wires are securely inserted into the pins of the connector. A punchdown tool is a tool that pushes or punches a wire into a slot on a patch panel, creating a connection between the wire and the panel. Both tools can be used to fix or replace the faulty wires or connectors that cause the open fault12.

The other options are not as effective or relevant as a crimper and a punchdown tool. A loopback plug is a tool that is used to test the functionality of a network port or device, by sending and receiving signals from the same port or device. A loopback plug can help diagnose network problems, such as faulty ports or devices, but it cannot fix the open fault in the cable12. A network tap is a tool that is used to monitor or capture network traffic, by creating a copy of the data that passes through a network link. A network tap can help analyze network performance, security, or troubleshooting, but it cannot fix the open fault in the cable12. A toner probe is a tool that is used to trace or identify a cable or wire, by sending and detecting an audible tone along the cable or wire. A toner probe can help locate or label network cables or wires, but it cannot fix the open fault in the cable12. A Wi-Fi analyzer is a tool that is used to scan or measure wireless networks, by displaying information such as signal strength, channel, encryption, etc. A Wi-Fi analyzer can help optimize or troubleshoot wireless networks, but it cannot fix the open fault in the cable12.

References:

Network Tools – CompTIA A+ 220-1101 - Professor Messer IT …

CompTIA A+ Core 1 (220-1101) Certification Study Guide, Chapter 5: Networking, Section 5.5: Network Tools, Page 249

CompTIA A+ Core 1 (220-1101) and Core 2 (220-1102) Exam Cram, Chapter 5: Networking, Section 5.5: Network Tools, Page 213

CompTIA A+ Core 1 (220-1101) and Core 2 (220-1102) Pearson uCertify Course and Labs and Textbook Bundle, Chapter 5: Networking, Section 5.5: Network Tools, Page 250

When installing a printer on a network, the technician needs to configure the network settings, which include the IP address, subnet mask, and gateway. These settings are used to ensure that the printer can communicate with other devices on the network.

When installing a printer on a network, the technician must configure the network settings of the printer to ensure that it can communicate with other devices on the network. This includes configuring the gateway, subnet mask and IP address of the printer.

The gateway is the device that connects the local network to other networks or the Internet. The subnet mask is used to determine which part of an IP address represents the network and which part represents individual hosts on that network. The IP address is a unique identifier for each device on a network.

If a technician is tasked with upgrading a laptop’s RAM, the technician should verify the memory requirements of the motherboard first. The motherboard of the laptop will have specific requirements for the type and amount of RAM that can be installed. By verifying the memory requirements of the motherboard, the technician can ensure that the new RAM is compatible with the laptop.

Before upgrading a laptop's RAM, a technician should verify the memory requirements of the motherboard to ensure the new RAM is compatible. The type, speed, and maximum capacity of the RAM should be checked to ensure it meets the requirements of the motherboard. References: CompTIA A+ Certification Exam Guide, pg. 347-348

HDMI-ARC (Audio Return Channel) is an HDMI connection that allows audio to be sent from the TV to an external sound system, such as a soundbar. If the TV's HDMI-ARC port is not being used, then the soundbar will not receive any audio from the TV and thus will not produce any sound. To resolve the issue, the technician should ensure that the TV's HDMI-ARC port is being used to connect the TV to the soundbar.

The correct answers are B. 2.4GHz penetrates solid objects more effectively. 5GHz provides faster data connections and E. 2.4GHz has a higher coverage area. 5GHz has higher bandwidth. The 2.4GHz frequency has a lower data rate compared to 5GHz, but it can penetrate solid objects more effectively and has a higher coverage area. The 5GHz frequency, on the other hand, provides faster data connections and has higher bandwidth, but it has fewer channels and lower transmit power.

Utilizing a grounding strap is the safest way to replace RAM on a server that has a redundant power supply. This ensures that no static electricity is transferred to any of the server components, which could cause permanent damage. The other options are not the correct methods for replacing RAM. Unplugging one power cable is not recommended, as it could cause the server to go offline and disrupt any services that are running. Verifying the RAM temperature is not necessary and does not provide any additional safety measures, and replacing the RAM while the server is running is not recommended, as it could cause system instability.

Once the technician has determined that the power supply is likely to be defective, they should establish a plan of action to resolve the problem. This may include replacing the power supply or further testing to confirm that it is indeed defective. After establishing a plan of action, the technician should implement the solution and verify that it has resolved the issue.

BSoDs can be caused by poorly written device drivers or malfunctioning hardware, such as faulty memory, power supply issues, overheating of components, or hardware running beyond its specification limits. In the Windows 9x era, incompatible DLLs or bugs in the operating system kernel could also cause BSoDs.

The MOST efficient next step the technician should do is to test the output resolution1. The issue of a projector that will not display any images could be related to the output resolution1. If the output resolution is not compatible with the projector, the projector will not display any images1. Calibrating the image, replacing the bulb, or cleaning the fans may not be effective1.

If a projector is not displaying any images despite verifying that the computer output and cable are providing a good video signal, the technician should test the output resolution. The output resolution of the computer may not be compatible with the projector, which can cause the projector to not display any images.

A Storage Area Network (SAN) is a dedicated, high-speed network that connects servers to data storage devices. SANs are used in server rooms to provide high-speed storage access to virtual servers.

A router is a device that connects one or more networks, such as a home or small office network, to the internet. It allows multiple devices to share a single internet connection and provides network address translation (NAT) to enable communication between the devices on the local network and the internet. A hub, Ethernet gateway, or wireless access point does not provide this functionality.

A router is the most likely device to be used to connect one or more devices to the internet in a SOHO. A router can provide network address translation (NAT), firewall protection, and other features that are important for securing and managing a network. References: CompTIA A+ Certification Exam Guide, pg. 355

It is designed to protect an organization's network infrastructure and data from unauthorized access, while allowing legitimate traffic to pass through. Firewalls can be configured to enforce security policies that block certain types of traffic, limit access to specific network resources, and prevent attacks such as malware and phishing.

A firewall is a network security system that monitors and controls incoming and outgoing network traffic based on predetermined security rules. It establishes a barrier between a trusted internal network and an untrusted external network, such as the Internet. Firewalls are used to implement network security policies for an environment by controlling access to the network and protecting it from unauthorized access.

A firewall is used to implement network security policies. It monitors incoming and outgoing traffic based on predetermined security rules and can block traffic that does not meet the defined criteria. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition by Mike Meyers (Chapter 6, page 243)

Verifying the correct type of paper is loaded is the best solution for resolving the issue of blank receipts being printed by a point-of-sale printer. Some receipt printers require a specific type of paper, and using the wrong type can result in blank receipts. References: https://www.techwalla.com/articles/what-are-the-causes-of-blank-receipts-from-a-printer

Top of Form

Verify the correct type of paper is loaded. If a point-of-sale printer is printing blank receipts, one possible cause could be that the wrong type of paper is loaded in the printer. Thermal printers require thermal paper to print properly. If regular paper is loaded instead of thermal paper, the printer will not be able to produce an image on the paper and will print blank receipts.

In a private cloud model, the cloud infrastructure is maintained within a company's own data center and is used exclusively by that company. Private clouds offer the advantage of maintaining access even when a local internet outage occurs, since the cloud infrastructure is not dependent on a public network connection.

Software as a Service (SaaS) is a cloud model in which software applications are hosted by a third-party provider and made available to customers over the internet. SaaS is not designed to maintain access in the event of a local internet outage.

A community cloud is a shared infrastructure that is used by multiple organizations, typically from the same industry or with similar requirements. Community clouds are not designed to maintain access in the event of a local internet outage.

A public cloud is a cloud infrastructure that is maintained by a third-party provider and is made available to the public over the internet. Public clouds are not designed to maintain access in the event of a local internet outage.

If the touch-screen features on a Windows device have stopped working, a technician should check the Tablet/PC settings. The Tablet/PC settings contain options for configuring the touch-screen features on a Windows device. By checking the Tablet/PC settings, the technician can ensure that the touch-screen features are enabled and configured correctly.

If the touch-screen features on a Windows device have stopped working, a technician should check the Tablet/PC settings. The touch-screen settings may have been disabled or there may be a driver issue that needs to be resolved. References: CompTIA A+ Certification Exam Guide, pg. 536

it appears that option A, restoring function to the air conditioner, would most likely solve the thermal printer issue in the described scenario. The failure of the air conditioner during the summer could likely have caused high humidity or heat in the factory, which can affect the printing quality of thermal printers by causing blank spots or missing text. By restoring function to the air conditioner, the temperature and humidity in the factory can be controlled, which can help eliminate these printing issues. However, it is still possible that any of the other options listed could also potentially solve the issue, so it is best to assess the situation further and try different solutions if necessary.

The correct answers are A. Identify the location of devices that utilize 2.4GHz and D. Map all of the wireless signals in the restaurant. In order to troubleshoot the issue, the technician should first identify the location of devices that utilize the 2.4GHz frequency, as this can cause interference with the wireless signal. Additionally, the technician should map all of the wireless signals in the restaurant in order to identify any potential sources of interference. Checking to see if the phones are IJTP or STP lines, testing to see if the copper electrical wires are causing interference, verifying T568B is being used in the wiring closet patch panel, and scheduling timed router reboots throughout the day are not necessary steps for troubleshooting this issue.

The cloud concept that should be used for migrating all common business applications, including email and fileshares, to the cloud is Software as a Service (SaaS).

PCle (Peripheral Component Interconnect Express) is a type of expansion slot that connects network interface cards (NICs) and other devices to the motherboard. PCle slots have different sizes and speeds, such as x1, x4, x8, x16, and x32. PCle slots are faster and more versatile than older types of expansion slots, such as AGP (Accelerated Graphics Port) and IDE (Integrated Drive Electronics).

References: The Official CompTIA A+ Core 1 Student Guide (Exam 220-1101) eBook, page 2-13.

When a laptop screen fails to mirror to a television despite being correctly connected via an HDMI cable, a common issue is that the television is set to the wrong input source. Modern televisions have multiple input options (e.g., HDMI 1, HDMI 2, AV, etc.), and selecting the correct input that corresponds to the port the HDMI cable is connected to is essential for displaying the laptop's screen. The blinking logo on the TV screen typically indicates that the TV is functioning but not receiving a signal from the selected input source. Changing the TV's input to the correct HDMI port should resolve the issue and allow the laptop screen to mirror onto the TV.References: Hardware 1101.docx, "Connecting External Displays" section.

The user should configure the print job to use the Duplex option, which will print on both sides of the paper and reduce the amount of paper used.

The technician should boot into the BIOS and enable the TPM on the new motherboard to enable the system to boot again and get access to the stored data1.

Boot into the BIOS and enable the TPM on the new motherboard. Explanation: After upgrading the motherboard, the TPM may need to be enabled in the BIOS in order to access the encrypted key and boot the system. Enabling the TPM on the new motherboard should allow the system to boot and provide access to the encrypted data. References: CompTIA A+ Certification Exam Guide, 220-1001, Chapter 13

This is because high-end graphics cards, processors, and multiple hard drives require a significant amount of power to operate. A power supply with insufficient wattage could cause stability issues or even damage the components.

The CompTIA A+ Core1 certification guide emphasizes the importance of selecting an appropriate power supply for a computer build. In addition to wattage, other factors to consider when selecting a power supply include efficiency, modularity, and the number and type of connectors required to power the components. However, of the options listed, the wattage rating is the most critical consideration.

Therefore, the technician should ensure that the power supply they select has a wattage rating that is sufficient to power all the components in the gaming computer. It is always a good practice to select a power supply with a wattage rating that exceeds the estimated power usage of t

VDI is a technology that allows a company to provide desktop environments to third-party developers while still maintaining control over the corporate network. VDI creates virtual desktops on a remote server, and each user gets their own desktop environment that is isolated from the other users. This allows the company to maintain control over the corporate network, as the virtual desktops are not directly connected to the corporate network.

NVMe (Non-Volatile Memory Express) drives are high-speed solid-state drives that utilize the PCIe (Peripheral Component Interconnect Express) interface to connect to the motherboard. Before purchasing an NVMe drive, the user should confirm that the PC has an available M.2 slot for the drive and that the PC has a PCIe interface for the M.2 slot.

SATA (Serial ATA) is an older interface for hard drives and is not compatible with NVMe drives. SAS (Serial Attached SCSI) is a newer interface for hard drives and is typically used for enterprise-level storage systems. SCSI (Small Computer System Interface) is a parallel interface for hard drives that is primarily used in high-end workstations and servers. DRAM (Dynamic Random Access Memory) is a type of memory commonly used in computers, but it is not relevant to the storage of data on a hard drive.

https://intellinetnetwork.eu/pages/what-is-a-poe-injector

The quickest way to resolve the issue is to install a Power over Ethernet (PoE) injector to provide power to the IP phone. An unmanaged switch does not provide PoE, so an injector is needed to power the phone.

If a technician made several upgrades to a computer and then determined the power supplied by the PSU is insufficient, the upgraded graphics card and adding more RAM would most likely cause the insufficiency. Upgrading the graphics card and adding more RAM can increase the power consumption of a computer, which can cause the power supplied by the PSU to be insufficient.

Adding more RAM and upgrading the graphics card are the most likely causes of the insufficiency of power supplied by the PSU. These upgrades require more power to operate efficiently and can cause the PSU to become insufficient.

Using the device as a Wi-Fi hotspot, a failing battery, and too many open applications are the most likely causes of the cell phone getting hot. These actions require the phone to use more power and processing, causing it to heat up.

NFC (Near Field Communication) is the technology used for contactless payment features on mobile payment devices. If a mobile payment device is having issues with its contactless payment feature and is not detecting payment options, it is most likely due to an issue with the NFC functionality of the device.

The contactless payment feature on a mobile payment device uses NFC (Near Field Communication) to detect payment options. If the device is not detecting payment options, the issue may be related to a problem with the NFC feature. References: https://www.techopedia.com/definition/31790/near-field-communication-nfc

The most secure way to implement fingerprint readers would be to restrict device access to only the user to whom the laptop is assigned. This ensures that only authorized personnel have access to the device, reducing the risk of unauthorized access and data breaches.

A Virtual LAN (VLAN) is a network topology that allows a switch to be divided into separate logical networks. This allows for the creation of multiple broadcast domains within a single physical network, improving network segmentation and security. With VLANs, you can segment your network so that different departments, applications, or users are isolated from each other, improving network security and performance.

An impact printer is a type of printer that uses a ribbon to produce text and images on paper. If an impact printer is producing faded text and images when printing, it could be due to a worn-out ribbon that needs to be replaced. The technician would need to replace the ribbon on the impact printer to resolve the issue.

A ribbon is a consumable component used in impact printers that uses a cloth or plastic strip coated with ink to produce text and images on paper. Examples of impact printers include dot matrix printers and line printers. References: Study Guide Section 4.6 - Printer technologies

Verify that the OS supports hot swapping the RAM. Before replacing the RAM on an entry-level server with hot-swappable components, the technician should verify that the operating system supports hot swapping of RAM.

The concept described in the question is related to virtualization and resource management in a virtual environment. The approach that allows all virtual machines (VMs) to have memory (RAM) allocated for use is known as resource pooling. Therefore, the correct answer is D: "Resource pooling." This approach allows resources to be allocated dynamically to VMs based on their current needs, and ensures that resources are used efficiently in the virtual environment.

Resource pooling is a technique used in virtualization to share resources among multiple virtual machines (VMs). With resource pooling, RAM can be allocated dynamically to VMs as needed, allowing all VMs in a virtual environment to have RAM allocated for use.

References: https://en.wikipedia.org/wiki/Resource_pooling

The Official CompTIA® A+® Core 1 and Core 2 Student Guide (Exams 220-1001 and 220-1002) | 193 Protected content. If you encounter an error that indicates unauthorized content or an HDCP error: • DVI, HDMI, DisplayPort, and Thunderbolt all provide support for the Digital Rights Management (DRM) mechanism High-bandwidth Digital Content Protection (HDCP). HDCP allows a content source (such as a Blu-ray disc) to disable itself if the display adapter and monitor and/or speaker system do not support HDCP and fail to authenticate themselves with the playback source. There have been various iterations of HDCP (at time of writing the current version is 2.2) and backward-compatibility can be problematic as authentication may fail between devices that support different versions of the standard.

802.11ac is the 802.11 standard that supports both 5GHz and 2.4GHz channel frequencies. 802.11ac is the latest wireless networking standard that operates in both the 5GHz and 2.4GHz frequency bands. It provides higher wireless network speeds and better reliability compared to previous standards, such as 802.11a, 802.11b, and 802.11g. The 802.11a standard operates exclusively in the 5GHz band, while the 802.11b and 802.11g standards operate exclusively in the 2.4GHz band.

Removing unnecessary applications frees up storage and processing power, which may allow the device to sync data more effectively. Data caps, Preferred Roaming List settings, and Bluetooth discovery are unrelated to syncing large datasets in cloud storage, as noted in CompTIA A+ Core 1 objectives on mobile device troubleshooting.

When print jobs remain stuck in the printer queue despite successful network communication (indicated by successful ping replies) and no issues with paper supply or toner levels, a common reason can be that the first job in the queue requires manual intervention, such as paper to be fed into a manual feed tray. Printers often pause the entire print queue if the first job requires a specific type of paper or manual insertion that hasn't been addressed, preventing subsequent jobs from processing.

References:

CompTIA A+ Core 1 (220-1101) Exam Objectives, specifically the sections on troubleshooting printers, which include understanding various reasons why print jobs might get stuck in the print queue.

Knowledge of printer operation and common print job issues, with an emphasis on how printers handle manual feed tray requirements and the impact on the print queue.

Step by Step Detailed Comprehensive Explanation with All CompTIA References:

Analysis of the Problem:

IPv4 records are associated with "A" records in DNS servers.

Option Evaluation:

A. AAAA: Used for IPv6. Incorrect.

B. MX: Relates to email servers. Incorrect.

C. CNAME: Provides aliases, not IP mappings. Incorrect.

D. A: Maps hostnames to IPv4 addresses. Correct.

A syslog server collects and stores log data from various network devices and systems.

A maintenance kit includes components like rollers and other parts that tend to wear out over time, which are common causes of printer jamming. Replacing toner, ink cartridges, or ribbons would not directly address paper jams. This troubleshooting step aligns with the CompTIA A+ Core 1 objective regarding maintaining printers for optimal performance.

VGA (Video Graphics Array) cables transmit analog video signals only and do not carry audio signals. When a user connects a laptop to an audiovisual system using a VGA cable, the lack of audio is due to VGA's inability to transmit sound. Switching to an HDMI (High-Definition Multimedia Interface) cable, which supports both audio and video signals, will most likely resolve the issue by enabling the transmission of sound to the audiovisual system alongside the video.

References:

CompTIA A+ Core 1 (220-1101) Exam Objectives, specifically sections related to peripherals and connectors, which would cover the capabilities of different types of cables and connectors, including VGA and HDMI.

Basic understanding of the functionality of common video and audio cables and connectors, emphasizing the distinction between VGA cables, which only support video signals, and HDMI cables, which support both video and audio signals.

Automatic Private IP Addressing (APIPA) allows a Windows PC to automatically assign itself an IP address in the range of 169.254.0.1 to 169.254.255.254 when it's unable to obtain an IP address from a DHCP server. This feature is particularly useful in situations where the PC cannot connect to the network or when DHCP services are unavailable. While APIPA addresses are not routable and thus not suited for large networks, they enable basic networking functionality for small ad-hoc or local networks.

When a device is experiencing slow file transfers to an external USB drive and the physical connections are confirmed to be correct, the next step is to update the device drivers. Outdated or corrupt drivers can cause suboptimal performance and slow transfer speeds. Updating the drivers can resolve these issues and improve the device's communication with the USB drive, leading to faster file transfers.

References:

CompTIA A+ Core 1 Exam Objectives Section 5.0: Hardware and Network Troubleshooting.

Routers are designed to connect multiple networks and direct packets to their intended destinations across network segments. This makes them essential for directing packets to networks outside of the LAN, such as the internet or other remote networks.

References:

CompTIA A+ Core 1 Exam Objectives Section 2.2: Compare and contrast common networking hardware.

The most common reasons you may be seeing the "No Signal" message: The projector and the source device are not connected correctly.

The first action should be to check the video cable and replace it if necessary, as the error message suggests that the projector is not receiving a signal from the laptop. Verifying that the projector is turned on and checking the bulb would come after verifying the video cable.

When replacing a power supply in a computer, wearing an antistatic wrist strap is crucial to prevent static electricity from damaging the computer components. Static electricity can easily damage sensitive electronic components within the computer; therefore, using an antistatic wrist strap helps to ground the technician, mitigating the risk of electrostatic discharge. The other options provide general safety but do not address the primary concern of electrostatic discharge in this context.

References:CompTIA A+ Core 1 (220-1101) objectives covering best practices for hardware maintenance, including electrostatic discharge prevention.

When preparing for a webinar, it is crucial to ensure that all necessary multimedia hardware is functional for both input and output devices. The three key hardware components to test and configure in a webinar setting are:

C. Speakers: The user must test and configure speakers to hear the audio during the webinar, such as the presenter's voice or any media shared.

E. Camera: The camera is essential for video communication, allowing the user to broadcast their image to others in the webinar. Many webinar platforms will have settings to test and adjust the video feed from the camera.

G. Microphone: A functional microphone is critical for the user to participate verbally in the webinar. The user should test this to ensure that they can be heard clearly by other participants.

Why the other options are incorrect:

A. Keyboard: While it might be used to type messages or navigate, it’s not necessary to test the keyboard specifically for webinar participation.

B. Digital pen: A digital pen is used for specialized input, like drawing or writing on touchscreen devices, but it is not typically required for a standard webinar.

D. Mouse: Similar to the keyboard, a mouse can help navigate, but it's not crucial to test for functionality in a webinar context.

F. Docking station: A docking station is a hardware peripheral that provides additional ports and connectivity. While it might be useful, testing the docking station itself isn't necessary for ensuring a successful webinar.

H. Monitor: A monitor allows the user to view the content, but it typically does not need to be specifically tested in a webinar application. The focus should be on audio and video components.

These components fall under the Mobile Devices and Peripheral Hardware domain of the CompTIA A+ Core 1 exam​​.

When a laptop screen is not displaying on a conference room TV despite being connected to a wireless HDMI dongle, the issue is often related to the TV being set to the wrong input source. Since the in-room computer's desktop is displayed, it suggests the TV is currently set to the input source used by the in-room computer. Changing the TV's input source to the one associated with the wireless HDMI dongle connected to the user's laptop is the simplest and most direct approach to resolve the issue. This does not involve adjusting network settings or hardware configurations but rather selecting the correct input source through the TV's input selection menu.

References: This solution is aligned with best practices for troubleshooting display connectivity issues, which emphasize checking and adjusting input sources on the display device as a first step.

The mechanical engineer's PC shutting off during resource-intensive tasks like rendering could be caused by overheating or hardware issues. The two most logical steps to diagnose the problem are:

B. Check if the computer is overheating: Rendering is a CPU- and GPU-intensive task that generates heat. Overheating could cause the system to shut down as a protective measure. Checking the system’s temperature can help identify if this is the cause.

A. Listen for POST beeps when turning on the PC: POST (Power-On Self-Test) beeps can indicate hardware issues, such as with the motherboard, CPU, or GPU. Listening for beeps can help identify potential problems with these components.

Why the other options are incorrect:

C. Run chkdsk: This tool is used for checking disk integrity, but the symptoms don’t suggest a hard drive issue.

D. Reinstall the operating system: Reinstalling the OS is a time-consuming step and not typically necessary for hardware-related shutdowns.

E. Check if the graphics card is compatible with the motherboard: If the PC has been working for three years, the GPU is already compatible with the motherboard.

F. Replace the HDD: There’s no indication that the hard drive is causing the issue, as the problem occurs during rendering, which is more GPU/CPU-intensive.

This topic falls under the Hardware Troubleshooting domain in the CompTIA A+ Core 1 exam​.

If an application was previously running in a virtualized environment and is not launching after being installed directly on the base operating system, it's possible that the technician did not account for dependencies or configurations specific to the virtualized environment that are not present or are incompatible with the base operating system. This mismatch can prevent the application from launching properly.

References:

CompTIA A+ Core 1 Exam Objectives Section 4.0: Virtualization and Cloud Computing

CompTIA A+ Core 1 Exam Objectives Section 5.0: Hardware and Network Troubleshooting

When two devices on the same network are assigned the same IP address, it can lead to intermittent connectivity issues as the network switches between the two devices. This situation, known as an IP address conflict, can disrupt the normal operation of the network, leading to connectivity problems that appear sporadic or intermittent. Resolving duplicate IP addresses typically involves ensuring DHCP is correctly configured or manually setting unique static IP addresses for devices prone to conflicts.

When a new GPU is installed and results in lower screen resolution and picture quality, it's often because the appropriate OEM (Original Equipment Manufacturer) drivers for the GPU have not been installed. Without these drivers, the operating system may revert to generic drivers that do not fully support the GPU's capabilities, leading to suboptimal performance. Installing the correct OEM drivers should resolve the issue and allow the GPU to function at its intended performance level.

References:

CompTIA A+ Core 1 (220-1101) Exam Objectives, particularly those relating to the installation and configuration of hardware components like GPUs, and the importance of installing the correct device drivers for optimal hardware performance.

General knowledge of hardware installation and the role of device drivers in ensuring hardware components such as GPUs operate correctly within a system.

Data throttling, often implemented by network providers to manage bandwidth usage, can slow data speeds after a certain usage limit is reached. Turning off wireless would prevent uploads, while roaming and 5G status primarily affect connectivity rather than speed throttling. CompTIA A+ Core 1 objectives cover connectivity troubleshooting for mobile devices, including factors impacting network speed and performance.

Turning off the laptop and disconnecting power immediately prevents further damage and potential safety hazards. Checking for foreign objects or damage is essential for identifying the root cause. Other options, such as contacting the vendor or using a different adapter, are not immediate troubleshooting steps for an active burning smell. CompTIA A+ Core 1 objectives emphasize safety and hardware troubleshooting.

RAID 10 (also known as RAID 1+0) combines the features of RAID 1 (mirroring) and RAID 0 (striping) to provide both redundancy and performance enhancements. This configuration requires a minimum of four drives and offers fast data access through striping while ensuring data redundancy through mirroring. RAID 10 is ideal for environments where both data integrity and performance are critical, such as financial databases.

Since the issue of the network connection dropping has been replicated on a known-good workstation using the same network cable, it suggests that the problem may not be with the individual workstations or the cable. The next logical step is to check for external interference, such as electrical or wireless interference that could be disrupting the network connection.

C. Validate the environment for external interference: External factors, such as nearby electronic devices or poor cabling, can cause intermittent network drops. Checking for interference would be a prudent next step.

Why the other options are incorrect:

A. Add new network hardware to reduce congestion: There’s no evidence that network congestion is the issue, and adding new hardware without identifying the cause is premature.

B. Assign a static IP to the impacted workstations: The issue appears to be related to the physical network connection or environment, not IP addressing.

D. Check the network logs for evidence of port flapping: Port flapping occurs when a network port rapidly switches between up and down states. While checking logs could provide information, external interference is a more likely culprit given the symptoms.

This issue is part of the Networking Troubleshooting domain in the CompTIA A+ Core 1 exam​.

Duplex printing allows printing on both sides of a paper, which can significantly reduce paper consumption and costs associated with buying paper. This makes duplex printing the best feature for cutting costs on consumables.

References:

CompTIA A+ Core 1 Exam Objectives Section 3.6: Given a scenario, deploy and configure multifunction devices/printers and settings.

Step by Step Detailed Comprehensive Explanation with All CompTIA References:

Analysis of the Problem:

The issue points to outdated or incompatible printer drivers on the older system.

Option Evaluation:

A. Reinstall the printer: Won’t resolve driver incompatibility. Incorrect.

B. Adjust the print tray: Unrelated to print quality. Incorrect.

C. Update the printer driver: Ensures compatibility and resolves print errors. Correct.

D. Change the toner: Unreadable text isn't caused by toner. Incorrect.

Self-encrypting hardware, such as self-encrypting drives (SEDs), provides an effective solution for securing data with minimal user interaction. SEDs automatically encrypt all data stored on the drive without requiring any special software or user action, ensuring that data remains protected even if the drive is removed from the device. This feature is particularly beneficial for remote users who may not consistently follow manual encryption procedures, offering a seamless and user-transparent method to secure sensitive data.

Testing the power supply first ensures that the correct voltage is reaching all components, which is a common cause of boot issues. Modifying BIOS settings is not possible without a POST. Checking PCIe cards or replacing the motherboard are secondary steps if the power supply is functional. CompTIA A+ Core 1 objectives cover power supply testing as an essential troubleshooting step in system startup issues.

When experiencing issues accessing a USB key for a firmware update, particularly in relation to system board UEFI updates, the Secure Boot feature should be considered. Secure Boot is a security standard designed to ensure that a computer boots using only software that is trusted by the PC manufacturer. If Secure Boot is enabled, it might prevent the system from recognizing or booting from the USB key if the firmware update or the USB drive is not recognized as a trusted source. Disabling Secure Boot temporarily can allow the firmware update to proceed.

References:

CompTIA A+ Core 1 (220-1101) Exam Objectives, specifically the sections on UEFI/BIOS settings and configurations, including the role and configuration of Secure Boot in system security.

Understanding of UEFI/BIOS security features and their impact on system boot processes, particularly the function of Secure Boot in validating firmware and software integrity during the boot process.

A sandbox environment is designed to isolate and contain software or programs, preventing them from interacting with other parts of the system or network. This isolation can be used to safely run untested or untrusted programs or code without risking the integrity of the host system or network. Setting up a virtual machine within a sandbox environment ensures that the VM has no communication with other devices over the network, providing a controlled and secure environment for testing or development purposes.

References:

CompTIA A+ Core 1 (220-1101) Exam Objectives, particularly the sections on virtualization and cloud computing, which may cover the concept of sandboxing as a form of virtualization used for security and testing.

Understanding of virtualization technologies and security practices, including the use of sandbox environments to contain and limit the potential impact of untrusted or experimental software.

For setting up a private network, the IP address range should be one that is reserved for private use. The range 172.16.0.0 to 172.31.255.255 falls within the set of IP addresses designated for private networks according to RFC 1918. This range is not routable on the public internet, making it ideal for a private network setup on a retail router.

References:

CompTIA A+ Core 1 Exam Objectives Section 2.5: Given a scenario, install and configure basic wired/wireless SOHO networks.

When an external touch screen exhibits flickering without registering input on a presentation laptop, the first troubleshooting step should be to check the cables connecting the touch screen to the laptop. This includes ensuring that the cables are securely connected, undamaged, and are the correct type for transmitting both video and touch input data. Faulty, loose, or incorrect cabling can lead to issues like flickering and unregistered inputs.

References:

CompTIA A+ Core 1 (220-1101) Exam Objectives, particularly the sections dealing with peripheral devices and troubleshooting connectivity and performance issues related to external devices like touch screens.

Basic troubleshooting principles for peripheral devices, emphasizing the importance of verifying physical connections and cable integrity when encountering issues with device functionality.

Step by Step Detailed Comprehensive Explanation with All CompTIA References:

Analysis of the Problem:

High-end video cards require PCIe slots. NVMe provides the fastest storage connections.

Option Evaluation:

A. Molex: Used for older components like fans. Irrelevant. Incorrect.

B. NVMe: Provides high-speed storage via M.2 or PCIe. Correct.

C. SATA: Slower than NVMe. Incorrect.

D. FireWire: Obsolete for modern hardware. Incorrect.

E. USB-C: Used for peripherals, not internal hardware. Incorrect.

F. PCIe: Required for high-end video cards. Correct.

Secure print is the best option to address the concern of printing confidential documents on a shared enterprise multifunction printer (MFP). Secure print requires users to enter a PIN or use an ID card at the printer to release their print jobs. This ensures that documents are only printed when the user is physically present to collect them, preventing sensitive information from being left unattended or viewed by unauthorized individuals.

While a central printer server, audit logs, and Wi-Fi direct printing have their own benefits, they do not provide the same level of immediate security for confidential documents as secure print does. A central printer server centralizes management but does not prevent unauthorized viewing. Audit logs provide a record of activity but do not prevent the initial security breach. Wi-Fi direct printing allows for a direct connection to the printer but does not secure the document during printing.

In laser printing, the fuser unit is responsible for bonding the toner to the paper using heat and pressure. If the toner is not sticking to the paper, resulting in illegible documents despite trying different brands of paper, it indicates a problem with the fuser unit. It might not be reaching the necessary temperature to melt the toner properly, necessitating its replacement to ensure proper printouts.

References:

CompTIA A+ Core 1 Exam Objectives Section 3.7: Given a scenario, install and replace printer consumables.

A technician is working on a help desk ticket for a user who wants the filament replaced in a 3-D printer. To remove the old filament and load the new one, the technician should preheat the nozzle to melting temperature. After the nozzle is heated, the technician should withdraw the filament and remove the spool. Then, cut a sharp angle on the end of the new strand, and push it along until resistance is felt.

A discharged CMOS battery often causes a system to lose track of time and date settings when powered off, as this battery powers the real-time clock. The BIOS settings, including time and date, revert when this battery fails. Option A (time server misconfiguration) would impact multiple devices. BIOS updates (Option B) and CPU performance (Option D) are unrelated to timekeeping issues, as outlined in CompTIA A+ Core 1 (220-1101) exam objectives under hardware troubleshooting.

A VPN (Virtual Private Network) is the technology that allows a home PC to connect securely to a company's network over the internet. It extends a private network across a public network, enabling users to send and receive data as if their computing devices were directly connected to the private network. This makes VPNs ideal for remote work and accessing company resources securely from a home PC.

References:

CompTIA A+ Core 1 (220-1101) Exam Objectives, specifically sections that cover networking concepts and technologies, including remote access methods and network security protocols such as VPNs.

Understanding of network security practices and remote access technologies, focusing on how VPNs create secure connections over the internet for remote users to access corporate networks.

Port 21 is used by FTP (File Transfer Protocol) for file transfers. Port 53 is for DNS, port 68 is for DHCP, and port 389 is for LDAP. Understanding standard network ports is essential in CompTIA A+ Core 1 objectives, especially in networking and troubleshooting scenarios.

A significant increase in the number of reallocated sectors on a hard drive is a clear indication that the drive is experiencing physical damage or wear and tear that cannot be repaired through software means. Reallocated sectors are bad sectors that the drive's firmware has marked as unusable and moved data to spare sectors. This is often a precursor to drive failure. Therefore, the most prudent next step is to replace the hard drive to ensure data integrity and system reliability.

References:

CompTIA A+ Core 1 Exam Objectives Section 5.3: Given a scenario, troubleshoot and diagnose problems with storage drives and RAID arrays.

Two-factor authentication (2FA) significantly enhances security by requiring two forms of verification before granting access to company resources, making it harder for unauthorized users to gain access even if they have one of the credentials. PIN code enforcement adds an additional layer of security by ensuring that devices are protected by a PIN, making physical access to the device more challenging for unauthorized users. While the other options provide various benefits, 2FA and PIN code enforcement directly enhance the security of remote users accessing company resources.

References:

CompTIA A+ Core 1 Exam Objectives Section 2.7: Compare and contrast Internet connection types, network types, and their features.

If a smartphone repeatedly loses connection to a home Wi-Fi network and the common troubleshooting steps like restarting the device, rebooting the router, and resetting the Wi-Fi settings have not resolved the issue, updating the smartphone's operating system (OS) could be the next logical step. OS updates often include fixes for known bugs and improvements in connectivity and compatibility with network hardware, which could resolve persistent connection issues.

References:

CompTIA A+ Core 1 (220-1101) Exam Objectives, specifically the sections related to troubleshooting mobile devices and connectivity issues, which would cover the importance of maintaining updated OS versions for optimal performance and compatibility.

General troubleshooting approaches for mobile devices, with an emphasis on the role of software updates in resolving connectivity and performance issues.

To connect printers without an RJ45 port to the network, the technician needs to enable wireless connectivity. By configuring the printers to connect to the network wirelessly, the company can achieve the desired consistency in printer configuration across the office. This approach allows printers without built-in wired network capabilities to be part of the network, facilitating shared access and remote printing functionalities.

References:

CompTIA A+ Core 1 (220-1101) Exam Objectives, Section 2.3 Networking, specifically the information on configuring and troubleshooting wireless connectivity for devices, which includes enabling and securing wireless connections on network printers.

General understanding of network printer configuration options, including the use of wireless connectivity to integrate printers into a network environment, particularly when wired connections are not feasible.

Electromagnetic interference (EMI) is unwanted noise or interference in an electrical path or circuit caused by an outside source. Hence shielded Cat 6 is better

If a technician determines that the root cause of sporadic network connectivity issues is EMI, the most cost-effective cable medium that can be used without sacrificing system performance is shielded Cat 6 cable. Shielded cables protect against electromagnetic interference (EMI) and radio frequency interference (RFI). References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition by Mike Meyers (Page 548)

After the issue has been identified and the backup of the system has been made, the next step is to establish a theory of probable cause. This involves researching the issue to determine the root cause of the problem. This can involve researching internally (e.g. referring to the system logs) or externally (e.g. searching online). Once the probable cause has been identified, the technician can then move on to the next step of designing a plan of action to resolve the issue and implementing the solution.

When a device such as a laptop is connected to a network and automatically assigned an IP address, it is typically done through DHCP (Dynamic Host Configuration Protocol). DHCP servers are responsible for dynamically assigning IP addresses to devices on a network, ensuring that each device has a unique IP address and can communicate on the network without IP conflicts.

References:

CompTIA A+ Core 1 (220-1101) Exam Objectives, especially sections dealing with networking fundamentals and configurations, which would include the role and function of DHCP in managing IP address allocation on networks.

Understanding of basic networking protocols and services, highlighting DHCP's role in dynamically allocating IP addresses to devices on a network to facilitate communication.

Intermittent paper feeding issues in a laser printer are commonly caused by dirty or worn-out pickup rollers. Cleaning the rollers can restore proper functionality. This aligns with the CompTIA A+ Core 1 objective related to troubleshooting and maintaining printers, specifically resolving paper feeding issues​.

By running the specified tests (ping of the default gateway, ping of the localhost, and tracert of the IP address of the default gateway), the technician can find connection latency and the subnet mask of the network.

Connection latency: The time it takes for a ping or tracert command to send and receive a response helps in determining the latency in the network connection. Higher latency values can indicate delays in communication over the network.

Subnet mask of the network: The ipconfig command, which the technician would initially run to perform these tests, provides various details about the network configuration, including the subnet mask. The subnet mask is essential in determining the network and host portions of an IP address, which is crucial for networking and troubleshooting connectivity issues.

References:

CompTIA A+ Core 1 (220-1101) Exam Objectives, specifically sections dealing with troubleshooting network connectivity issues and understanding network configurations, including the use of diagnostic commands like ping and tracert.

Networking fundamentals, which explain the purpose and use of diagnostic tools such as ping (to measure latency) and ipconfig (to view IP configuration details including the subnet mask).

M.2 is a form factor for solid-state drives (SSDs) that enables direct attachment to the motherboard without the need for cables. Thunderbolt is a high-speed interface that supports data transfer, video output, and charging. eSATA is an external interface for connecting SATA devices. SCSI is an older interface standard for connecting hard drives, printers, and other peripherals.

Installing a hard drive directly on the motherboard without using cables is usually done with an M.2 slot. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 5

Display burn-in occurs when a static image is left on a screen for a long time, causing the pixels to wear out unevenly and retain a ghost image even when new content is displayed. This issue can result in double images, where the "burned-in" stationary image persists alongside new, live content. This problem is more common in older displays or those used for static signage. Replacing the display cable or adjusting color settings would not address the underlying cause of uneven pixel wear, and burned-out bulbs would likely result in a loss of image clarity or brightness, not double images.

References: Display burn-in is a well-documented phenomenon in display technology, particularly affecting screens used for signage with static elements.

In this situation, the MOST cost-effective cable medium that would not sacrifice system performance would be B. Shielded Cat 6. Electromagnetic interference (EMI) can disrupt network connectivity by interfering with the signals transmitted over network cables. Shielded Cat 6 cables are designed to provide protection against EMI by incorporating a layer of shielding material around the cable’s conductors. This shielding helps to prevent EMI from interfering with the signals transmitted over the cable.

Cross-platform virtualization would be the best solution for running Windows software on a computer running macOS. This involves running a virtual machine (VM) on the macOS computer, which emulates a Windows environment and allows the Windows software to be installed and run within the VM.

Cross-platform virtualization allows a computer running macOS to run Windows software. It involves creating a virtual machine on the macOS computer and installing a Windows operating system on it. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 1

When a user hears one beep on rebooting a machine, and then an error message is displayed, it could indicate that there is a problem with the RAM module or the boot order. The beep sound indicates that the POST process was successful, and the error message indicates that the boot process was unsuccessful. The boot order determines the sequence in which the computer looks for bootable devices. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition by Mike Meyers (Page 693)

Rapid elasticity would be used by an online retailer to quickly add more web servers during peak sales times. References: CompTIA A+ Certification Exam Guide, Exam 220-1001, Page 405

The technician should run diagnostics on the faulty hard drive using a boot disk first when a computer that contains critical data has not been backed up and will not boot past a S.M.A.R.T. error that indicates imminent hard disk failure. References: CompTIA A+ Certification Exam Guide, Exam 220-1001, Page 376

FTP (File Transfer Protocol) uses TCP ports 20/21 and transfers data in cleartext, which means the data is not encrypted and can be read by anyone who intercepts it. This makes FTP insecure for transferring sensitive information. SSH (Secure Shell), on the other hand, uses port 22 and encrypts data, making it more secure. SNMP (Simple Network Management Protocol) uses ports 161/162 and is used to monitor network devices. Telnet uses port 23 and transfers data in cleartext, making it insecure. References: CompTIA A+ Certification Exam: Core 1 - Page 199

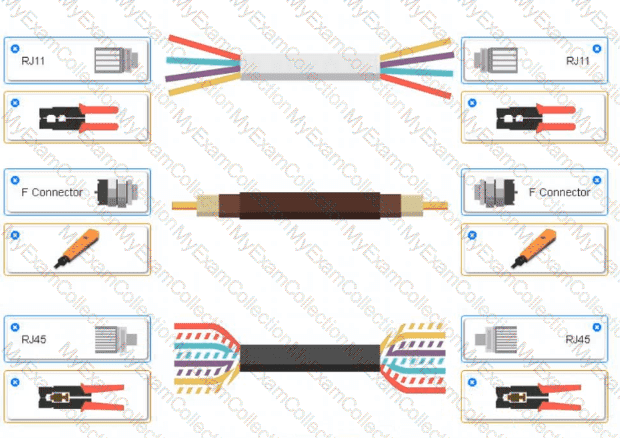

A punchdown tool is essential for connecting telephone wires to patch panels, keystone modules, and punchdown blocks, making it a critical tool for installing plain old telephone service (POTS) lines. A toner probe, on the other hand, is used for tracing and identifying specific wires within a bundle, facilitating the correct attachment of telephone lines to their respective terminals. These tools are fundamental for ensuring proper and efficient installation of POTS lines in a client's environment.

The tool that the technician should use to see all drives is Diskmgmt. Diskmgmt is a Windows utility that allows you to manage disk drives and partitions on your computer. It can be used to view all drives, including USB drives, that are connected to the computer12.

The flashing green and orange LEDs on the NIC indicate connection issues. The technician should first check for loose connections, pinched bends, and physical damage, which are the most common causes of connection problems. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 14

Private cloud environments are designed for use by a single organization and offer the greatest control over security and access to data. They are typically used for sensitive or confidential data, such as health and criminal justice records. Public cloud environments are shared by multiple organizations and offer less control over security and access to data. Hybrid cloud environments combine public and private clouds, while community clouds are shared by multiple organizations with similar needs. References: CompTIA A+ Certification Exam: Core 1 - Page 234

The issue of video but no audio on a projector in a conference room can be resolved by utilizing an HDMI connection between the PC and the projector. HDMI supports both video and audio signals and is commonly used to connect a PC to a projector for presentations. Changing the input on the projector to VGA, changing the output on the PC to DVI, or modifying the projector's refresh rate will not resolve the issue. References: CompTIA A+ Certification Exam: Core 1 - Objective 2.5

Based on the information recorded by the technician, the network connection appears to be functioning normally. The user's computer is properly configured with an IPv4 address, subnet mask, and default gateway, which should allow the user to access the internet and online videos. The high download and upload speeds and low ping time recorded from the test laptop also indicate that the network is working well. However, the user's inability to watch online videos suggests that there might be an issue with the network card (NIC) on the user's computer. The NIC might be faulty or malfunctioning, which is preventing the computer from receiving and processing the video data. The technician should try replacing the NIC to resolve the issue.

The phone's GPS may fail due to a loss of service from the carrier, which provides the phone with GPS location data. The fact that the in-car GPS continued to function suggests that the issue was related to the phone, not the GPS satellites. References: CompTIA A+ Certification Study Guide, Tenth Edition, pg. 372

Metered utilization of cloud resources refers to payments made only for resources that are used. Cloud providers offer a pay-as-you-go model where customers are charged based on their usage of resources. Customers can easily scale up or down their usage of resources as per their needs and only pay for what they use. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition by Mike Meyers (Page 642)

Thin, vertical lines on every printed page are usually caused by a dirty drum or toner cartridge. Performing the drum-cleaning procedure will likely resolve the issue. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 18

Device interference is the most likely cause of the wireless connection dropping or becoming slow. Interference can come from other wireless devices, microwave ovens, or physical barriers like walls and metal objects. Hidden SSID, Ethernet port flapping, and high ISP latency are not likely to cause this issue.

Wireless interference from other devices can cause a drop in wireless connection speed and stability. In a small office environment, there may be several wireless devices competing for the same bandwidth, causing the issues described. References: CompTIA A+ Certification Exam Core 1 Exam Objectives - 3.7 Given a scenario, troubleshoot wired and wireless networks with appropriate tools

The clicking sound is the sound of a damaged disk in the HDD

A clicking sound from a hard disk drive typically indicates a mechanical failure, such as the read/write head hitting a physical obstruction or a problem with the disk motor. This can cause the drive to fail to initialize or not be recognized by the system during booting.

Toner Probe Many cable testers also incorporate the function of a toner probe, which is used to identify a cable from within a bundle. This may be necessary when the cables have not been labeled properly. The tone generator is connected to the cable using an RJ45 jack and applies a continuous audio signal on the cable. The probe is used to detect the signal and follow the cable over ceilings and through ducts or identify it from within the rest of the bundle.

Mobile Device Management (MDM) is a software solution that allows companies to manage and secure mobile devices used in the corporate environment. MDM provides features such as remote data wipe, application management, and device security policies to ensure data protection and compliance with company policies. References: CompTIA A+ Certification Exam Objectives 220-1001 - Mobile device hardware and operating systems - 2.8

NFC (Near Field Communication) is a technology used for short-range wireless communication between devices, typically used for contactless payments and authentication. In this scenario, the 13.56MHz frequency short band was implemented, and users can authenticate using their mobile devices, which requires NFC to be enabled on the device. References: CompTIA A+ Certification Exam Objectives 220-1001 - Mobile device network and device synchronization - 4.4

http://www.221021.com/Hardware/input-output-devices/32310.html

1. Identify the problem.

Gather information from the user, identify user changes, and, if applicable, perform backups before making changes.

Inquire regarding environmental or infrastructure changes.

2. Establish a theory of probable cause (question the obvious).

If necessary, conduct external or internal research based on symptoms.

3. Test the theory to determine the cause.

Once the theory is confirmed, determine the next steps to resolve the problem.

If the theory is not confirmed, re-establish a new theory or escalate.

4. Establish a plan of action to resolve the problem and implement the solution.

Refer to the vendor's instructions for guidance.

5. Verify full system functionality and, if applicable, implement preventive measures.

6. Document the findings, actions, and outcomes.

If a laptop has been returned for a screen repair and the owner insists the screen is broken, but occasionally a faded image is able to be seen in very bright settings on the desktop, the first step the repair technician should take is to ensure the backlight is functioning as expected. If the backlight is faulty, the screen may appear to be broken, but it may only be dim or too dark to be visible

Answer of both steps below.

https://www.vingle.net/posts/4651722

A damaged battery can cause a laptop to overheat and swell, making it unable to sit level on the workspace. A swollen battery can also pose a fire hazard and damage other components of the laptop, such as the motherboard or keyboard. The technician should replace the battery as soon as possible and dispose of it properly according to local regulations. Reference: https://partners.comptia.org/docs/default-source/resources/a-core-series-combined-content-guide (page 25)

A sandbox environment is an isolated testing environment where code can be written and tested without impacting other infrastructure. This provides a safe and controlled environment for experimentation and development. References: CompTIA A+ Certification Exam Core 2 Exam Objectives - 5.5 Compare and contrast common workstation security best practices

Opening multiple large Excel files simultaneously requires a large amount of RAM. Upgrading the RAM in the workstation should improve performance. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 9

SMTP (Simple Mail Transfer Protocol) uses port 25 to send email messages between servers12.

SMTP uses port 25 to send email messages between mail servers. Therefore, the system administrator should enable port 25 to allow SMTP traffic through the host-based firewall. References: CompTIA A+ Certification Study Guide, Tenth Edition, pg. 282

A smartphone that takes more than a day to fully charge may be due to a charger that is not powerful enough. The technician should verify that the charger is rated for the smartphone’s battery capacity and that it is providing the correct voltage and amperage123.

DDR3 is the most commonly used RAM type in modern desktop computers. It is faster and more energy efficient than its predecessors, and offers larger capacity modules. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 5

If users are experiencing decreased bandwidth and connectivity issues in a Wi-Fi mesh network, the technician should use a Wi-Fi analyzer to determine whether the channel in use is overcrowded and to identify which channel the mesh network should use for best performance. References: CompTIA A+ Certification Study Guide, Tenth Edition, pg. 308

A router (option C) is a network device that is used to separate broadcast domains. A broadcast domain is a logical division of a computer network in which all nodes can reach each other by broadcast at the data link layer. Routers operate at the network layer of the OSI model and use routing tables to determine the best path for forwarding packets between different networks.

By separating broadcast domains, routers can help to reduce network congestion and improve performance. When a router receives a broadcast packet on one of its interfaces, it does not forward the packet to any other interfaces. This means that only devices within the same broadcast domain as the sender will receive the broadcast packet.

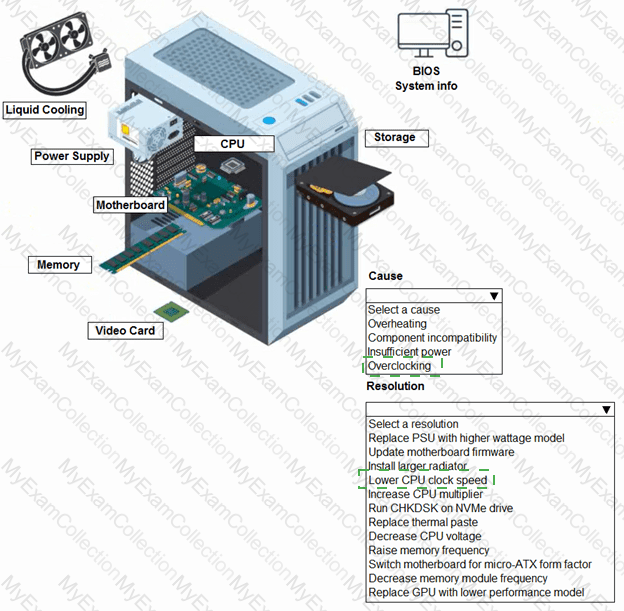

The unexpected reboots on a graphics workstation when rendering complex 3-D models may be caused by insufficient power supply. The workstation is configured with a 115V power supply that is rated at 200W, which may not be enough when the GPU is heavily tasked. The technician should begin troubleshooting by checking the power supply.

https://www.lifewire.com/fix-it-when-webcam-is-not-working-4588517

If a laptop's external webcam software is running, but it shows no image or video, the first step the technician should perform is to reseat the webcam. Reseating the webcam involves disconnecting it from the motherboard and then reconnecting it. If this doesn't work, the technician should then check the webcam drivers or software. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition by Mike Meyers (Page 502)

The most likely cause of the issue is that the page orientation is incorrect. The printer may be set to print labels in a different orientation than the orientation of the label sheet1.

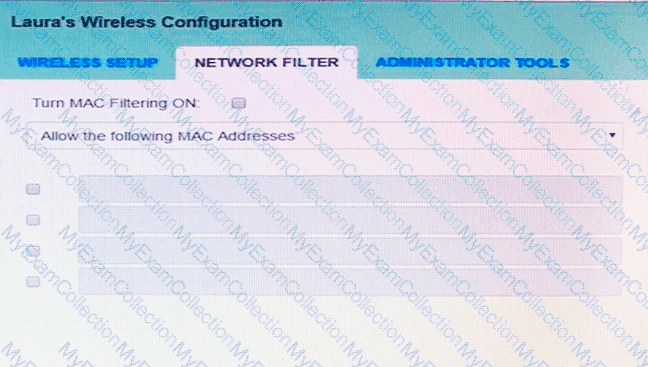

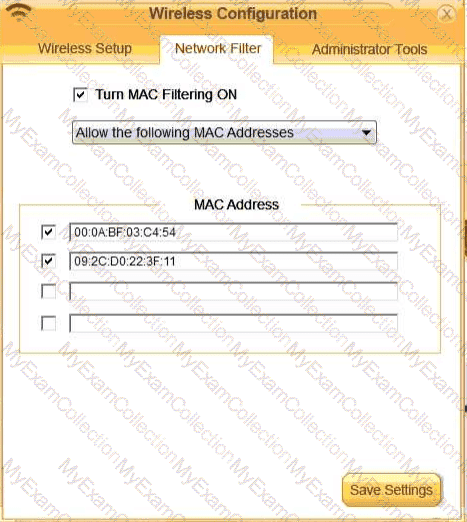

The technician should check the MAC filtering list next as the new router may have a different MAC address than the old router. References: CompTIA A+ Certification Exam Guide, Exam 220-1001, Page 332

The 802.11n wireless networking standard supports Multiple Input Multiple Output (MIMO) technology. MIMO technology uses multiple antennas on both the transmitting and receiving devices to improve wireless performance by increasing the amount of data that can be transmitted simultaneously. 802.11a, 802.11b, and 802.11g do not support MIMO technology. References: CompTIA A+ Certification Exam: Core 1 - Objective 3.3

Domain Name System (DNS) is an Internet service that translates domain names (e.g., its.umich.edu) into IP addresses. Dynamic Host Configuration Protocol (DHCP) is a protocol for automatically assigning IP addresses and other configurations to devices when they connect to a network.

The technician should check the level of network utilization to determine if there is an excessive amount of traffic that may be causing the slow access to the network fileshare. This can be done using network monitoring tools to track the amount of data being transmitted on the network. References: CompTIA A+ Certification Exam Objectives 1001, 2.9

An uninterruptible power supply (UPS) can help ensure maximum uptime for customers' virtual machines by providing a backup power source in case of a power outage or other power-related issues. A line conditioner and AC voltage regulator are designed to stabilize the power supply, but do not provide backup power. Cloud storage backup is a way to backup data, but does not directly impact uptime. References: CompTIA A+ Certification Exam: Core 1 - Page 159

The MOST efficient next step the technician should complete is to check the printer paper path to locate any obstructions1. The error message “Paper Jam, Jam in fuser” indicates that there is a paper jam in the fuser2. The fuser is one of the parts of a laser printer most likely to fail without giving any explicit message2.

The printer LCD screen indicates a paper jam in the fuser. The most efficient next step the technician should complete is to check the printer paper path to locate any obstructions. Applying a maintenance kit or replacing the fuser may not be necessary if the issue is caused by a paper jam.

The cloud model that BEST addresses the company’s need is the Community cloud model. A community cloud is a cloud infrastructure in which multiple organizations share resources and services based on common operational and regulatory requirements. The concept of a community cloud is akin to a community garden, where different individuals grow produce on a single piece of shared land1.

A DHCP reservation is a feature that allows a DHCP server to assign a specific IP address to a specific device on a network, based on its MAC address. This ensures that the device always receives the same IP address, even if it is disconnected or rebooted. A DHCP reservation is most likely applied to a printer, as it can make it easier for users to find and connect to the printer on the network, without having to change the printer settings or deal with IP address conflicts. Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (page 84)
